Is there continuity?

YES -Repair short in the wires between the TPSA line and the TPSB line, then go to step 16.

NO -Go to step 14.

14. Turn the ignition switch OFF.

15. Replace the throttle body (see THROTTLE BODY REMOVAL/INSTALLATION ).

16. Reconnect all connectors.

17. Turn the ignition switch ON (II).

18. Reset the ECM/PCM with the HDS.

19. Do the ECM/PCM idle learn procedure (see ECM/PCM IDLE LEARN PROCEDURE ).

20. Check for Temporary DTCs or DTCs with the HDS.

Is DTC P2135 indicated?

YES -Check for poor connections or loose terminals at the throttle body and the throttle actuator control
module, then go to step 1

NO -Troubleshooting is complete. If any other Temporary DTCs or DTCs are indicated, go to the
INDICATED DTCS TROUBLESHOOTING.

DTC P2138: APP SENSOR A/B (TP SENSOR D/E) INCORRECT VOLTAGE CORRELATION

1. Turn the ignition switch ON (II).

2. Clear the DTC with the HDS.

3. Press the accelerator pedal to the floor.

4. Check for Temporary DTCs or DTCs with the HDS.

Is DTC P2138 indicated?

YES -Go to step 5.

NO -Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at
APP sensor A/B and the ECM/PCM.

5. Check APP SENSOR A and APP SENSOR B in the DATA LIST with the HDS.

Are they the same voltage?

NOTE:

Before you troubleshoot, record all freeze data and any on-board snapshot, and
review the general troubleshooting information (see GENERAL
TROUBLESHOOTING INFORMATION ).



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE Electronic Throttle Control System - Element



YES -Go to step 6.

NO -Go to step 11.

6. Turn the ignition switch OFF.

7. Jump the SCS line with the HDS.

8. Disconnect the APP sensor 6P connector.

9. Disconnect ECM/PCM connector A (31P).

10. Check for continuity between ECM/PCM connector terminals A25 and A26.

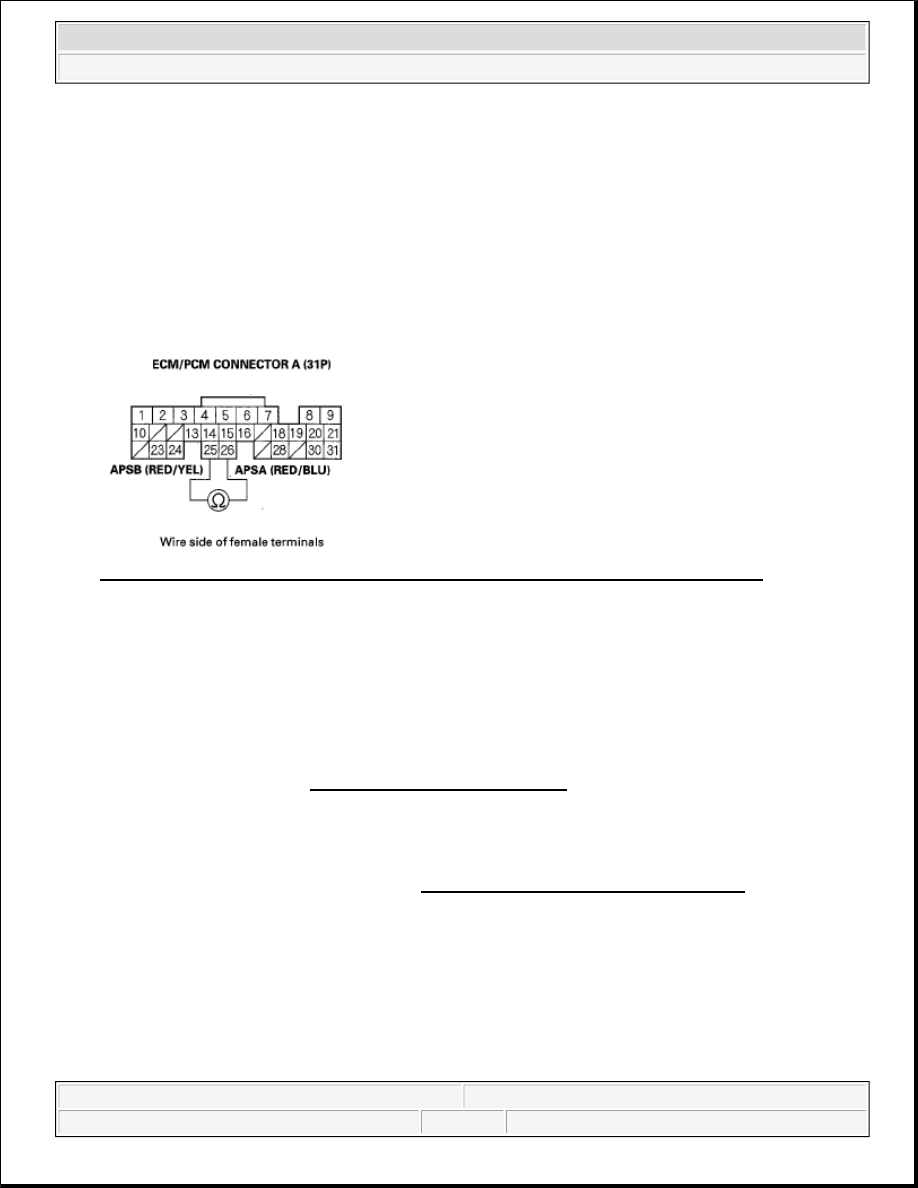

Fig. 44: Checking Continuity Between ECM/PCM Connector Terminals A25 And A26
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -Repair short in the wires between the ECM/PCM terminals (A25, A26), then go to step 13.

NO -Go to step 21.

11. Turn the ignition switch OFF.

12. Replace the APP sensor (see APP SENSOR REPLACEMENT ).

13. Reconnect all connectors.

14. Turn the ignition switch ON (II).

15. Reset the ECM/PCM with the HDS.

16. Do the ECM/PCM idle learn procedure (see ECM/PCM IDLE LEARN PROCEDURE ).

17. Turn the ignition switch OFF.

18. Turn the ignition switch ON (II).

19. Press the accelerator pedal to the floor.

20. Check for Temporary DTCs or DTCs with the HDS.

Is DTC P2138 indicated?

YES -Check for poor connections or loose terminals at the APP sensor and the ECM/PCM, then go to



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE Electronic Throttle Control System - Element



step 1.

NO -Troubleshooting is complete. If any other Temporary DTCs or DTCs are indicated, go to the
INDICATED DTCS TROUBLESHOOTING.

21. Reconnect all connectors.

22. Update the ECM/PCM if it does not have the latest software (see UPDATING THE ECM/PCM ), or

substitute a known-good ECM/PCM (see SUBSTITUTING THE ECM/PCM ).

23. Turn the ignition switch OFF.

24. Turn the ignition switch ON (II).

25. Press the accelerator pedal to the floor.

26. Check for Temporary DTCs or DTCs with the HDS.

Is DTC P2138 indicated?

YES -Check for poor connections or loose terminals at the APP sensor and the ECM/PCM. If the
ECM/PCM was updated, substitute a known-good ECM/PCM (see SUBSTITUTING THE
ECM/PCM ), then go to step 23. If the ECM/PCM was substituted, go to step 1.

NO -If the ECM/PCM was updated, troubleshooting is complete. If the ECM/PCM was substituted,
replace the original ECM/PCM (see ECM/PCM REPLACEMENT ). If any other Temporary DTCs or
DTCs are indicated, go to the INDICATED DTCS TROUBLESHOOTING.

DTC P2176: THROTTLE ACTUATOR CONTROL SYSTEM IDLE POSITION NOT LEARNED

1. Turn the ignition switch ON (II).

2. Clear the DTC with the HDS.

3. Turn the ignition switch OFF.

4. Turn the ignition switch ON (II), and wait 10 seconds.

5. Check for Temporary DTCs or DTCs with the HDS.

Is DTC P2176 indicated?

CAUTION: Do not insert your fingers into the installed throttle body when you turn

the ignition switch ON (II) or while the ignition switch is ON (II). If you do,
you will seriously injure your fingers if the throttle valve is activated.

NOTE:



Before you troubleshoot, record all freeze data and any on-board
snapshot, and review the general troubleshooting information (see
GENERAL TROUBLESHOOTING INFORMATION ).



If DTC P2135 is stored at the same time as DTC P2176, troubleshoot DTC
P2135 first, then recheck for DTC P2176.



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE Electronic Throttle Control System - Element



YES -Go to step 6.

NO -Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at
the throttle body and the throttle actuator control module, then clean the throttle body (see THROTTLE
BODY CLEANING ).

6. Turn the ignition switch OFF.

7. Disconnect the intake air duct from the throttle body.

8. Turn the ignition switch ON (II).

9. Clear the DTC with the HDS.

10. Visually check the throttle valve operation while doing the ETCS TEST in the INSPECTION MENU

with the HDS.

Does the throttle valve move to its fully closed position?

YES -Go to step 11.

NO -Go to step 12.

11. Check for sludge or carbon on the throttle valve.

Is there sludge or carbon on the throttle valve?

YES -Clean the throttle body (see THROTTLE BODY CLEANING ), then go to step 20.

NO -Go to step 17.

12. Turn the ignition switch OFF.

13. Disconnect the throttle body 6P connector.

14. Disconnect the throttle actuator control module 16P connector (see THROTTLE ACTUATOR

CONTROL MODULE REPLACEMENT ).

15. Connect throttle body 6P connector terminals No. 5 and No. 6 with a jumper wire.

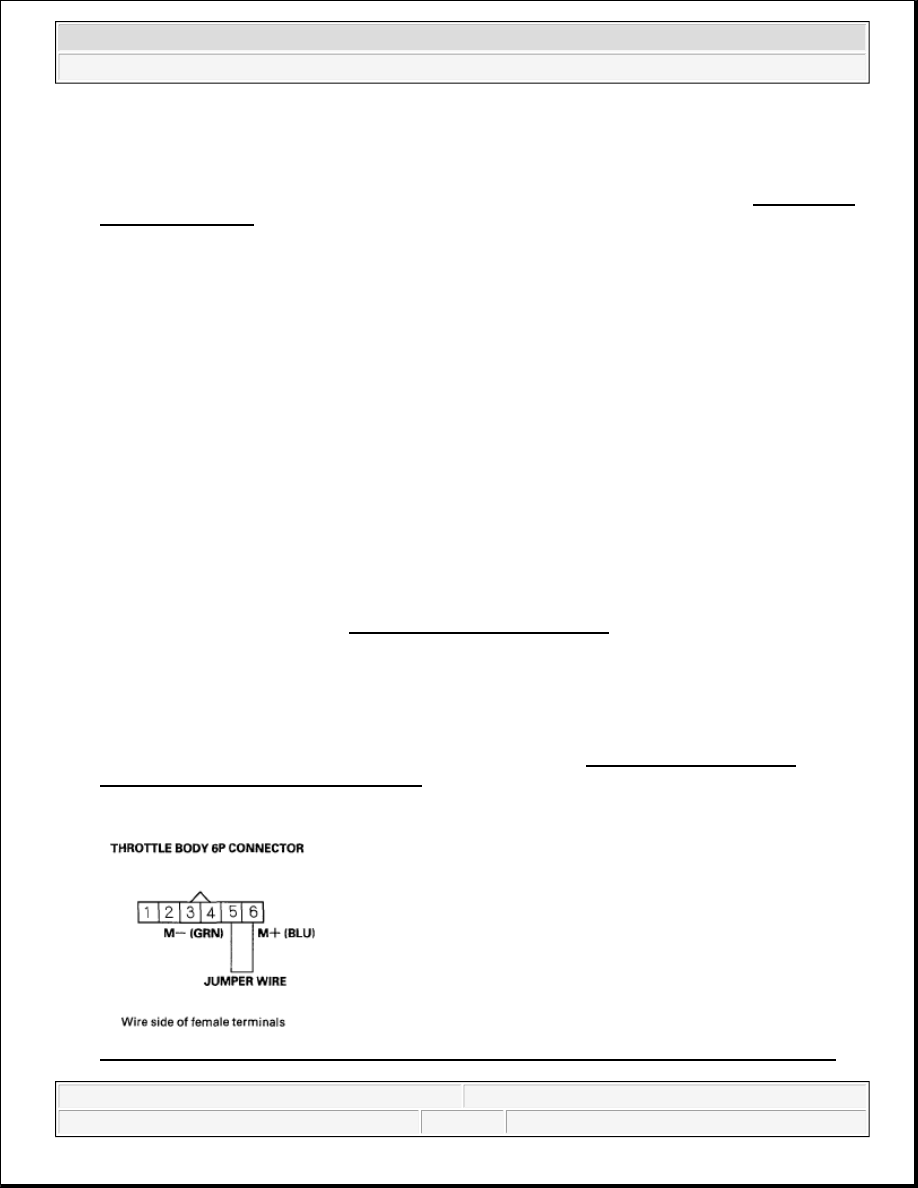

Fig. 45: Connecting Throttle Body 6P Connector Terminals No. 5 And No. 6 With Jumper Wire
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE Electronic Throttle Control System - Element
