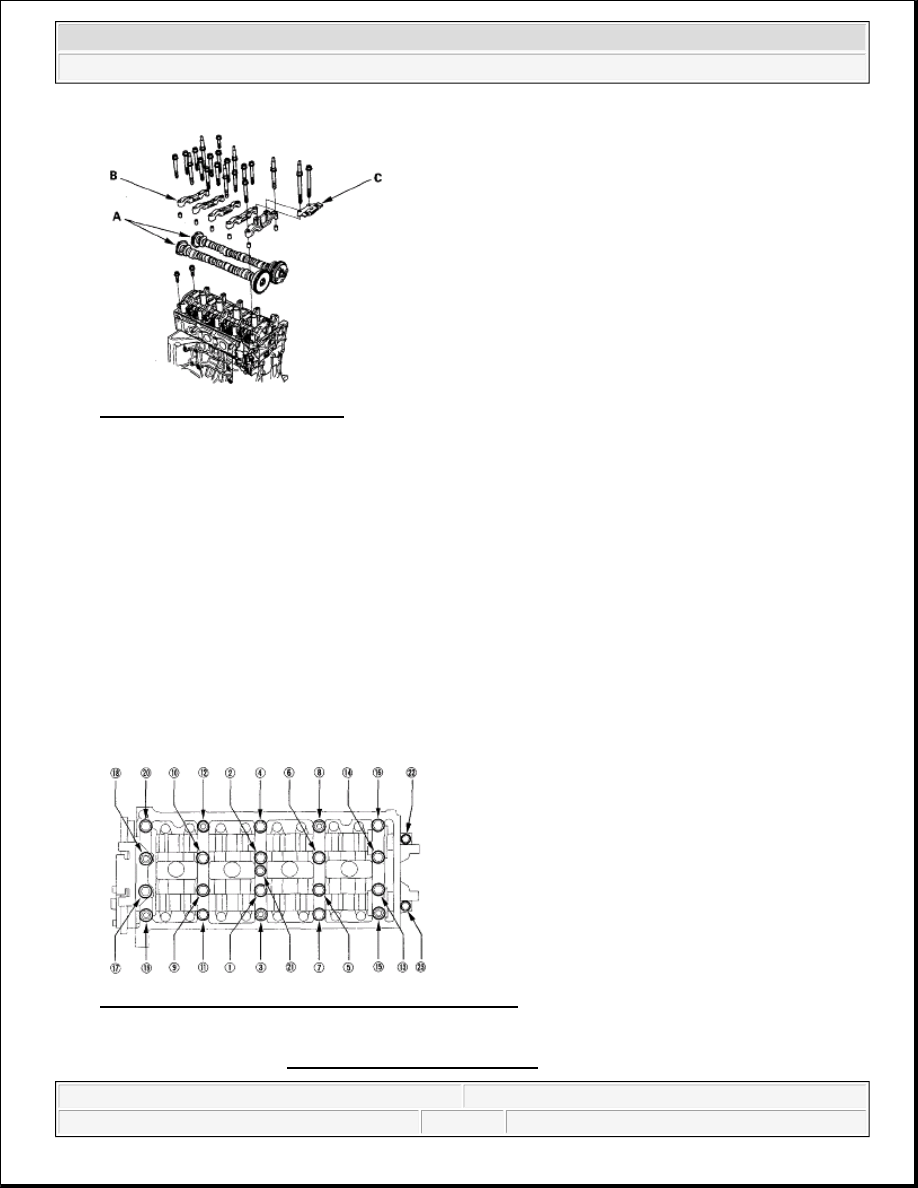

Fig. 120: Identifying Camshafts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. Set the camshaft holders (B) and cam chain guide B (C) in place.

8. Torque the bolts in the specified sequence.

Specified Torque

8 mm Bolts: 22 N.m (2.2 kgf.m, 16 lbf.ft)

6 mm Bolts: 12 N.m (1.2 kgf.m, 8.8 lbf.ft)

6 mm Bolts: (21), (22), (23)

Fig. 121: Identifying Camshaft Bolts Torque Sequence
Courtesy of AMERICAN HONDA MOTOR CO., INC.

9. Install the cam chain (see CAM CHAIN INSTALLATION ), and adjust the valve clearance (see

NOTE:

If the engine does not have bolt(21), skip it and continue the torque
sequence.



2007 Honda Element EX

2007-2008 ENGINE Cylinder Head - Element



VALVE CLEARANCE ADJUSTMENT ).

CYLINDER HEAD INSTALLATION

Install the cylinder head in the reverse order of removal:

1. Install a new coolant separator in the engine block whenever the engine block is replaced.

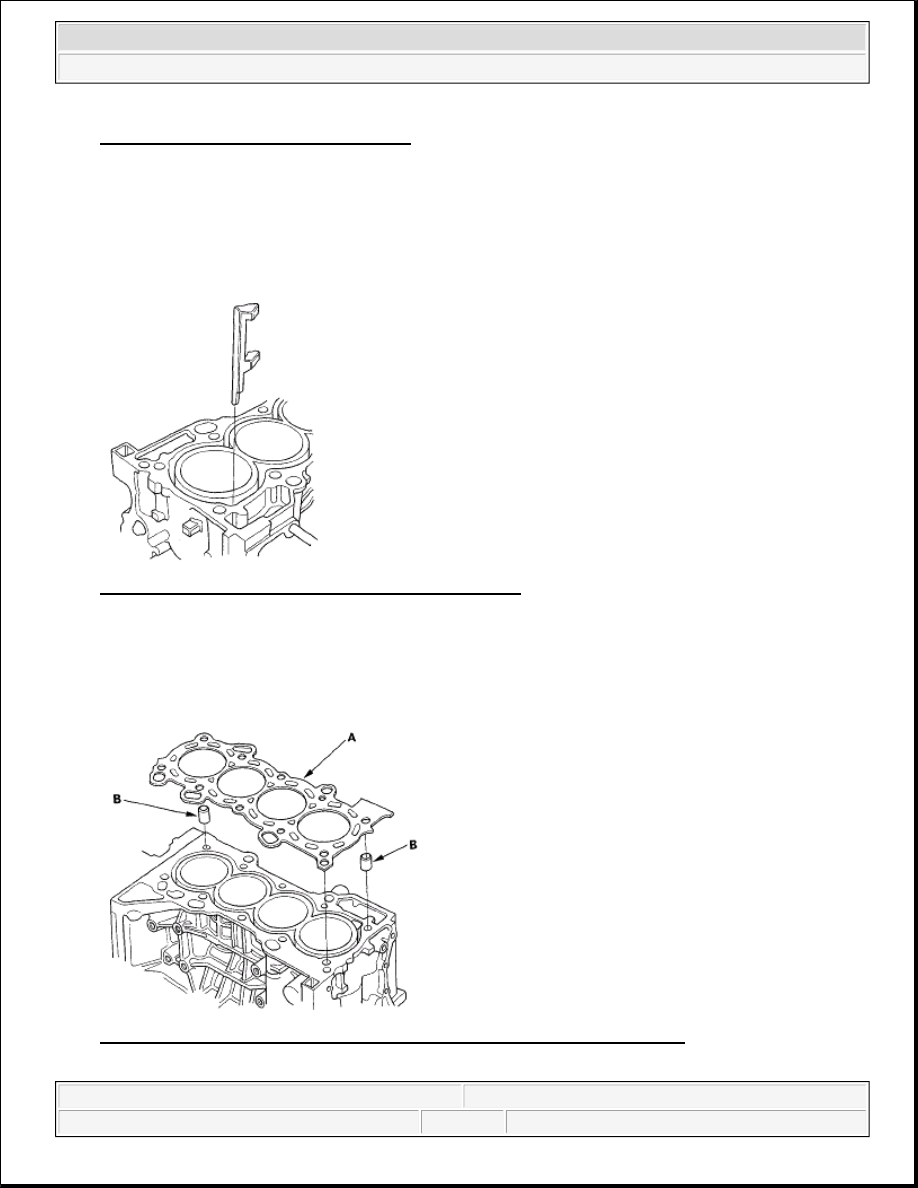

Fig. 122: Installing Coolant Separator In Engine Block
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Clean the cylinder head and engine block surface.

3. Install the new cylinder head gasket (A) and dowel pins (B) on the engine block. Always use a new

cylinder head gasket.

Fig. 123: Installing Cylinder Head Gasket And Dowel Pins On Engine Block
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Honda Element EX

2007-2008 ENGINE Cylinder Head - Element



4. Set the crankshaft to top dead center (TDC). Align the TDC mark (A) on the crankshaft sprocket with the

pointer (B) on the engine block.

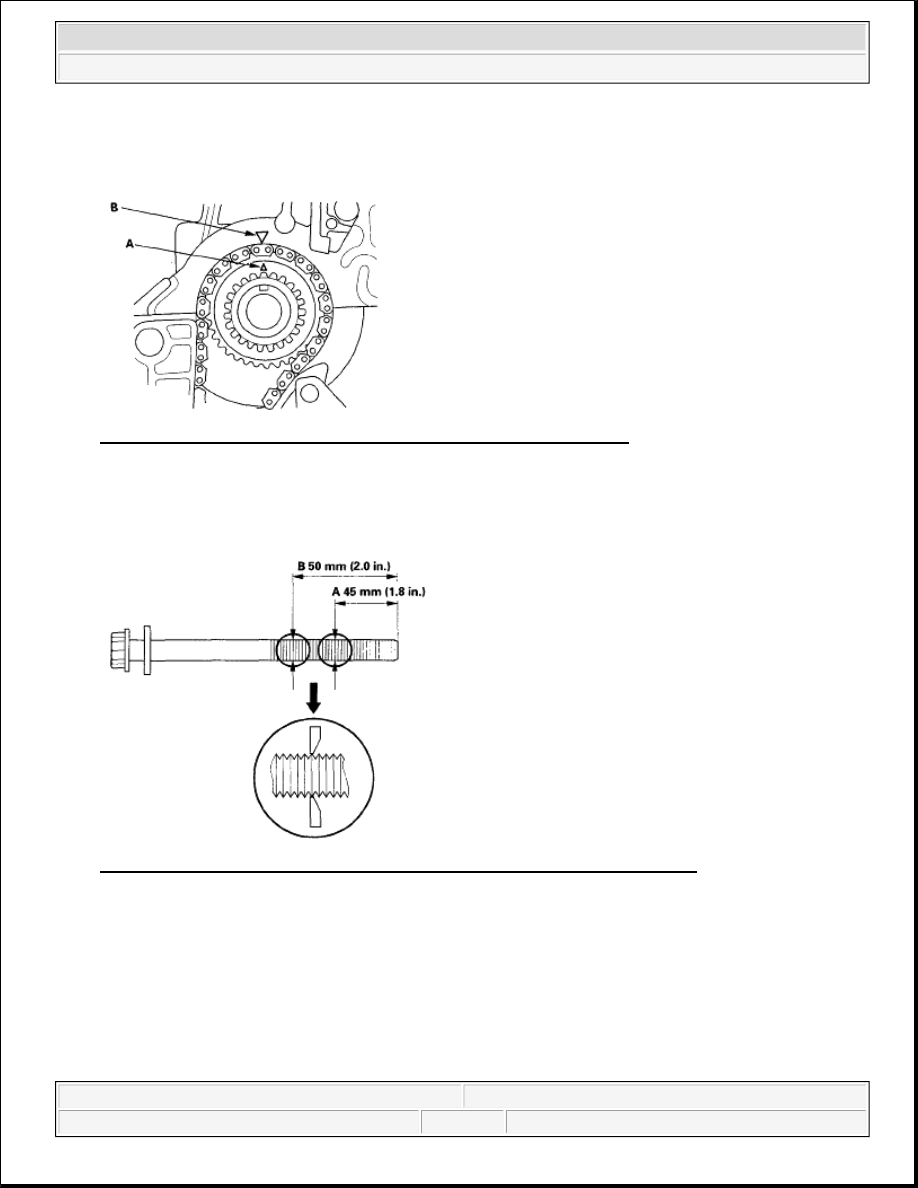

Fig. 124: Aligning TDC Mark On Crankshaft Sprocket With Pointer
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Install the cylinder head on the engine block.

6. Measure the diameter of each cylinder head bolt at point A and point B.

Fig. 125: Measuring Diameter Of Cylinder Head Bolt At Point A And Point B
Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. If either diameter is less than 10.6 mm (0.42 in.), replace the cylinder head bolt.

8. Apply new engine oil to the threads and flange of all the cylinder head bolts.

9. Torque the cylinder head bolts in sequence to 40 N.m (4.0 kgf.m, 29 lbf.ft). Use a beam-type torque

wrench. When using a preset-type torque wrench, be sure to torque slowly and do not over torque. If a
bolt makes any noise while you are torquing it, loosen the bolt and torque it from the first step.



2007 Honda Element EX

2007-2008 ENGINE Cylinder Head - Element



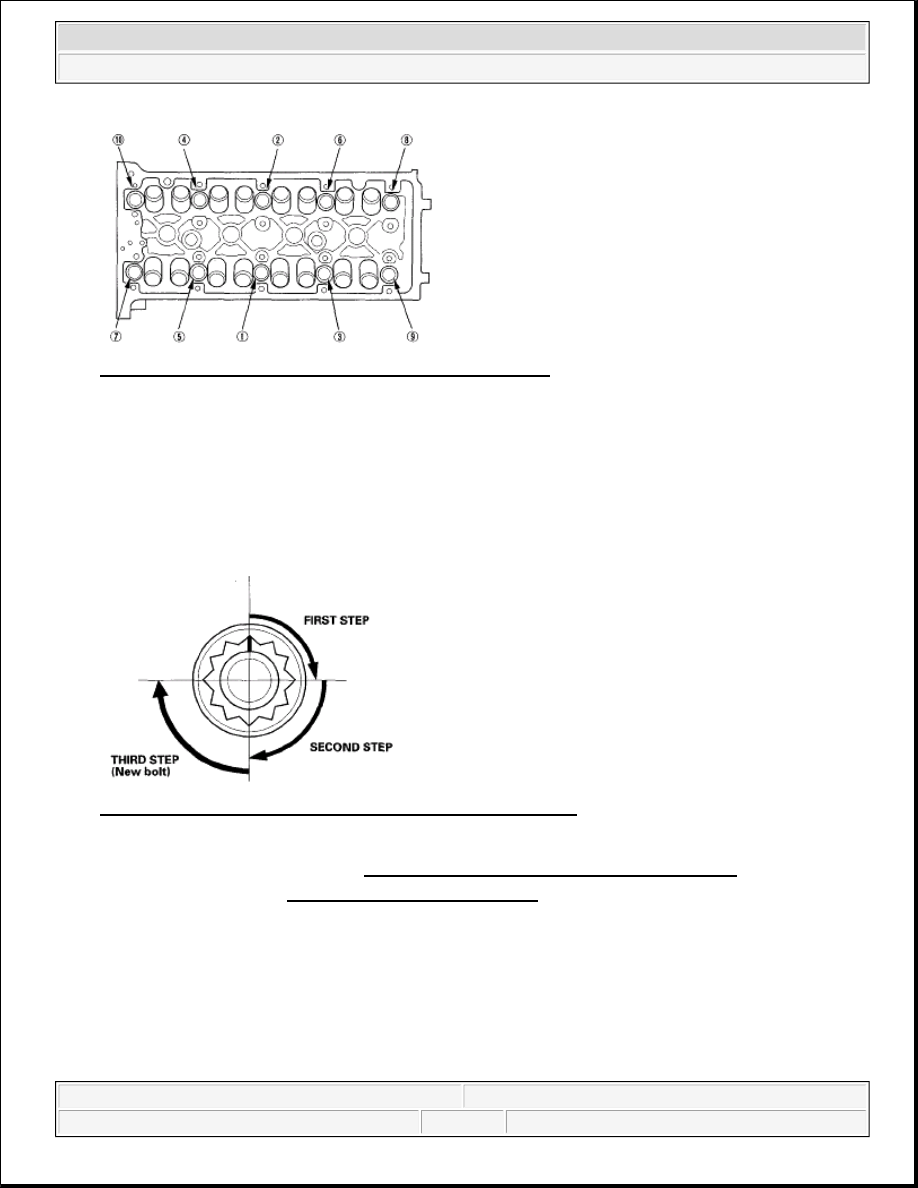

Fig. 126: Identifying Cylinder Head Bolt Torque Sequence
Courtesy of AMERICAN HONDA MOTOR CO., INC.

10. After torquing, torque all cylinder head bolts in two steps (90° per step). If you are using a new cylinder

head bolt, torque the bolt an extra 90°.

Fig. 127: Identifying Cylinder Head Bolt Tightening Sequence
Courtesy of AMERICAN HONDA MOTOR CO., INC.

11. Install the rocker arm assembly (see ROCKER ARM ASSEMBLY INSTALLATION ).

12. Install the cam chain (see CAM CHAIN INSTALLATION ).

13. Torque the three bolts (A) securing the evaporative emission (EVAP) canister purge valve bracket, and

torque the two bolts (B) securing the harness brackets.

NOTE:

Remove the cylinder head bolt if you torqued it beyond the specified
angle, and go back to step 6 of the procedure. Do not loosen it back to the
specified angle.
