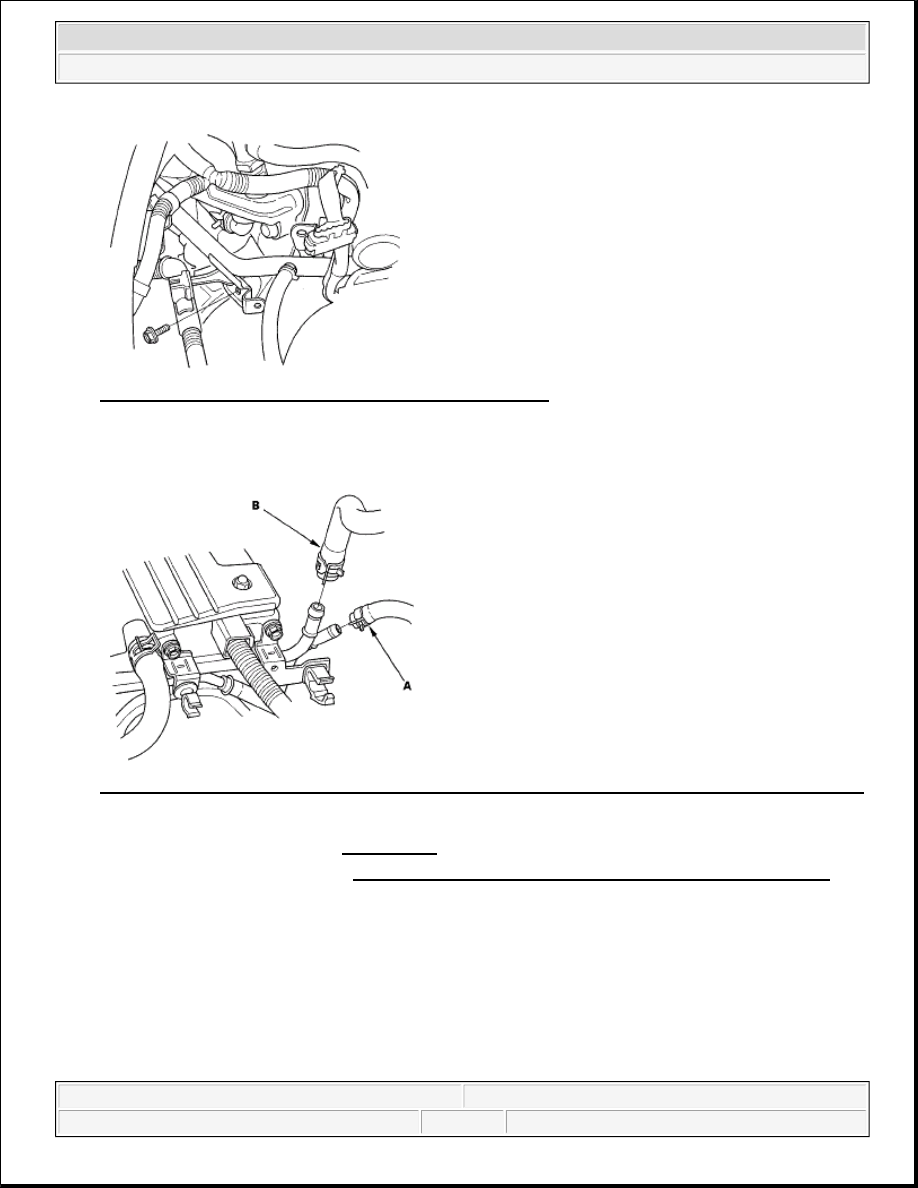

Fig. 74: Identifying Connecting Pipe Support Bracket Bolt
Courtesy of AMERICAN HONDA MOTOR CO., INC.

8. Remove the evaporative emission (EVAP) canister hose (A) and brake booster vacuum hose (B).

Fig. 75: Identifying Evaporative Emission (EVAP) Canister Hose And Brake Booster Vacuum Hose
Courtesy of AMERICAN HONDA MOTOR CO., INC.


9. Remove the intake manifold (see REMOVAL ).

10. Remove the exhaust manifold (see EXHAUST MANIFOLD REMOVAL AND INSTALLATION ).

11. Remove the positive crankcase ventilation (PCV) hose (A) and ground cable (B).



2007 Honda Element EX

2007-2008 ENGINE Cylinder Head - Element



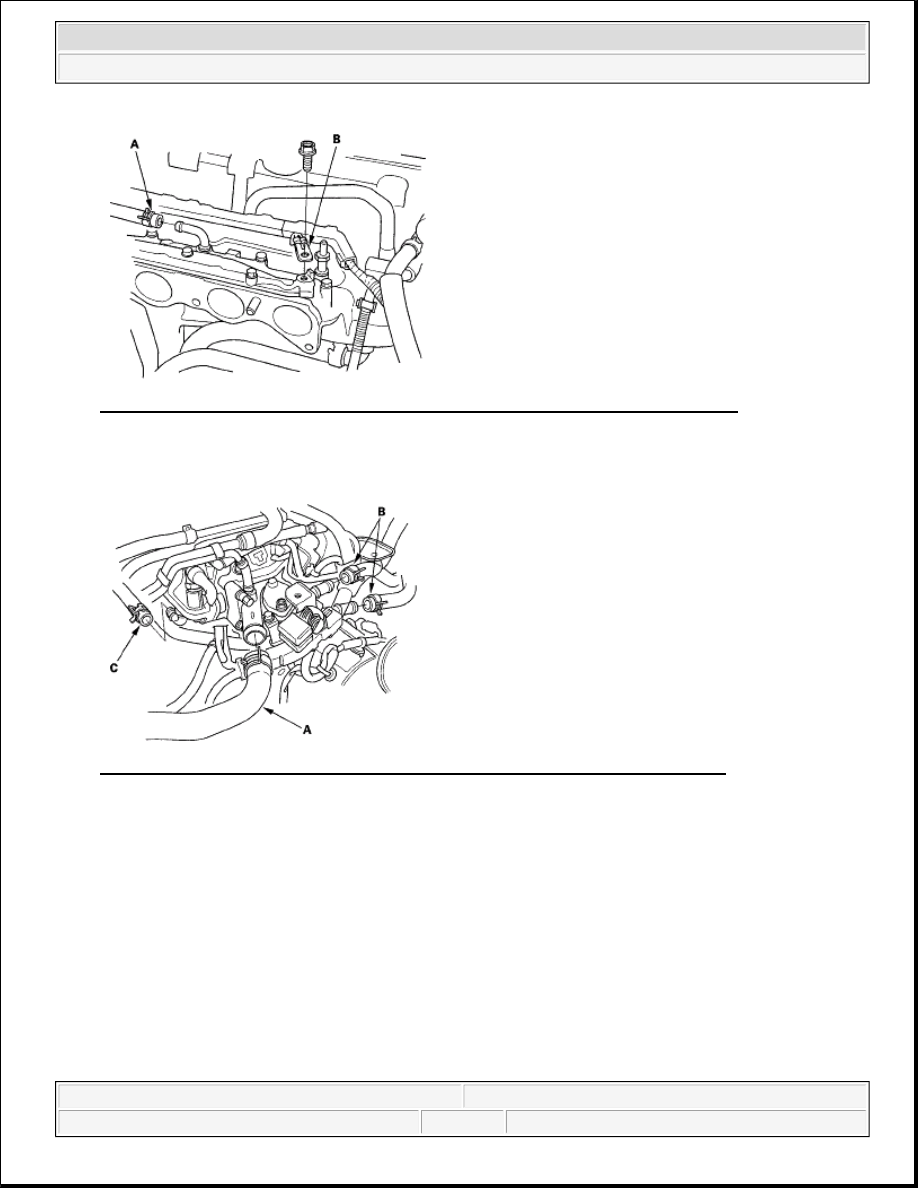

Fig. 76: Identifying Positive Crankcase Ventilation (PCV) Hose And Ground Cable
Courtesy of AMERICAN HONDA MOTOR CO., INC.

12. Remove the upper radiator hose (A), heater hoses (B), and water bypass hose (C).

Fig. 77: Identifying Upper Radiator Hose, Heater Hoses, And Water Bypass Hose
Courtesy of AMERICAN HONDA MOTOR CO., INC.

13. Remove the engine wire harness connectors and wire harness clamps from the cylinder head.

Four injector connectors

Engine coolant temperature (ECT) sensor 1 connector

Camshaft position (CMP) sensor A connector (Intake side)

Camshaft position (CMP) sensor B connector (Exhaust side)

Rocker arm oil control solenoid (VTEC solenoid valve) connector

Rocker arm oil pressure switch (VTEC oil pressure switch) connector

14. Remove the three bolts (A) securing the EVAP canister purge valve bracket and remove the two bolts (B)

securing the harness bracket.



2007 Honda Element EX

2007-2008 ENGINE Cylinder Head - Element



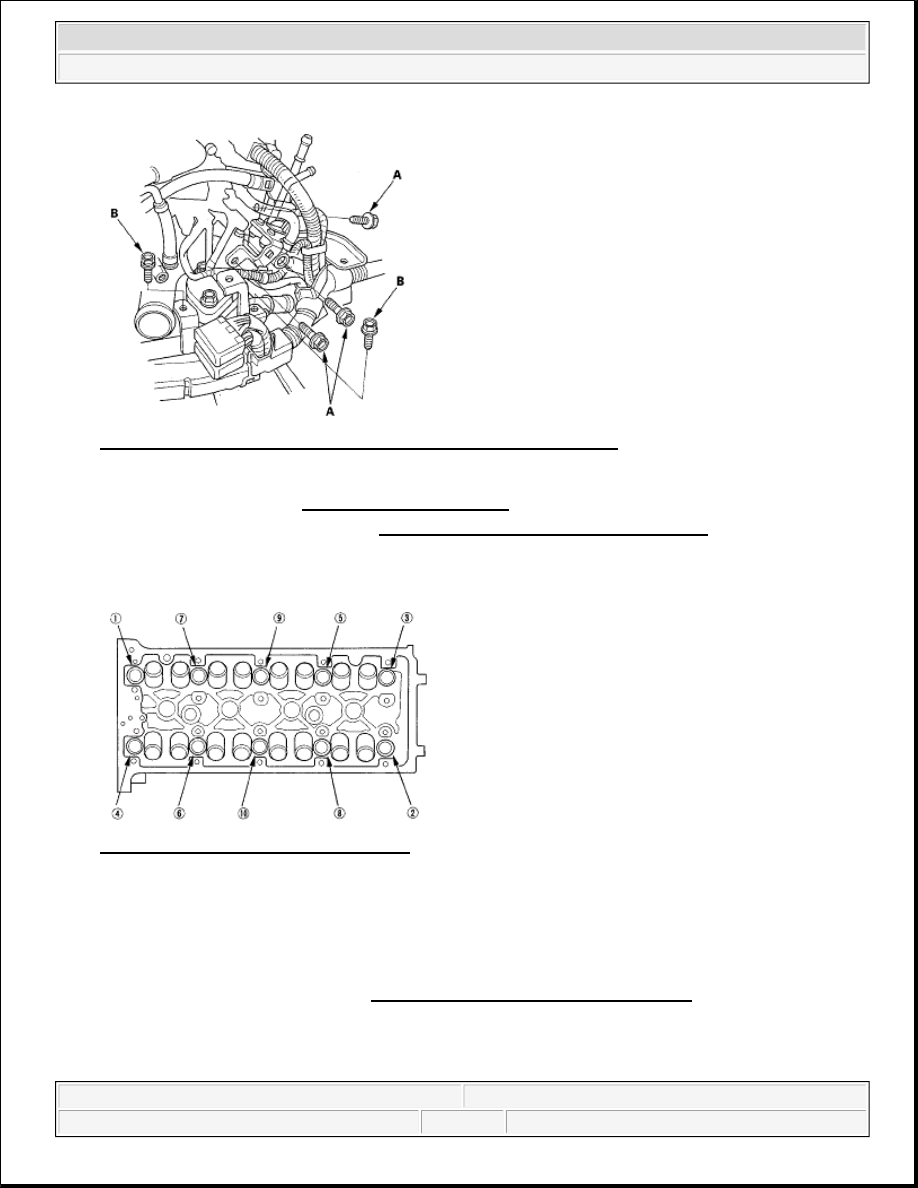

Fig. 78: Identifying EVAP Canister Purge Valve Bracket And Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

15. Remove the cam chain (see CAM CHAIN REMOVAL ).

16. Remove the rocker arm assembly (see ROCKER ARM ASSEMBLY REMOVAL ).

17. Remove the cylinder head bolts. To prevent warpage, loosen the bolts in sequence 1/3 turn at a time,

repeat the sequence until all bolts are loosened.

Fig. 79: Identifying Cylinder Head Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

18. Remove the cylinder head.

CMP PULSE PLATE A REPLACEMENT

1. Remove the cylinder head cover (see CYLINDER HEAD COVER REMOVAL ).

2. Hold the intake camshaft with an open-end wrench, then loosen the bolt.



2007 Honda Element EX

2007-2008 ENGINE Cylinder Head - Element



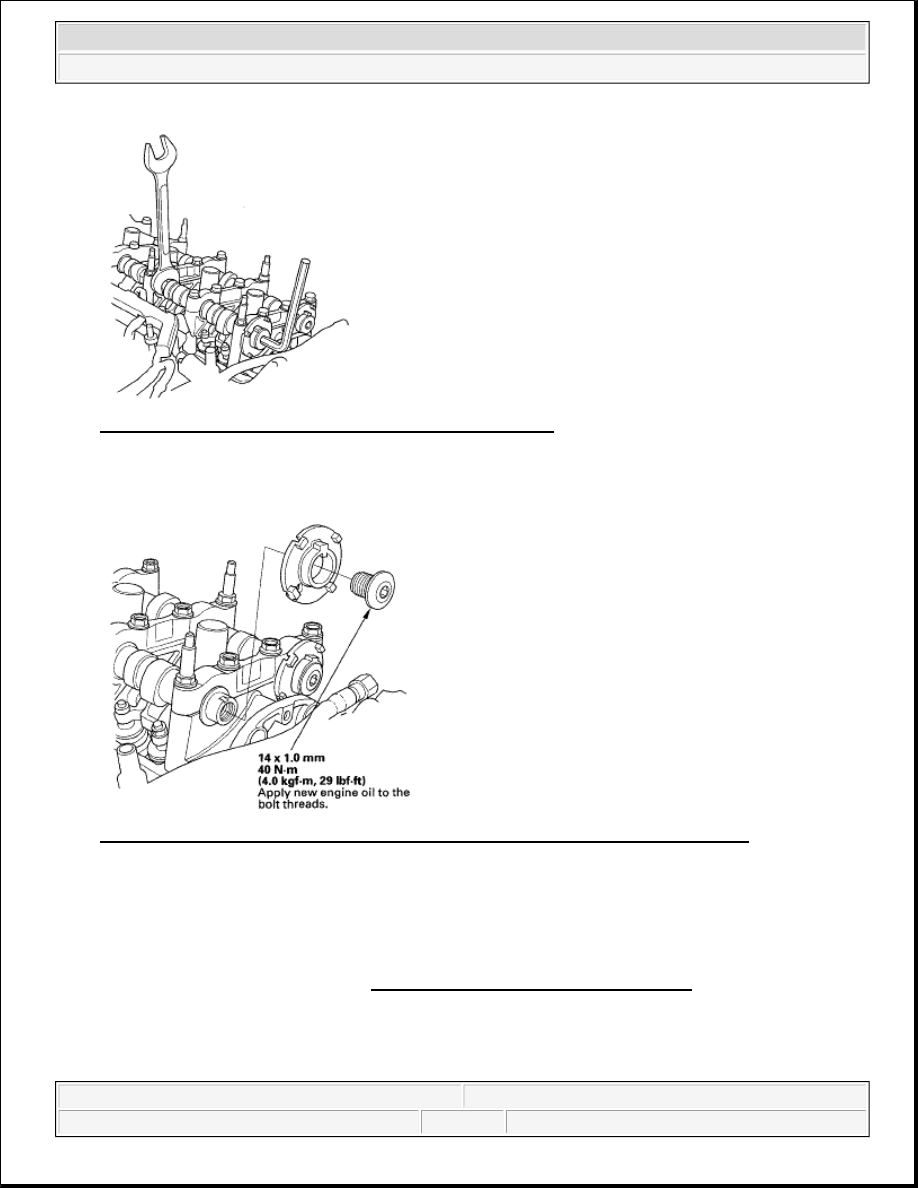

Fig. 80: Holding Intake Camshaft With Open-End Wrench
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Remove the camshaft position (CMP) pulse plate A.

Fig. 81: Identifying Camshaft Position (CMP) Pulse Plate With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Install the CMP pulse plate A in the reverse order of removal.

CMP PULSE PLATE B REPLACEMENT

1. Remove the cylinder head cover (see CYLINDER HEAD COVER REMOVAL ).

2. Hold the exhaust camshaft with an open-end wrench, then loosen the bolt.



2007 Honda Element EX

2007-2008 ENGINE Cylinder Head - Element
