3. Remove the drive belt (see DRIVE BELT INSPECTION ).

4. Remove the cylinder head cover (see CYLINDER HEAD COVER REMOVAL ).

5. Remove the crankshaft pulley (see CRANKSHAFT PULLEY REMOVAL AND INSTALLATION ).

6. Disconnect the crankshaft position (CKP) sensor connector and variable valve timing control (VTC) oil

control solenoid valve connector (see step 8 ).

7. Remove the VTC oil control solenoid valve (see VTC OIL CONTROL SOLENOID VALVE

REMOVAL/TEST/INSTALLATION ).

8. Support the engine with a jack and wood block under the oil pan.

9. Remove the ground cable, then remove the upper engine mount bracket (see step 11 ).

10. Remove the side engine mount bracket (see step 12 ).

11. Remove the chain case (see step 13 ).

12. Remove the CKP pulse plate.

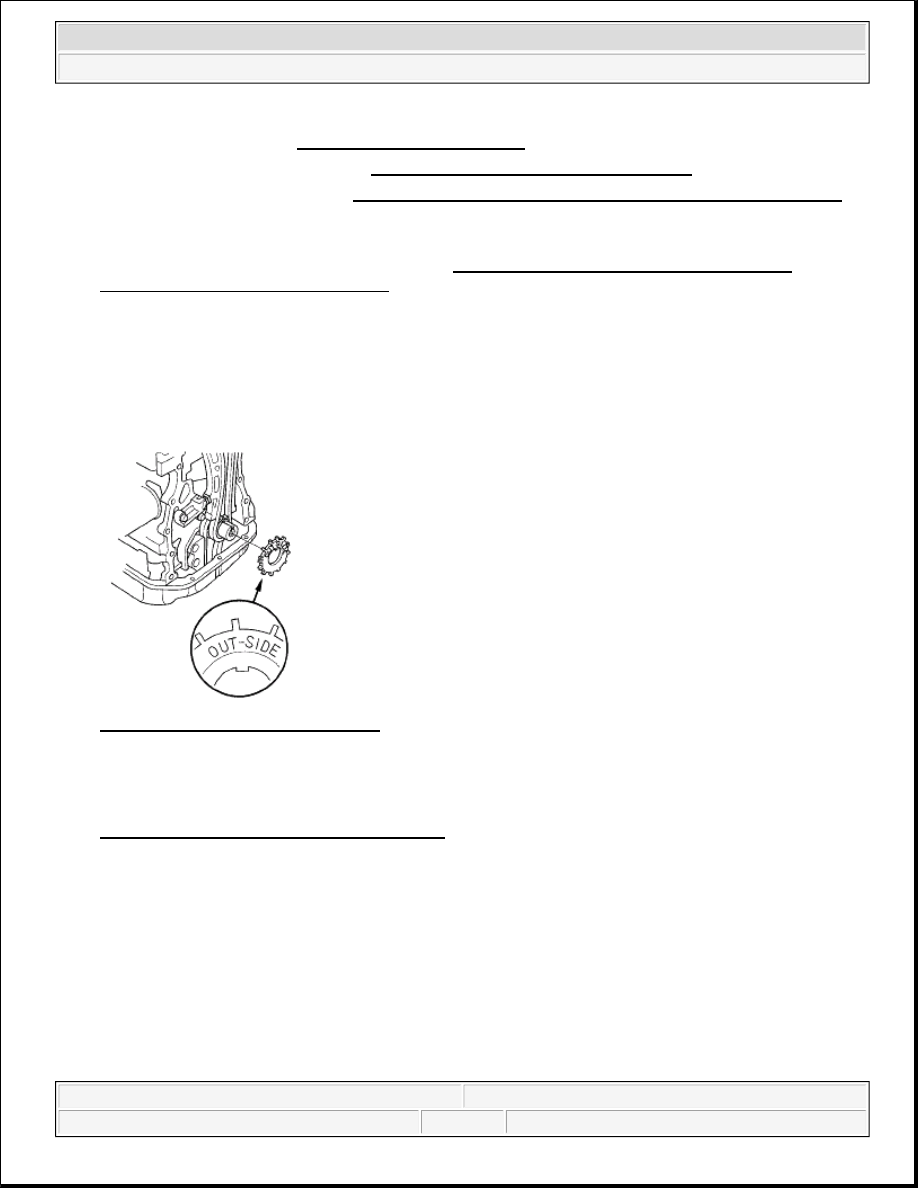

Fig. 62: Identifying CKP Pulse Plate
Courtesy of AMERICAN HONDA MOTOR CO., INC.

13. Install the CKP pulse plate.

14. Check the chain case oil seal for damage. If the oil seal is damaged, replace the chain case oil seal (see

CHAIN CASE OIL SEAL INSTALLATION ).

15. Remove any old liquid gasket from the chain case mating surfaces, bolt, and bolt holes.

16. Clean and dry the chain case mating surfaces.

17. Apply liquid gasket, P/N 08717-0004,08718-0001, 08718-0003, or 08718-0009, evenly to the engine

block mating surface of the chain case. Install the component within 5 minutes of applying the liquid
gasket (see step 16 ).

NOTE:



If you apply liquid gasket P/N 08718-0012, the component must be
installed within 4 minutes.



If too much time has passed after applying the liquid gasket, remove
the old liquid gasket and residue, then reapply new liquid gasket.



2007 Honda Element EX

2007-2008 ENGINE Cylinder Head - Element



18. Apply liquid gasket evenly to the engine block upper surface contact areas on the chain case and lower

block upper surface contact areas on the chain case (see step 17 ).

19. Apply liquid gasket, P/N 08717-0004, 08718-0001, 08718-0003, or 08718-0009, evenly to the oil pan

mating surface of the chain case. Install the component within 5 minutes of applying the liquid gasket
(see step 18 ).

20. Install the new O-ring on the chain case. Set the edge of the chain case to the edge of the oil pan, then

install the chain case on the engine block (see step 19 ). Wipe off the excess liquid gasket on the oil pan
and chain case mating surface.

21. Install the side engine mount bracket (see step 20 ).

22. Install the upper engine mount bracket and the ground cable (see step 21 ).

23. Install the VTC oil control solenoid valve (see VTC OIL CONTROL SOLENOID VALVE

REMOVAL/TEST/INSTALLATION ).

24. Connect the CKP sensor connector and VTC oil control solenoid valve connector (see step 24 ).

25. Install the crankshaft pulley (see INSTALLATION ).

26. Install the cylinder head cover (see CYLINDER HEAD COVER INSTALLATION ).

27. Install the drive belt (see DRIVE BELT INSPECTION ).

28. Install the splash shield (see step 24 in ENGINE INSTALLATION ).

29. Install the right front wheel.

30. Do the CKP pattern clear/CKP learn procedure (see CRANK (CKP) PATTERN CLEAR/CRANK

(CKP) PATTERN LEARN ).

CYLINDER HEAD COVER REMOVAL

1. Remove the engine cover.

NOTE:



If you apply liquid gasket P/N 08718-0012, the component must be
installed within 4 minutes.



If too much time has passed after applying the liquid gasket, remove
the old liquid gasket and residue, then reapply new liquid gasket.

NOTE:



When installing the chain case, do not slide the bottom surface on
the oil pan mounting surface.



Wait at least 30 minutes before filling the engine with oil.



Do not run the engine for at least 3 hours after installing the chain
case.



2007 Honda Element EX

2007-2008 ENGINE Cylinder Head - Element



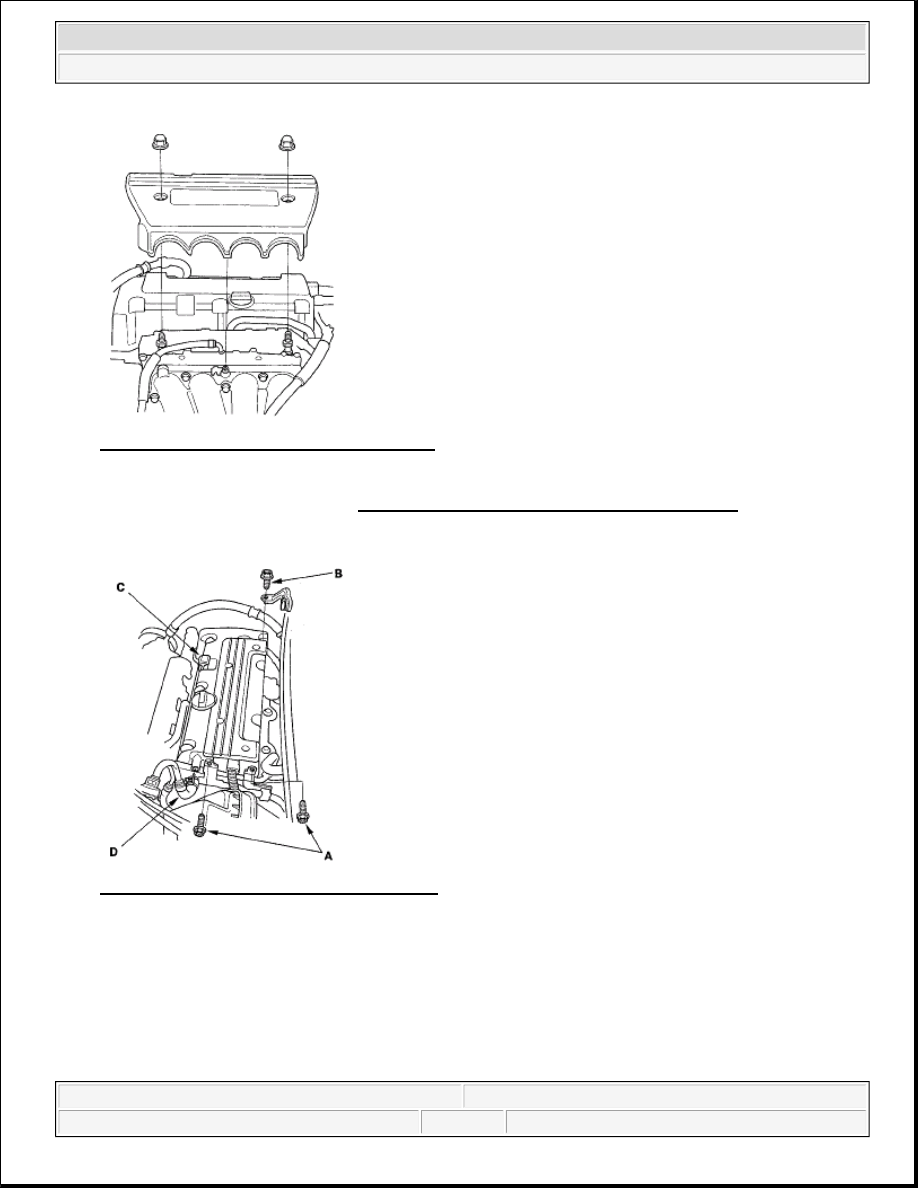

Fig. 63: Identifying Engine Cover With Nut
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Remove the four ignition coils (see IGNITION COIL REMOVAL/INSTALLATION ).

3. Remove the two bolts (A) securing the vacuum line.

Fig. 64: Identifying Vacuum Line And Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Remove the bolt (B) securing the power steering (P/S) hose bracket.

5. Remove the dipstick (C) and breather hose (D).

6. Remove the cylinder head cover.



2007 Honda Element EX

2007-2008 ENGINE Cylinder Head - Element



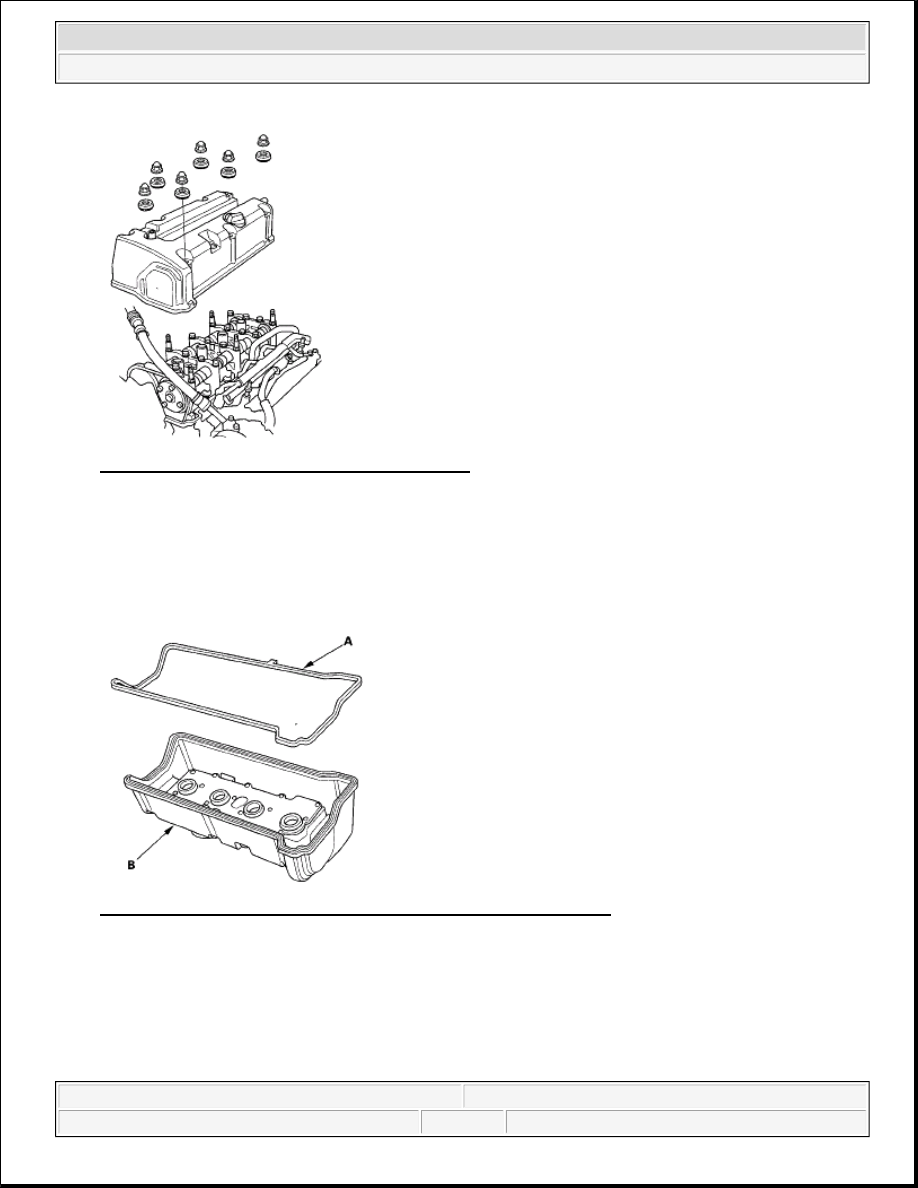

Fig. 65: Identifying Dipstick And Breather Hose
Courtesy of AMERICAN HONDA MOTOR CO., INC.

CYLINDER HEAD COVER INSTALLATION

1. Thoroughly clean the head cover gasket and the groove.

2. Install the head cover gasket (A) in the groove of the cylinder head cover (B).

Fig. 66: Identifying Head Cover Gasket And Cylinder Head Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Check that the mating surfaces are clean and dry.

4. Apply liquid gasket, P/N 08717-0004,08718-0001, 08718-0003, or 08718-0009, evenly to the chain case

and the No. 5 rocker shaft holder mating surface. Install the component within 5 minutes of applying the
liquid gasket.



2007 Honda Element EX
