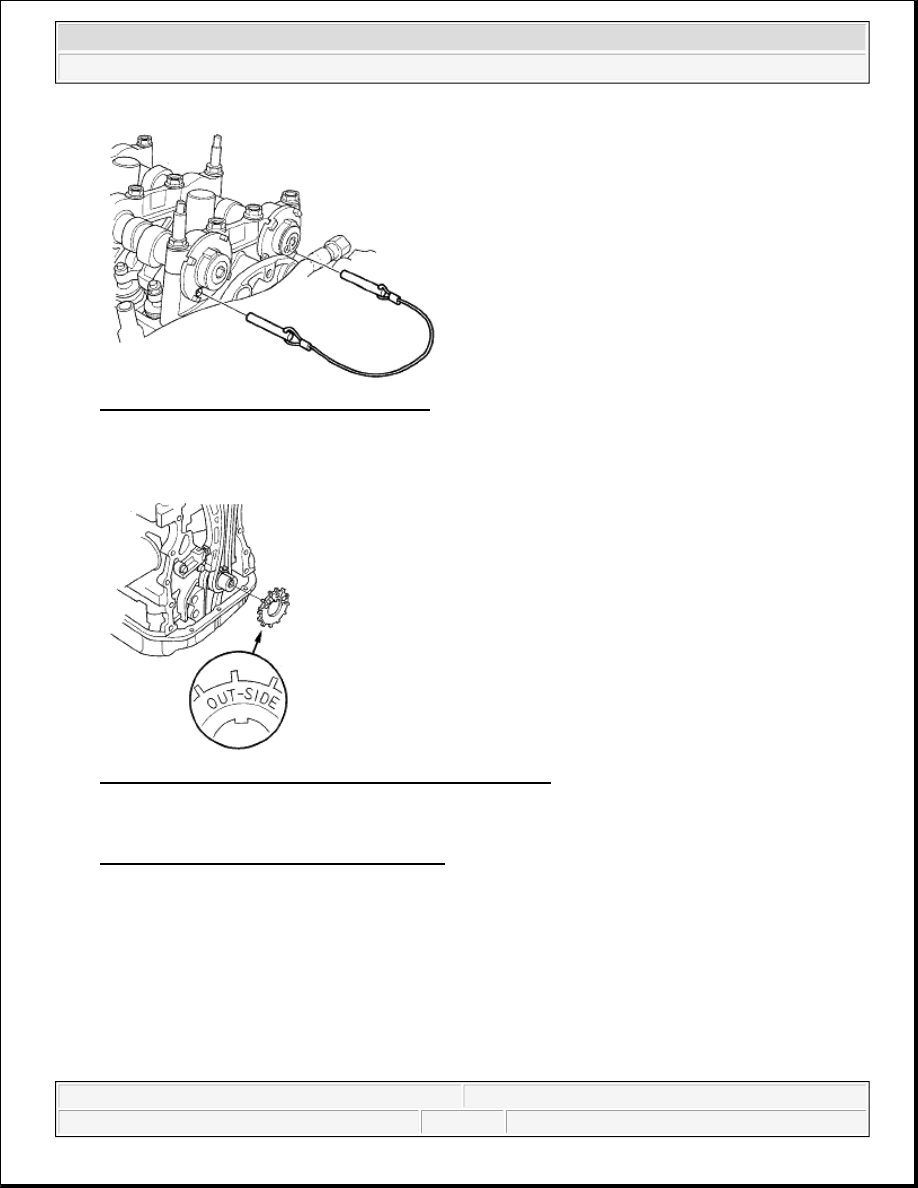

Fig. 43: Identifying Camshaft Lock Pin Set
Courtesy of AMERICAN HONDA MOTOR CO., INC.

12. Install the crankshaft position (CKP) pulse plate.

Fig. 44: Identifying Crankshaft Position (CKP) Pulse Plate
Courtesy of AMERICAN HONDA MOTOR CO., INC.

13. Check the chain case oil seal for damage. If the oil seal is damaged, replace the chain case oil seal (see

CHAIN CASE OIL SEAL INSTALLATION ).

14. Remove old liquid gasket from the chain case mating surfaces, bolts, and bolt holes.

15. Clean and dry the chain case mating surfaces.

16. Apply liquid gasket, P/N 08717-0004, 08718-0001, 08718-0003, or 08718-0009, evenly to the engine

block mating surface of the chain case. Install the component within 5 minutes of applying the liquid
gasket.

NOTE:



If you apply liquid gasket P/N 08718-0012, the component must be
installed within 4 minutes.



If too much time has passed after applying the liquid gasket, remove



2007 Honda Element EX

2007-2008 ENGINE Cylinder Head - Element



17. Apply liquid gasket to the engine block upper surface contact areas (A) on the chain case and lower block

upper surface contact areas (B) on the chain case.

18. Apply liquid gasket, P/N 08717-0004,08718-0001, 08718-0003, or 08718-0009, evenly to the oil pan

mating surface of the chain case. Install the component within 5 minutes of applying the liquid gasket.

19. Install the new O-ring (A) on the chain case. Set the edge of the chain case (B) to the edge of the oil pan

(C), then install the chain case on the engine block (D). Wipe off excess liquid gasket on the oil pan and
chain case mating surface.

the old liquid gasket and residue, then reapply new liquid gasket.

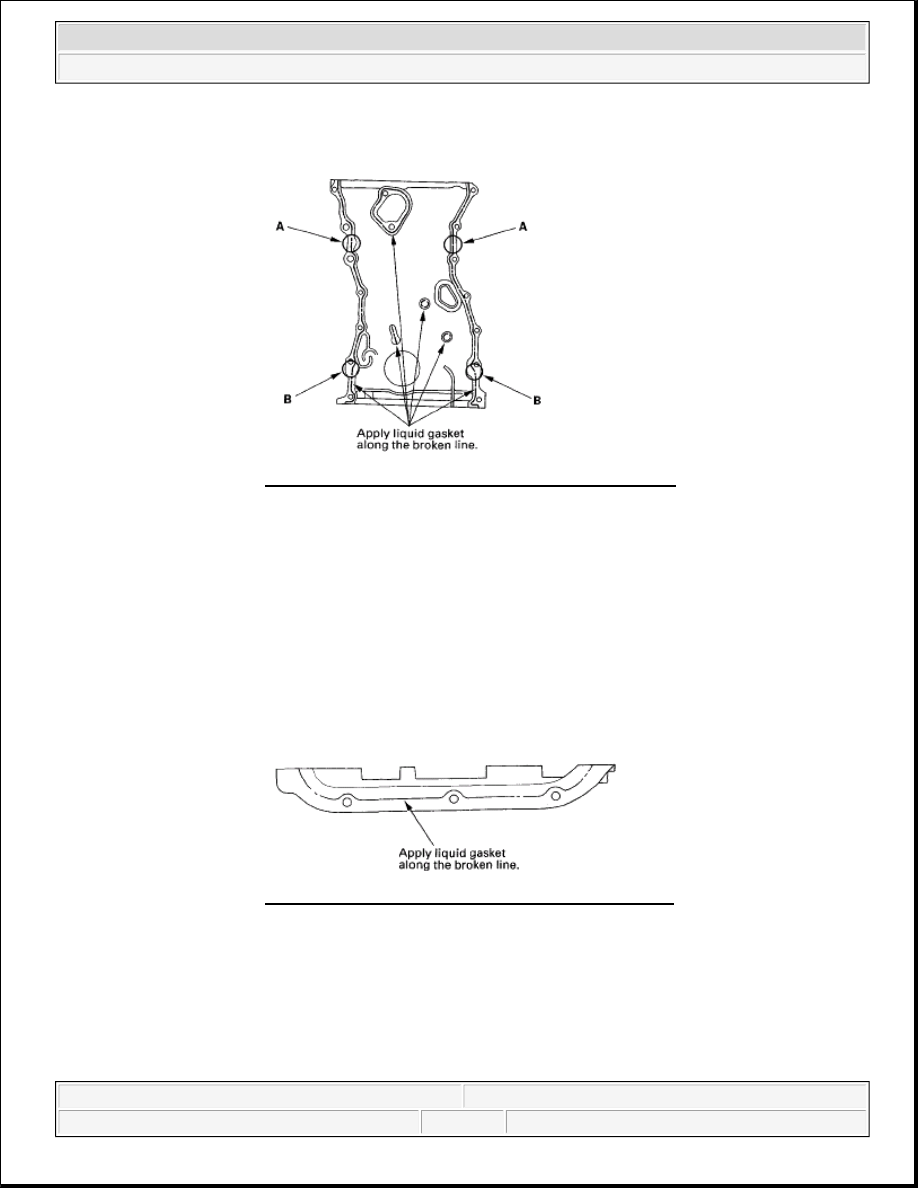

Fig. 45: Identifying Liquid Gasket Applying Area
Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE:



If you apply liquid gasket P/N 08718-0012, the component must be
installed within 4 minutes.



If too much time has passed after applying the liquid gasket, remove
the old liquid gasket and residue, then reapply new liquid gasket.

Fig. 46: Applying Liquid Gasket On Broken Line
Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE:



When installing the chain case, do not slide the bottom surface on
the oil pan mounting surface.



2007 Honda Element EX

2007-2008 ENGINE Cylinder Head - Element



20. Install the side engine mount bracket.



Wait at least 30 minutes before filling the engine with oil.



Do not run the engine for at least 3 hours after installing the chain
case.

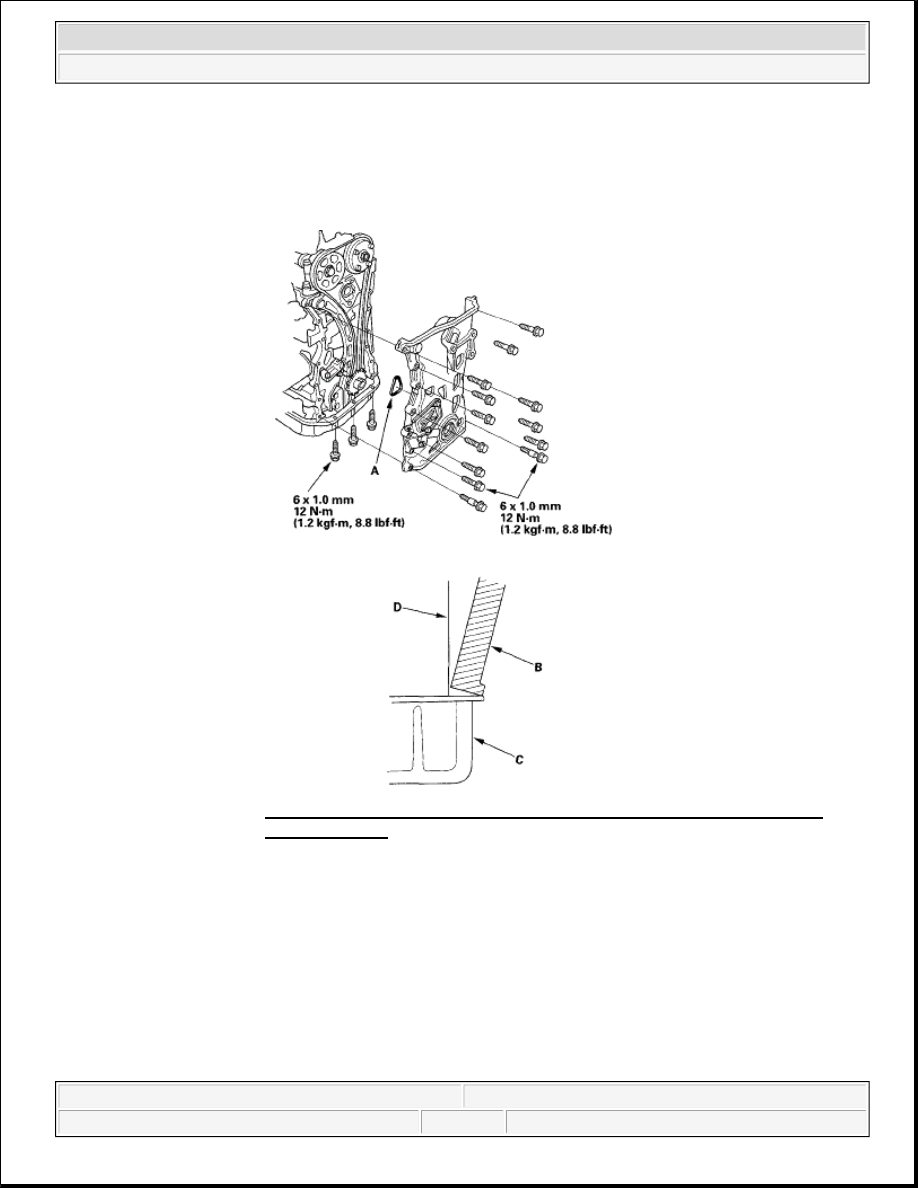

Fig. 47: Identifying O-Ring On Chain Case And Bolts With Torque
Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Honda Element EX

2007-2008 ENGINE Cylinder Head - Element



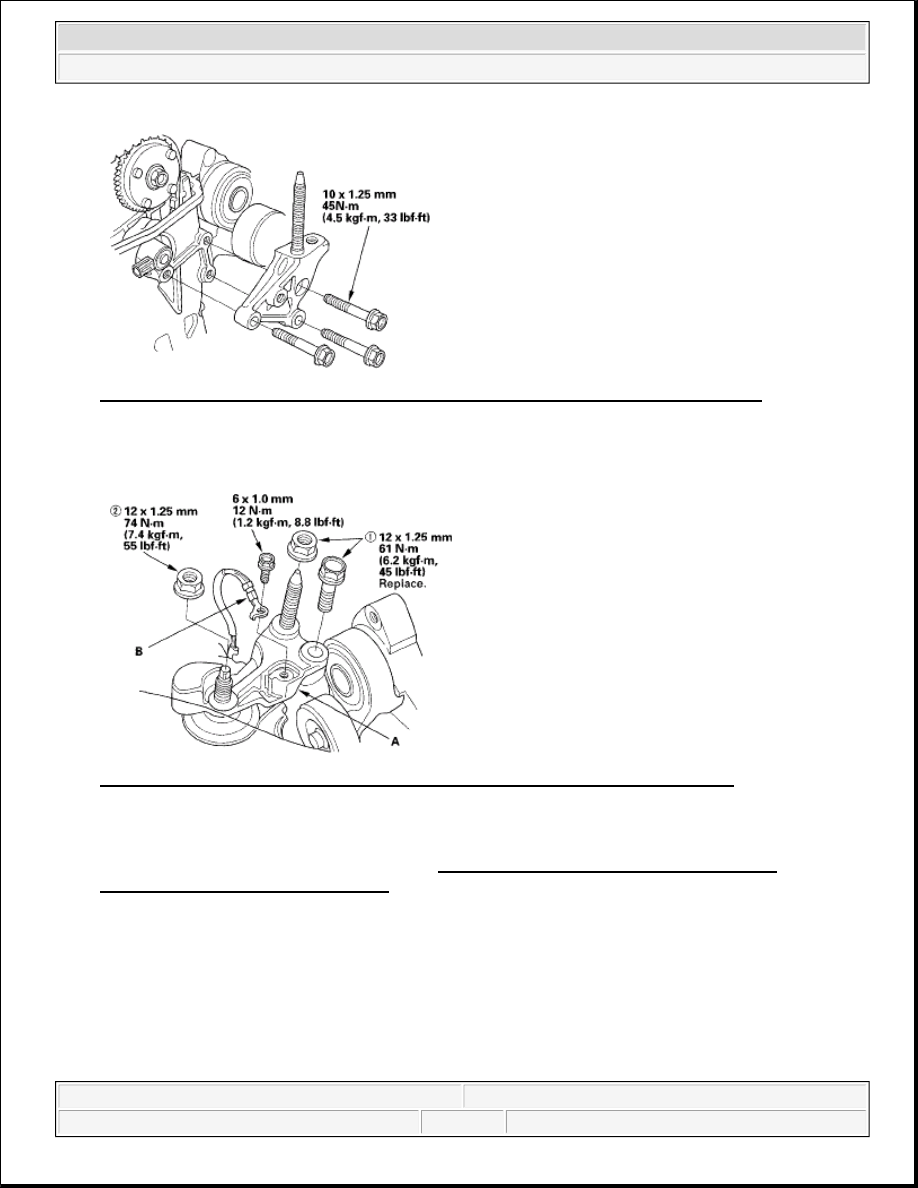

Fig. 48: Identifying Side Engine Mount Bracket With Bolts With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

21. Install the upper engine mount bracket (A), then torque the bolt/nuts in the numbered sequence shown.

Fig. 49: Identifying Upper Engine Mount Bracket Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

22. Install the ground cable (B).

23. Install the VTC oil control solenoid valve (see VTC OIL CONTROL SOLENOID VALVE

REMOVAL/TEST/INSTALLATION ).

24. Connect the CKP sensor connector (A) and VTC oil control solenoid valve connector (B).
