2. Set the camshafts to TDC. The punch mark (A) on the VTC actuator and the punch mark (B) on the

exhaust camshaft sprocket should be at the top. Align the TDC marks (C) on the VTC actuator and
exhaust camshaft sprocket.

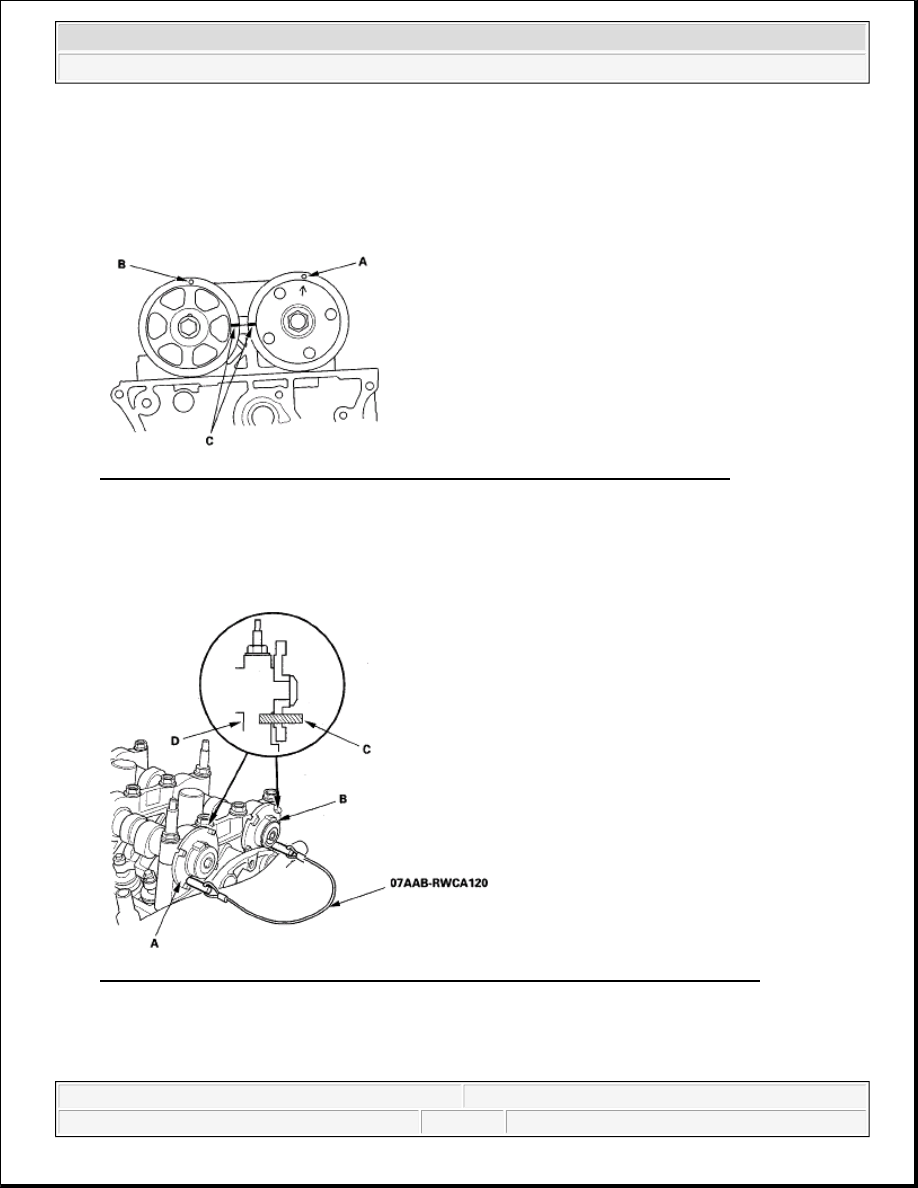

Fig. 35: Aligning TDC Marks On VTC Actuator And Exhaust Camshaft Sprocket
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. To hold the intake camshaft, insert one of the pins (C) from the camshaft lock pin set into the

maintenance hole in the camshaft position (CMP) pulse plate A and through the hole in the No. 5 rocker
shaft holder (D).

Fig. 36: Identifying Camshaft Lock Pin Set And Camshaft Position (CMP) Pulse Plate
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. To hold the exhaust camshaft, insert the other pin from the camshaft lock pin set into the maintenance

hole in the camshaft position (CMP) pulse plate B and through the hole in the No. 5 rocker shaft holder.



2007 Honda Element EX

2007-2008 ENGINE Cylinder Head - Element



5. Install the cam chain on the crankshaft sprocket with the colored link plate (A) aligned with the mark (B)

on the crankshaft sprocket.

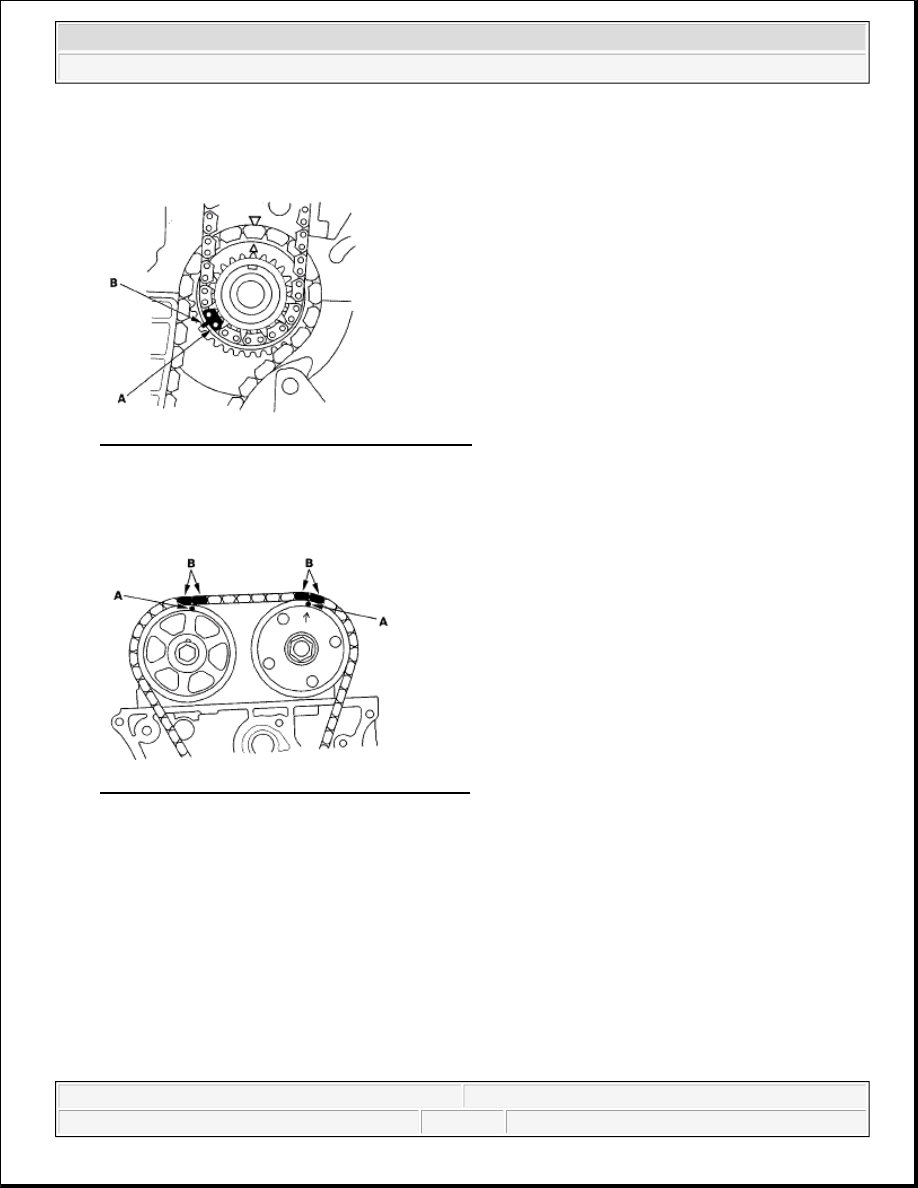

Fig. 37: Aligning Mark On Crankshaft Sprocket
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Install the cam chain on the VTC actuator and the exhaust camshaft sprocket with the punch marks (A)

aligned with the center of the two colored link plates (B).

Fig. 38: Aligning Center Of Colored Link Plates
Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. Install the cam chain guide A and the tensioner arm (B).



2007 Honda Element EX

2007-2008 ENGINE Cylinder Head - Element

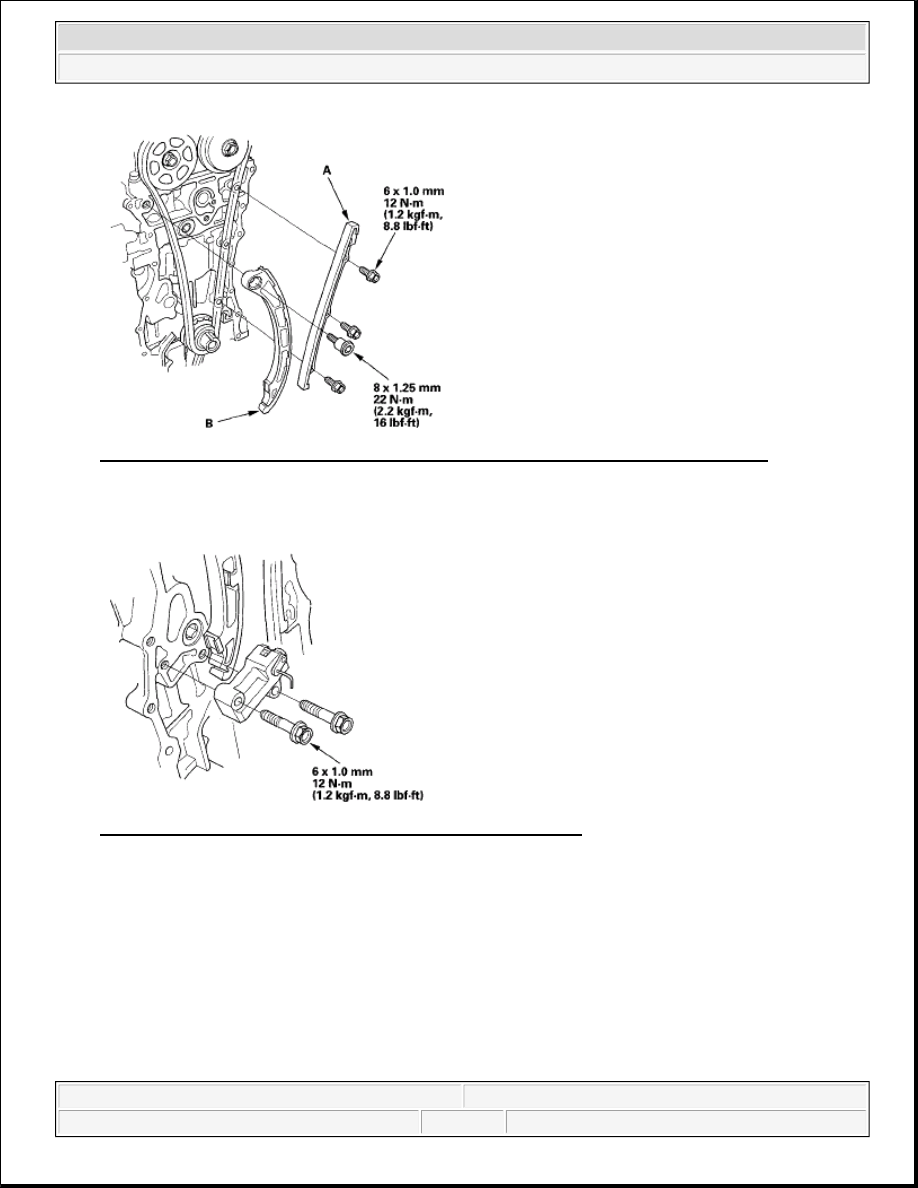

Fig. 39: Identifying Cam Chain Guide And Tensioner Arm With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

8. Install the auto-tensioner.

Fig. 40: Identifying Auto-Tensioner With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

9. Install cam chain guide B.



2007 Honda Element EX

2007-2008 ENGINE Cylinder Head - Element

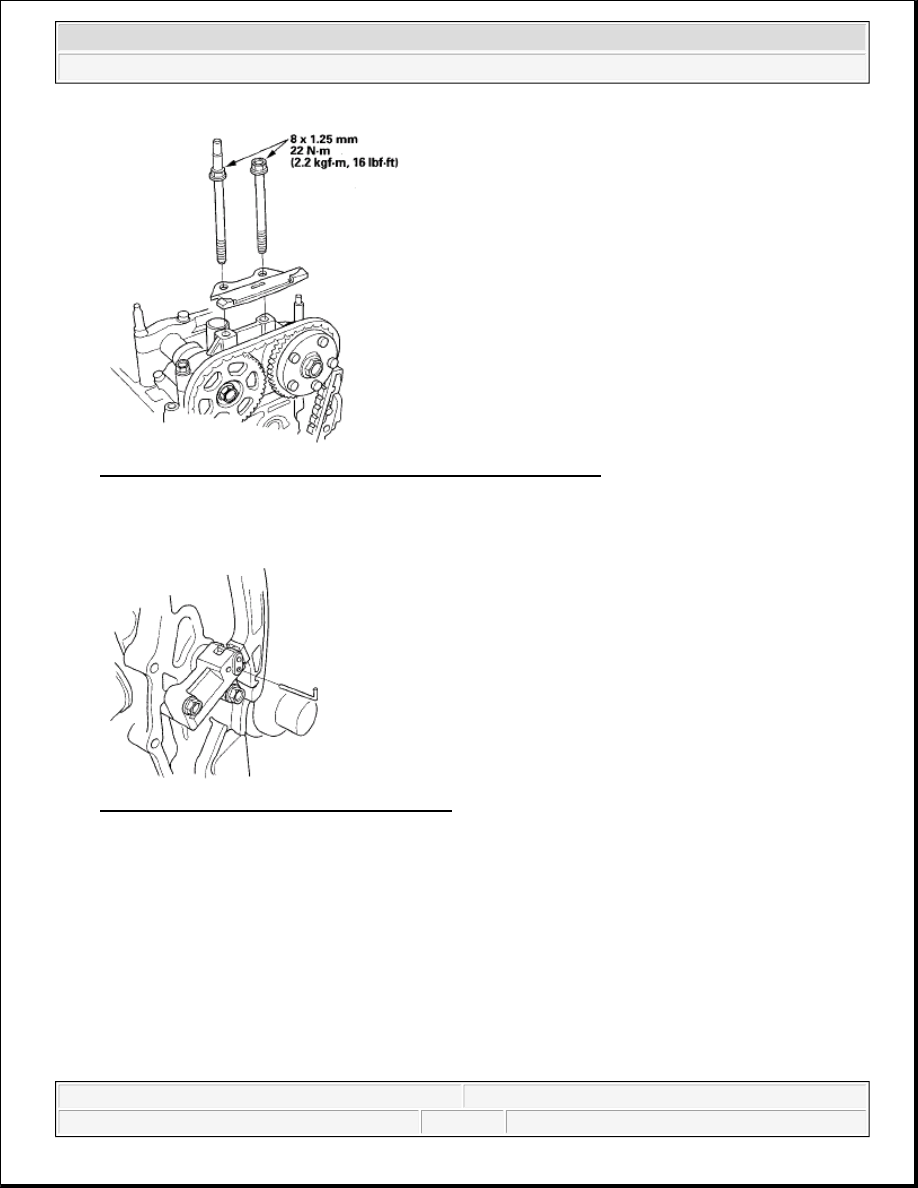

Fig. 41: Identifying Cam Chain Guide With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

10. Remove the pin from the auto-tensioner.

Fig. 42: Identifying Pin From Auto-Tensioner
Courtesy of AMERICAN HONDA MOTOR CO., INC.

11. Remove the camshaft lock pin set (07AAB-RWCA120).



2007 Honda Element EX

2007-2008 ENGINE Cylinder Head - Element
