Honda Element. Manual - part 381

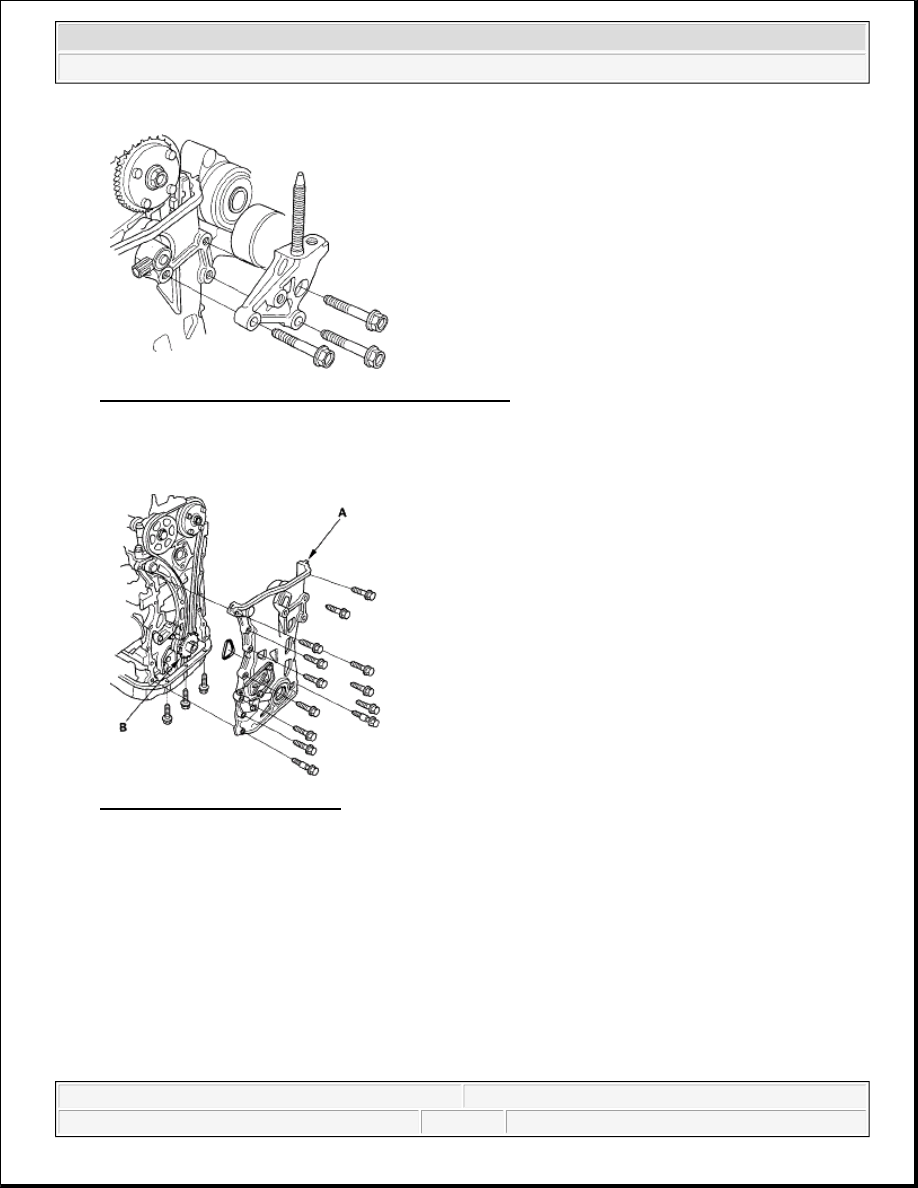

Fig. 27: Identifying Side Engine Mount Bracket Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

13. Remove the chain case (A).

Fig. 28: Identifying Chain Case
Courtesy of AMERICAN HONDA MOTOR CO., INC.

14. Remove the CKP pulse plate (B).

15. Loosely install the crankshaft pulley.

16. Turn the crankshaft counterclockwise to compress the auto-tensioner.

2007 Honda Element EX

2007-2008 ENGINE Cylinder Head - Element

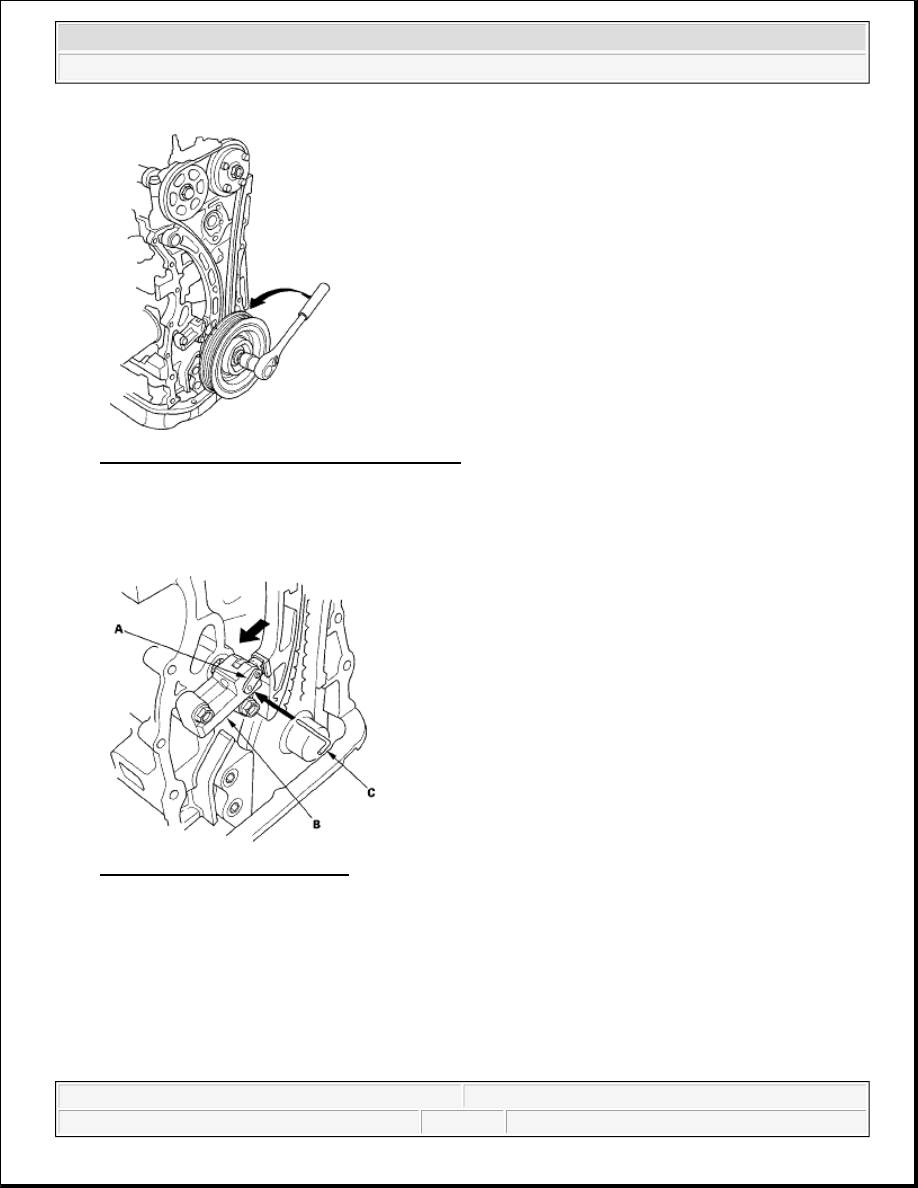

Fig. 29: Turning Crankshaft Counterclockwise
Courtesy of AMERICAN HONDA MOTOR CO., INC.

17. Align the holes on the lock (A) and the auto-tensioner (B), then insert a 1.5 mm (0.06 in.) diameter pin

Fig. 30: Aligning Holes On Lock
Courtesy of AMERICAN HONDA MOTOR CO., INC.

18. Remove the auto-tensioner.

2007 Honda Element EX

2007-2008 ENGINE Cylinder Head - Element

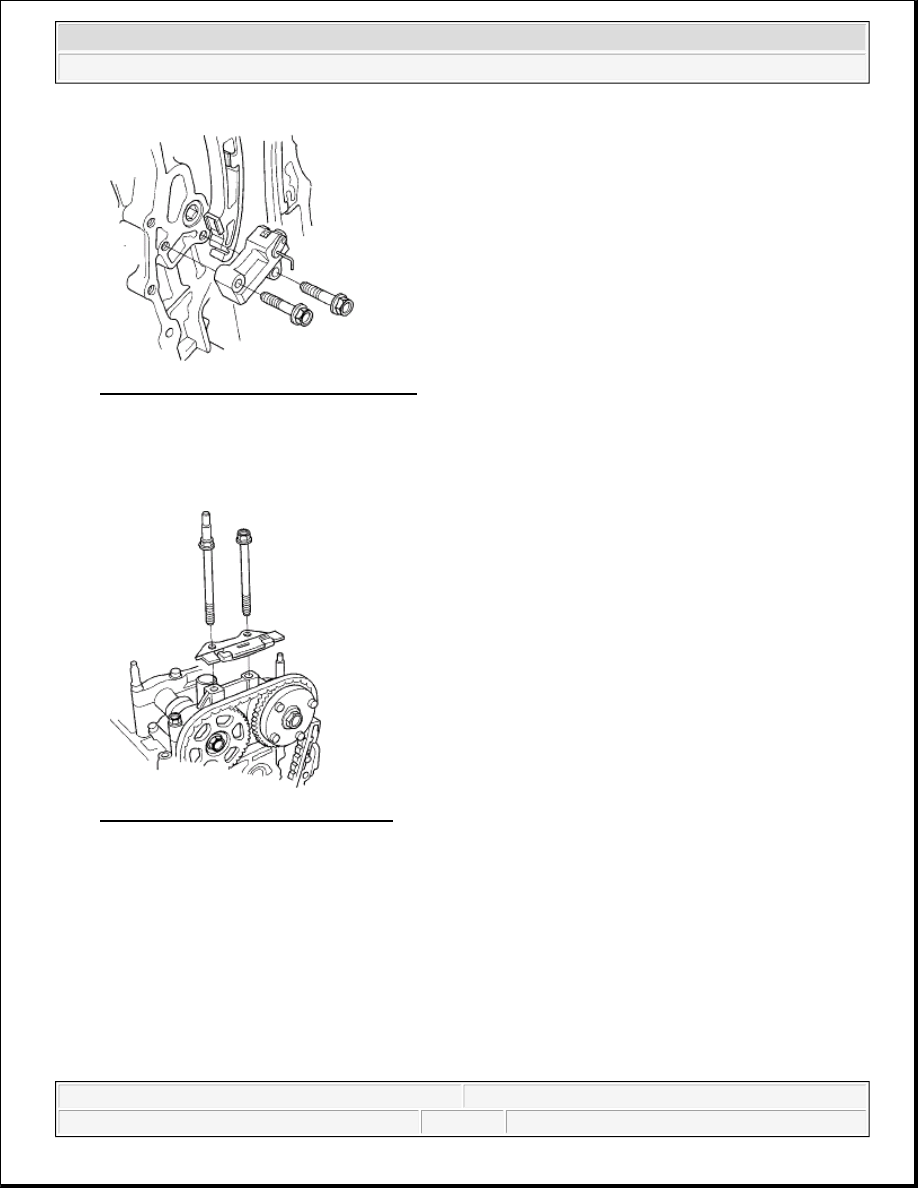

Fig. 31: Identifying Auto-Tensioner Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

19. Remove the crankshaft pulley.

20. Remove the cam chain guide B.

Fig. 32: Identifying Crankshaft Pulley
Courtesy of AMERICAN HONDA MOTOR CO., INC.

21. Remove the cam chain guide A and tensioner arm (B).

2007 Honda Element EX

2007-2008 ENGINE Cylinder Head - Element

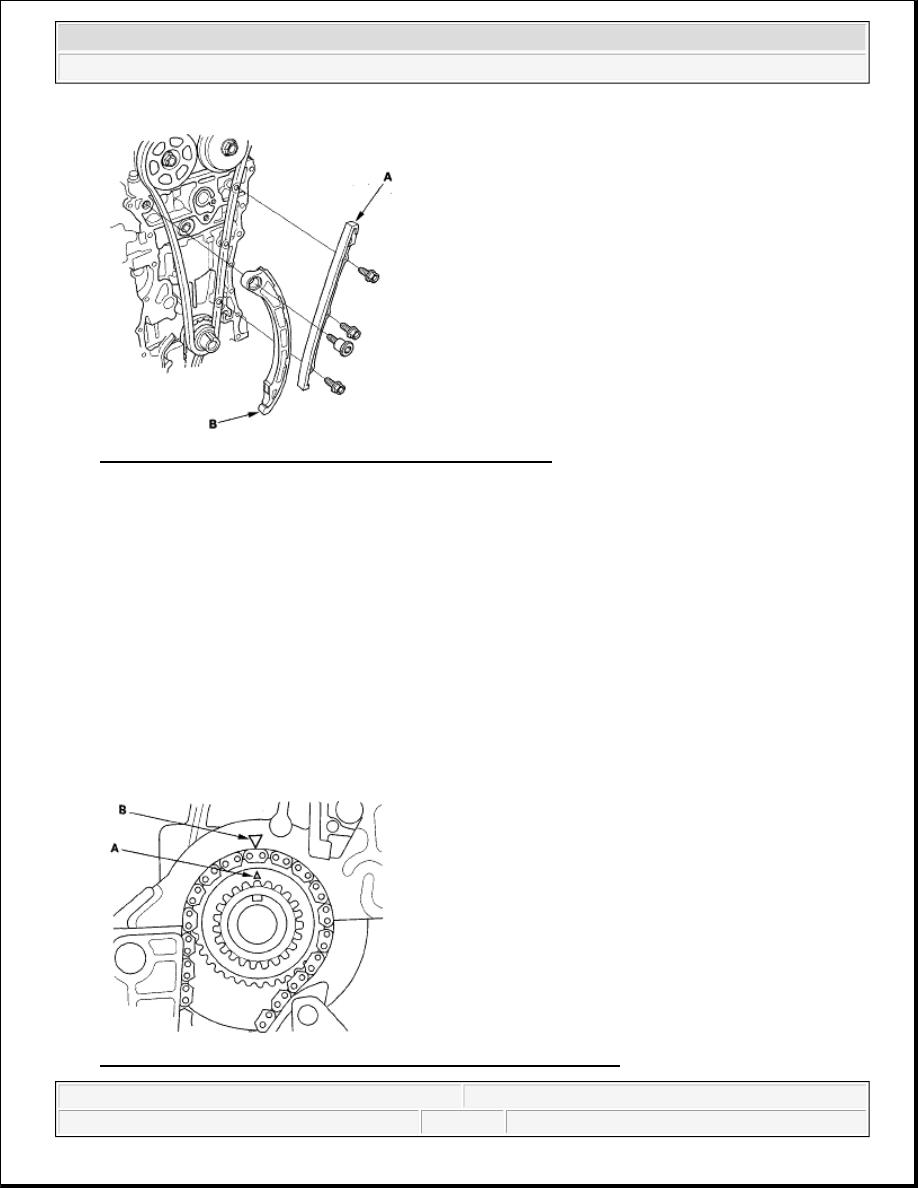

Fig. 33: Identifying Cam Chain Guide And Tensioner Arm
Courtesy of AMERICAN HONDA MOTOR CO., INC.

22. Remove the cam chain.

CAM CHAIN INSTALLATION

1. Set the crankshaft to top dead center (TDC). Align the TDC mark (A) on the crankshaft sprocket with the

pointer (B) on the engine block.

Fig. 34: Aligning TDC Mark On Crankshaft Sprocket With Pointer

NOTE:



Keep the cam chain away from magnetic fields.



Before this procedure, check that the variable valve timing control (VTC)
actuator is locked by turning the VTC actuator counterclockwise. If not
locked, turn the VTC actuator clockwise until it stops, then recheck it. If it
is still not locked, replace the VTC actuator.

2007 Honda Element EX

2007-2008 ENGINE Cylinder Head - Element
