2. Remove the splash shield (see step 26 in ENGINE REMOVAL ).

3. Remove the drive belt (see DRIVE BELT INSPECTION ).

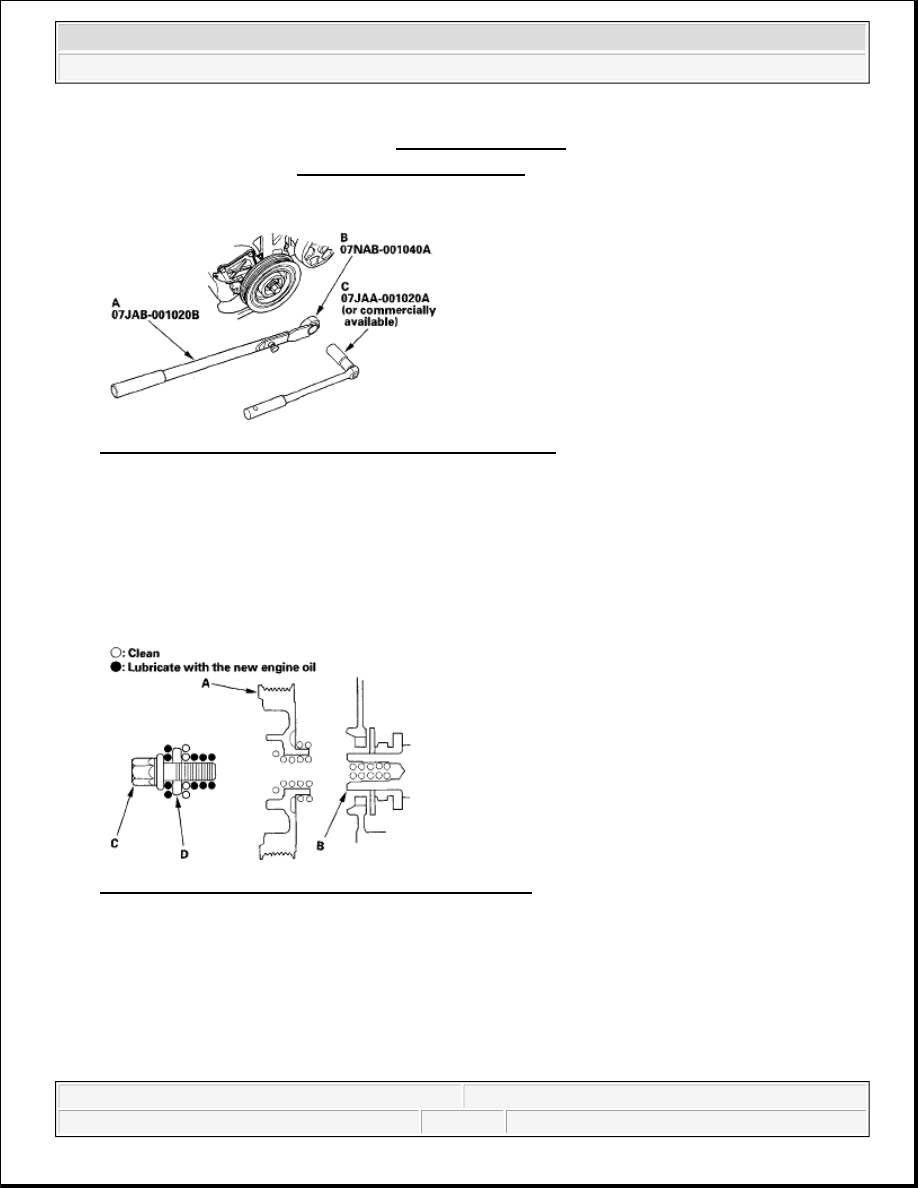

4. Hold the crankshaft pulley with holder handle (A) and holder attachment (B).

Fig. 19: Identifying Crankshaft Pulley With Holder Handle
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Remove the bolt with a 19 mm socket (C) and breaker bar, then remove the crankshaft pulley.

INSTALLATION

1. Clean the crankshaft pulley (A), crankshaft (B), bolt (C), and washer (D). Lubricate with the new engine

oil as shown.

Fig. 20: Identifying Crankshaft Pulley Lubricating Area
Courtesy of AMERICAN HONDA MOTOR CO., INC.

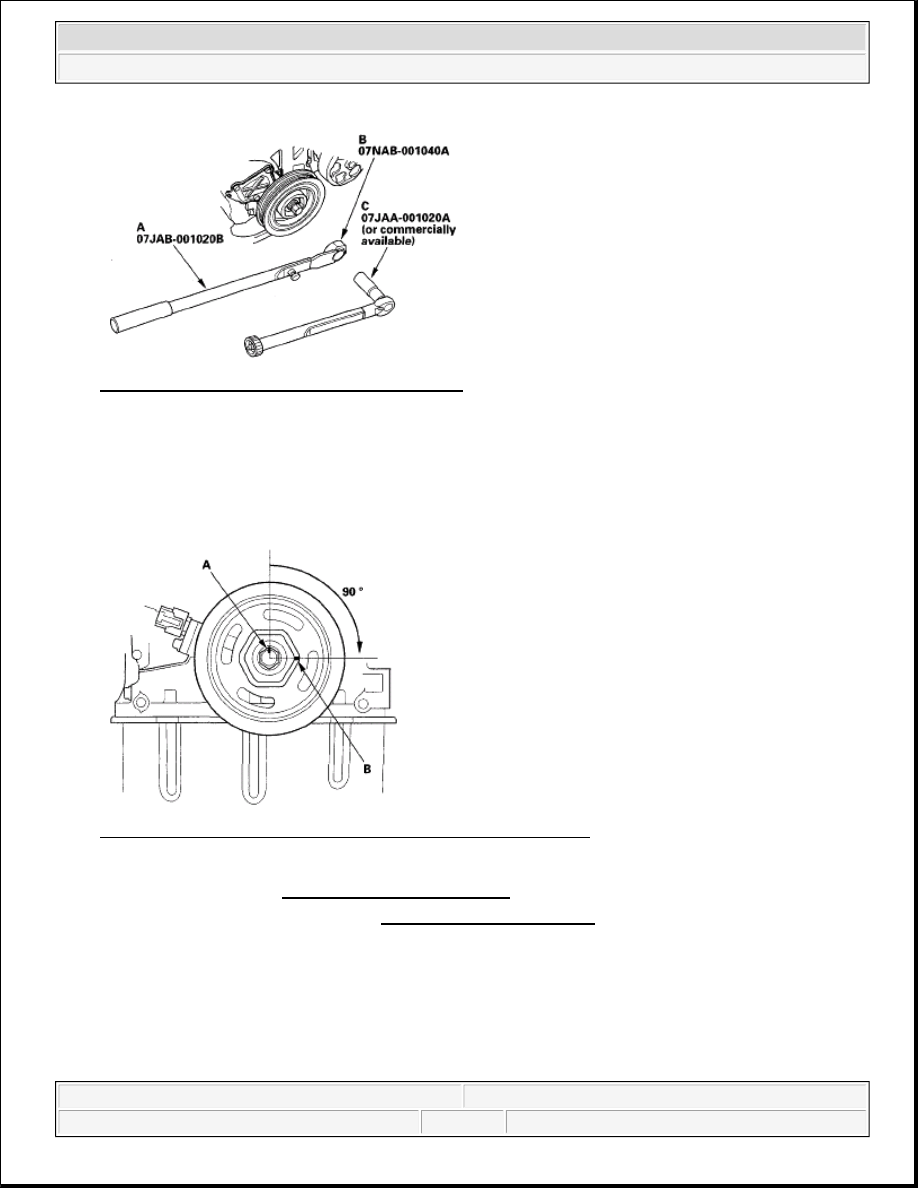

2. Install the crankshaft pulley, and hold the pulley with holder handle (A) and holder attachment (B).



2007 Honda Element EX

2007-2008 ENGINE Cylinder Head - Element



Fig. 21: Identifying Pulley With Holder Handle
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Torque the bolt to 50 N.m (5.0 kgf.m, 37 lbf.ft) with a torque wrench and 19 mm socket (C). Do not use

an impact wrench.

4. Mark the bolt head (A) and the crankshaft pulley (B) as shown, then torque the bolt an additional 90°

(The mark on the bolt head lines up with the mark on the crankshaft pulley).

Fig. 22: Identifying Mark On Bolt Head And Crankshaft Pulley
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Install the drive belt (see DRIVE BELT INSPECTION ).

6. Install the splash shield (see step 24 in ENGINE INSTALLATION ).

7. Install the right front wheel.

CAM CHAIN REMOVAL

Special Tools Required

Camshaft lock pin set 07AAB-RWCA120



2007 Honda Element EX

2007-2008 ENGINE Cylinder Head - Element



1. Remove the right front wheel.

2. Remove the splash shield (see step 26 in ENGINE REMOVAL ).

3. Remove the drive belt (see DRIVE BELT INSPECTION ).

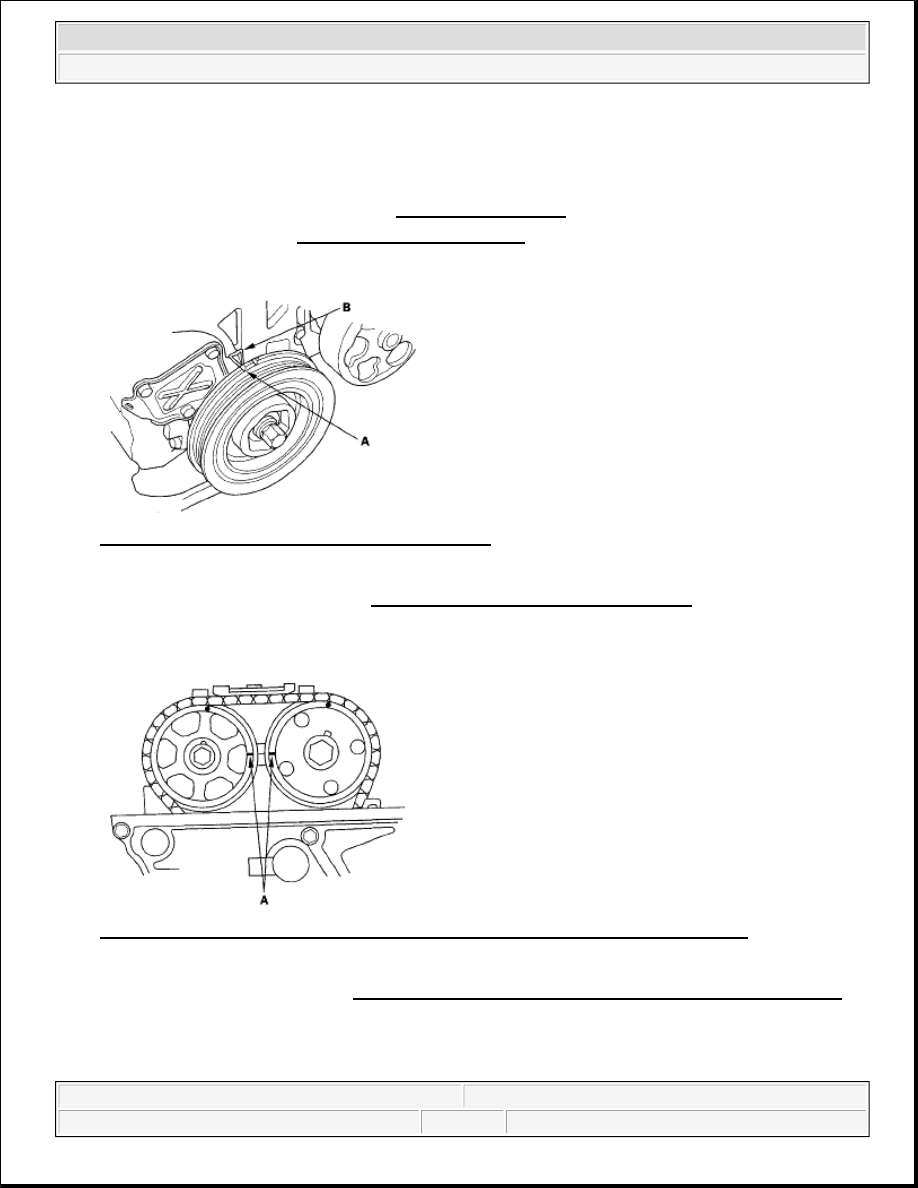

4. Turn the crankshaft pulley so its top dead center (TDC) mark (A) lines up with the pointer (B).

Fig. 23: Identifying TDC Mark Lines With Pointer
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Remove the cylinder head cover (see CYLINDER HEAD COVER REMOVAL ).

6. Check that the No. 1 piston TDC marks (A) on the variable valve timing control (VTC) actuator and

exhaust camshaft sprocket are aligned.

Fig. 24: Identifying TDC Marks On Variable Valve Timing Control (VTC) Actuator
Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. Remove the crankshaft pulley (see CRANKSHAFT PULLEY REMOVAL AND INSTALLATION ).

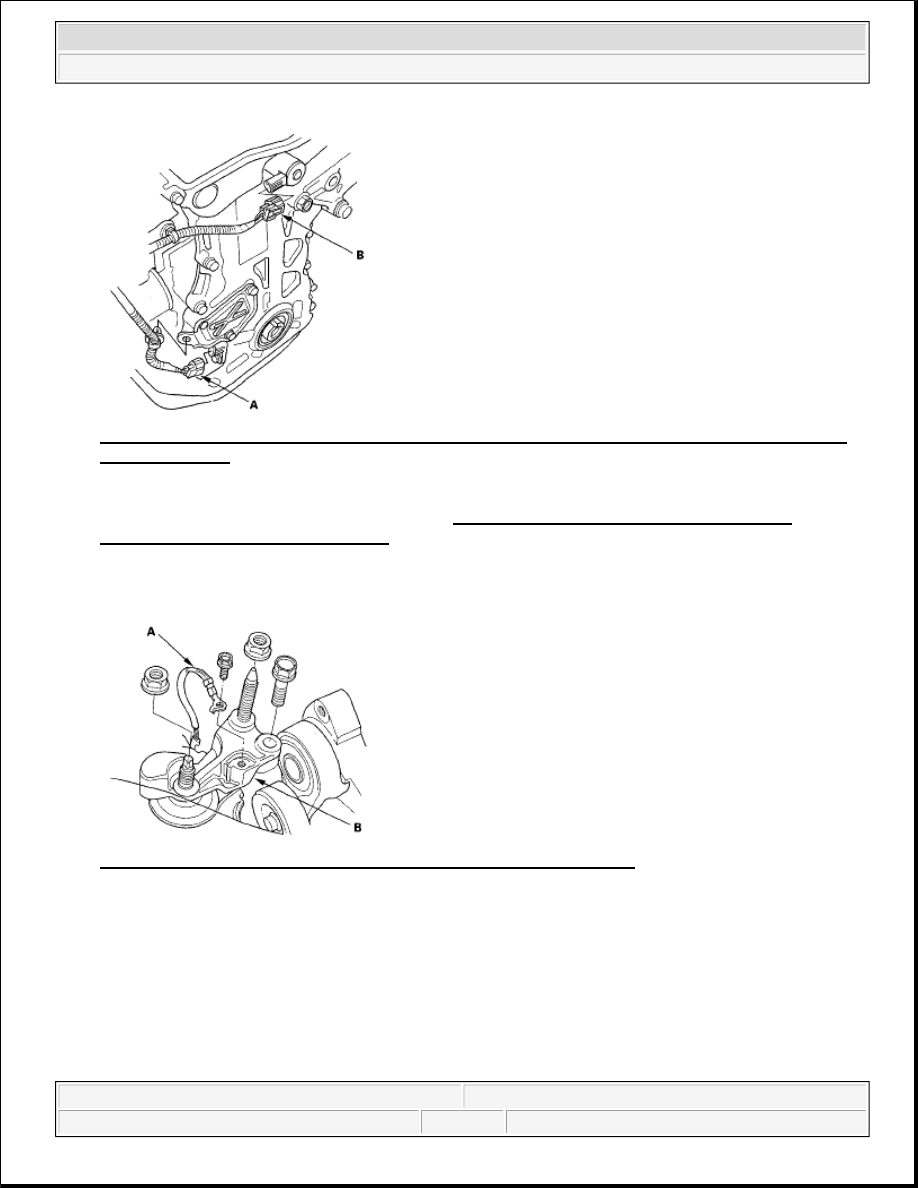

8. Disconnect the crankshaft position (CKP) sensor connector (A) and VTC oil control solenoid valve

connector (B).

NOTE:

Keep the cam chain away from magnetic fields.



2007 Honda Element EX

2007-2008 ENGINE Cylinder Head - Element



Fig. 25: Identifying Crankshaft Position (CKP) Sensor Connector And VTC Oil Control Solenoid
Valve Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

9. Remove the VTC oil control solenoid valve (see VTC OIL CONTROL SOLENOID VALVE

REMOVAL/TEST/INSTALLATION ).

10. Support the engine with a jack and wood block under the oil pan.

11. Remove the ground cable (A), and remove the upper engine mount bracket (B).

Fig. 26: Identifying Upper Engine Mount Bracket And Ground Cable
Courtesy of AMERICAN HONDA MOTOR CO., INC.

12. Remove the side engine mount bracket.
