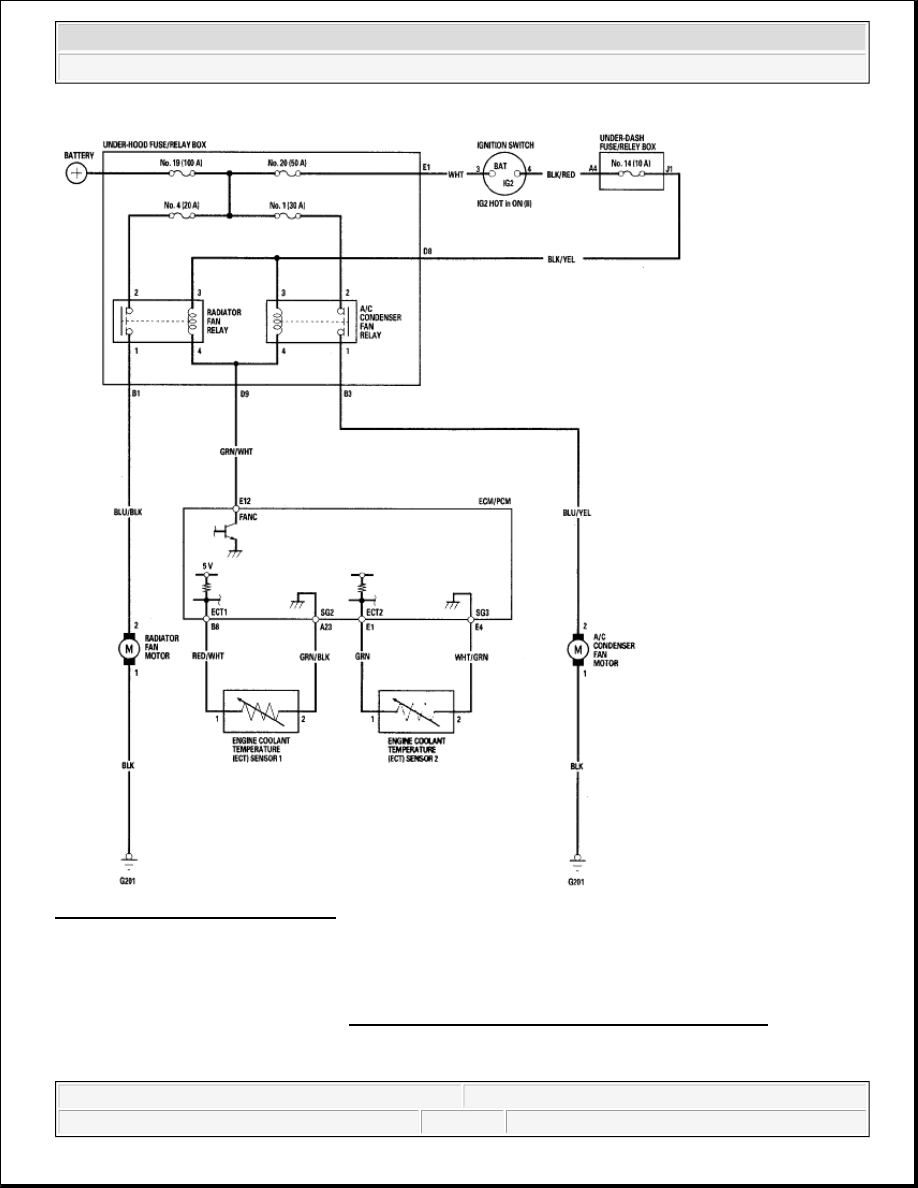

Fig. 2: Fan Control Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.

RADIATOR FAN CIRCUIT TROUBLESHOOTING

1. Check for the PGM-FI DTCs (see GENERAL TROUBLESHOOTING INFORMATION ).

Are DTC P2183, P2184, and/or P2185 indicated?



2007 Honda Element EX

2007-08 ENGINE Fan Controls - Element



YES - Do the appropriate troubleshooting, then recheck.

NO - Go to step 2.

2. Check the No. 4 (20 A), fuse in the under-hood fuse/relay box, and No. 14 (10 A), fuse in the under-dash

fuse/relay box.

Are the fuses OK?

YES - Go to step 3.

NO - Replace the fuse(s) and recheck.

3. Remove the radiator fan relay from the under-hood fuse/relay box, and test it (see POWER RELAY

TEST ).

Is the relay OK?

YES - Go to step 4.

NO - Replace the radiator fan relay.

4. Measure the voltage between the radiator fan relay 4P socket terminal No. 2 and body ground.

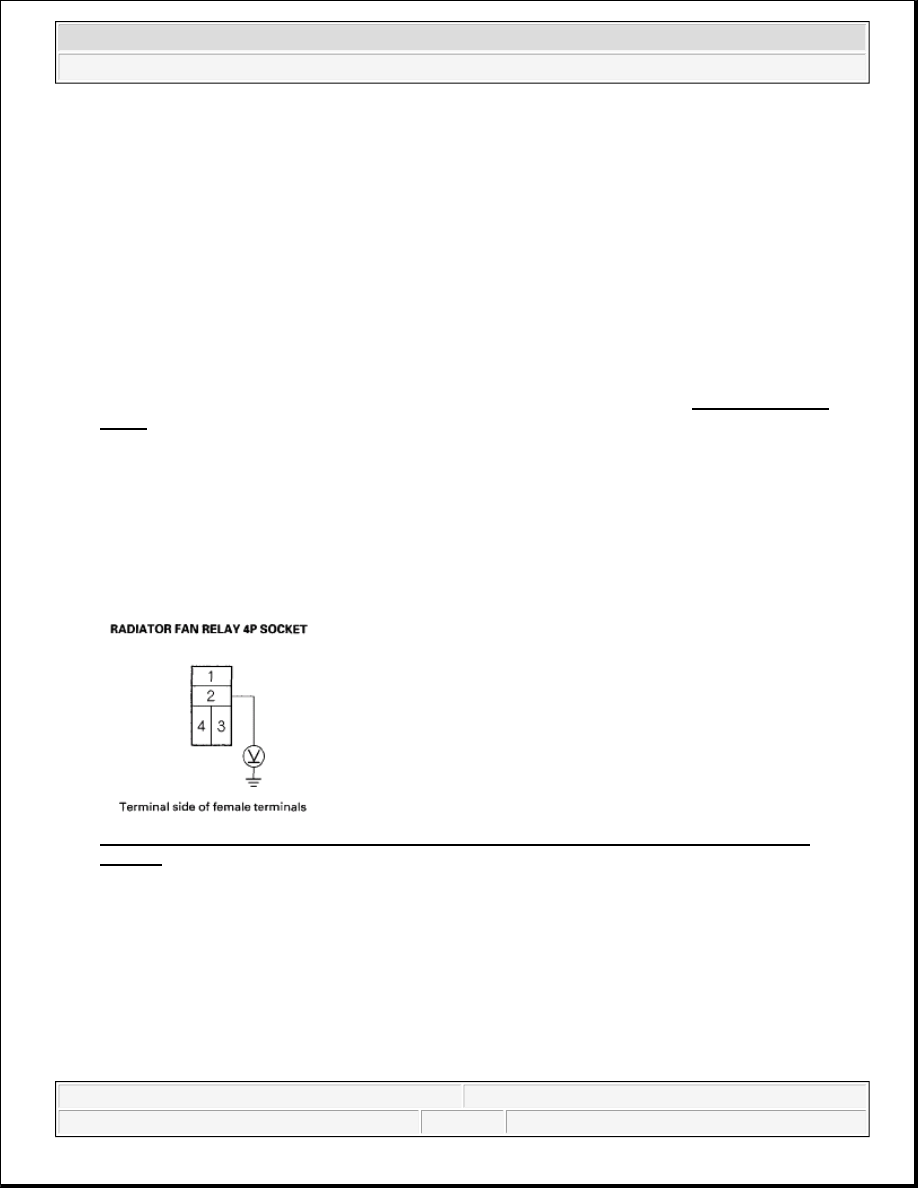

Fig. 3: Measuring Voltage Between Radiator Fan Relay 4P Socket Terminal No. 2 And Body
Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there battery voltage?

YES - Go to step 5.

NO - Replace the under-hood fuse/relay box.

5. Connect the radiator fan relay 4P socket terminals No. 1 and No. 2 with a jumper wire.



2007 Honda Element EX

2007-08 ENGINE Fan Controls - Element



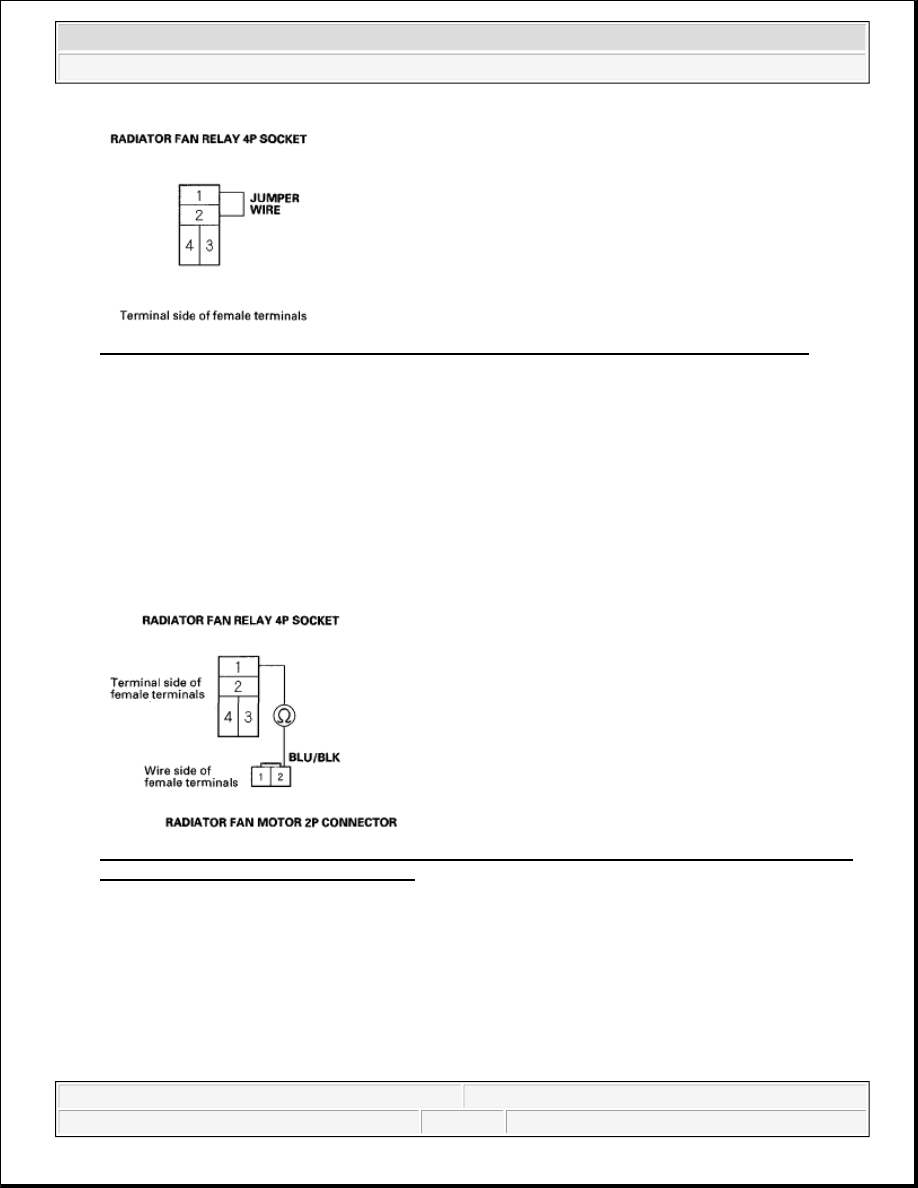

Fig. 4: Connecting Radiator Fan Relay 4P Socket Terminals No. 1 And 2 With Jumper Wire
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Does the radiator fan run?

YES - Go to step 9.

NO - Go to step 6.

6. Disconnect the radiator fan motor 2P connector.

7. Check for continuity between the radiator fan relay 4P socket terminal No. 1 and the radiator fan motor

2P connector terminal No. 2.

Fig. 5: Checking Continuity Between Radiator Fan Relay 4P Socket Terminal No. 1 And Radiator
Fan Motor 2P Connector Terminal No. 2
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Go to step 8.

NO - Repair open in the wire between the under-hood fuse/relay box and the radiator fan motor 2P
connector terminal No. 2.

8. Check for continuity between the radiator fan motor 2P connector terminal No. 1 and body ground.



2007 Honda Element EX

2007-08 ENGINE Fan Controls - Element



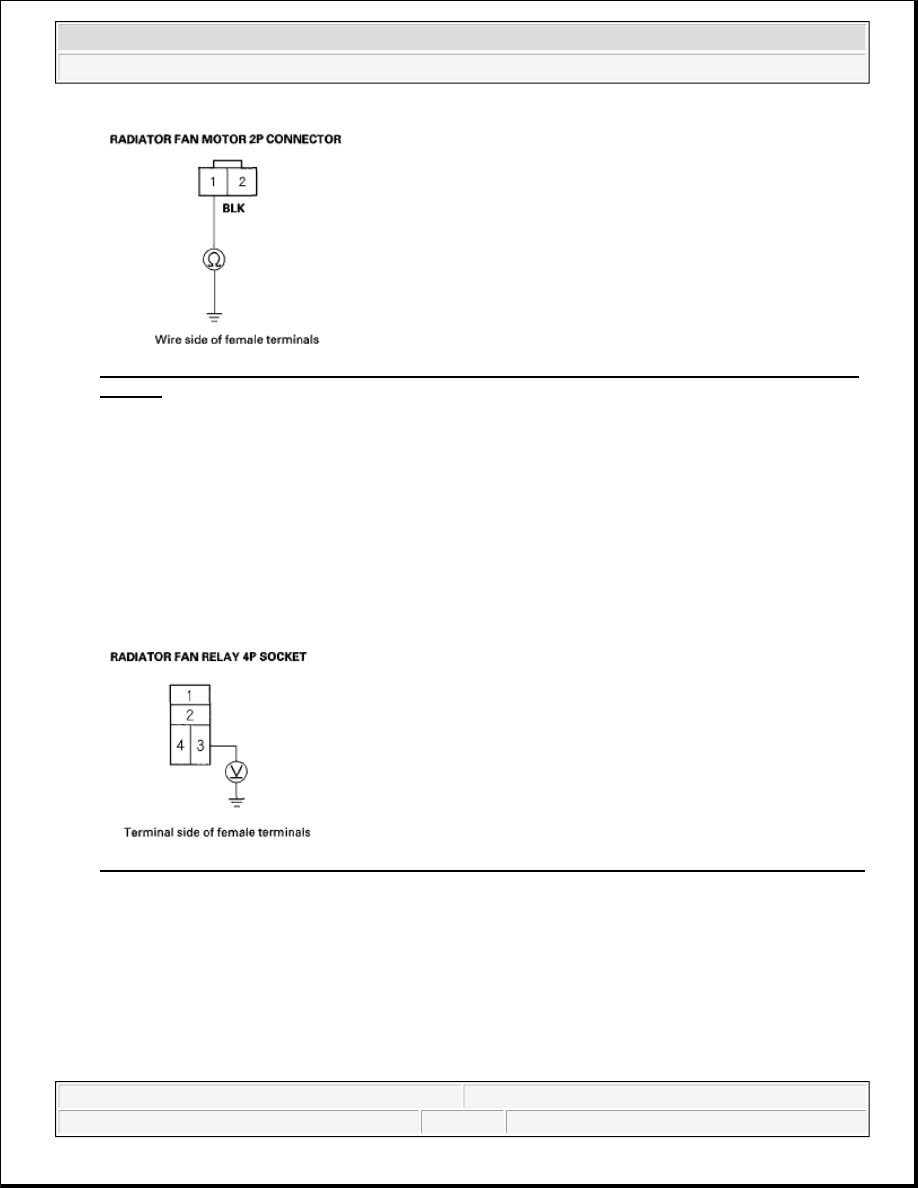

Fig. 6: Checking Continuity Between Radiator Fan Motor 2P Connector Terminal No. 1 And Body
Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Replace the radiator fan motor.

NO - Repair open in the wire between radiator fan motor 2P connector terminal No. 1 and body ground.
If the wire is OK, check for a poor ground at G201.

9. Disconnect the jumper, and turn the ignition switch ON (II). Check for voltage between the radiator fan

relay 4P socket terminal No. 3 and body ground.

Fig. 7: Checking Voltage Between Radiator Fan Relay 4P Socket Terminal No. 3 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there battery voltage?

YES - Go to step 10.

NO - Repair open in the wire between the under-hood fuse/relay box and under-dash fuse/relay box.

10. Check for continuity between the radiator fan relay 4P socket terminal No. 4 and the engine control

module (ECM)/powertrain control module (PCM) connector terminal E12.
