8. Remove the screws (A, B), and separate the frame brackets (C, D), then remove the center console box

(E).

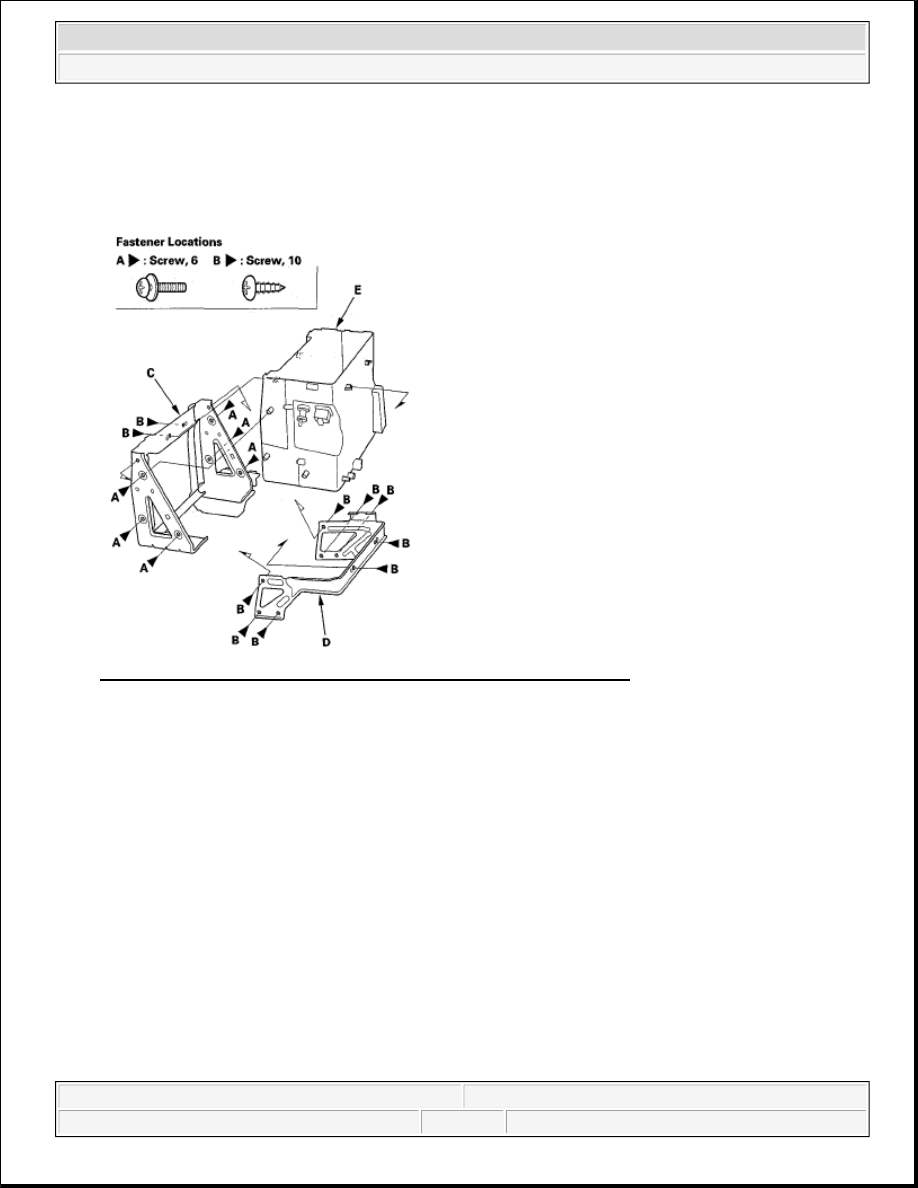

Fig. 20: Identifying Center Console Box Frame Brackets And Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.

9. Install the center console in the reverse order of removal, and note these items:



Check if the clips are damaged or stress-whitened, and if necessary, replace them with new ones.



Push the clips and hooks into place securely.



Make sure each connector is plugged in properly.



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Consoles - Element



2007-08 ENGINE

Fan Controls - Element

COMPONENT LOCATION INDEX

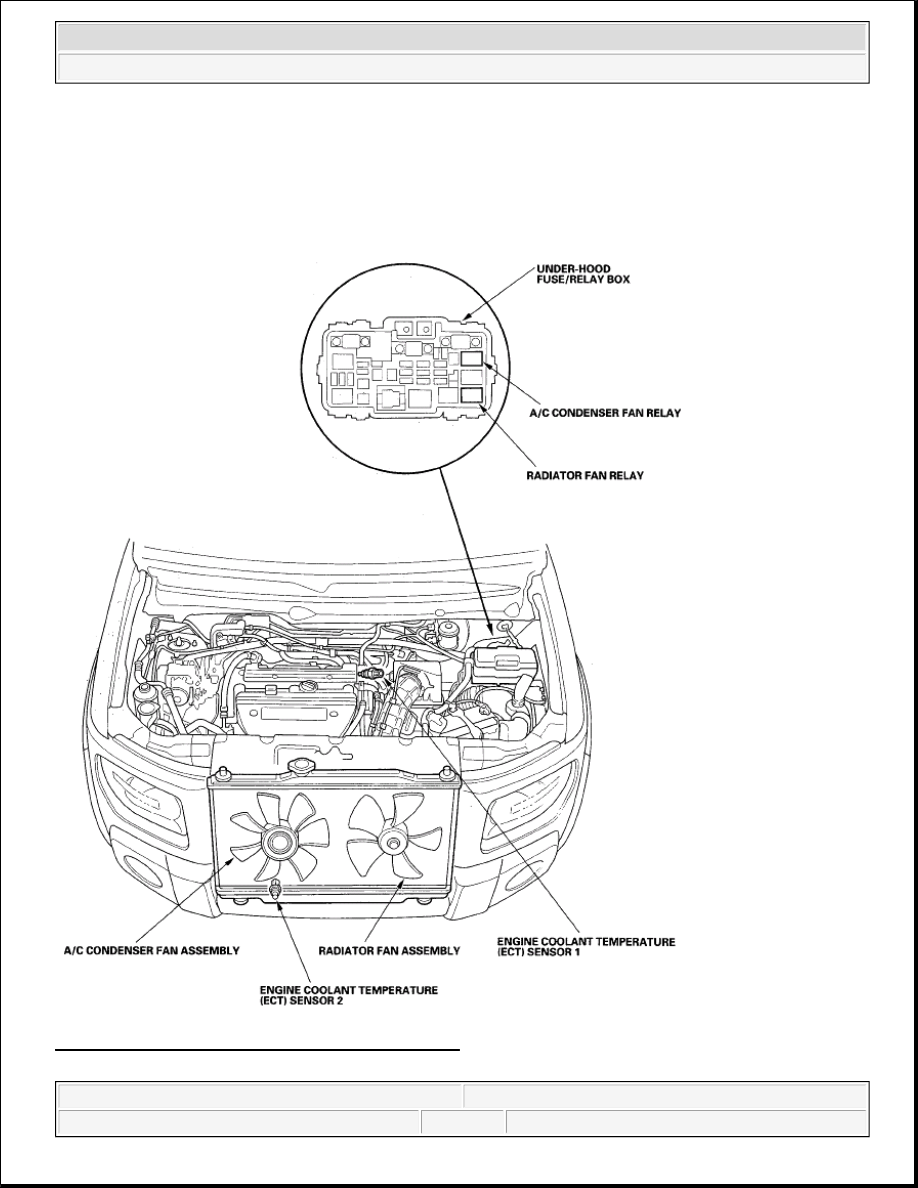

Fig. 1: Identifying Fan Control Component Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Honda Element EX

2007-08 ENGINE Fan Controls - Element





2007 Honda Element EX

2007-08 ENGINE Fan Controls - Element



SYMPTOM TROUBLESHOOTING INDEX

TROUBLESHOOTING CHART

Symptom

Diagnostic procedure

Also check for

Engine overheats

1. Check the coolant level.

2. Check for any engine coolant leakage

(from gaskets, hoses, O-rings, etc.).

3. Check for dirt, leaves, or insects on

radiator and A/C condenser.

4. Check for deteriorated coolant.

5. Check for a damaged or deformed fan

shroud.

6. Inspect the fan motors (see FAN

MOTOR TEST ) or fan relays (see
POWER RELAY TEST ).

7. Check the radiator cap (see

RADIATOR CAP TEST ).

8. Check the thermostat (see FAN

MOTOR TEST ).

9. Inspect the water pump (see WATER

PUMP INSPECTION ).

10. Check for a plugged or deteriorated

radiator hoses.

11. Check for plugged heater core or hoses.

12. Check for a damaged cylinder head

gasket.



The radiator fan does
not run at all

1. Check for PGM-FI DTCs (see

GENERAL TROUBLESHOOTING
INFORMATION ).

2. Radiator fan circuit troubleshooting

(see RADIATOR FAN CIRCUIT
TROUBLESHOOTING ).

Cleanliness and tightness of all
connectors

The radiator fan does
not run for engine
cooling, but it runs
with the A/C on

1. Check for PGM-FI DTCs (see

GENERAL TROUBLESHOOTING
INFORMATION ).

2. Radiator fan circuit troubleshooting

(see RADIATOR FAN CIRCUIT
TROUBLESHOOTING ).

Cleanliness and tightness of all
connectors

The A/C condenser
fan does not run at
all (but the radiator

A/C condenser fan circuit troubleshooting
(see A/C CONDENSER FAN CIRCUIT



HVAC DTCs (see
GENERAL
TROUBLESHOOTING
INFORMATION )



2007 Honda Element EX

2007-08 ENGINE Fan Controls - Element



CIRCUIT DIAGRAM

fan runs with the A/C
on)

TROUBLESHOOTING ).



Cleanliness and tightness of
all connectors

Both the radiator fan
and the A/C
condenser fan do not
run with the A/C on
(but the A/C
compressor runs with
the A/C on)

Radiator and A/C condenser fan common
circuit troubleshooting (see RADIATOR
AND A/C CONDENSER FAN COMMON
CIRCUIT TROUBLESHOOTING ).



HVAC DTCs (see
GENERAL
TROUBLESHOOTING
INFORMATION )



Cleanliness and tightness of
all connectors
