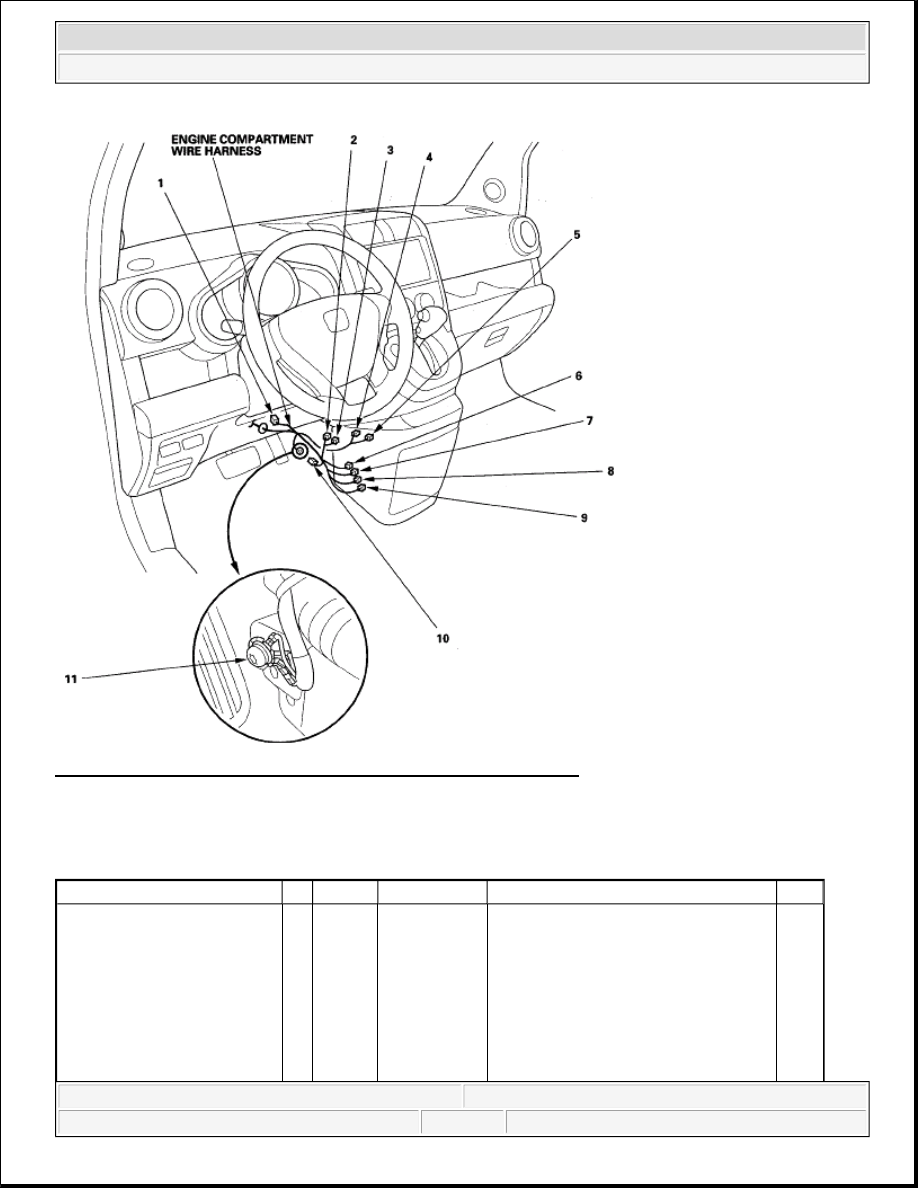

Fig. 9: Identifying Engine Compartment Wire Harness (Dashboard)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

DASHBOARD WIRE HARNESS B

CONNECTOR TO HARNESS INDEX

Connector or Terminal

Ref Cavities

Location

Connects to

Notes

Cable reel connector A

19

4

In steering
column cover

Driver's airbag inflator



Cable reel connector B

1

5

In steering
column cover





Combination light switch

21

16

In steering
column cover





Front passenger's airbag
inflator

9

4

Behind glove
box







2007 Honda Element EX

2007-2008 ELECTRICAL Connectors and Harnesses - Element



Ignition key switch/key light

17

6

In steering
column cover





Ignition switch

18

7

In steering
column cover





Immobilizer control unit-
receiver

16

7

In steering
column cover





Multiplex control unit
(Fuse/relay box connector X)

8

8

In the under-
dash
fuse/relay box





SRS unit connector A

13

28

Under middle
of dash





Steering angle sensor

20

5

In steering
column cover





Under-dash fuse/relay box
connector A (see UNDER-
DASH FUSE/RELAY
BOX )

5

5

Under left
side of dash





Under-dash fuse/relay box
connector B (see UNDER-
DASH FUSE/RELAY
BOX )

6

6

Under left
side of dash





Under-dash fuse/relay box
connector C (see UNDER-
DASH FUSE/RELAY
BOX )

4

14

Under left
side of dash





Under-dash fuse/relay box
connector J (see UNDER-
DASH FUSE/RELAY
BOX )

3

8

Under left
side of dash





Under-dash fuse/relay box
connector S (see UNDER-
DASH FUSE/RELAY
BOX )

7

2

Under left
side of dash





Wiper/washer switch

2

14

In the steering
column cover





C401

15

20

Under middle
of dash

Engine compartment wire harness (see
ENGINE COMPARTMENT WIRE
HARNESS (DASHBOARD) )



C402

14

16

Under middle
of dash

Engine compartment wire harness (see
DASHBOARD WIRE HARNESS A
(LEFT BRANCH) )



C403

12

20

Under middle
of dash

Dashboard wire harness A (see
DASHBOARD WIRE HARNESS A
(LEFT BRANCH) )



C404

11

6

Under middle

Floor wire harness (see FLOOR
WIRE HARNESS (RIGHT





2007 Honda Element EX

2007-2008 ELECTRICAL Connectors and Harnesses - Element



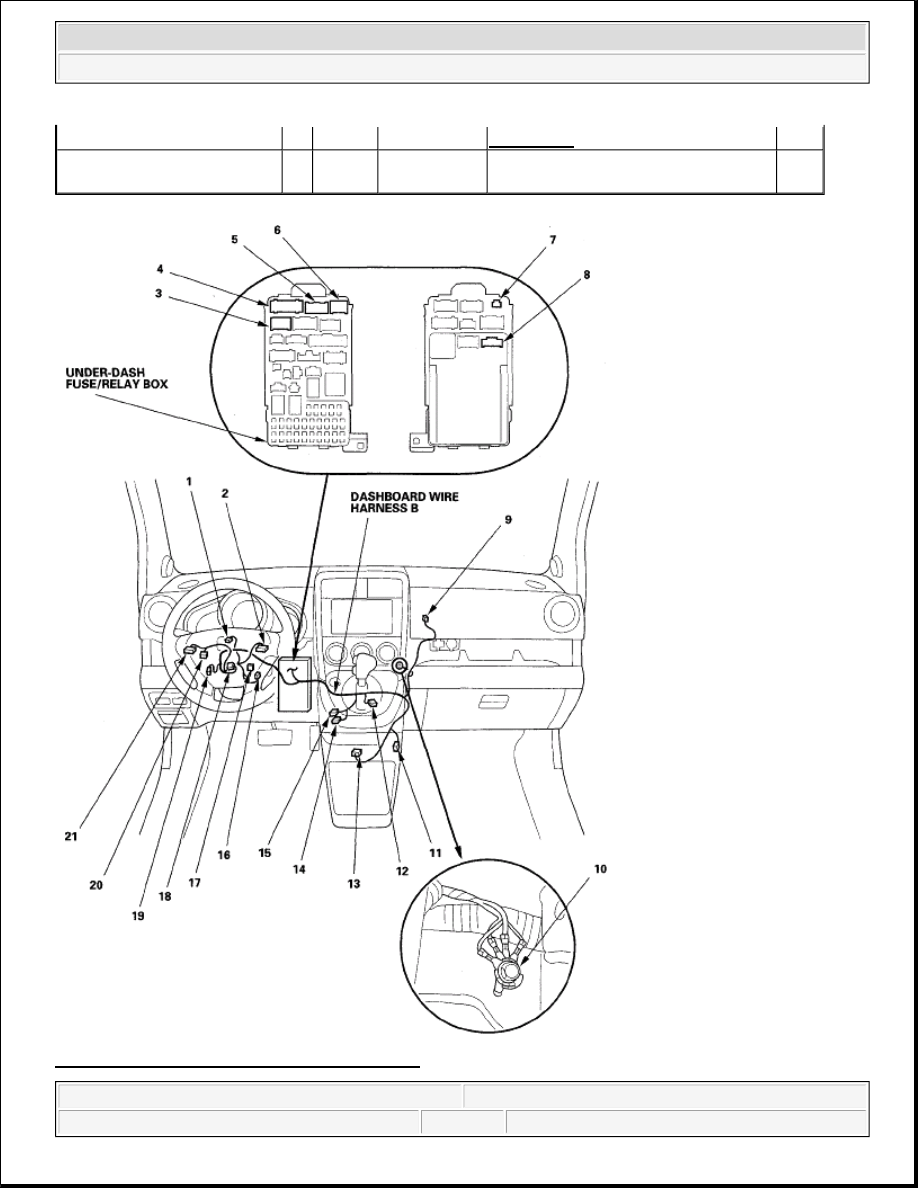

Fig. 10: Identifying Dashboard Wire Harness B

of dash

BRANCH) )

G401

10



Under middle
of dash

Body ground, via dashboard wire
harness B





2007 Honda Element EX

2007-2008 ELECTRICAL Connectors and Harnesses - Element



Courtesy of AMERICAN HONDA MOTOR CO., INC.

DASHBOARD WIRE HARNESS A (LEFT BRANCH)

CONNECTOR TO HARNESS INDEX

Connector or Terminal

Ref Cavities

Location

Connects to

Notes

Brake pedal position switch

25

4

Under left
side of dash





Clutch pedal position switch 26

2

Under left
side of dash



M/T

Clutch interlock switch

27

2

Under left
side of dash



M/T

Cruise control main switch

30

5

Under left
side of dash





Daytime running lights
control unit

9

14

Under left
side of dash



Canada
models

Daytime running lights relay

1

4

Under left
side of dash



Canada
models

Diode, DRL

28

2

Under left
side of dash



(2)

Diode, rear ceiling light

5

2

Behind left
side of dash





Gauge control module
connector

7

36

Behind gauge
control
module





Hazard warning switch

19

10

Middle of
dash





Heater control panel

18

30

Behind heater
control panel





Keyless receiver unit

4

5

Under left
side of dash





Low beam cut relay

2

5

Under left
side of dash



(1)

Multiplex control unit
(Fuse/relay box connector Y)

11

13

In the under-
dash
fuse/relay box





Security control unit
connector (optional)

6

22

Under left
side of dash





Throttle actuator control
module

31

16

Under left
side of dash





Trailer lighting connector
(optional)

35

10

Under left
side of dash





Under-dash fuse/relay box
connector F (see UNDER-
DASH FUSE/RELAY

10

12

In the under-
dash
fuse/relay box







2007 Honda Element EX

2007-2008 ELECTRICAL Connectors and Harnesses - Element
