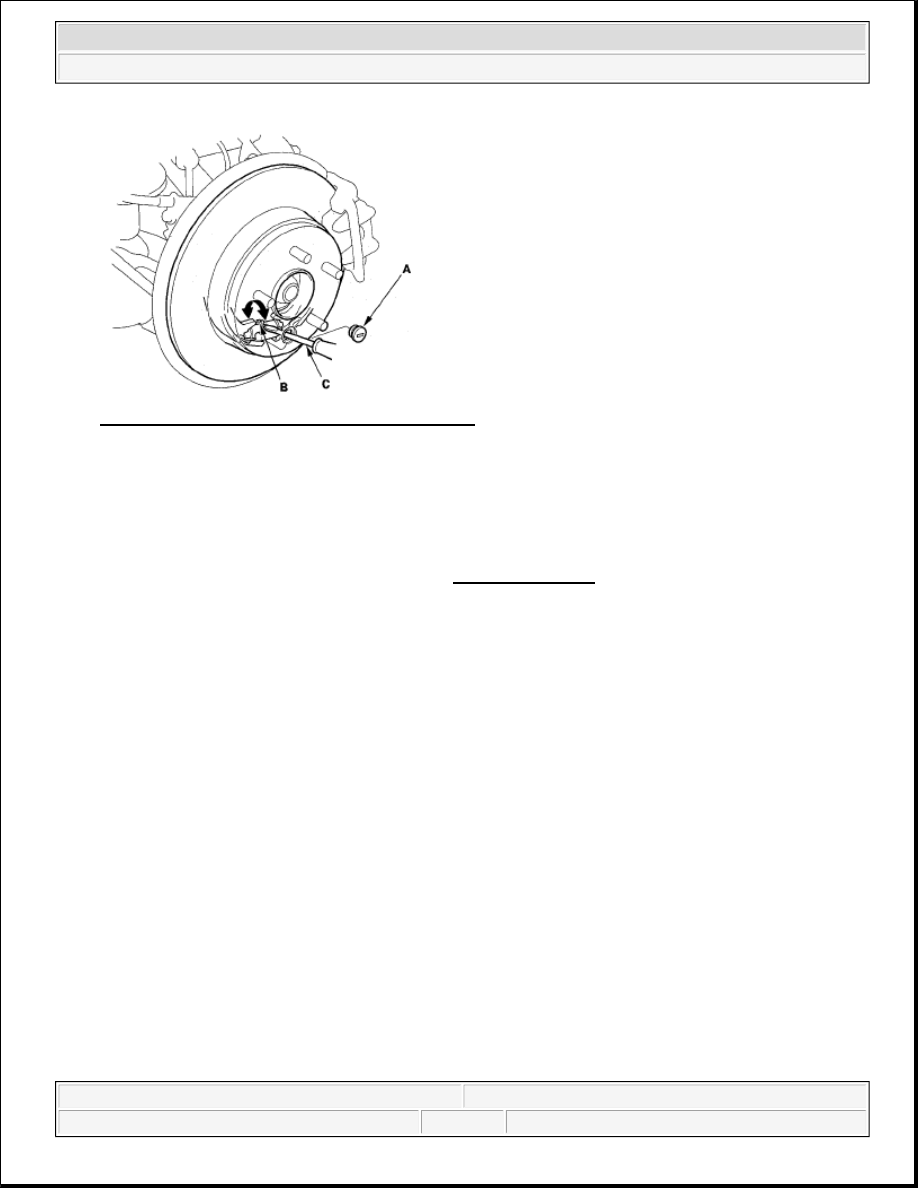

Fig. 12: Turning Ratchet Teeth On Adjuster Nut
Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. Turn the ratchet teeth on the adjuster nut (B) with a flat-tip screwdriver (C) until the shoes lock against

the parking brake drum. Then back off the adjuster 8 clicks, and install the access plug.

8. Clean the mating surfaces of the brake disc/drum and the inside of the wheel, then install the rear wheels.

9. Do the minor adjustment procedure.

10. Except SC model: Install the center console (see LX, EX MODELS ). SC model: Install the lid to the

center console.

BRAKE SYSTEM BLEEDING

1. Make sure the brake fluid level in the reservoir (A) is at the MAX (upper) level line (B).

NOTE:



Do not reuse the drained fluid. Use only clean Honda DOT 3 Brake Fluid
from an unopened container. Using a non-Honda brake fluid can cause
corrosion and shorten the life of the system.



Do not mix different brands of brake fluid; they may not be compatible.



Make sure no dirt or other foreign matter is allowed to contaminate the
brake fluid.



Do not spill brake fluid on the vehicle, it may damage the paint; if brake
fluid does contact the paint, wash it off immediately with water.



The reservoir connected to the master cylinder must be at the MAX (upper)
level mark at the start of the bleeding procedure and checked after
bleeding each brake system. Add fluid as required.



2007 Honda Element EX

2007-2008 BRAKES Conventional Brake Components - Element



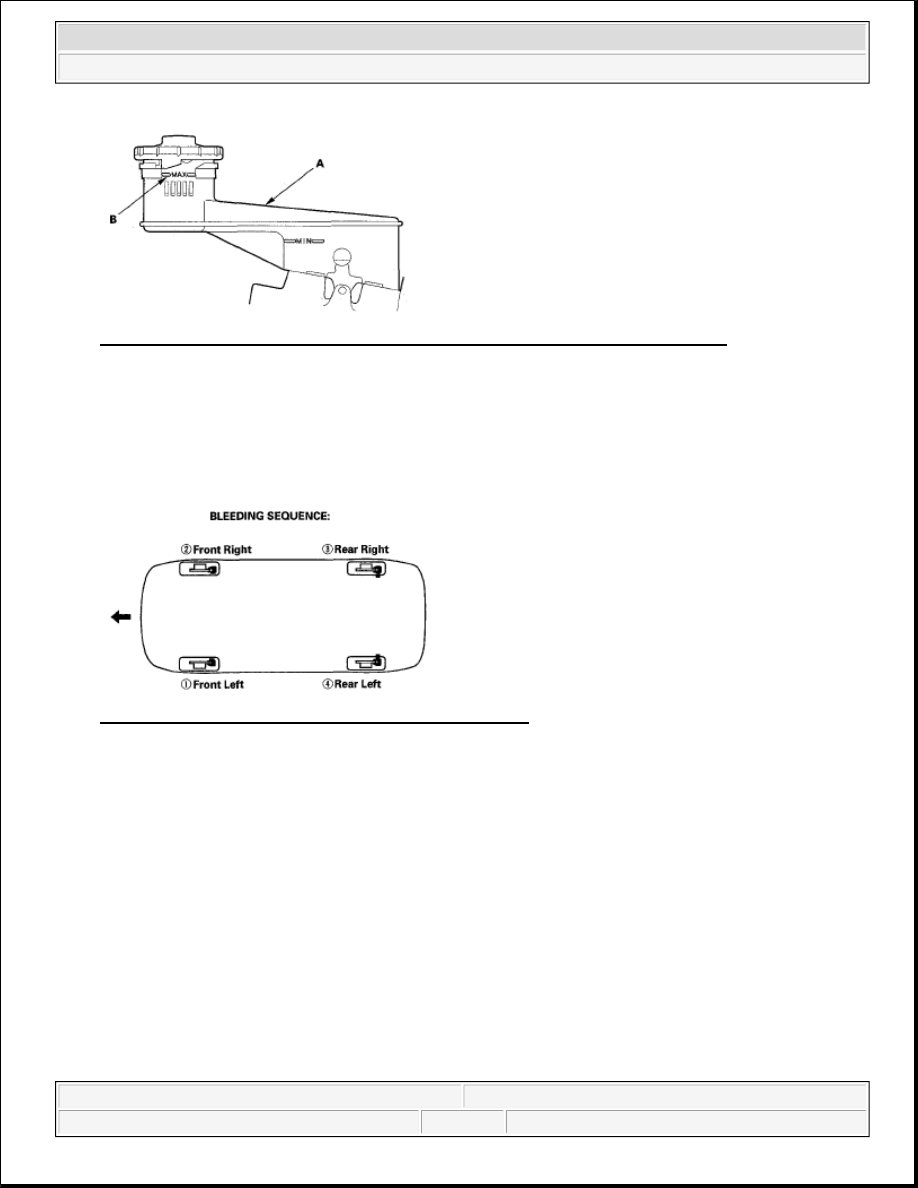

Fig. 13: Identifying Brake Fluid Level In Reservoir With Max (Upper) Level Line
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Have someone slowly pump the brake pedal several times, then apply steady pressure.

3. Start the bleeding at the driver's side of the front brake system.

Fig. 14: Identifying Wheel Cylinders Bleeding Sequence
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Attach a length of clear drain tube (A) to the bleed screw (B), then, loosen the bleed screw to allow air to

escape from the system. Then tighten the bleed screw securely.

Front

NOTE:

Bleed the calipers or the wheel cylinders in the sequence shown.



2007 Honda Element EX

2007-2008 BRAKES Conventional Brake Components - Element



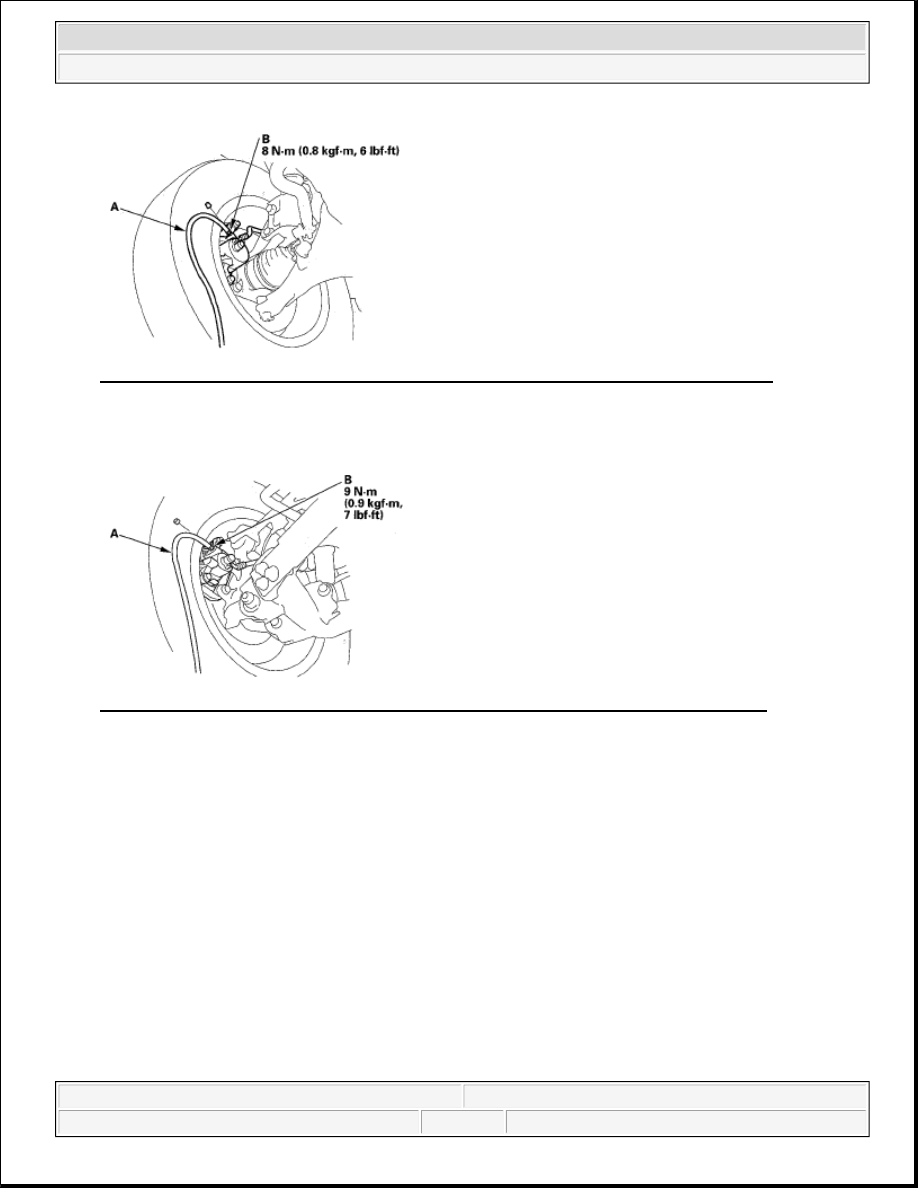

Fig. 15: Attaching Clear Drain Tube To Bleed Screw - Front With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Rear

Fig. 16: Attaching Clear Drain Tube To Bleed Screw - Rear With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Refill the master cylinder reservoir to the MAX (upper) level line.

6. Repeat the procedure for each brake circuit until there are no air bubbles are in the fluid.

BRAKE SYSTEM INDICATOR CIRCUIT DIAGRAM



2007 Honda Element EX

2007-2008 BRAKES Conventional Brake Components - Element



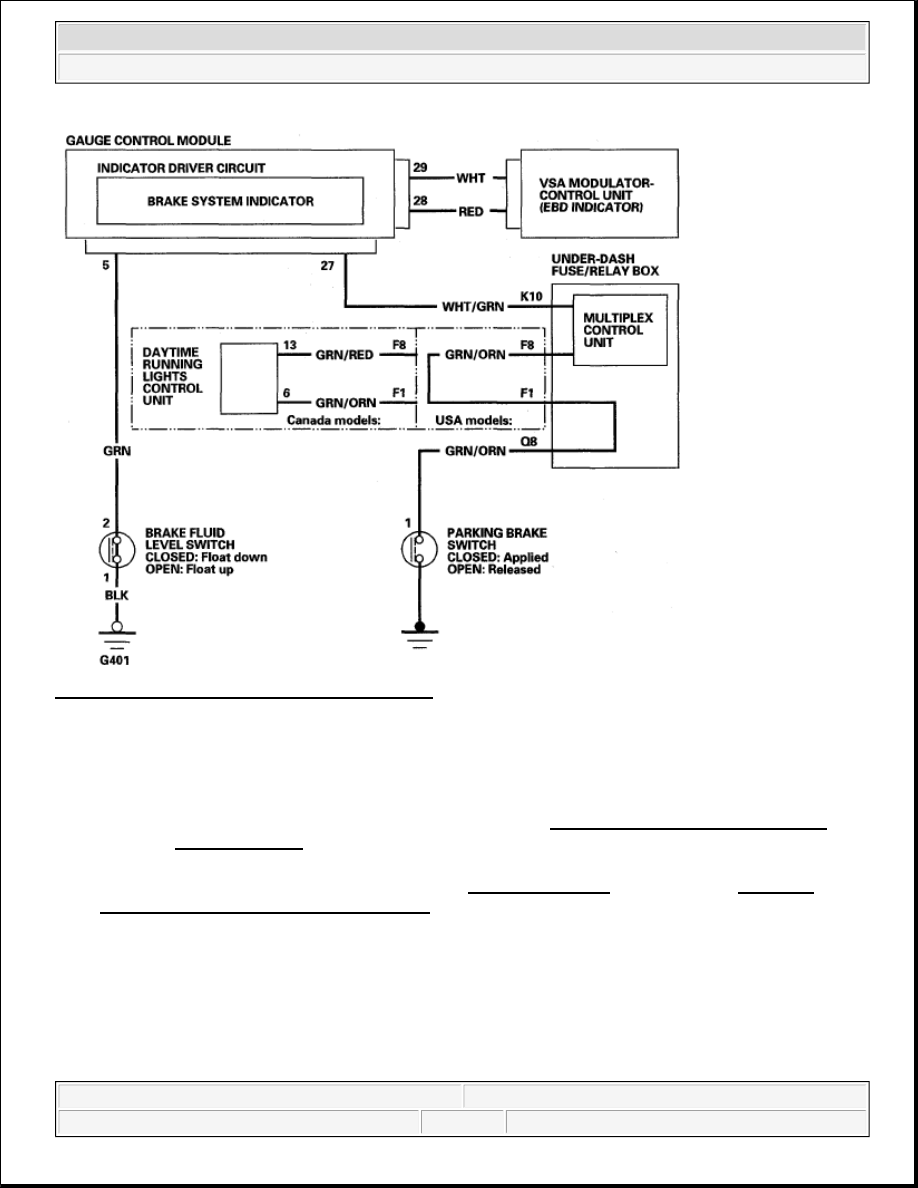

Fig. 17: Brake System Indicator Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.

PARKING BRAKE SWITCH TEST

1. Remove the center console: Except SC model (see LX, EX MODELS ), SC model (see CENTER

CONSOLE REMOVAL/INSTALLATION ),

2. Disconnect the parking brake switch connector (A) from the parking brake switch (B).

NOTE:

If both the ABS/VSA indicator and the brake system indicator come on at the
same time, check the VSA system first (see GENERAL TROUBLESHOOTING
INFORMATION ).

NOTE:

The illustration shows except SC model.



2007 Honda Element EX

2007-2008 BRAKES Conventional Brake Components - Element
