5. Check the brake pedal free play.

PEDAL FREE PLAY

1. With the engine off, inspect the play (A) at the brake pedal pad (B) by pushing the brake pedal by hand. If

the brake pedal, free play is out of specification, adjust/the brake pedal position switch (C). If the brake
pedal free play is insufficient, it may result in brake drag.

Freeplay: 1-5 mm (1/16-3/16 in.)

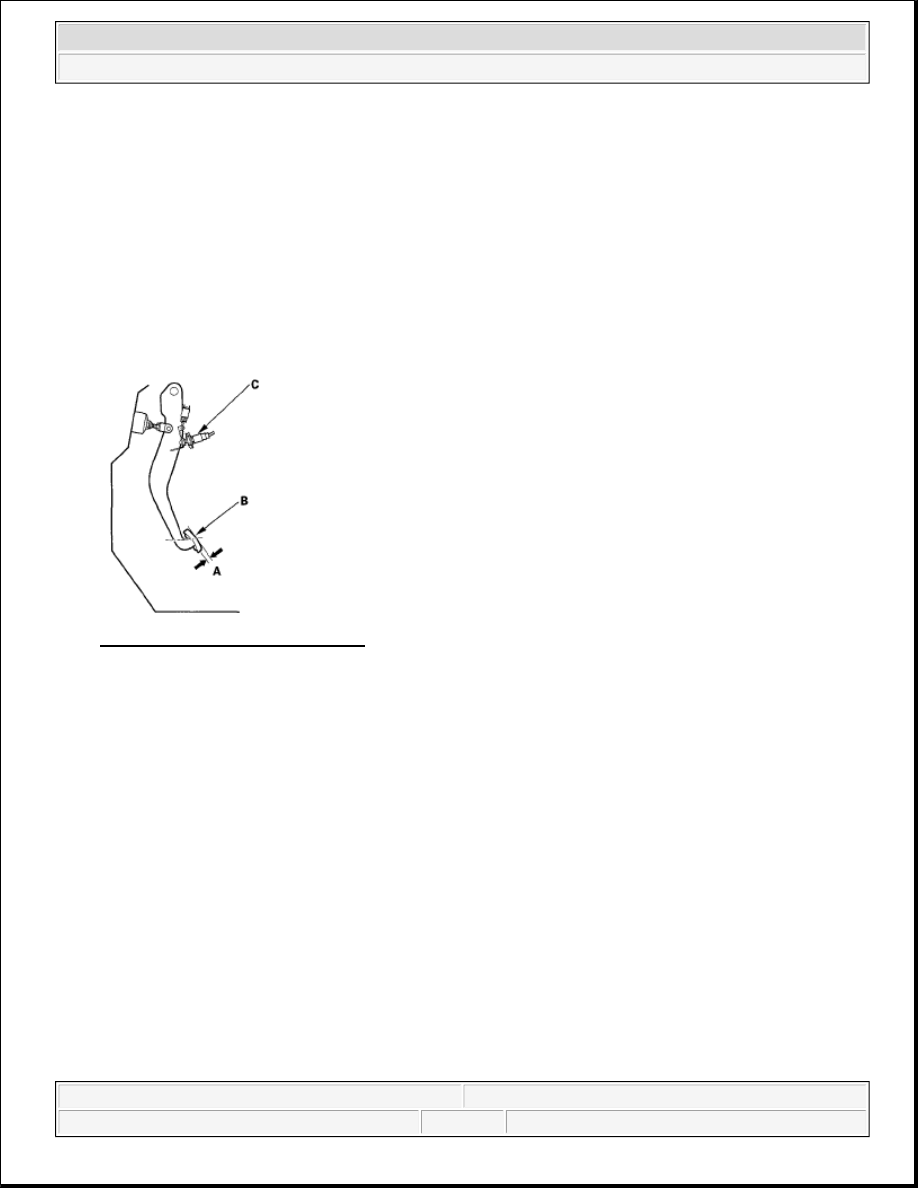

Fig. 6: Identifying Pedal Free Play
Courtesy of AMERICAN HONDA MOTOR CO., INC.

PARKING BRAKE INSPECTION AND ADJUSTMENT

INSPECTION

1. Pull the parking brake lever (A) with 196 N (20 kgf, 44 lbf) of force to fully apply the parking brake. The

parking brake lever should be locked within the specified number of clicks (B).

Lever locked clicks:

Except SC model: 4 to 7

SC model: 8 to 10

NOTE:

The illustration shows except SC model.



2007 Honda Element EX

2007-2008 BRAKES Conventional Brake Components - Element



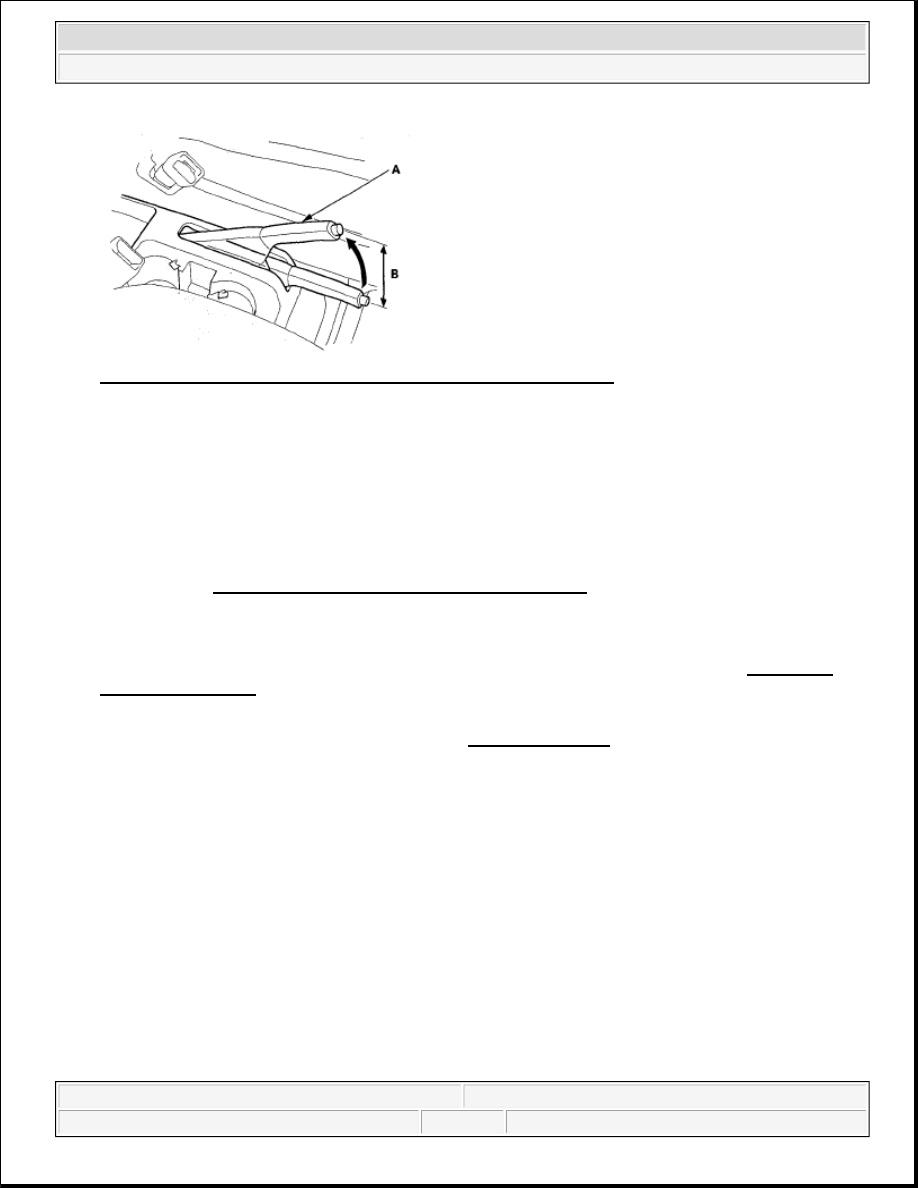

Fig. 7: Identifying Parking Brake Lever With Lever Locked Clicks
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Adjust the parking brake if the lever clicks are not within the specification.

After installing new parking brake shoes and/or new brake disc/drum, make sure you drive the vehicle for
"break-in" (see PARKING BRAKE SHOE LINING BREAK-IN ).

MINOR ADJUSTMENT

1. Raise the rear of the vehicle, and support it with safety stands in the proper locations (see LIFT AND

SUPPORT POINTS ).

2. Release the parking brake lever fully.

3. Except SC model: Remove the center console (see LX, EX MODELS ). SC model: Remove the lid from

the center console.

4. Pull the parking brake lever 1 click.

5. Tighten the parking brake adjusting nut (A) until the parking brakes drag slightly when the rear wheels

are turned.

Except SC model

NOTE:

Minor parking brake adjustments (1 to 2 clicks) can be made with the
adjusting nut. If a larger adjustment is required, follow the major
adjustment procedure using the adjuster at the parking brake drum.



2007 Honda Element EX

2007-2008 BRAKES Conventional Brake Components - Element



Fig. 8: Identifying Parking Brake Adjusting Nut - Except SC Model
Courtesy of AMERICAN HONDA MOTOR CO., INC.

SC model

Fig. 9: Identifying Parking Brake Adjusting Nut - SC Model
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Release the parking brake lever fully, and check that the parking brakes do not drag when the rear wheels

are turned. Readjust if necessary.

7. Make sure the parking brakes are fully applied when the parking brake lever is pulled in all the way.

8. Except SC model: Install the center console (see LX, EX MODELS ). SC model: Install the lid to the

center console.

MAJOR ADJUSTMENT (TO BE DONE WHEN REPLACING PARKING BRAKE SHOES AND
AFTER LINING SURFACE BREAK-IN)

1. Raise the rear of the vehicle, and support it with safety stands in the proper locations (see LIFT AND

SUPPORT POINTS ).

2. Release the parking brake lever fully.

3. Except SC model: Remove the center console (see LX, EX MODELS ). SC model: Remove the lid from



2007 Honda Element EX

2007-2008 BRAKES Conventional Brake Components - Element



the center console.

4. Back off the parking brake adjusting nut (A) in the equalizer.

Except SC model

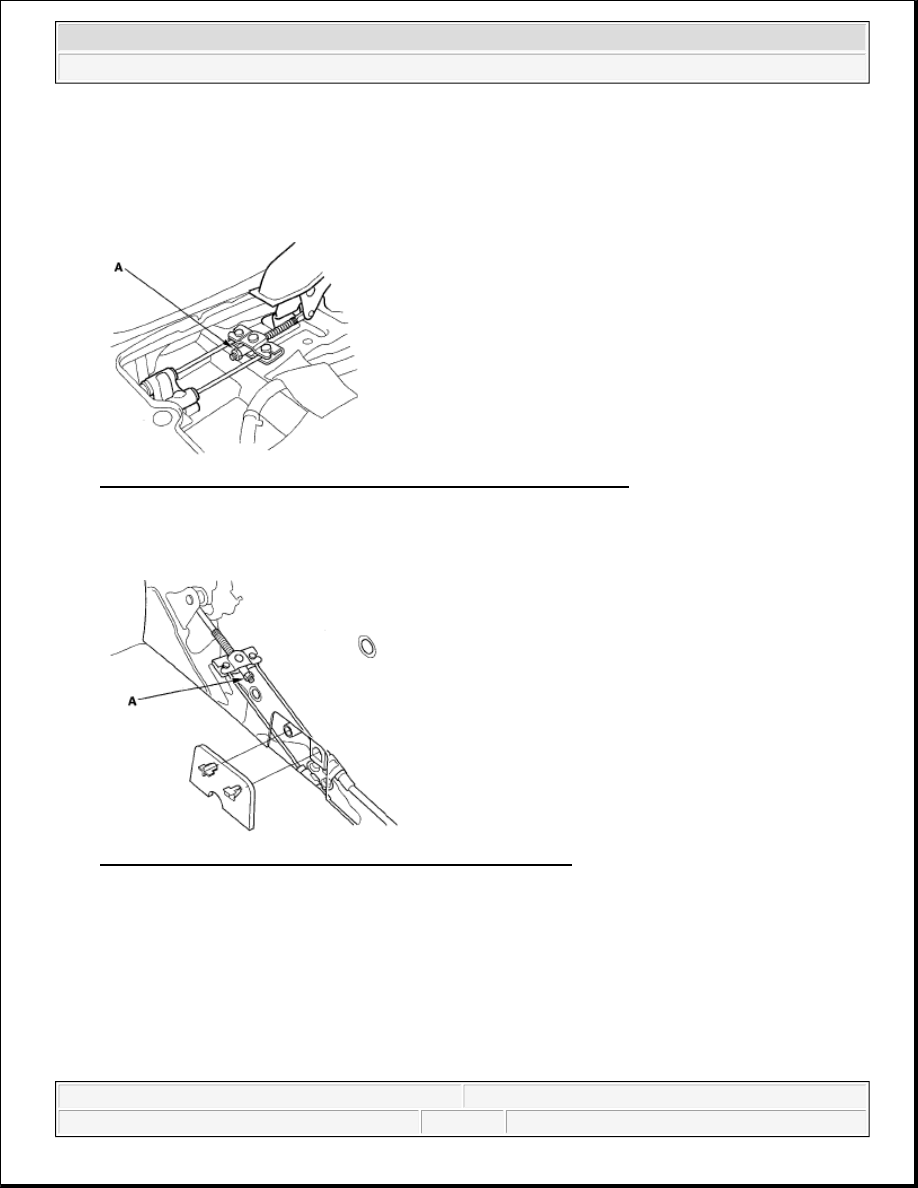

Fig. 10: Identifying Parking Brake Adjusting Nut - Except SC Model
Courtesy of AMERICAN HONDA MOTOR CO., INC.

SC model

Fig. 11: Identifying Parking Brake Adjusting Nut - SC Model
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Remove the rear wheels.

6. Remove the access plug (A).
