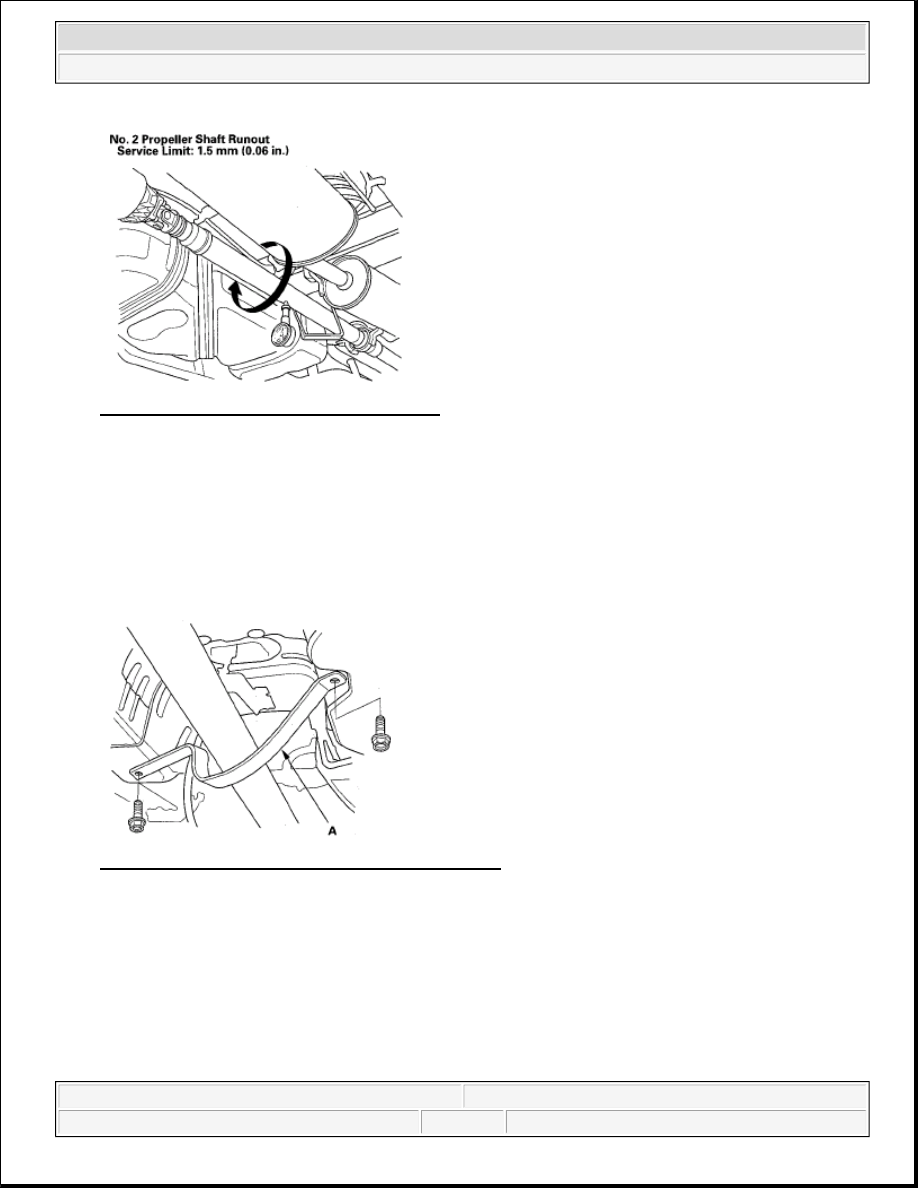

Fig. 104: Measuring Propeller Shaft Runout
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

8. If the runout on either propeller shaft exceeds the service limit, replace the propeller shaft assembly.

PROPELLER SHAFT REMOVAL

1. Raise the vehicle on the lift.

2. Remove the No. 1 propeller shaft protector (A).

Fig. 105: Identifying No. 1 Propeller Shaft Protector
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

3. Remove the No. 2 propeller shaft protector (A).



2007 Honda Element EX

2007-08 DRIVELINE/AXLES Driveline/Axle - Element

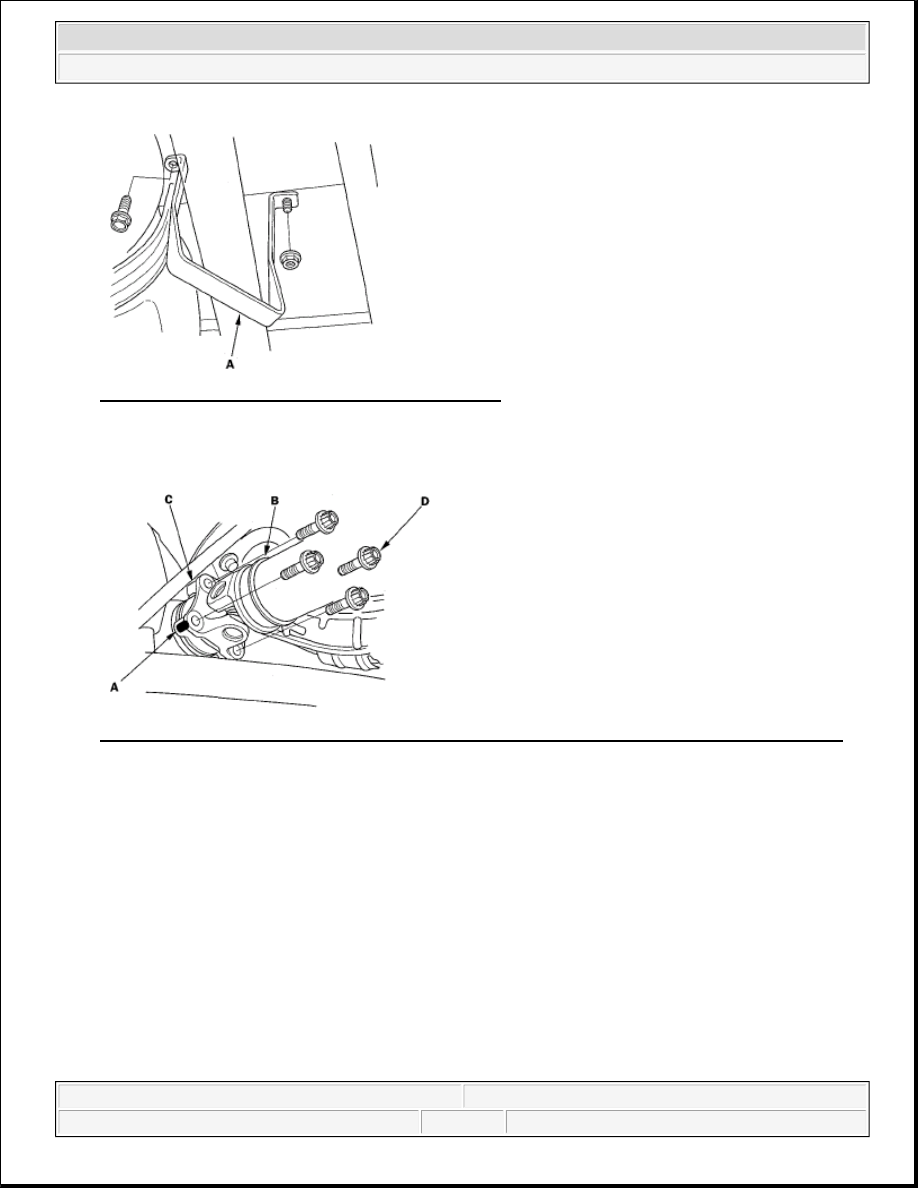

Fig. 106: Identifying No. 2 Propeller Shaft Protector
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

4. Make a reference mark (A) across the No. 1 propeller shaft (B) and transfer companion flange (C).

Fig. 107: Identifying Reference Mark On No. 1 Propeller Shaft And Transfer Companion Flange
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

5. Remove the propeller shaft mounting bolts (D), then separate the No. 1 propeller shaft from the transfer

assembly.

6. Remove the center support bearing mounting bolts.



2007 Honda Element EX

2007-08 DRIVELINE/AXLES Driveline/Axle - Element

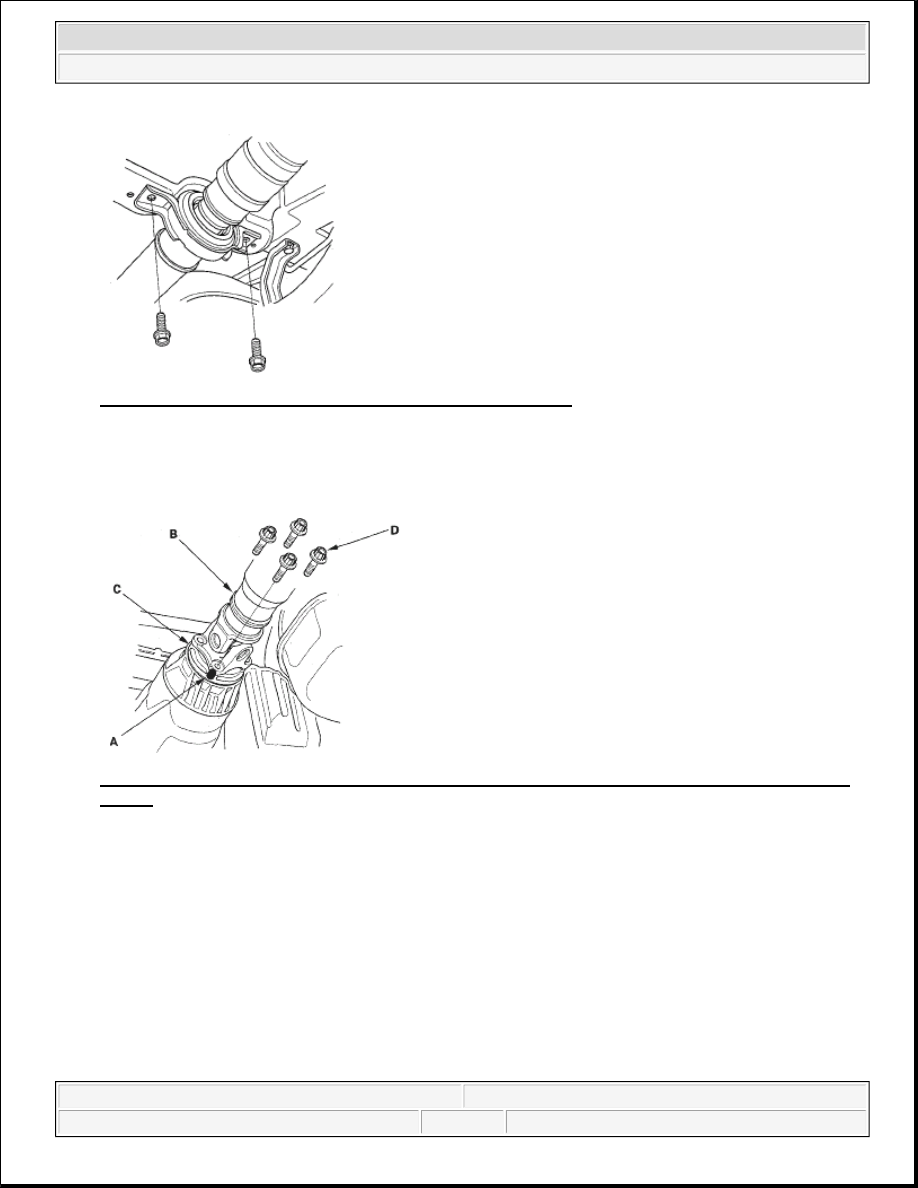

Fig. 108: Identifying Center Support Bearing Mounting Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

7. Make a reference mark (A) across the No. 2 propeller shaft (B) and rear differential companion flange

(C).

Fig. 109: Identifying Reference Mark On No. 2 Propeller Shaft And Rear Differential Companion
Flange
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

8. Remove the propeller shaft mounting bolts (D). Separate the No. 2 propeller shaft from the rear

differential, then remove the propeller shaft assembly.

PROPELLER SHAFT INSTALLATION

1. Install the No. 2 propeller shaft (A) onto the rear differential (B) by aligning the reference mark (C) you

made, then install new propeller shaft mounting bolts.



2007 Honda Element EX

2007-08 DRIVELINE/AXLES Driveline/Axle - Element

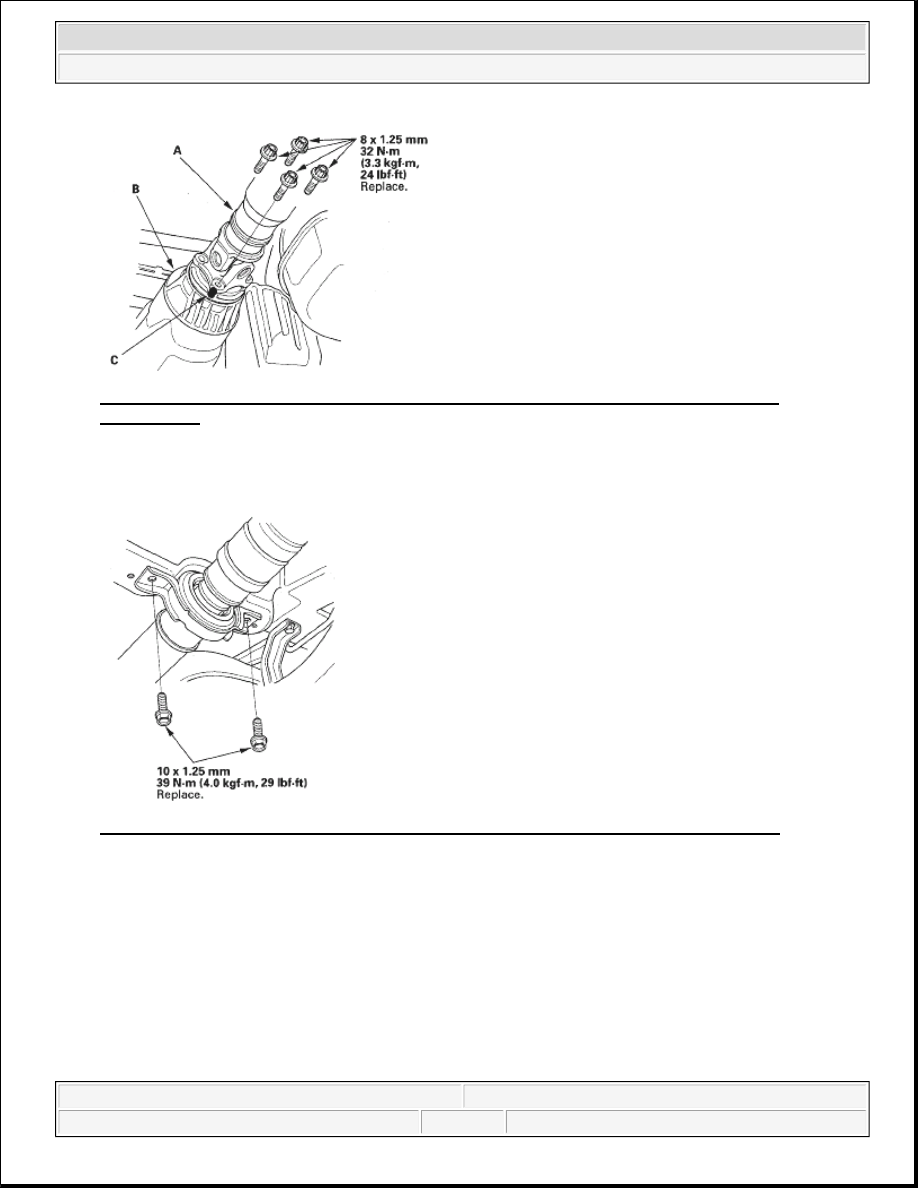

Fig. 110: Identifying Mark On No. 2 Propeller Shaft And Rear Differential With Torque
Specification
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2. Install the new center support bearing mounting bolts.

Fig. 111: Identifying Center Support Bearing Mounting Bolts With Torque Specification
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

3. Install the No. 1 propeller shaft (A) onto the transfer assembly (B) by aligning the reference mark (C) you

made, then install new propeller shaft mounting bolts.



2007 Honda Element EX

2007-08 DRIVELINE/AXLES Driveline/Axle - Element
