Fig. 60: Identifying Set Ring, Outer Seal And External Snap Ring
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2. Press the intermediate shaft (A) out of the intermediate shaft bearing (B) using a press. Be careful not to

damage the bearing support ring (C) on the intermediate shaft during disassembly.

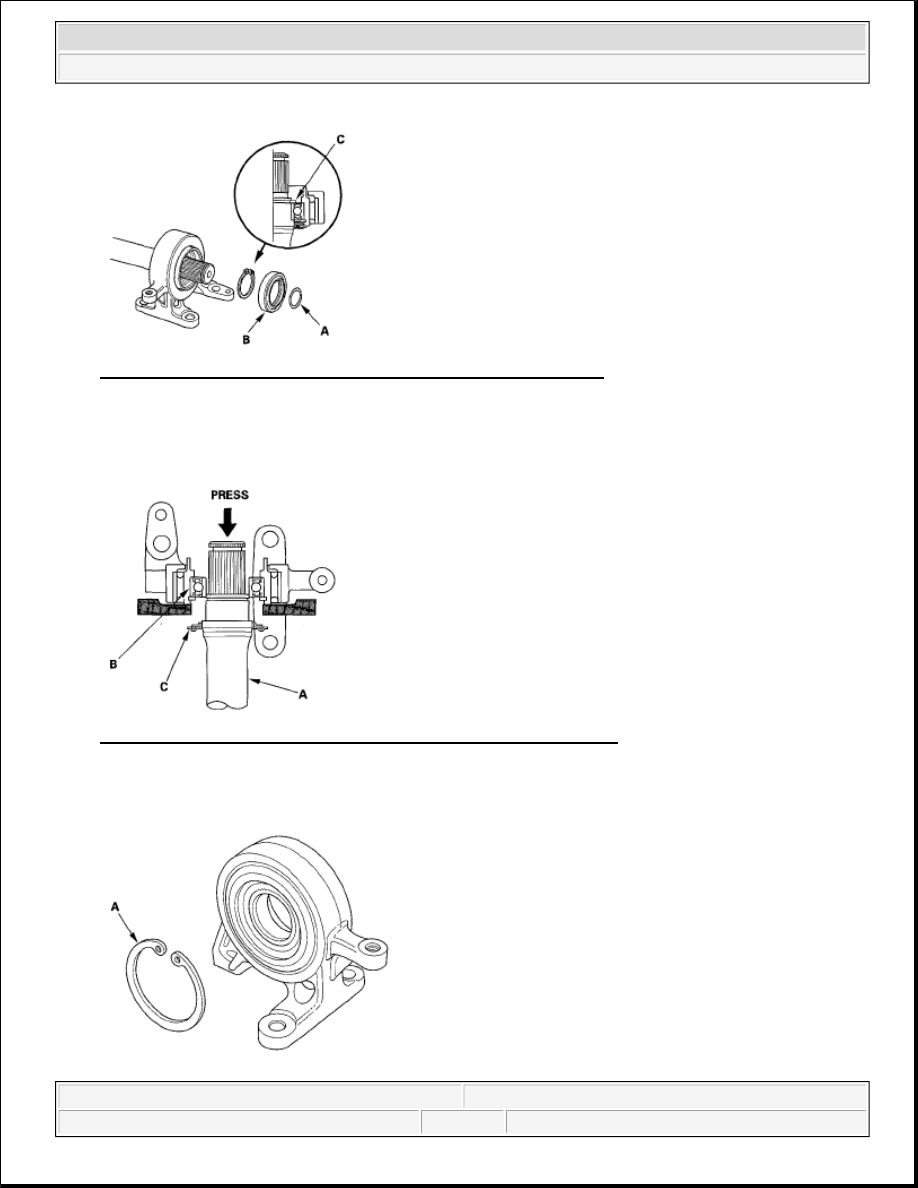

Fig. 61: Pressing Intermediate Shaft Of Intermediate Shaft Bearing
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

3. Remove the internal snap ring (A).

Fig. 62: Identifying Internal Snap Ring



2007 Honda Element EX

2007-08 DRIVELINE/AXLES Driveline/Axle - Element



Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

4. Press the intermediate shaft bearing (A) out of the bearing support (B) using the oil seal driver (C), half

shaft base (D), and a press.

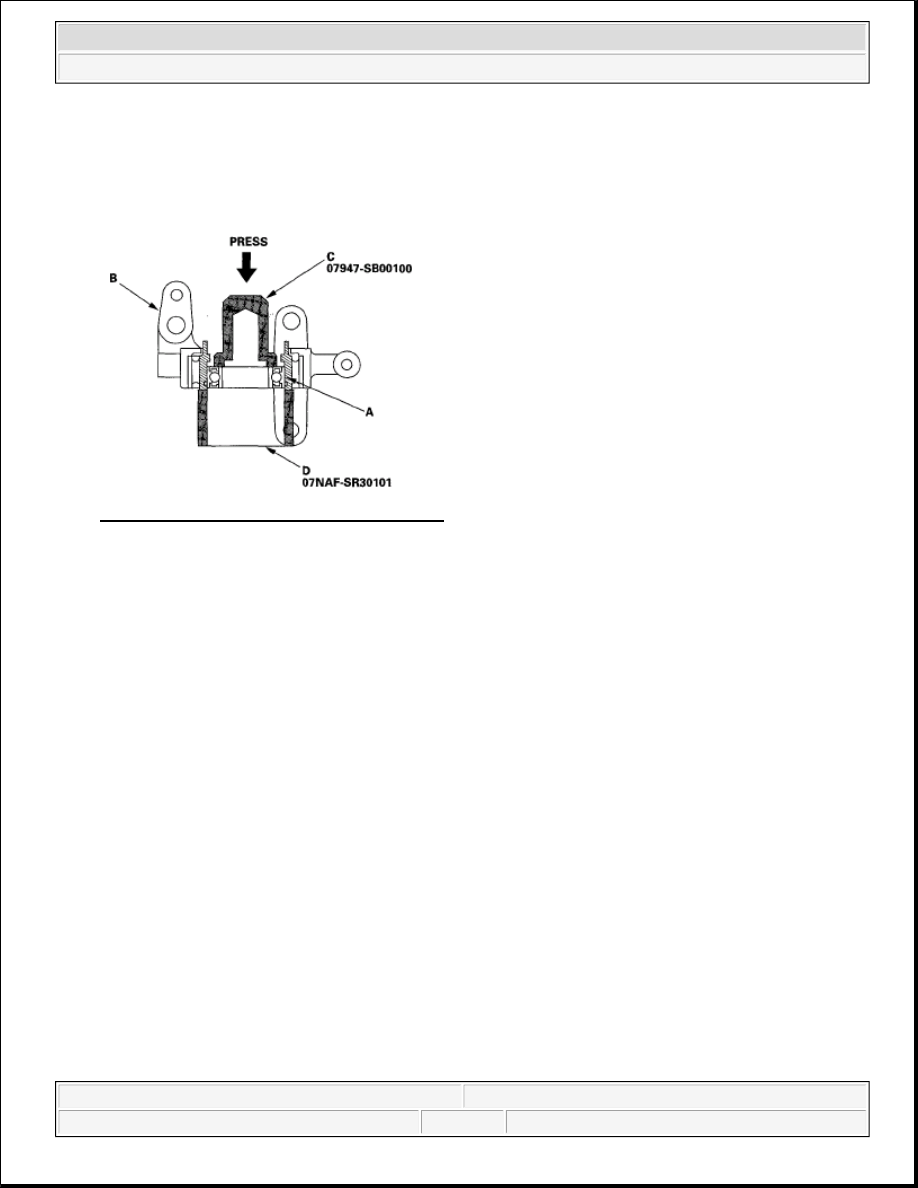

Fig. 63: Pressing Intermediate Shaft Bearing
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

INTERMEDIATE SHAFT REASSEMBLY

EXPLODED VIEW



2007 Honda Element EX

2007-08 DRIVELINE/AXLES Driveline/Axle - Element



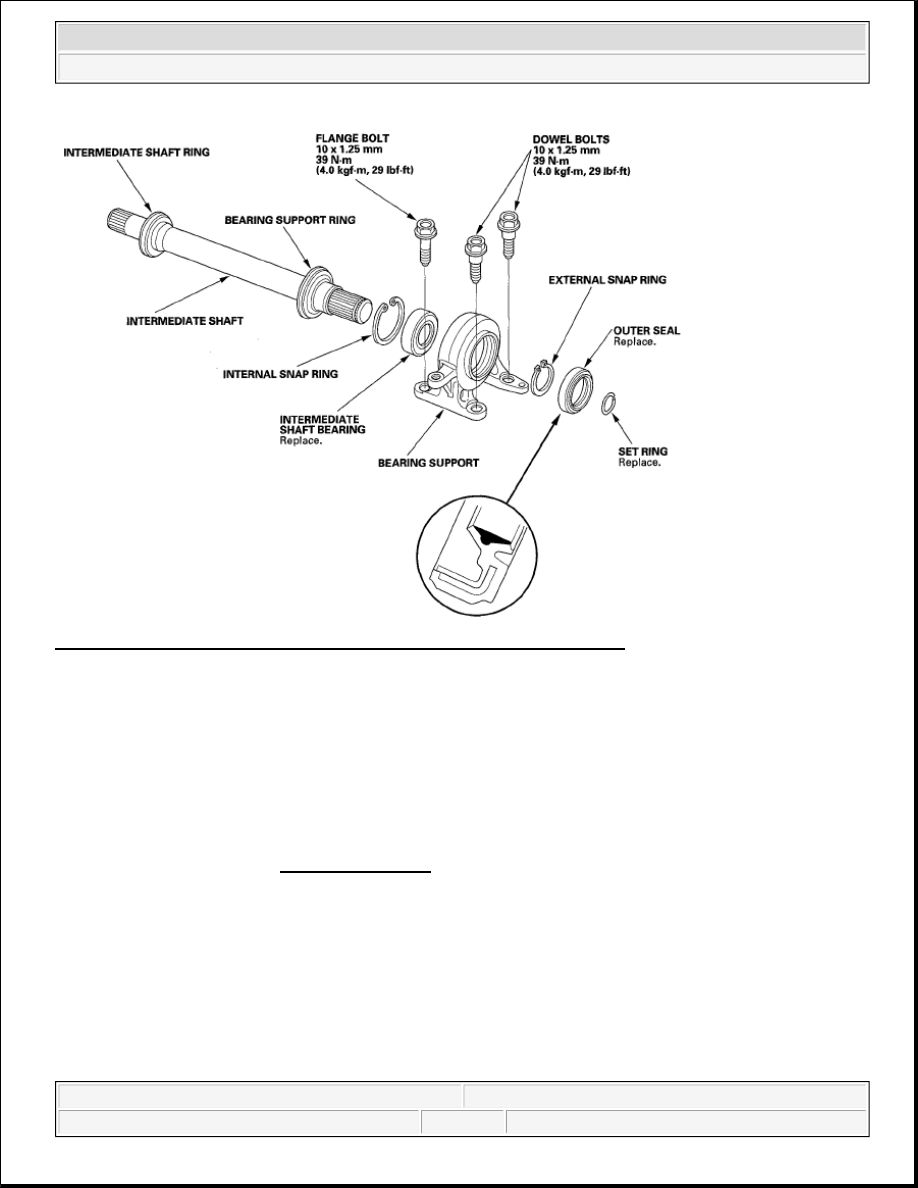

Fig. 64: Exploded View Of Intermediate Shaft With Torque Specifications
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Special Tools Required



Oil seal driver 07GAD-PH70201



Attachment, 52 x 55 mm 07746-0010400



Attachment, 35 mm I.D. 07746-0030400



Driver 07749-0010000

1. Clean the disassembled parts with solvent, and dry them with compressed air.

2. Press the intermediate shaft bearing (A) into the bearing support (B) using the 52 x 55 mm attachment

(C), driver (D), and a press.

NOTE:

Refer to the EXPLODED VIEW, as needed, during this procedure.

NOTE:

Do not wash the rubber parts with solvent.



2007 Honda Element EX

2007-08 DRIVELINE/AXLES Driveline/Axle - Element



Fig. 65: Pressing Intermediate Shaft Bearing
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

3. Seat the internal snap ring (A) into the groove of the bearing support.

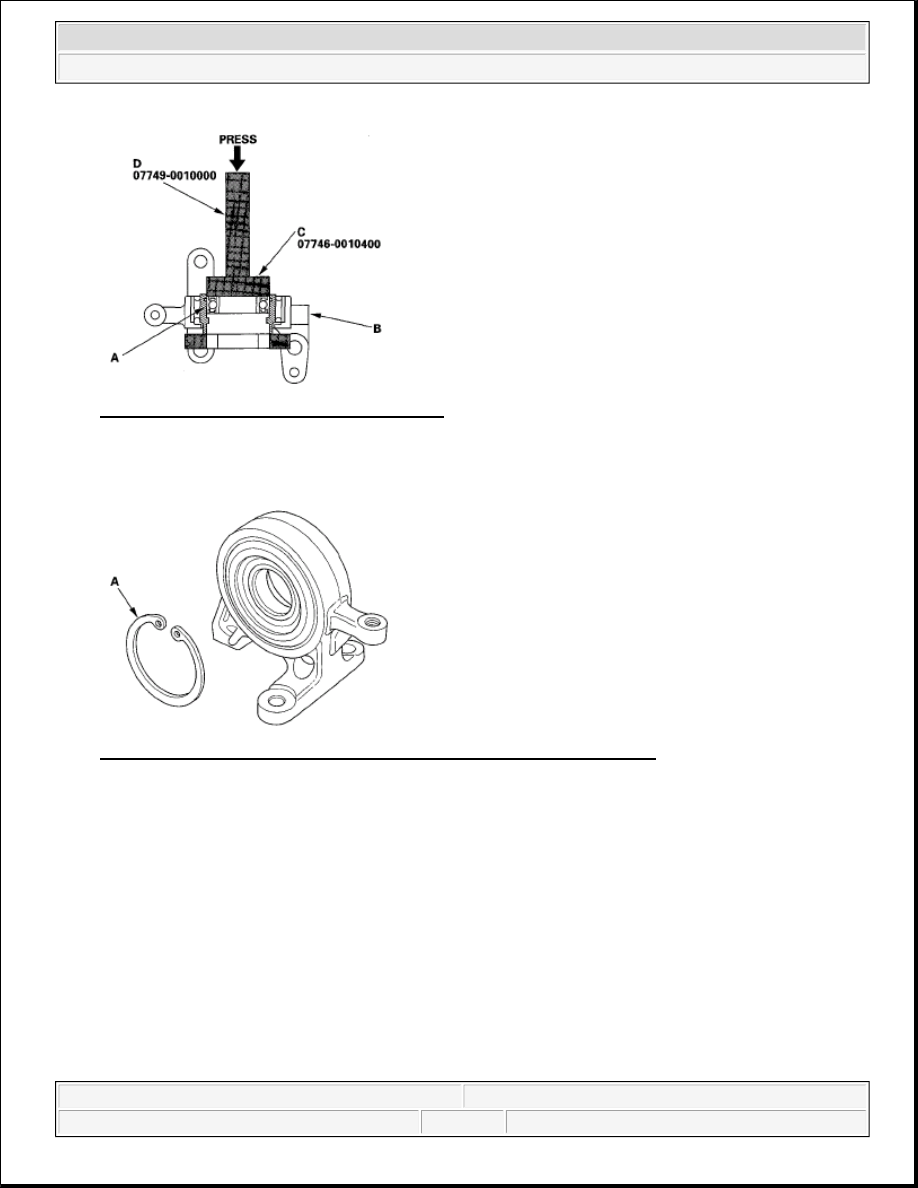

Fig. 66: Identifying Internal Snap Ring Into Groove Of Bearing Support
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

4. Press the intermediate shaft (A) into the shaft bearing (B) using the 35 mm I.D. attachment (C) and a

press.



2007 Honda Element EX

2007-08 DRIVELINE/AXLES Driveline/Axle - Element
