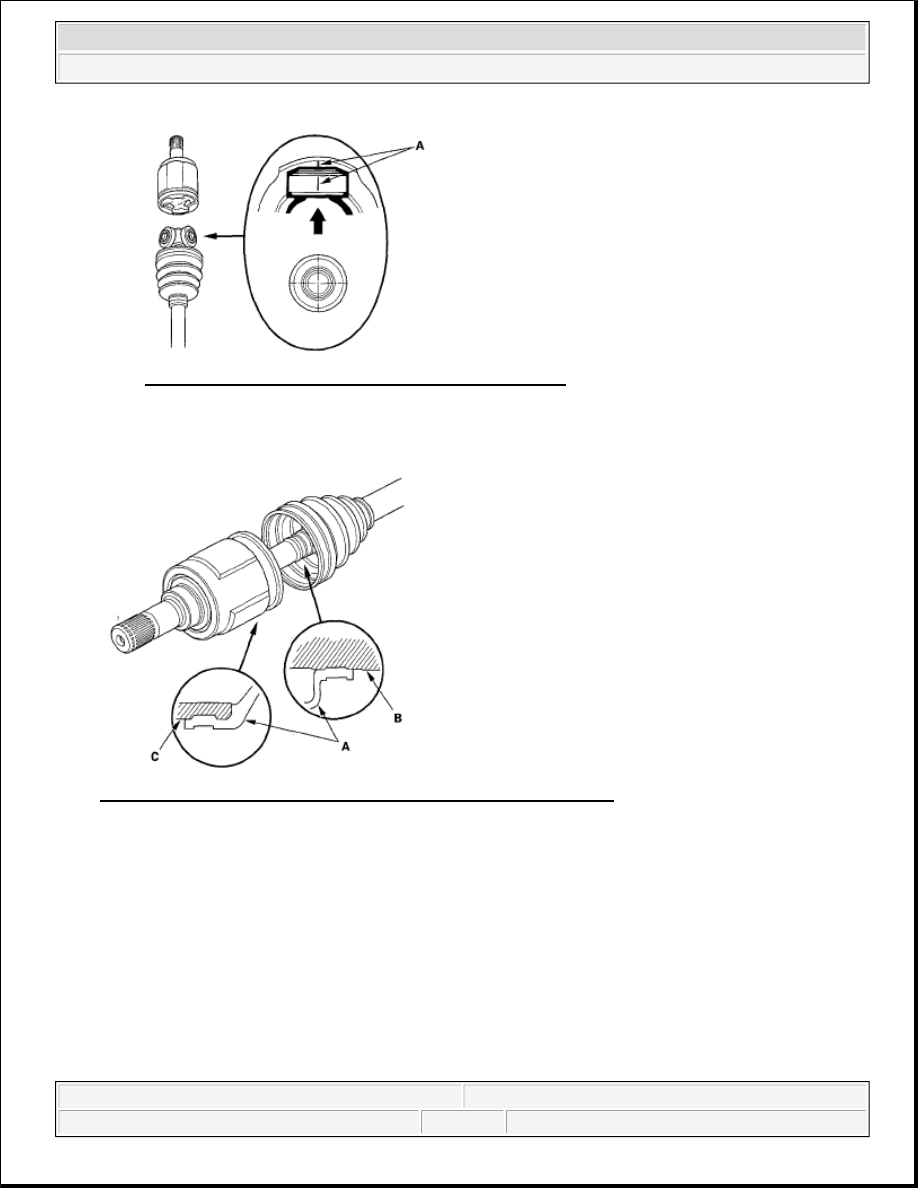

Fig. 28: Aligning Marks On Inboard Joint And Rollers
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

8. Fit the boot (A) ends onto driveshaft (B) and the inboard joint (C).

Fig. 29: Identifying Boot, Ends Onto Driveshaft And Inboard Joint
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

9. Adjust the length of the driveshaft to the figure as shown, then adjust the boots to halfway between full

compression and full extension.

Right driveshaft



2007 Honda Element EX

2007-08 DRIVELINE/AXLES Driveline/Axle - Element



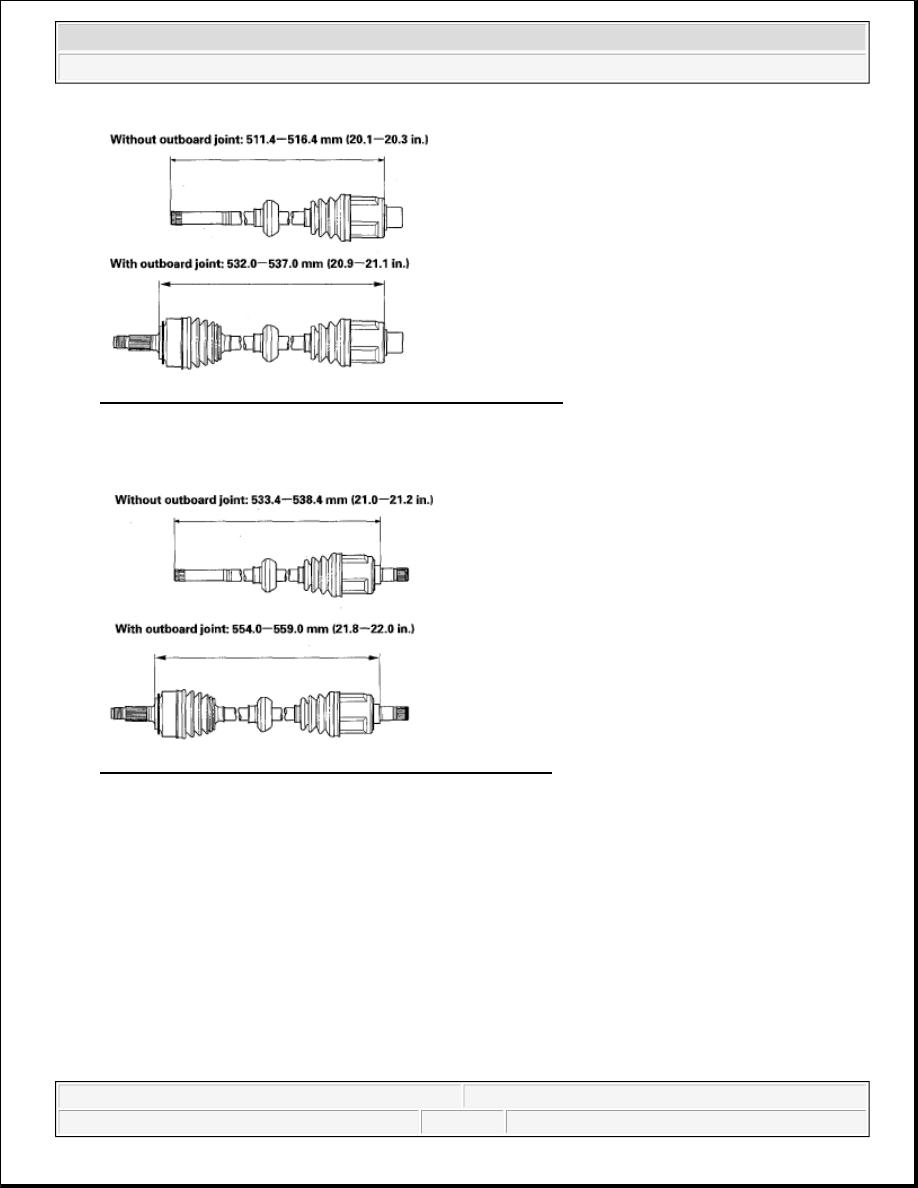

Fig. 30: Identifying Length Of Driveshaft (Right Driveshaft)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Left driveshaft

Fig. 31: Identifying Length Of Driveshaft (Left Driveshaft)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

10. Install new boot bands.



For the low profile type, go to step 11.



For the double loop type, go to step 14. (Boot band replacement only)

11. Install the new low profile band (A) onto the boot (B), then hook the tab (C) of the band.



2007 Honda Element EX

2007-08 DRIVELINE/AXLES Driveline/Axle - Element



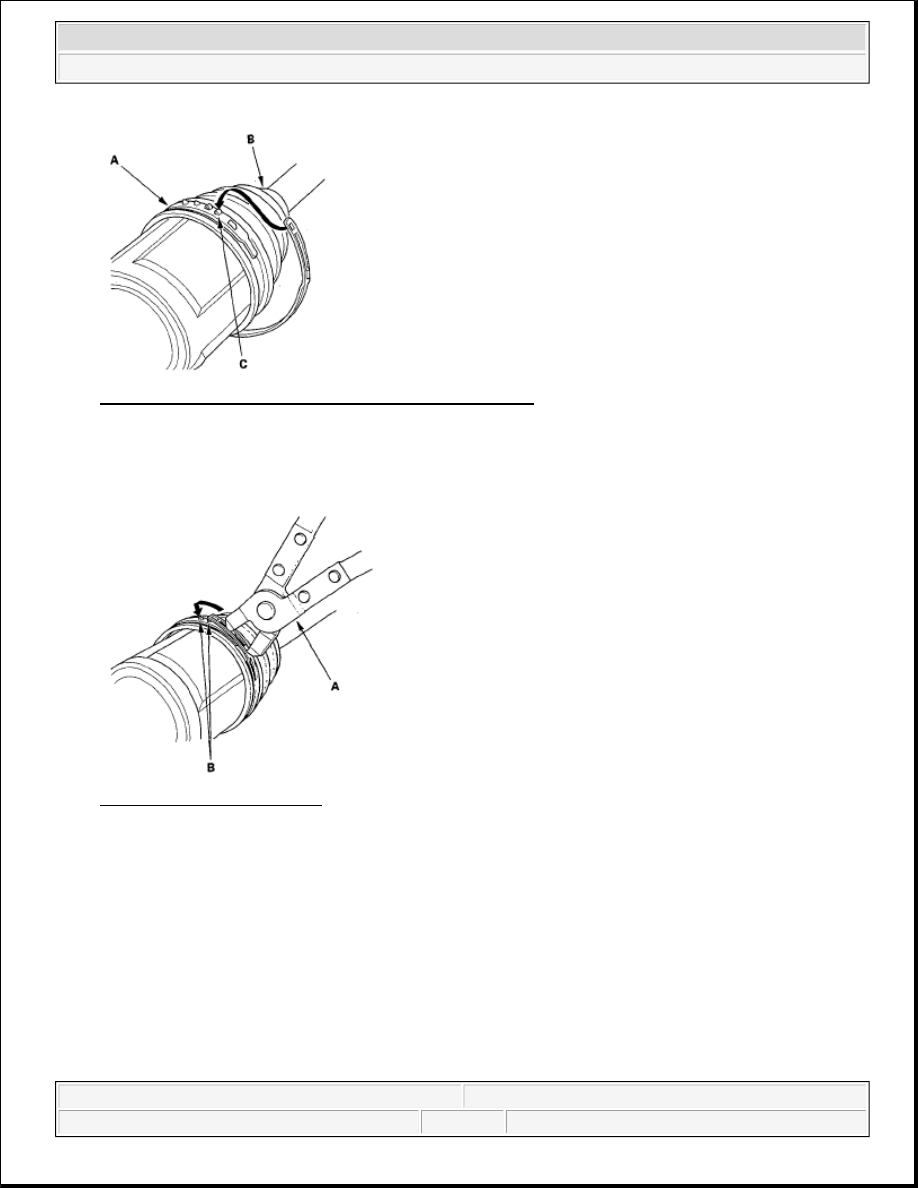

Fig. 32: Installing Low Profile Band Onto Boot And Tab
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

12. Close the hook portion of the band with a commercially available boot band pliers (A), then hook the tabs

(B) of the band.

Fig. 33: Installing Boot Band
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

13. Install the boot band on the other end of the boot, and repeat steps 11 through 12.

14. Fit the boot ends onto the driveshaft and the inboard joint, then install the new double loop band (A) onto

the boot (B).

NOTE:

Pass the end of the new double loop band through the clip (C) twice in the
direction of the forward rotation of the driveshaft.



2007 Honda Element EX

2007-08 DRIVELINE/AXLES Driveline/Axle - Element



Fig. 34: Pulling Slack
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

15. Pull up the slack in the band by hand.

16. Mark a position (A) on the band 10-14 mm (0.4-0.6 in.) from the clip (B).

Fig. 35: Identifying Mark Position Of Band Clip
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

17. Thread the free end of the band through the nose section of the commercially available boot band tool

KD-3191 or equivalent (A), and into the slot on the winding mandrel (B).
