Fig. 629: Identifying Transfer Holder And Dowel Pin With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

52. Rotate the companion flange several turns to seat the tapered roller bearings, and recheck the starting

torque. Remove the transfer holder after adjusting the starting torque.

53. Stake the locknut into the transfer shaft in depth (A) of 0.7-1.2 mm (0.03-0.05 in.) using a 3.5 mm punch

(B).

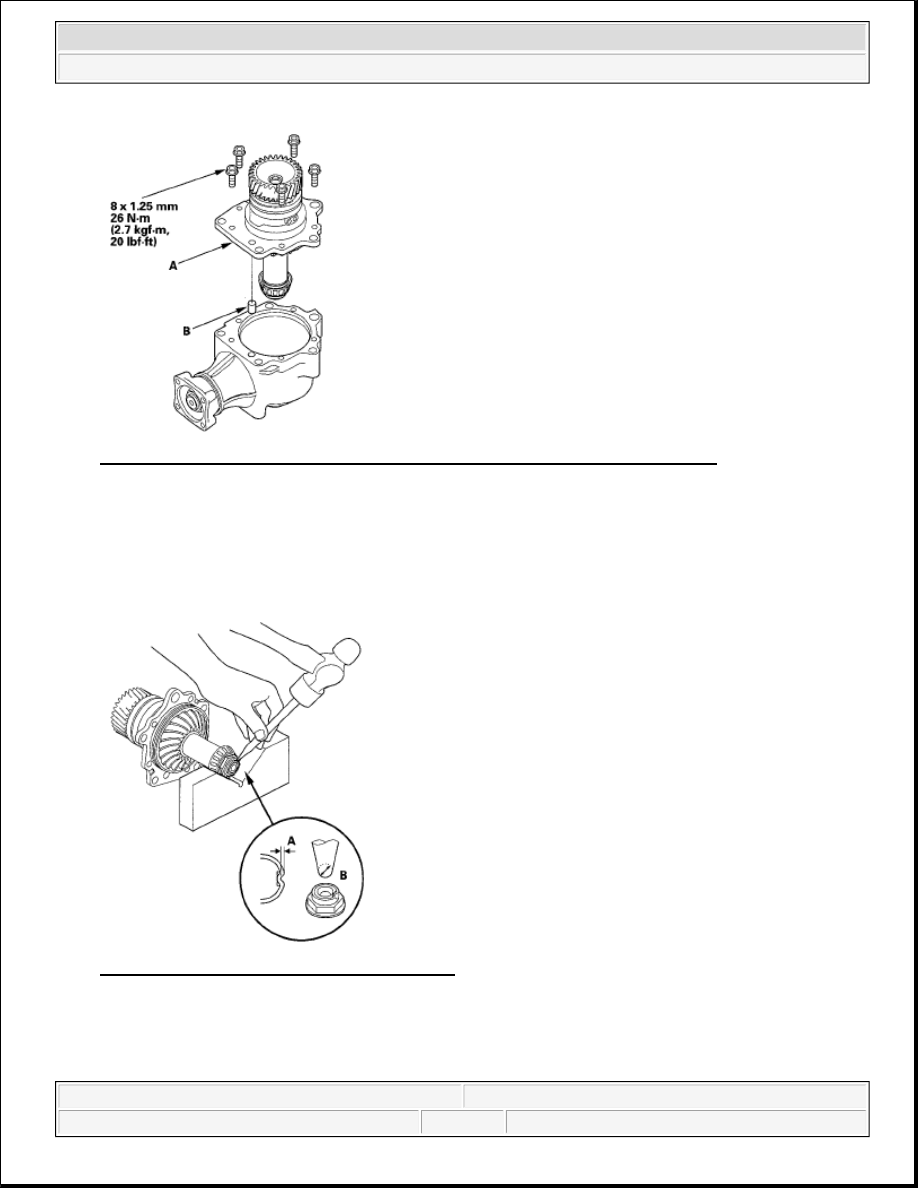

Fig. 630: Staking Locknut Into Transfer Shaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.

54. Install a new O-ring (A) on the transfer holder (B), then install the transfer holder with the dowel pin (C)

on the transfer housing (D).



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element

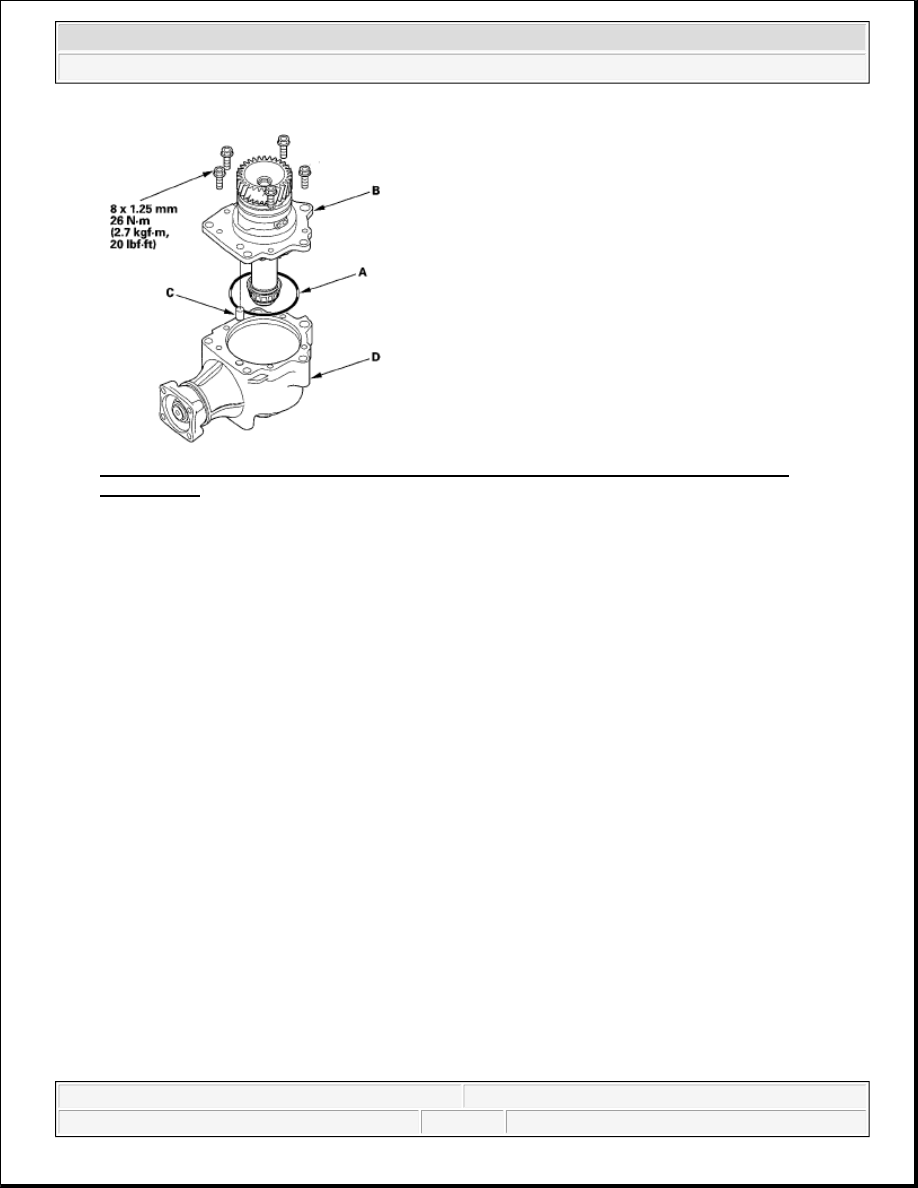

Fig. 631: Identifying Transfer Holder With Dowel Pin On Transfer Housing With Torque
Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element



2007-08 DRIVELINE/AXLES

Driveline/Axle - Element

SPECIAL TOOLS

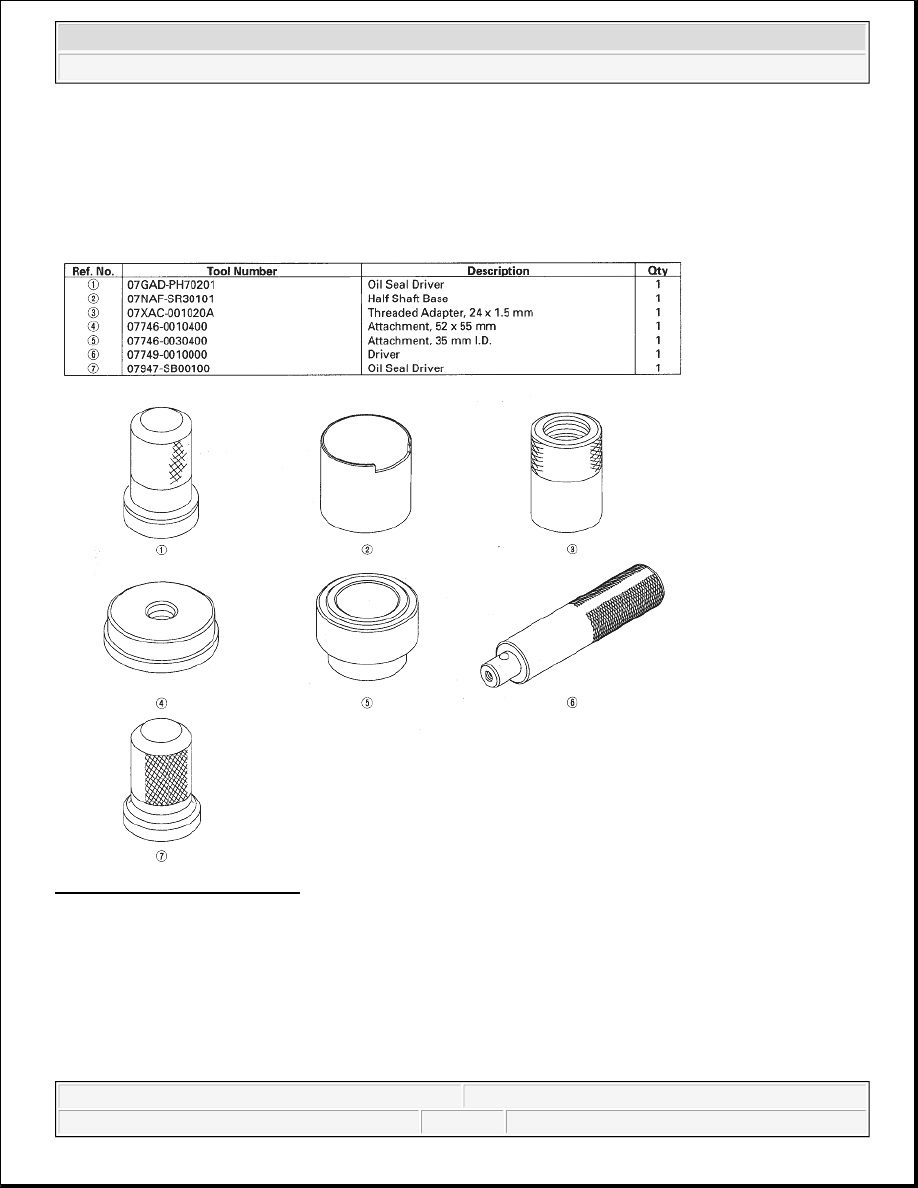

Fig. 1: Identifying Special Tools
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

COMPONENT LOCATION INDEX



2007 Honda Element EX

2007-08 DRIVELINE/AXLES Driveline/Axle - Element





2007 Honda Element EX

2007-08 DRIVELINE/AXLES Driveline/Axle - Element

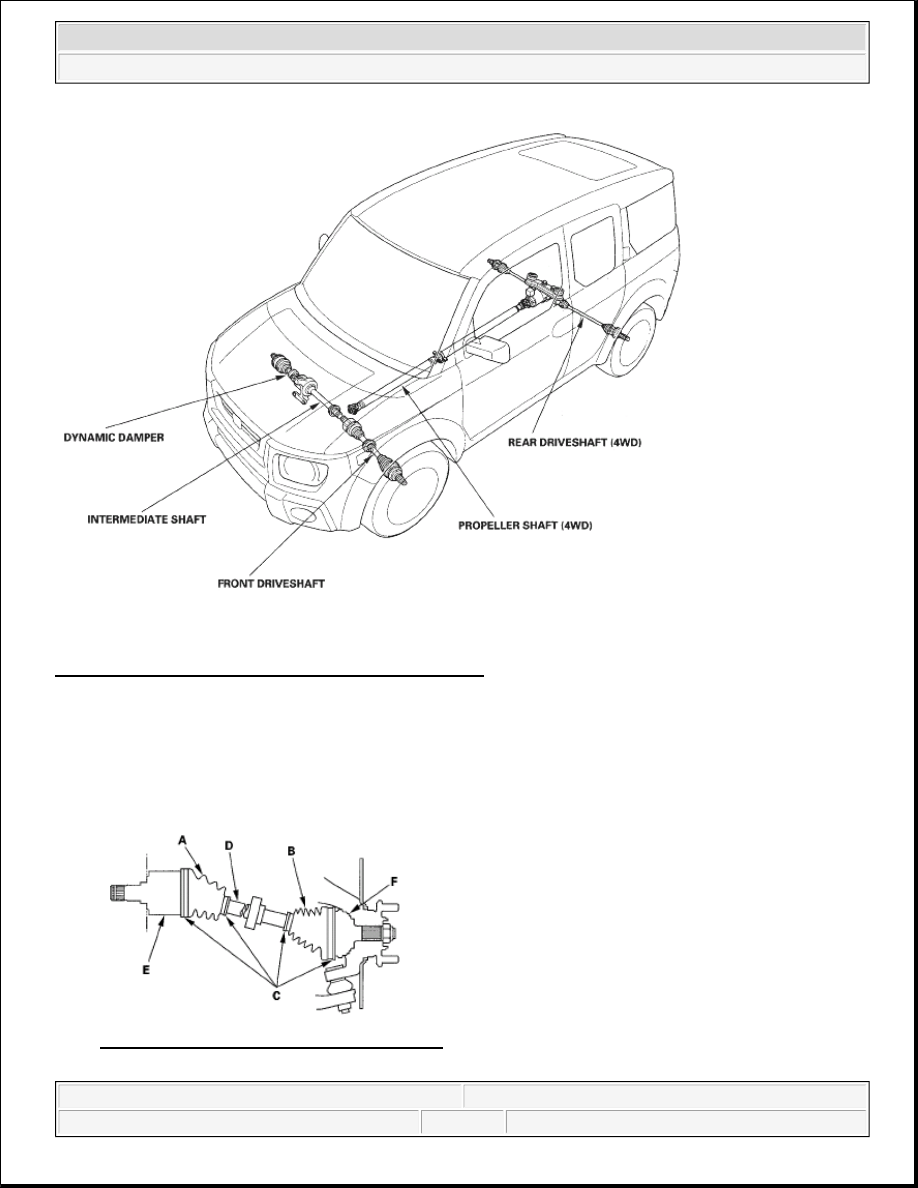

Fig. 2: Identifying Driveline/Axle Components Location
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

DRIVESHAFT INSPECTION

1. Check the inboard boot (A) and the outboard boot (B) for cracks, damage, leaking grease, and loose boot

bands (C). If any damage is found, replace the boot and boot bands.

Fig. 3: Identifying Driveshaft Parts Location
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
