Honda Element. Manual - part 304





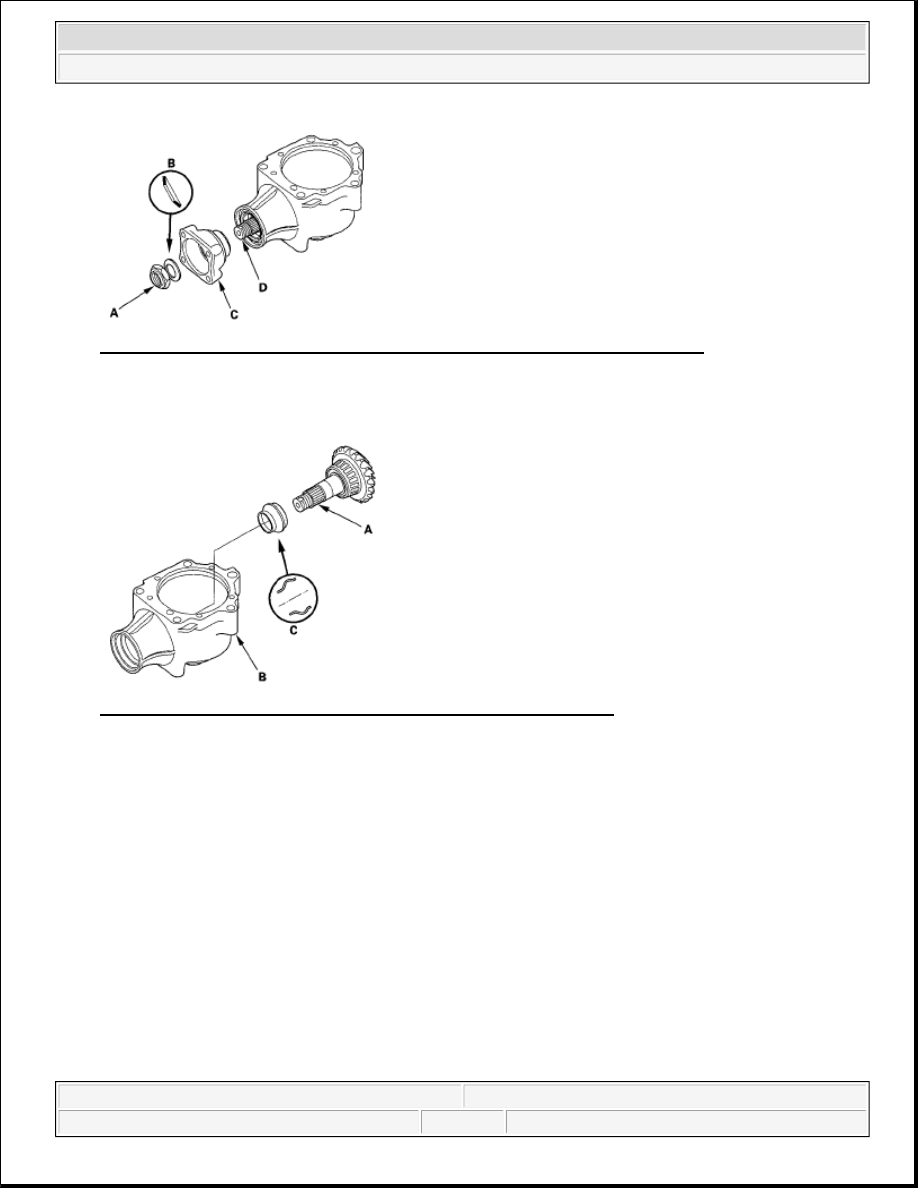

Fig. 616: Identifying Locknut, Conical Spring Washer And Companion Flange
Courtesy of AMERICAN HONDA MOTOR CO., INC.

26. Remove the transfer output shaft (A) from the transfer housing (B).

Fig. 617: Identifying Transfer Output Shaft And Transfer Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

27. Install the new transfer spacer (C) on the transfer output shaft in the direction shown, and install them in

the transfer housing.

28. Coat the threads of the locknut and transfer output shaft with ATF.

29. Install the companion flange (A), new O-ring (B), back-up ring (C), new conical spring washer (D), and

new locknut (E) on the transfer output shaft (F). Install the conical spring washer in the direction shown.



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element



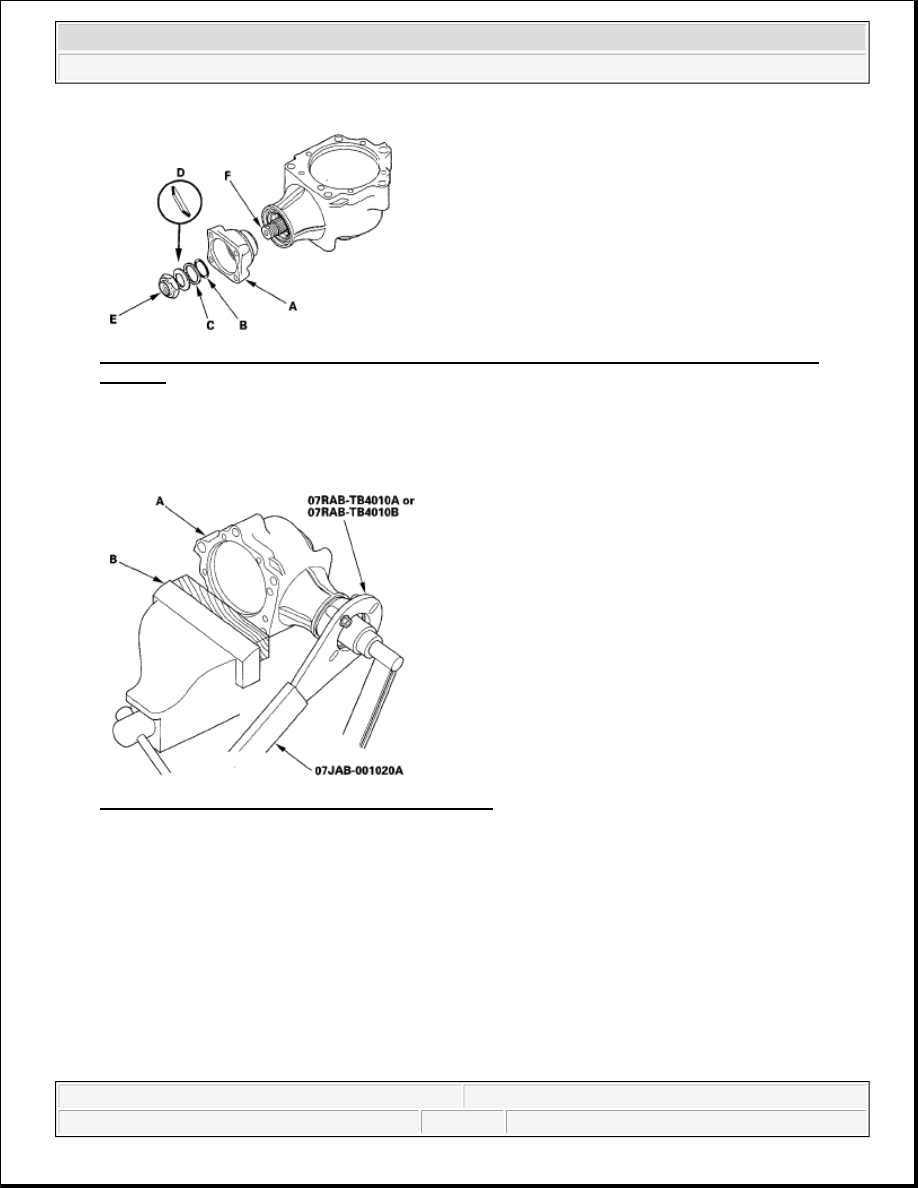

Fig. 618: Identifying Companion Flange, O-Ring, Back-Up Ring, Conical Spring Washer And
Locknut

Courtesy of AMERICAN HONDA MOTOR CO., INC.

30. Secure the transfer housing (A) in a bench vise (B) with soft jaws. To prevent damage to the transfer

housing, always use soft jaws or equivalent materials between the transfer housing and the vise.

Fig. 619: Securing Transfer Housing In Bench Vise
Courtesy of AMERICAN HONDA MOTOR CO., INC.

31. Install the companion flange holder and holder handle on the companion flange.

32. Tighten the locknut while measuring the starting torque of the transfer output shaft.

Starting Torque:

0.98-1.39 N.m (10.0-14.2 kgf.cm, 8.7-12.3 lbf.in.)

Tightening Torque:

132-260 N.m (13.5-26.5 kgf.m, 97.6-192 lbf.ft)



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element



33. Remove the companion flange holder and holder handle.

34. Stake the locknut into the transfer output shaft in depth (A) of 0.7-1.2 mm (0.03-0.05 in.) using a 3.5 mm

punch (B).

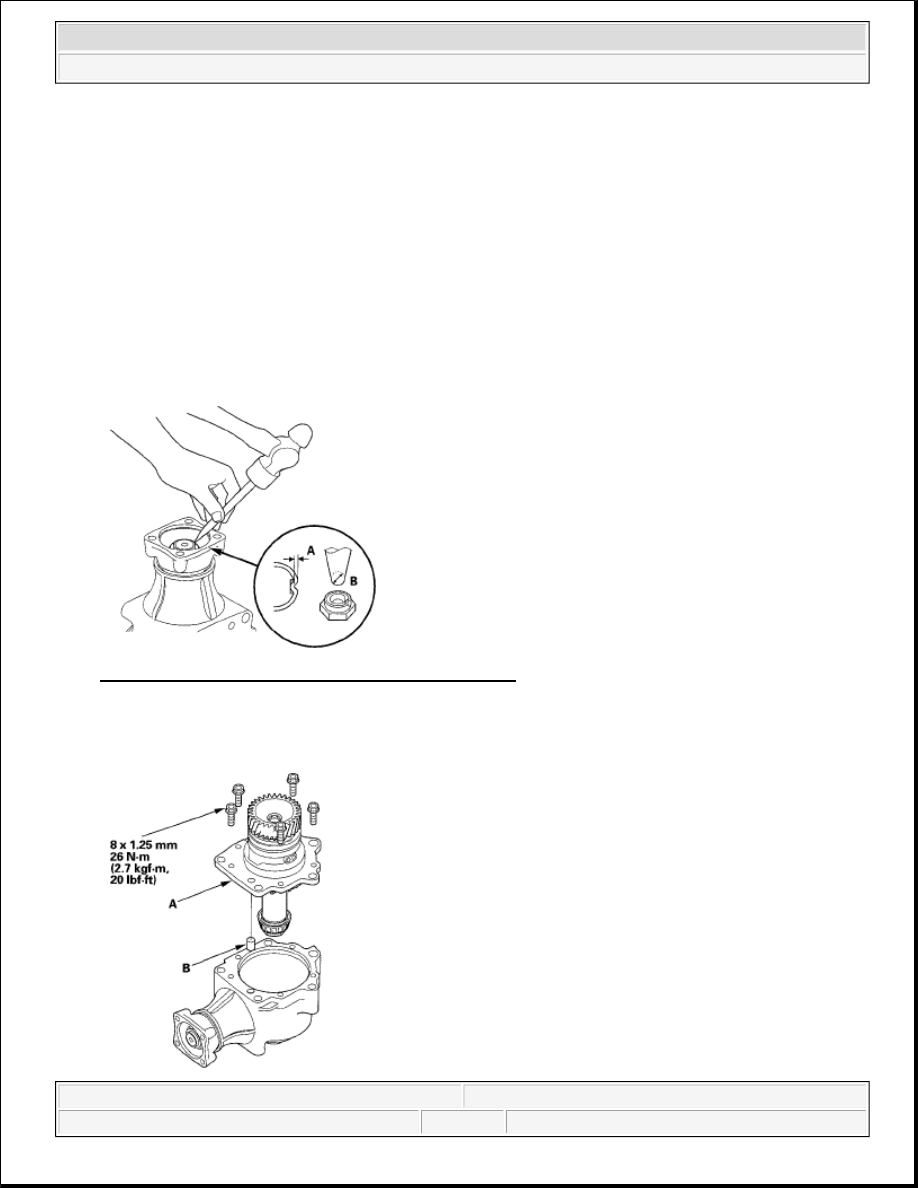

Fig. 620: Staking Locknut Into Transfer Output Shaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.

35. Temporarily install the transfer holder (A) and dowel pin (B) without the O-ring, and tighten the bolts.

NOTE:

Rotate the companion flange several turns to seat the tapered roller
bearings, then measure the starting torque.

If the starting torque exceeds 1.39 N.m (14.2 kgf.cm, 12.3 lbf.in.),
replace the transfer spacer and reassemble the parts. Do not adjust
the starting torque with the locknut loose.

If the tightening torque exceeds 260 N.m (26.5 kgf.m, 192 lbf.ft),
replace the transfer spacer and reassemble the parts.



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element



Fig. 621: Identifying Transfer Holder And Dowel Pin With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

36. Secure the transfer housing (A) in a bench vise (B) with soft jaws. To prevent damage to the transfer

housing, always use soft jaws or equivalent materials between the transfer housing and the vise.

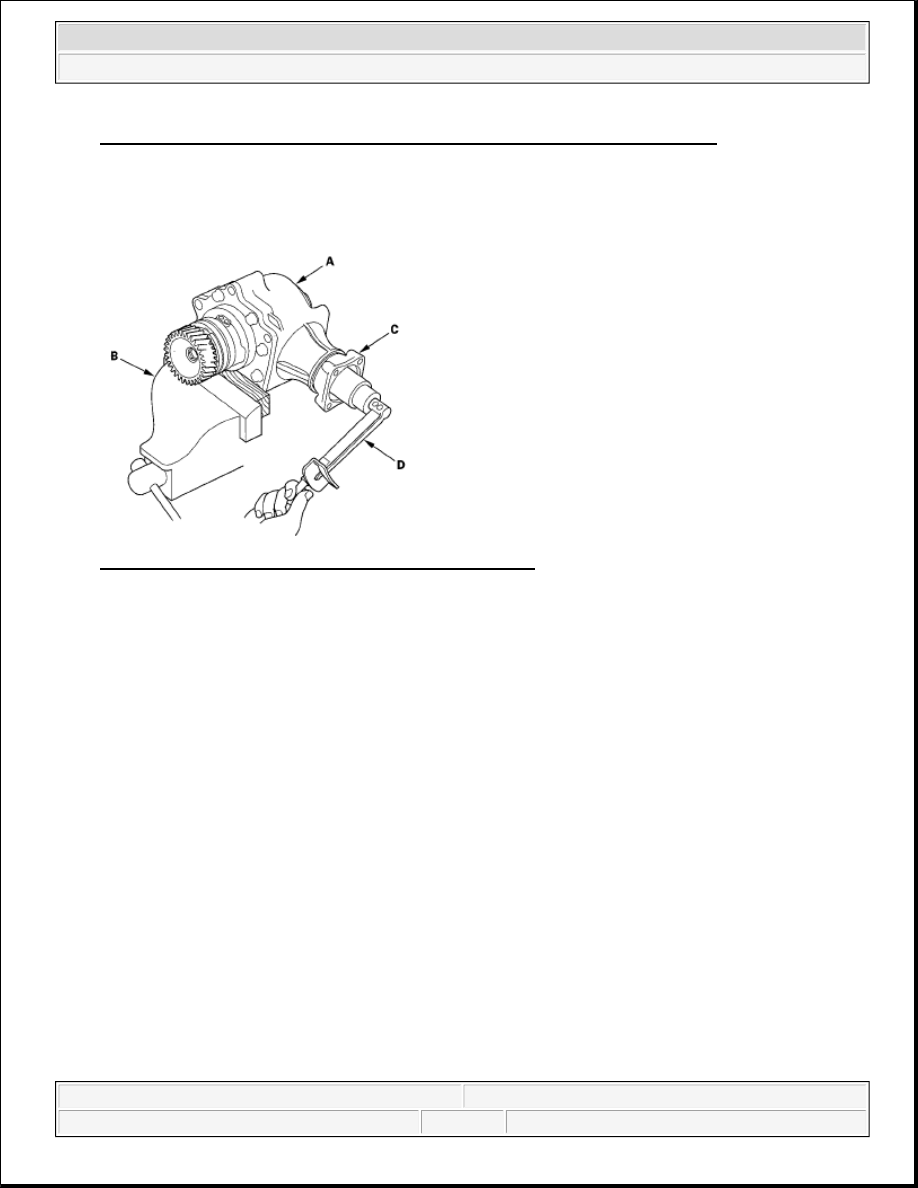

Fig. 622: Measuring Starting Torque Companion Flange
Courtesy of AMERICAN HONDA MOTOR CO., INC.

37. Rotate the companion flange several times to seat the tapered roller bearings.

38. Measure the starting torque at the companion flange (C) using a torque wrench (D).

Standard: 2.75-4.22 N.m

(28.1-43.1 kgf.cm, 24.4-37.4 lbf.in.)

39. Remove the transfer holder from the transfer housing.

40. If the measurement is within the standard, go to step 53.

41. If the measurement is out of standard, put a 14 mm hex wrench (A) in the transfer shaft (B), then secure

the hex wrench in a bench vise.



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element
