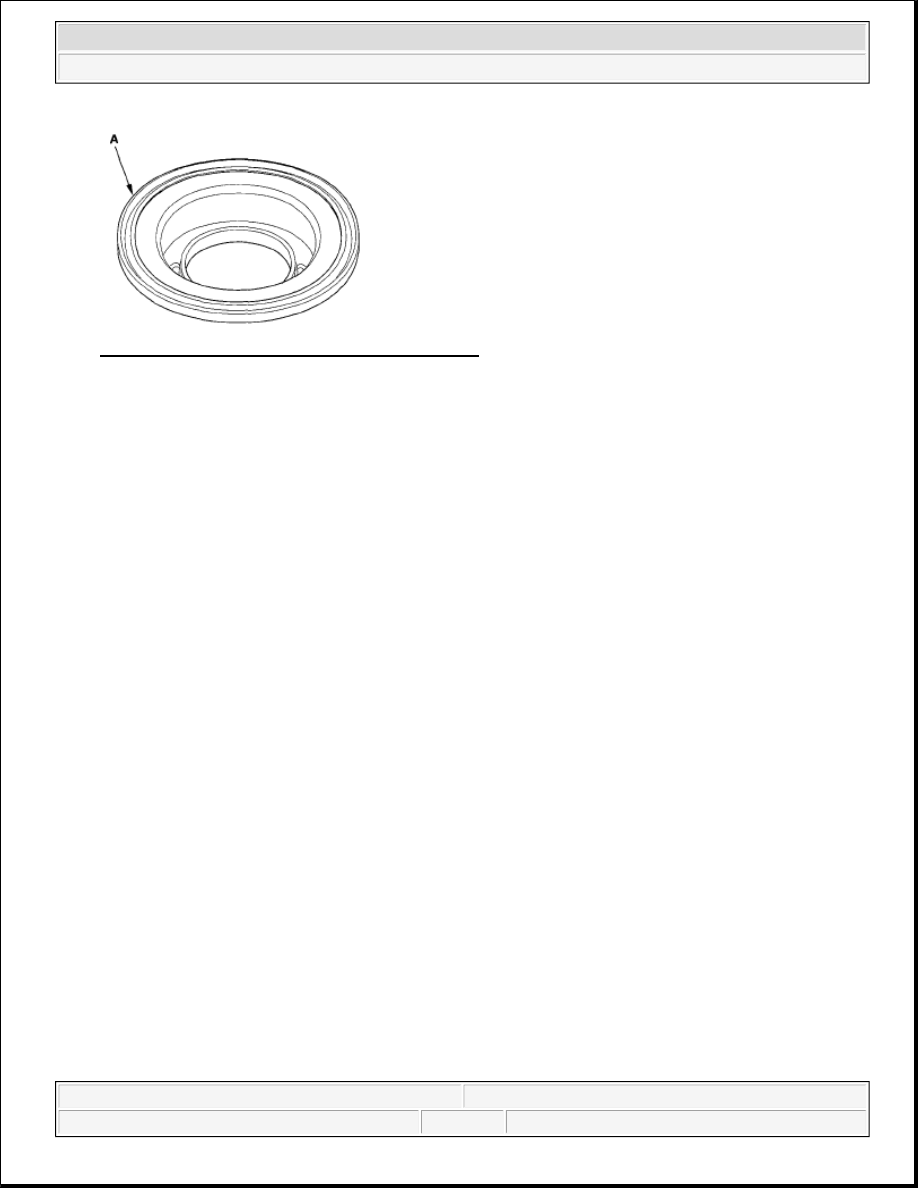

Fig. 493: Identifying Oil Seal On Spring Retainer
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. If the oil seal is worn, damaged, or peeling, replace the spring retainer.

6. Inspect the clutch discs, clutch plates, and clutch end-plate for wear, damage, and discoloration.

Standard Thickness

Clutch Discs: 1.94 mm (0.076 in.)

Clutch Plate:

1st Clutch: Wave-plate: 1.6 mm (0.063 in.)

Flat-plate: 1.6 mm (0.063 in.)

2nd Clutch: Wave-plate: 2.0 mm (0.079 in.)

Flat-plate: 2.0 mm (0.079 in.)

3rd Clutch: Wave-plate: 1.6 mm (0.063 in.)

Flat-plate: 1.6 mm (0.063 in.)

4th Clutch (Wave-plate): 2.0 mm (0.079 in.)

5th Clutch (Wave-plate): 2.0 mm (0.079 in.)

7. If the clutch discs are worn or damaged, replace them as a set. If the clutch discs are replaced, inspect the

clearance between the clutch end-plate and the top disc.

8. If any plate is worn, damaged, or discolored, replace the damaged plate with the new plate, and inspect

the other wave-plates for a phase difference. If the clutch plate is replaced, inspect the clearance between
the clutch end-plate and the top disc.

9. If the clutch end-plate is worn, damaged, or discolored, inspect the clearance between the clutch end-plate

and the top disc, then replace the clutch end-plate.



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element



CLUTCH WAVE-PLATE PHASE DIFFERENCE INSPECTION

1. Place the clutch wave-plate (A) on a surface plate, and set a dial indicator (B) on the wave-plate.

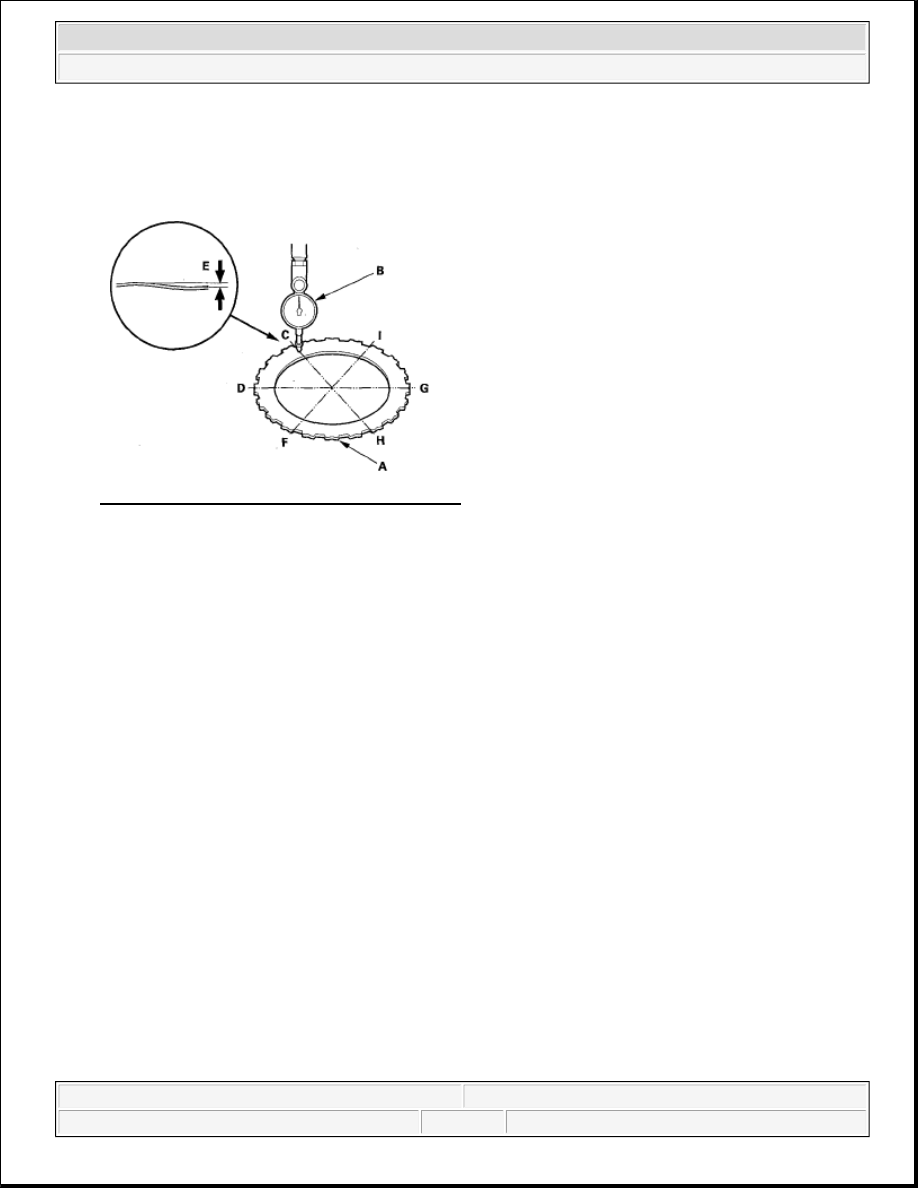

Fig. 494: Setting Dial Indicator On Wave-Plate
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Find the bottom (C) of a phase difference of the wave-plate, zero the dial indicator and make a reference

mark on the bottom of the wave-plate.

3. Rotate the wave-plate about 60 degrees apart from the bottom while holding the wave-plate by its

circumference. The dial indicator should be at the top (D) of a phase difference. Do not rotate the wave-
plate while holding its surface, always rotate it with holding its circumference.

4. Read the dial indicator. The dial indicator reads the phase difference (E) of the wave-plate between

bottom and top.

Standard Phase Difference:

1st Clutch: 0.15-0.25 mm (0.006-0.010 in.)

2nd Clutch: 0.10-0.20 mm (0.004-0.008 in.)

3rd Clutch: 0.10-0.20 mm (0.004-0.008 in.)

4th Clutch: 0.10-0.20 mm (0.004-0.008 in.)

5th Clutch: 0.10-0.20 mm (0.004-0.008 in.)

5. Rotate the wave-plate about 60 degrees. The dial indicator should be at the bottom of a phase difference

(F and G), and zero the dial indicator.

6. Measure the phase difference at the other two tops (H and I) of the wave-plate by following steps 3

through 5.

7. If the two values of the three measurements are within the standard, the wave-plate is OK. If the two



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element



values of the three measurements are out of the standard, replace the wave-plate.

CLUTCH CLEARANCE INSPECTION

Special Tools Required

Clutch compressor attachment 07ZAE-PRP0100

1. Inspect the clutch piston, discs, plates, and end-plate for wear and damage (see CLUTCH

INSPECTION ), and inspect clutch wave-plate phase difference (see CLUTCH WAVE-PLATE
PHASE DIFFERENCE INSPECTION
 ), if necessary.

2. Install the clutch piston in the clutch drum. Do not install the O-rings during inspection.

Fig. 495: Identifying Clutch Piston In Clutch Drum
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Install the waved spring (A) in the 1st clutch drum (B). Install the clutch flat-plate (C), then starting with

the clutch disc, alternately install the clutch discs (D) (5) and clutch wave-plates (E) (4), then install the
clutch end-plate (F) with the flat side toward the disc.



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element

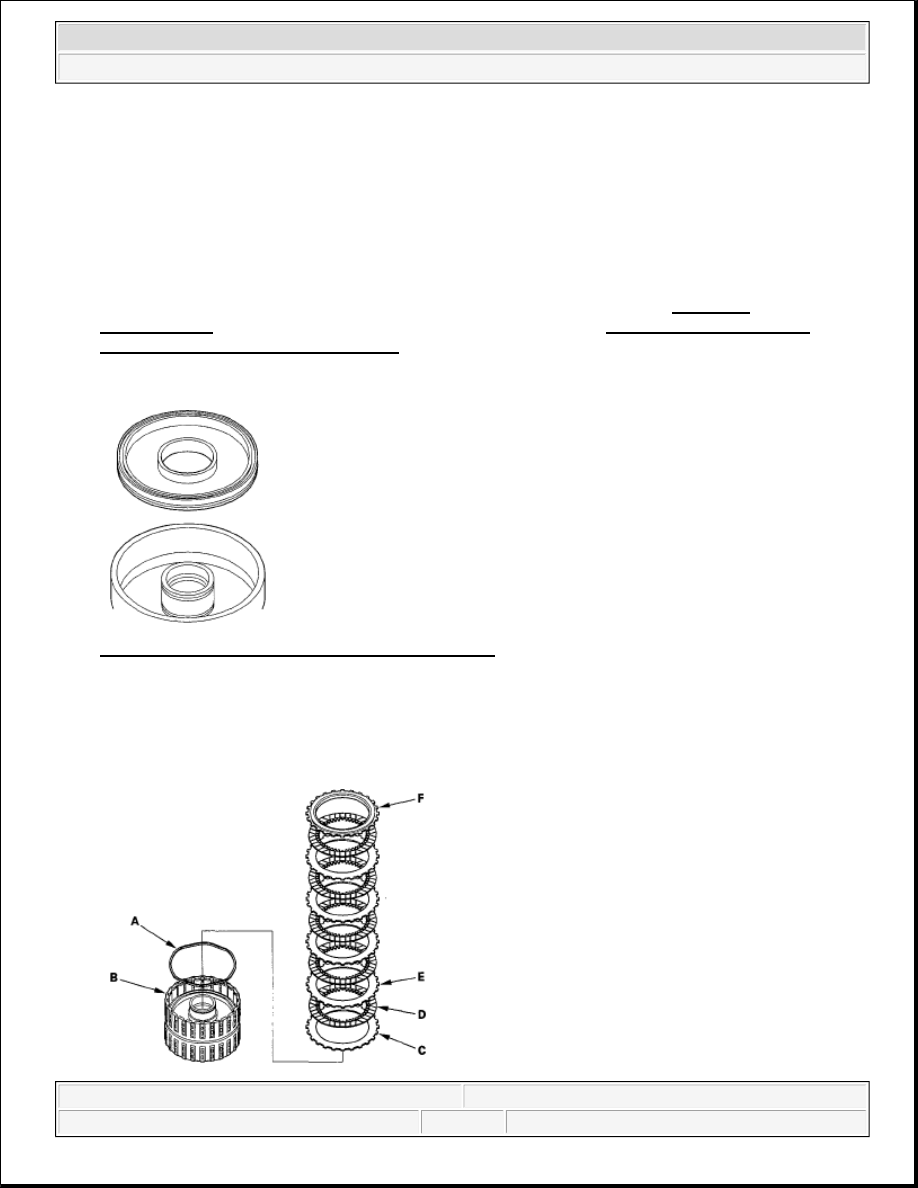

Fig. 496: Disassembled View Of 1st Clutch Drum
Courtesy of AMERICAN HONDA MOTOR CO., INC.


4. Install the waved spring (A) in the 2nd clutch drum (B). Install the flat-plate (C), then starting with the

clutch disc, alternately install the clutch discs (D) (6) and wave-plates (E) (5), then install the clutch end-
plate (F) with the flat side toward the disc.

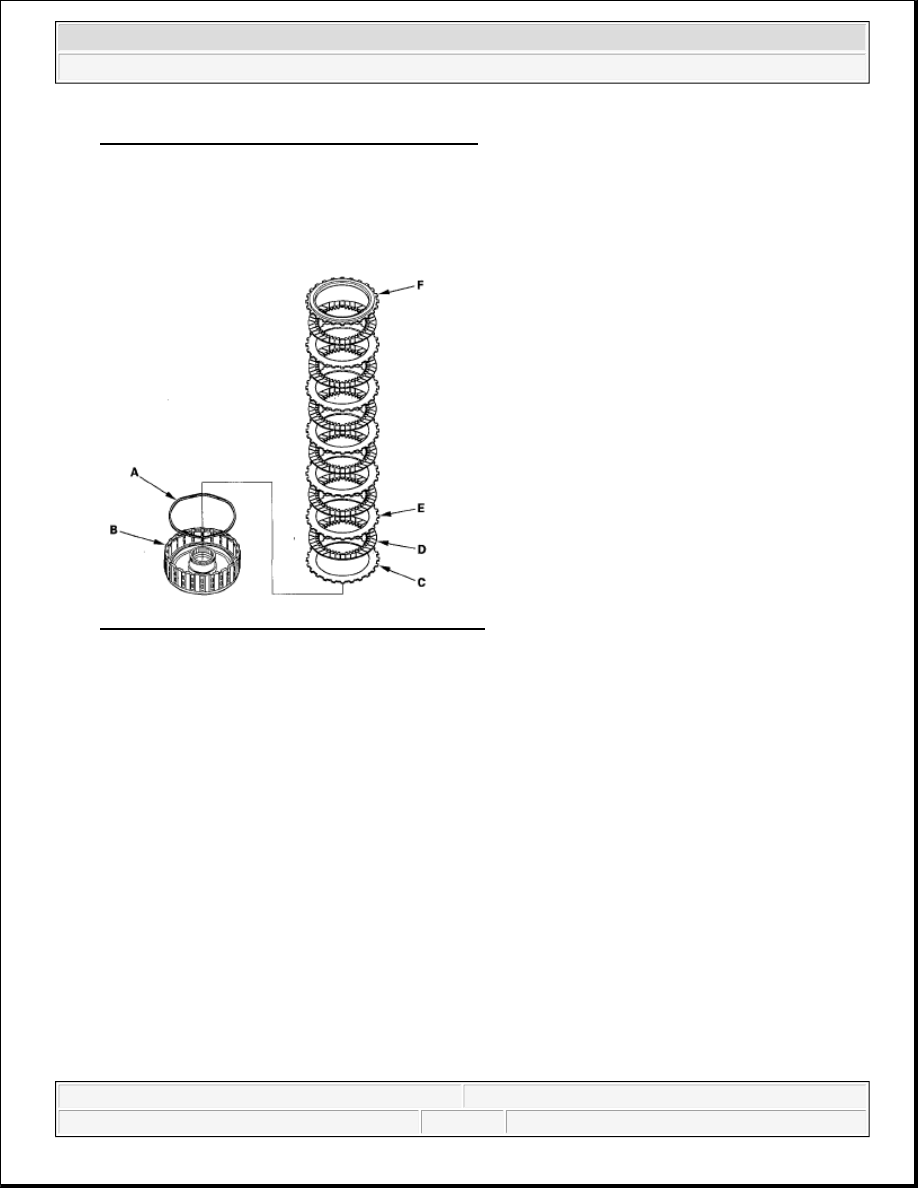

Fig. 497: Disassembled View Of 2nd Clutch Drum
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Install the waved spring (A) in the 3rd clutch drum (B). Install the clutch flat-plate (C), then starting with

the clutch disc, alternately install the clutch discs (D) (6) and clutch wave-plates (E) (5), then install the
clutch end-plate (F) with the flat side toward the disc.



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element
