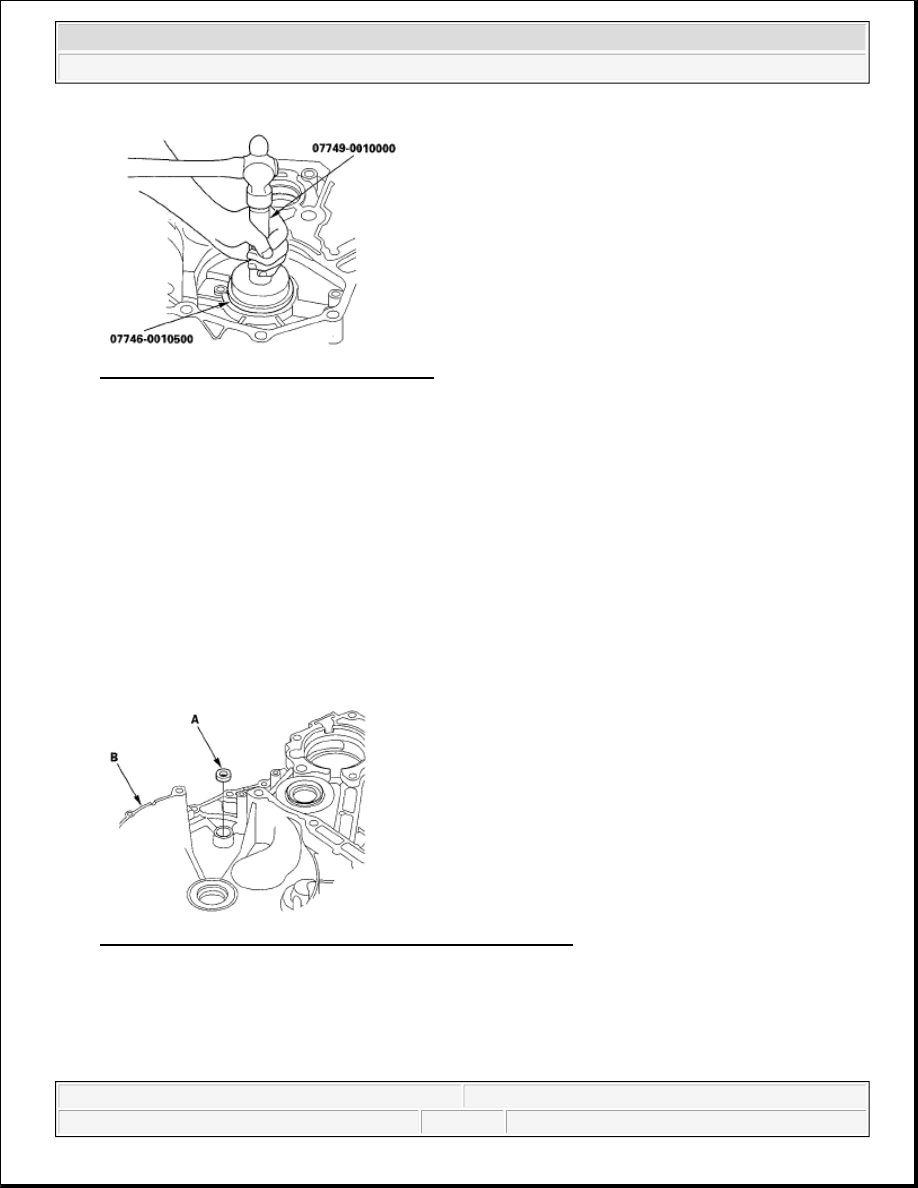

Fig. 449: Tapping Secondary Shaft Bearing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Check that the bearing groove aligns with the housing surface, then install the bearing set plate aligned

with the bearing groove.

7. Install the new lock washer and bolt, then bend the lock tab of the lock washer against the bolt head.

SELECTOR CONTROL SHAFT OIL SEAL REPLACEMENT

Special Tools Required

Driver 07749-0010000

Oil seal driver attachment 07947-ZV00100

1. Remove the oil seal (A) from the torque converter housing (B).

Fig. 450: Identifying Oil Seal And Torque Converter Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Install the new oil seal (A) in the torque converter housing to a depth (B) of 0.5-1.5 mm (0.02-0.06 in.)

below the housing surface with the driver and oil seal driver attachment.



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element



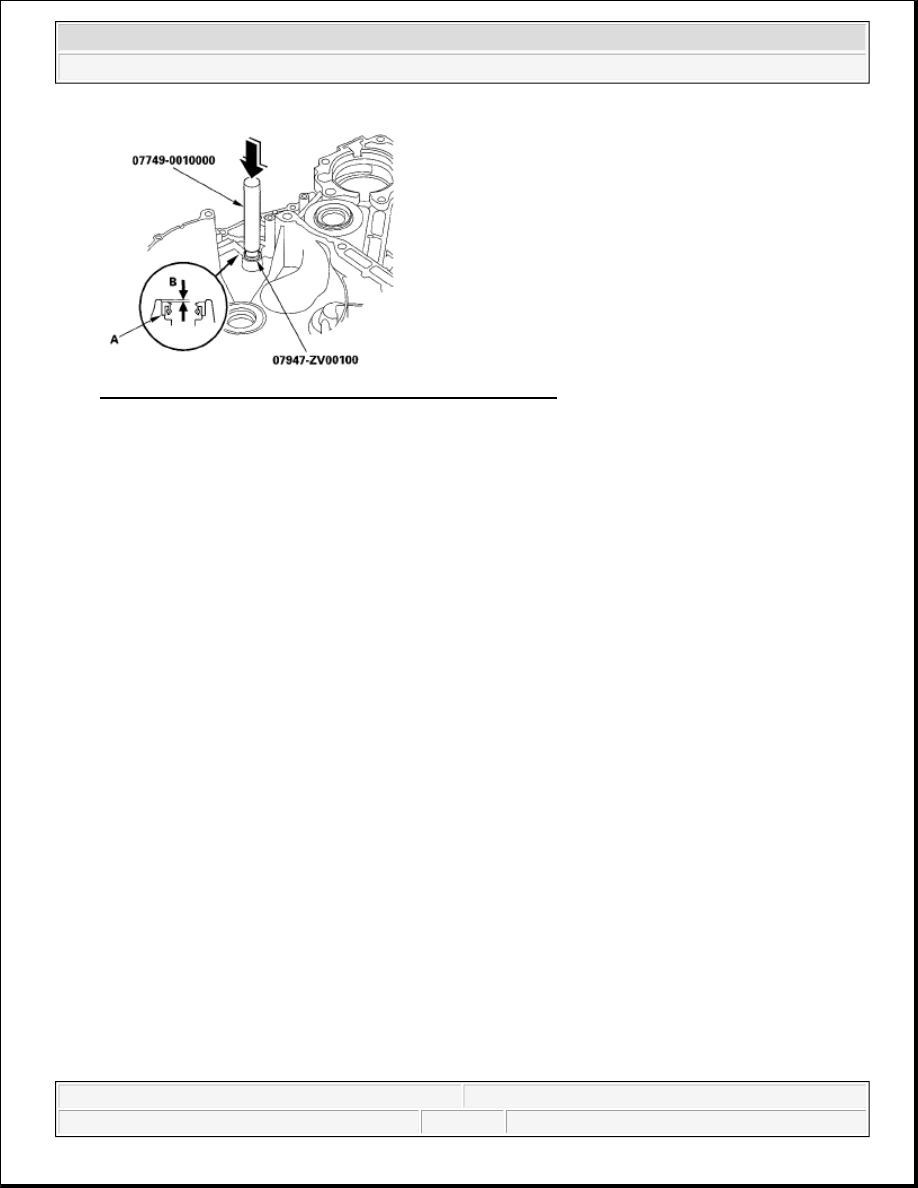

Fig. 451: Identifying Oil Seal In Torque Converter Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

MAINSHAFT DISASSEMBLY, INSPECTION, AND REASSEMBLY

1. Inspect the thrust needle bearing and the needle bearing for galling and rough movement.



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element



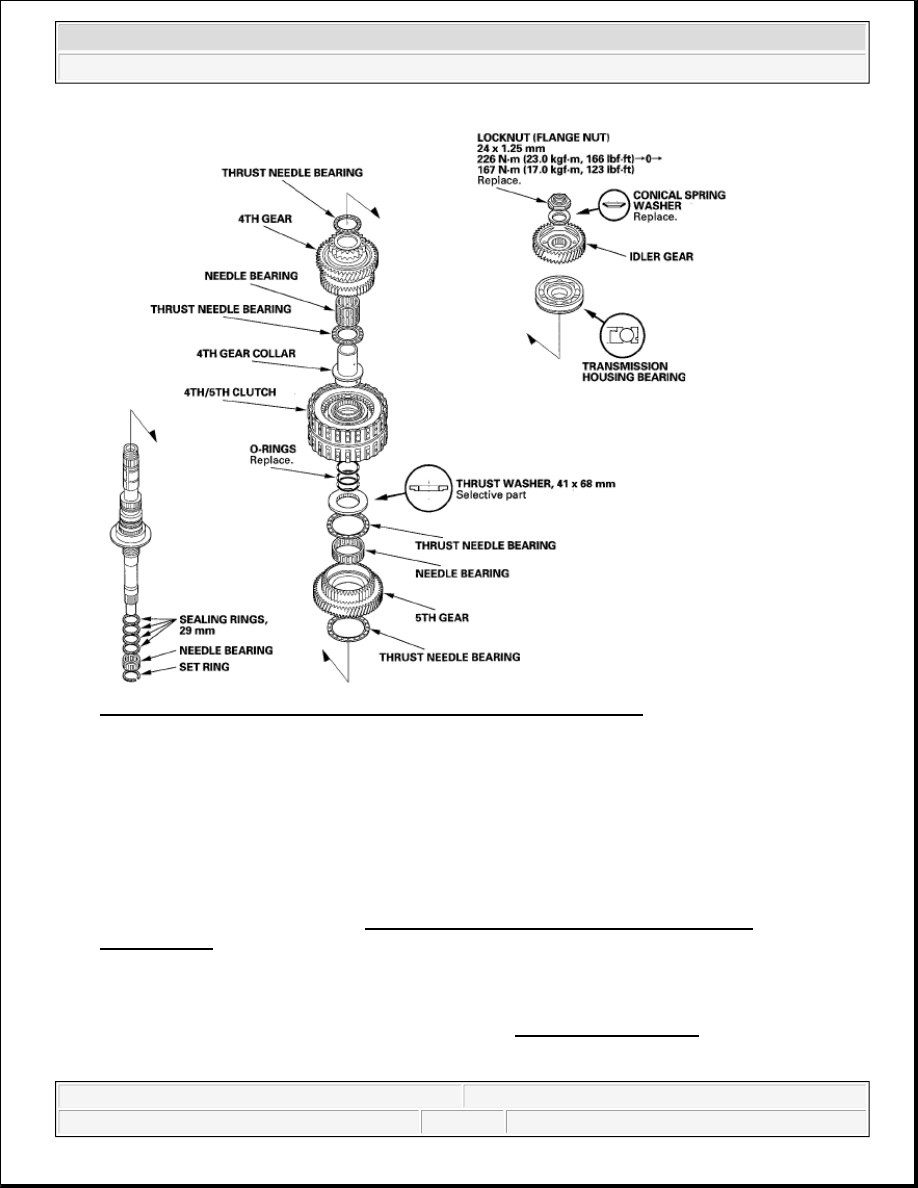

Fig. 452: Disassembled View Of Mainshaft With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Inspect the splines for excessive wear and damage.

3. Check shaft bearing surface for scoring and excessive wear.

4. Before installing the O-rings, wrap the shaft splines with tape to prevent O-ring damage.

5. Lubricate all parts with ATF during assembly.

6. Install the conical spring washer, 41 x 68 mm thrust washer in the direction shown.

7. Replace the locknut and conical spring washer with new ones when assembling the transmission.

8. Check the clearance of 5th gear (see MAINSHAFT 5TH GEAR AXIAL CLEARANCE

INSPECTION ).

MAINSHAFT 5TH GEAR AXIAL CLEARANCE INSPECTION

1. Remove the mainshaft transmission housing bearing (see BEARING REMOVAL ).

2. Install the thrust needle bearing (A), 5th gear (B), needle bearing (C), thrust needle bearing (D), 41 x 68

mm thrust washer (E), 4th/5th clutch (F), 4th gear collar (G), and transmission housing bearing (H) on the



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element



mainshaft (I). Do not install the O-rings during inspection.

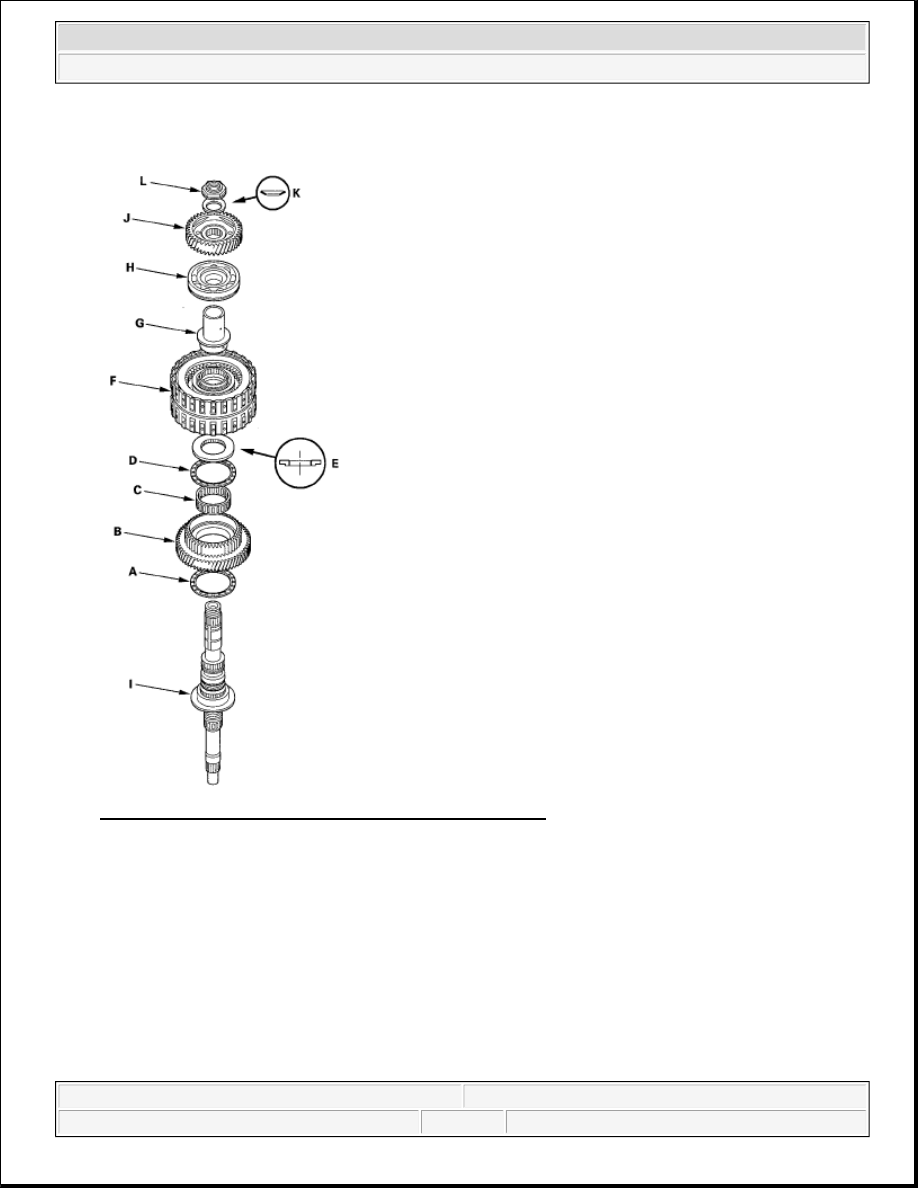

Fig. 453: Disassembled View Of Mainshaft 5th Gear Axial
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Install the idler gear (J) on the mainshaft by a press, then install the conical spring washer (K) and locknut

(L).

4. Tighten the locknut to 29 N.m (3.0 kgf.m, 22 lbf.ft).

5. Set the dial indicator (A) on the 5th gear (B).
