Honda Element. Manual - part 248

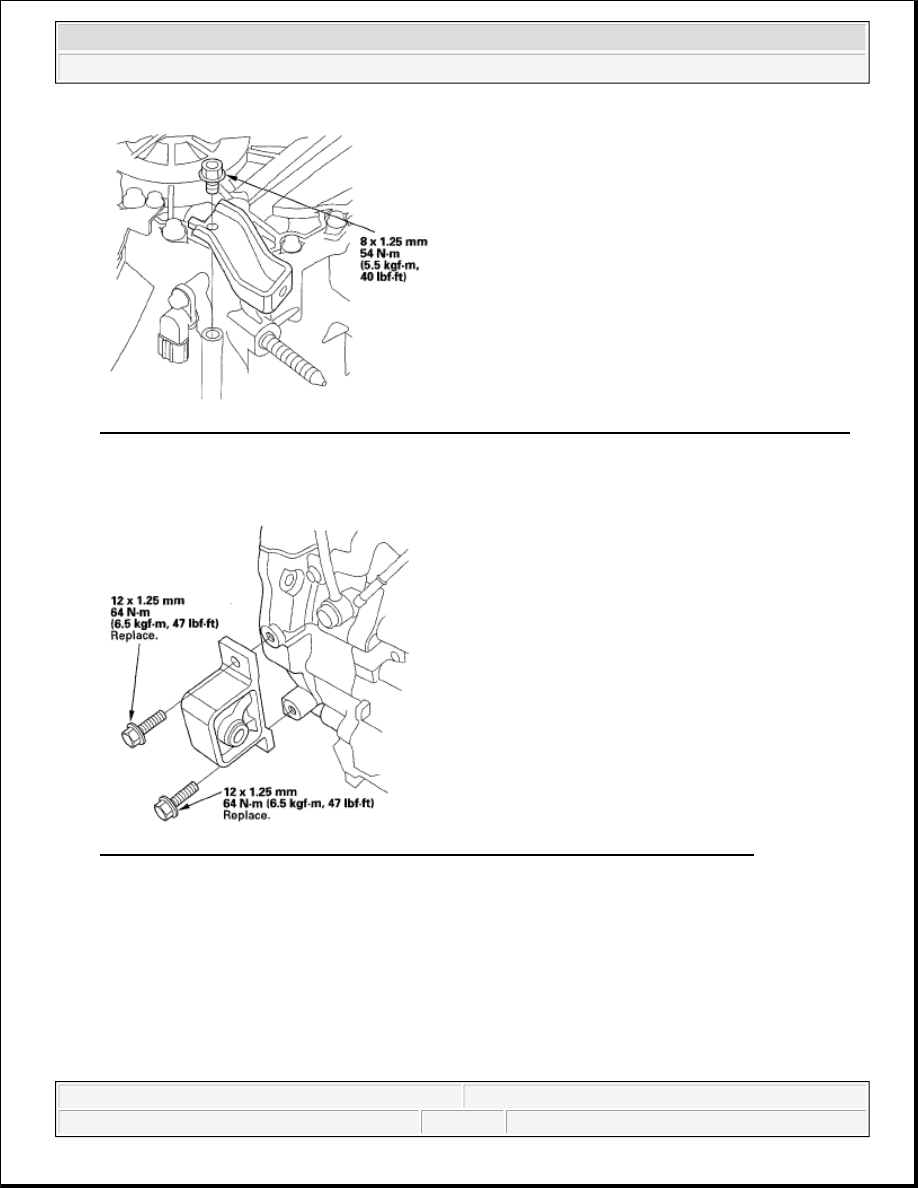

Fig. 247: Identifying Air Cleaner Housing Mounting Bracket And Bolt With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Install the front mount.

Fig. 248: Identifying Front Mounting Bracket With Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Install the rear mount/bracket.

NOTE:

The illustration shows the 4WD transmission; the 2WD transmission is
similar.



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element

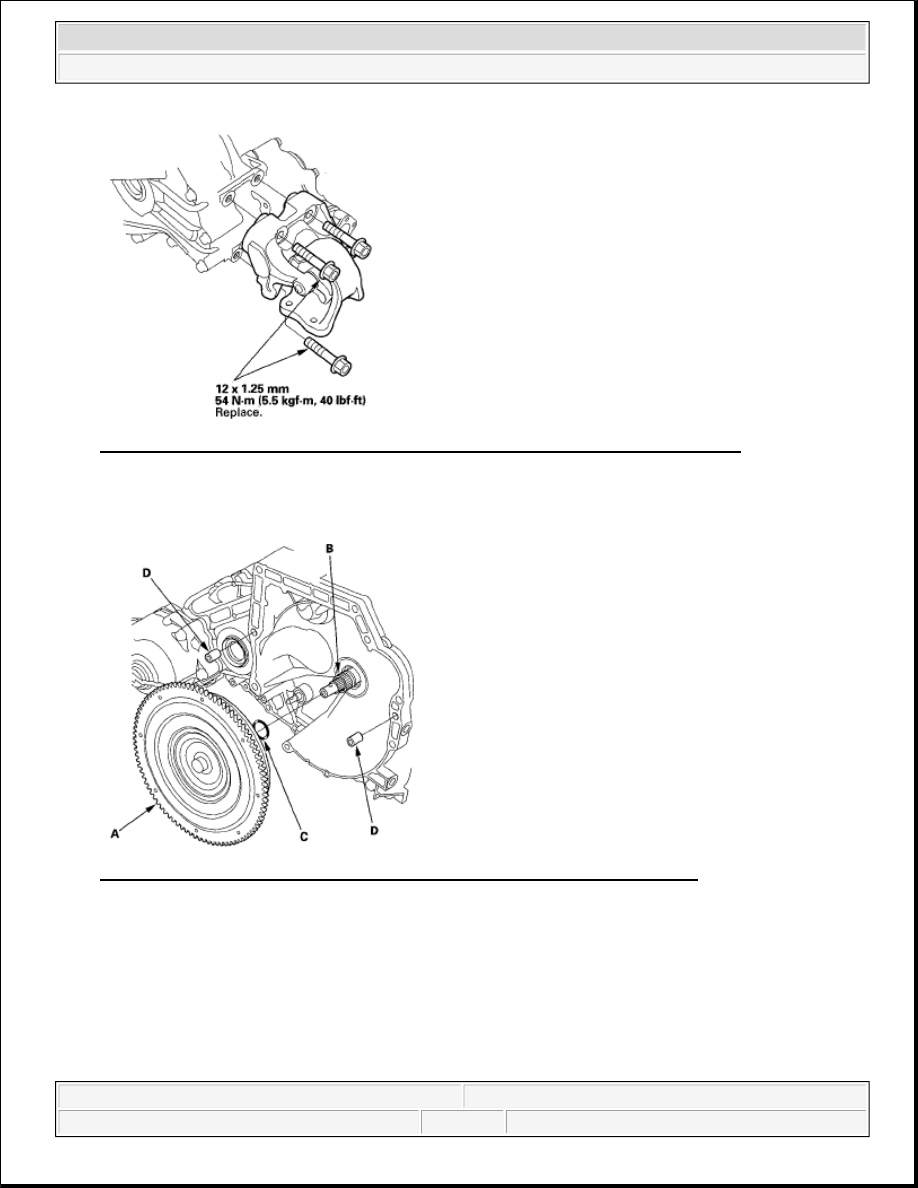

Fig. 249: Identifying Rear Mounting Bracket With Bolts With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Install the torque converter assembly (A) on the mainshaft (B) with a new O-ring (C).

Fig. 250: Identifying Torque Converter Assembly On Mainshaft With O-Ring
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Install the 14 x 20 mm dowel pins (D) in the torque converter housing.

7. Place the transmission on a jack, and raise the transmission to the engine level.

8. Attach the transmission to the engine, then install the transmission housing rear mounting bolts.



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element

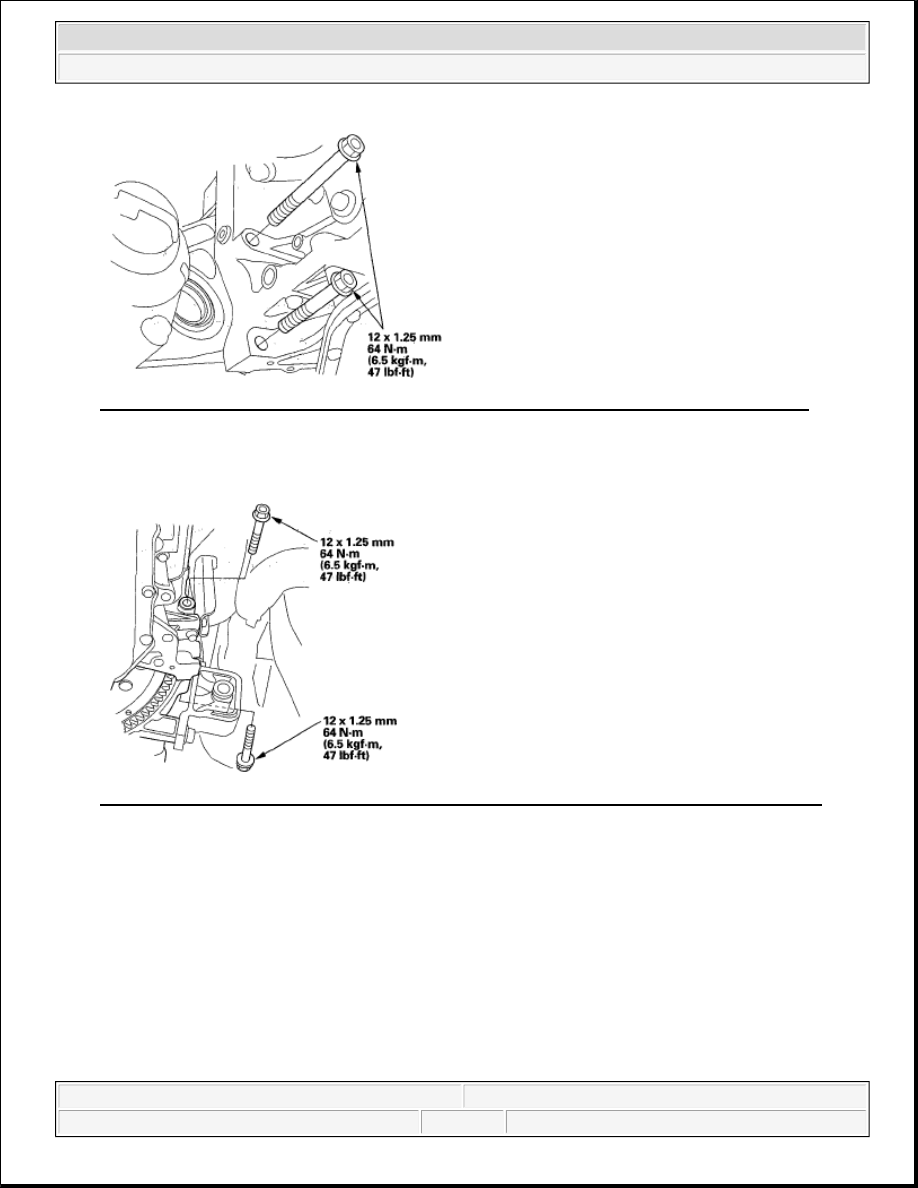

Fig. 251: Identifying Transmission Housing Rear Mounting Bolts With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

9. Install the transmission housing front mounting bolts.

Fig. 252: Identifying Transmission Housing Front Mounting Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

10. Install the transmission housing upper mounting bolts.



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element

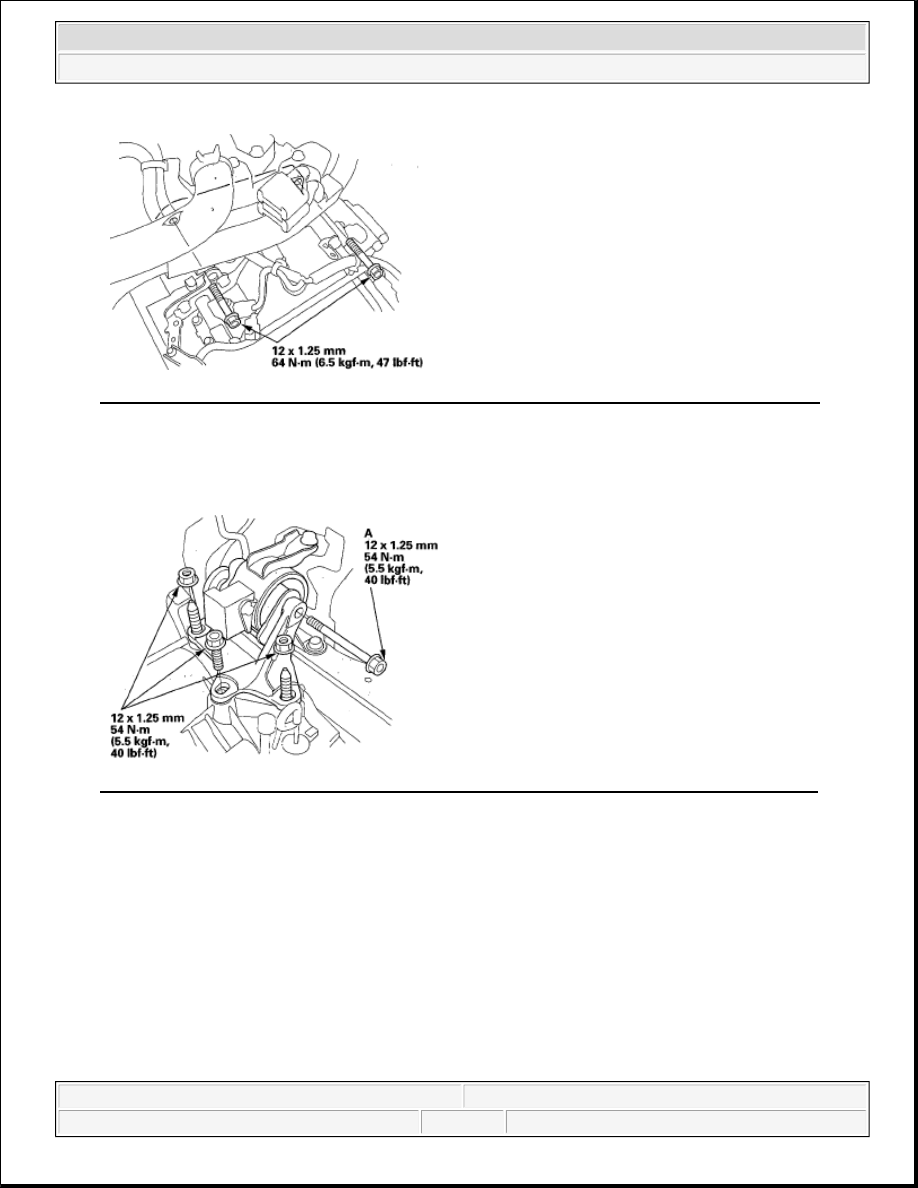

Fig. 253: Identifying Transmission Housing Upper Mounting Bolts With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

11. Install the transmission mount bracket. Tighten the mount bolt (A) loosely, and tighten the transmission

mount bracket bolt and nuts to the specified torque, then tighten the mount bolt to the specified torque.

Fig. 254: Identifying Transmission Mount Bracket Bolt And Nuts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

12. Install a new set ring (A) on the intermediate shaft (B).



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element
