Fig. 240: Identifying Transmission Housing Front Mounting Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

43. Remove the transmission housing rear mounting bolts located on rear lower of the transmission.

Fig. 241: Identifying Transmission Housing Rear Mounting Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

44. Slide the transmission away from the engine to remove it from the vehicle.

45. Remove the torque converter assembly.



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element



Fig. 242: Identifying Torque Converter Assembly
Courtesy of AMERICAN HONDA MOTOR CO., INC.

46. Remove the front mount.

Fig. 243: Identifying Front Mounting Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

47. Remove the rear mount/bracket.

NOTE:

The illustration shows the 4WD transmission; the 2WD transmission is
similar.



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element



Fig. 244: Identifying Rear Mounting Bolts And Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.

48. Remove the air cleaner housing mounting bracket.

Fig. 245: Identifying Air Cleaner Housing Mounting Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.

49. Inspect the drive plate, and replace it if it's damaged.

DRIVE PLATE REMOVAL AND INSTALLATION

1. Remove the transmission assembly (see TRANSMISSION REMOVAL ).

2. Remove the drive plate (A) and washer (B) from the engine.



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element

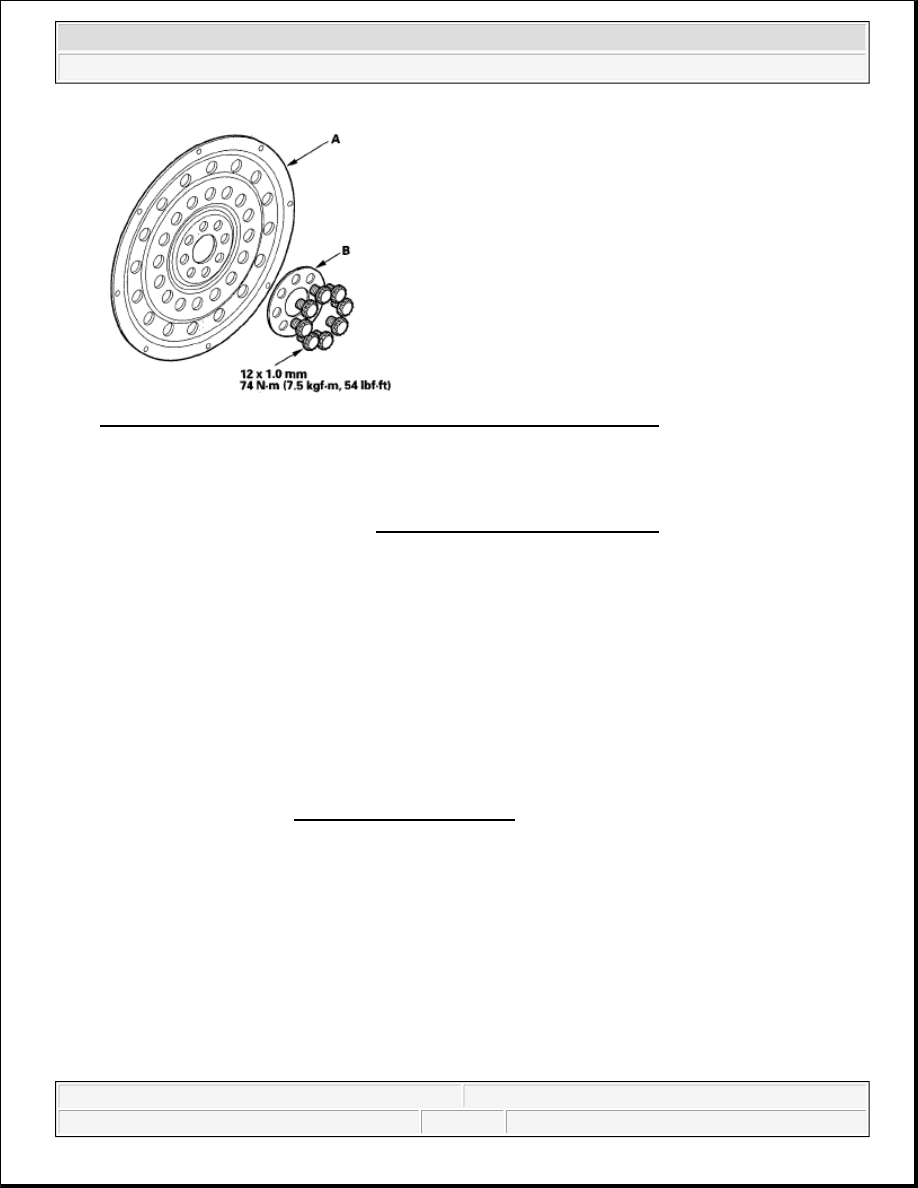

Fig. 246: Identifying Drive Plate And Washer With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Install the drive plate and washer on the engine, and tighten the eight bolts in a crisscross pattern in two

or more steps.

4. Install the transmission assembly (see TRANSMISSION INSTALLATION ).

TRANSMISSION INSTALLATION

Special Tools Required



Engine hanger adapter VSB02C000015



Engine support hanger, A and Reds AAR-T-12566



Front subframe adapter VSB02C000016 (Available through the Honda Tool and Equipment Program 1-
888-424-6857)

1. Clean the ATF cooler (see ATF COOLER CLEANING ).

2. Install the air cleaner housing mounting bracket.

NOTE:

Use fender covers to avoid damaging pained surfaces.
