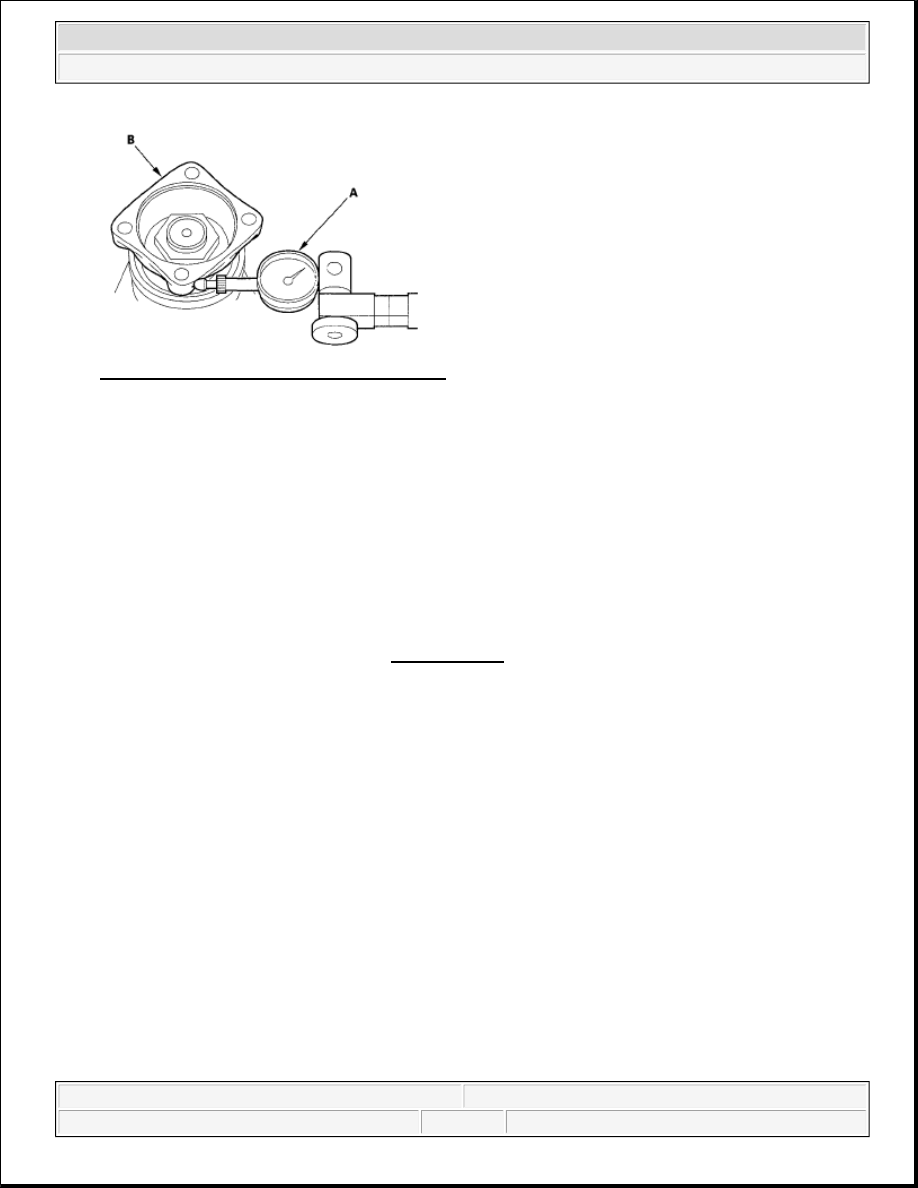

Fig. 211: Measuring Transfer Gear Backlash
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. If the backlash is out of standard, remove the transfer assembly, and adjust the transfer gear backlash (see

step 20 ).

7. Check for fluid leaks between the mating surfaces of the transfer assembly and transmission.

8. If there is a leak, remove the transfer assembly, and replace the O-ring. Also check for fluid leaks

between the mating surfaces of the transfer housing and transfer cover. If there is a leak, remove the
transfer assembly, and replace the O-ring.

9. Check for leaks between the transfer companion flange and transfer oil seal.

10. If there is a leak, remove the transfer assembly from the transmission, and replace the transfer oil seal and

O-ring on the transfer output shaft. If oil seal and O-ring replacement is required, you will need to check
arid adjust the transfer gear tooth contact, transfer gear backlash, the tapered roller bearing starting
torque, and the total starting torque (see INSPECTION ). Do not replace the oil seal with the transfer
assembly on the transmission.

TRANSFER ASSEMBLY REMOVAL

1. Raise the vehicle on a lift, and make sure it is supported securely.

2. Remove the drain plug (A), and drain the automatic transmission fluid (ATF). Reinstall the drain plug

with a new sealing washer (B).



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element



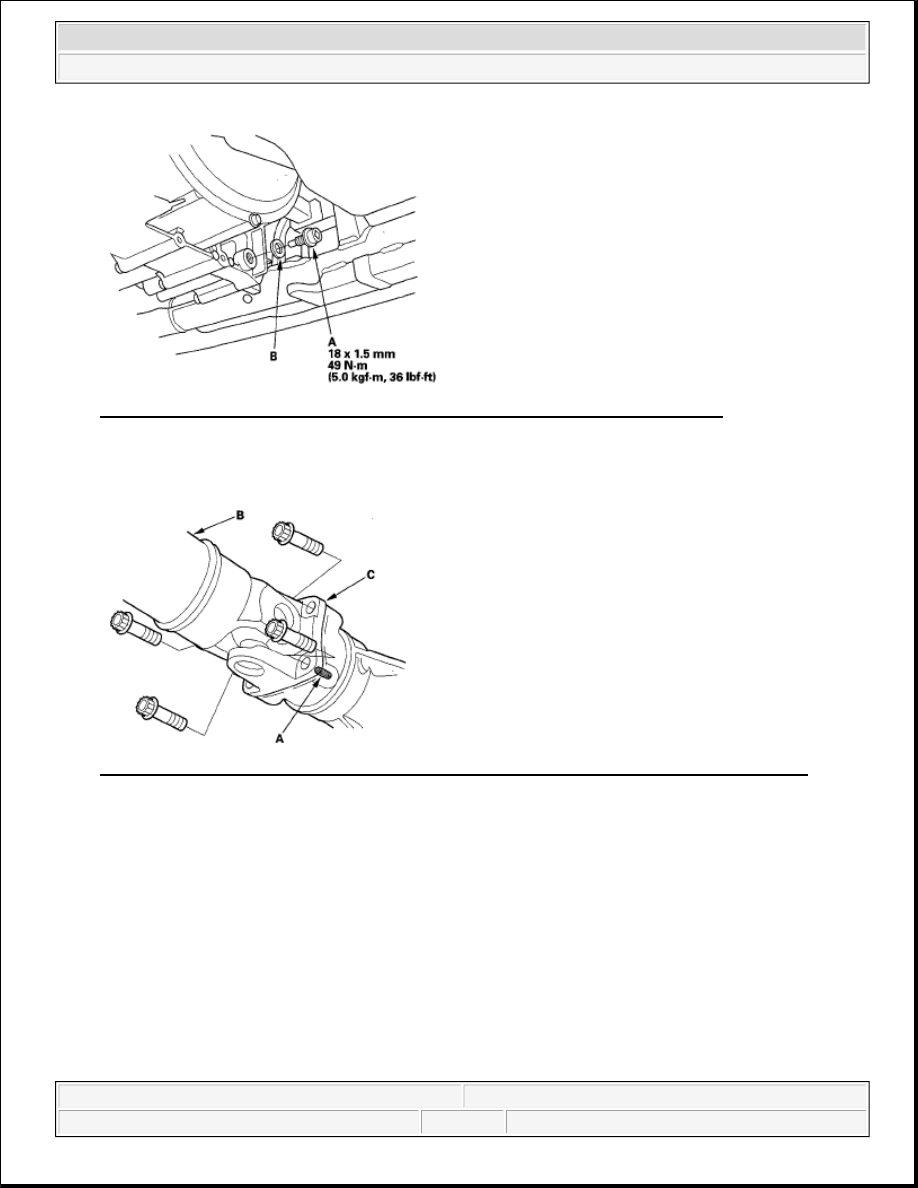

Fig. 212: Identifying Drain Plug With Sealing Washer With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Make a reference mark (A) across the propeller shaft (B) and the transfer companion flange (C).

Fig. 213: Identifying Propeller Shaft And Transfer Companion Flange With Mounting Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Separate the propeller shaft from the transfer assembly.

5. Remove the transfer assembly and dowel pin.



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element



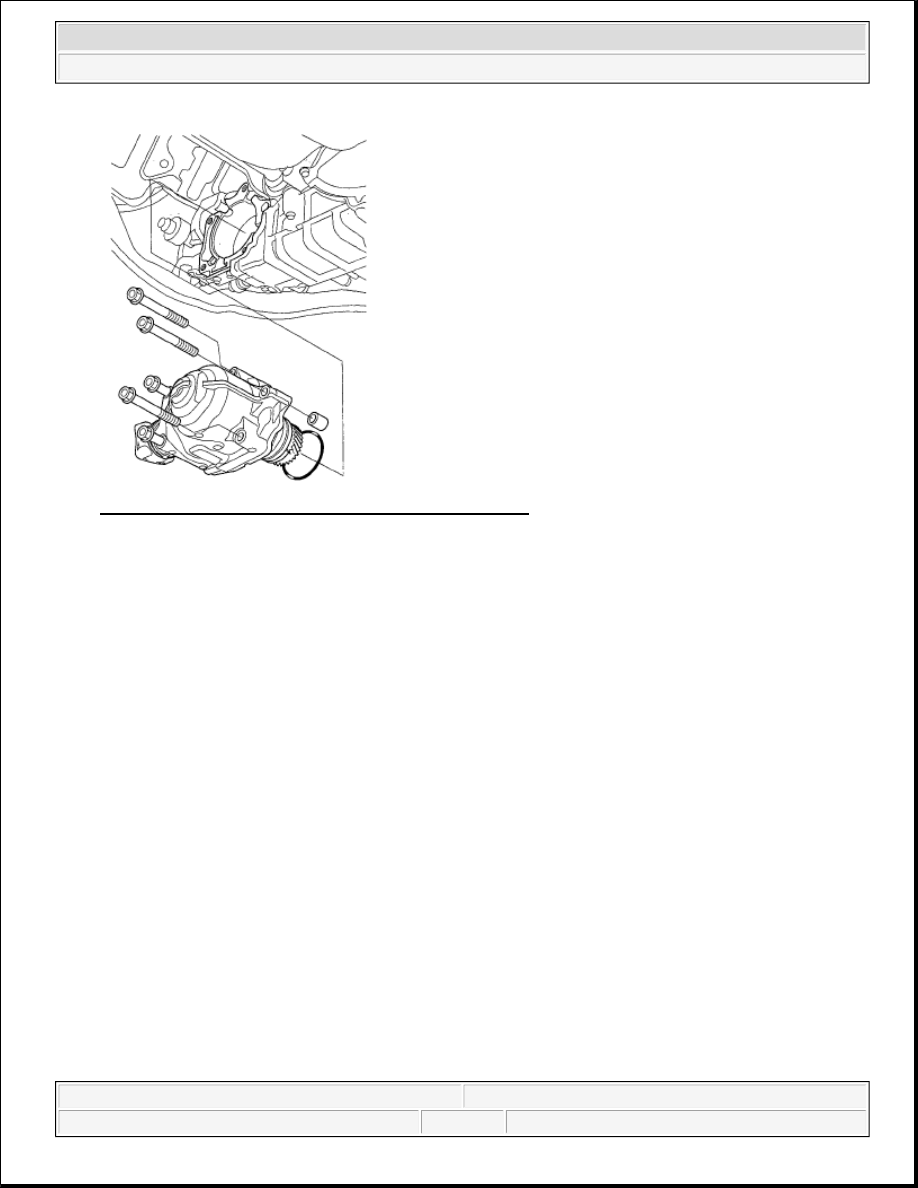

Fig. 214: Identifying Transfer Assembly And Dowel Pin
Courtesy of AMERICAN HONDA MOTOR CO., INC.

TRANSFER ASSEMBLY INSTALLATION

1. Clean the area where the transfer assembly contacts the transmission with solvent or carburetor cleaner,

and dry with compressed air. Then apply Automatic Transmission Fluid (ATF) to the contact areas. When
installing the transfer assembly, be sure not to allow dust or other foreign particles to enter the
transmission.

2. Install the new O-ring (A) on the transfer.



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element

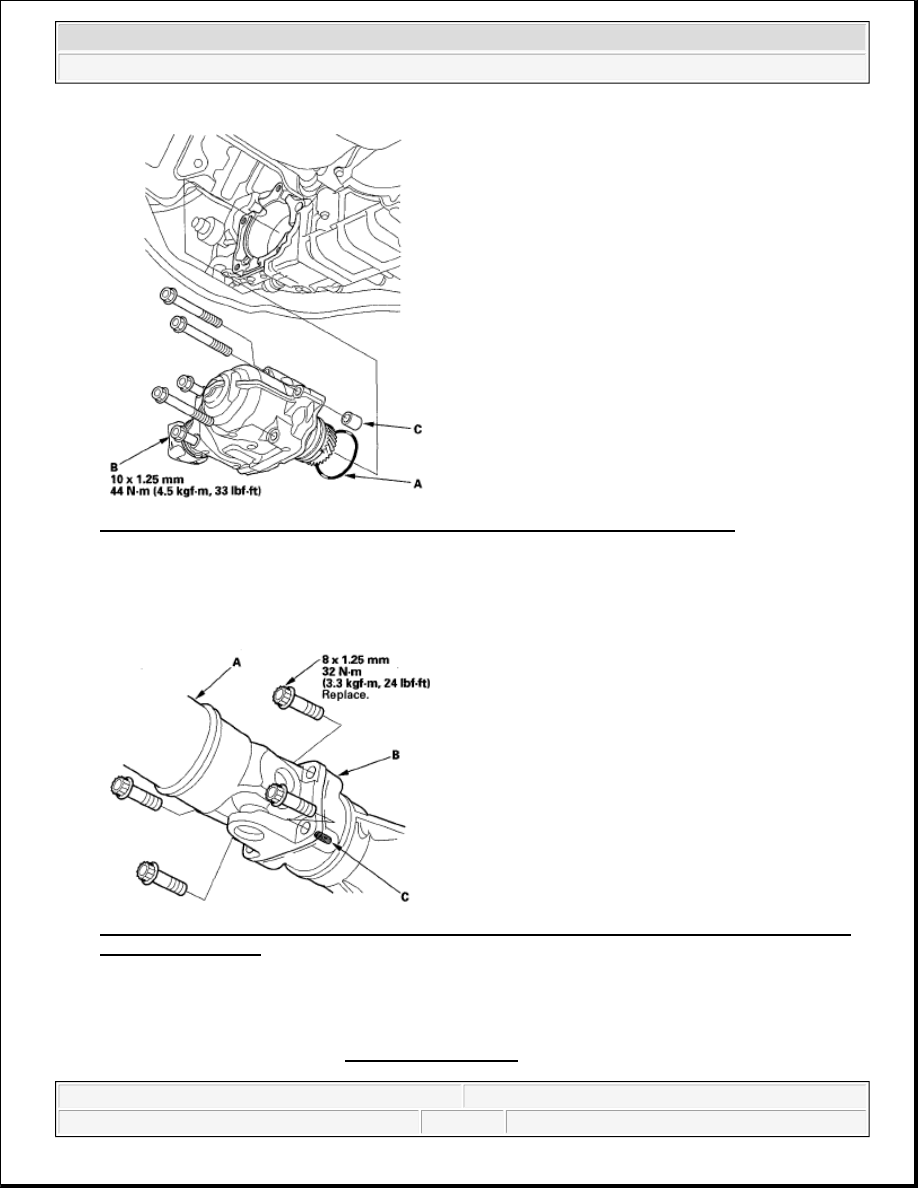

Fig. 215: Identifying O-Ring And Dowel Pin With Bolts With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Insert the five bolts (B) in the transfer housing, then install the transfer assembly with the dowel pin (C).

4. Install the propeller shaft (A) to the transfer companion flange (B) by aligning the reference mark (C).

Fig. 216: Identifying Propeller Shaft And Transfer Companion Flange With Mounting Bolts With
Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Refill the transmission fluid (see step 5 ).

6. Start the engine, and run it to normal operating temperature (the radiator fan comes on). Turn the engine

off, and check the fluid level (see ATF LEVEL CHECK ).
