Fig. 198: Identifying O-Ring And Output Shaft (Countershaft) Speed Sensor With Torque
Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Check the connector for rust, dirt, or oil, and clean if necessary, then connect the connector securely.

5. Install the air cleaner assembly.

2ND CLUTCH TRANSMISSION FLUID PRESSURE SWITCH REPLACEMENT

1. Remove the air cleaner assembly.

2. Disconnect the 2nd clutch transmission fluid pressure switch connector, and remove the 2nd clutch

transmission fluid pressure switch.

3. Install the new 2nd clutch transmission fluid pressure switch (A) with a new sealing washer (B). Tighten

the switch to the specified torque on the metal part, not the plastic part.

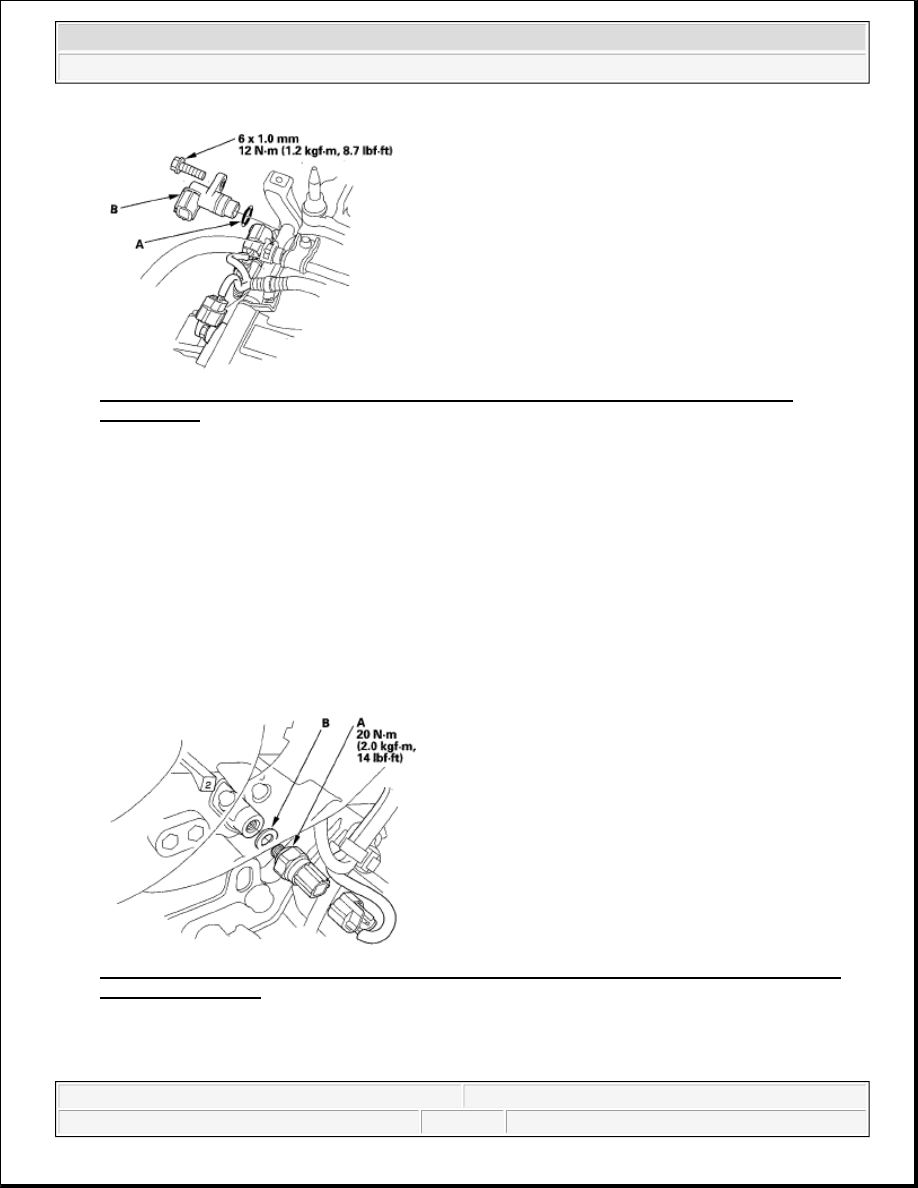

Fig. 199: Identifying 2nd Clutch Transmission Fluid Pressure Switch With Sealing Washer With
Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Check the connector for rust, dirt, or oil, and clean if necessary, then connect the connector securely.

5. Install the air cleaner assembly.



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element



3RD CLUTCH TRANSMISSION FLUID PRESSURE SWITCH REPLACEMENT

1. Disconnect the 3rd clutch transmission fluid pressure switch connector, and remove the 3rd clutch

transmission fluid pressure switch.

2. Install the new 3rd clutch transmission fluid pressure switch (A) with a new sealing washer (B). Tighten

the switch to the specified torque on the metal part, not the plastic part.

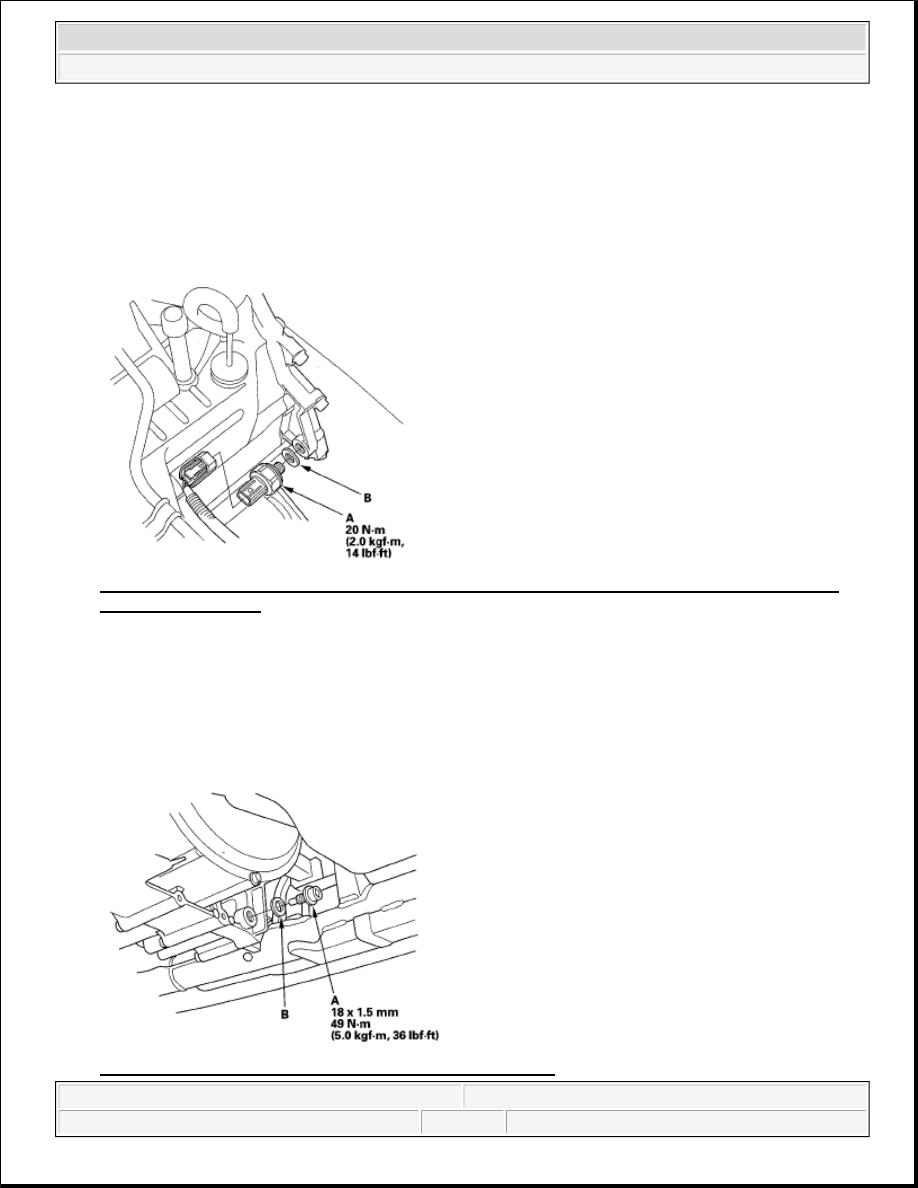

Fig. 200: Identifying 3rd Clutch Transmission Fluid Pressure Switch With Sealing Washer With
Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Check the connector for rust, dirt, or oil, and clean if necessary, then connect the connector securely.

ATF TEMPERATURE SENSOR TEST/REPLACEMENT

1. Remove the drain plug (A), and drain the automatic transmission fluid (ATF).

Fig. 201: Identifying Drain Plug With Torque Specification



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element



Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Reinstall the drain plug with a new sealing washer (B).

3. Place the transmission jack under the transmission, and lift it up to create clearance between the

transmission and front subframe.

4. Disconnect the shift solenoid harness connector.

5. Remove the shift solenoid valve cover (A), gasket (B), and dowel pins (C).

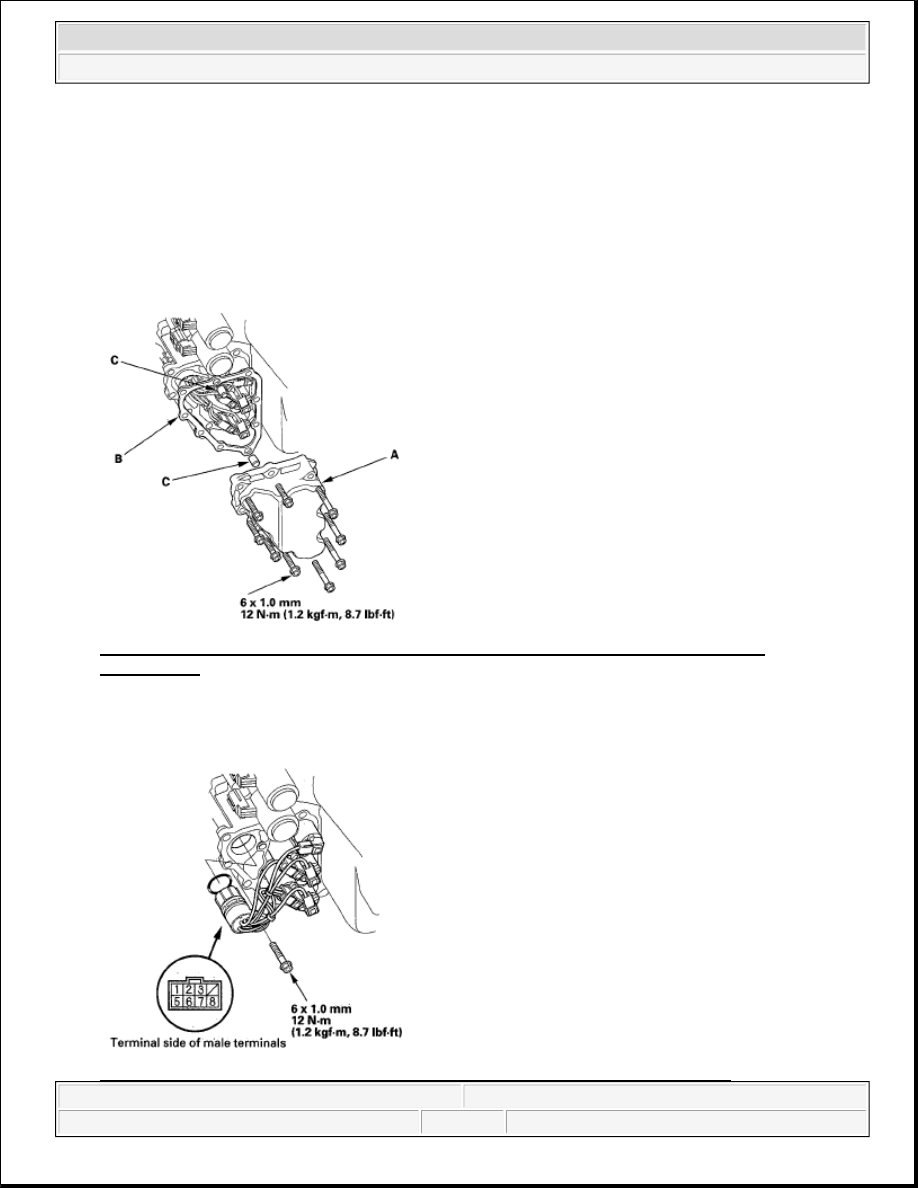

Fig. 202: Identifying Shift Solenoid Valve Cover, Gasket And Dowel Pins With Torque
Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Remove the shift solenoid harness connector.

Fig. 203: Identifying Shift Solenoid Harness Connector With Torque Specification



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element



Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. Measure the ATF temperature sensor resistance between shift solenoid harness connector terminals No. 6

and No. 7.

Standard: 50 ohms-25 kohms

8. If the resistance is out of standard, replace the ATF temperature sensor and solenoid harness; go to step 9.

The ATF temperature sensor is not available separately from the solenoid harness.

If the measurement is within the standard, install the removed parts; go to step 12.

9. Disconnect the connectors from the shift solenoid valves.

10. Connect the shift solenoid valve D connector (A) with the ATF temperature sensor (B) on the shift

solenoid harness.

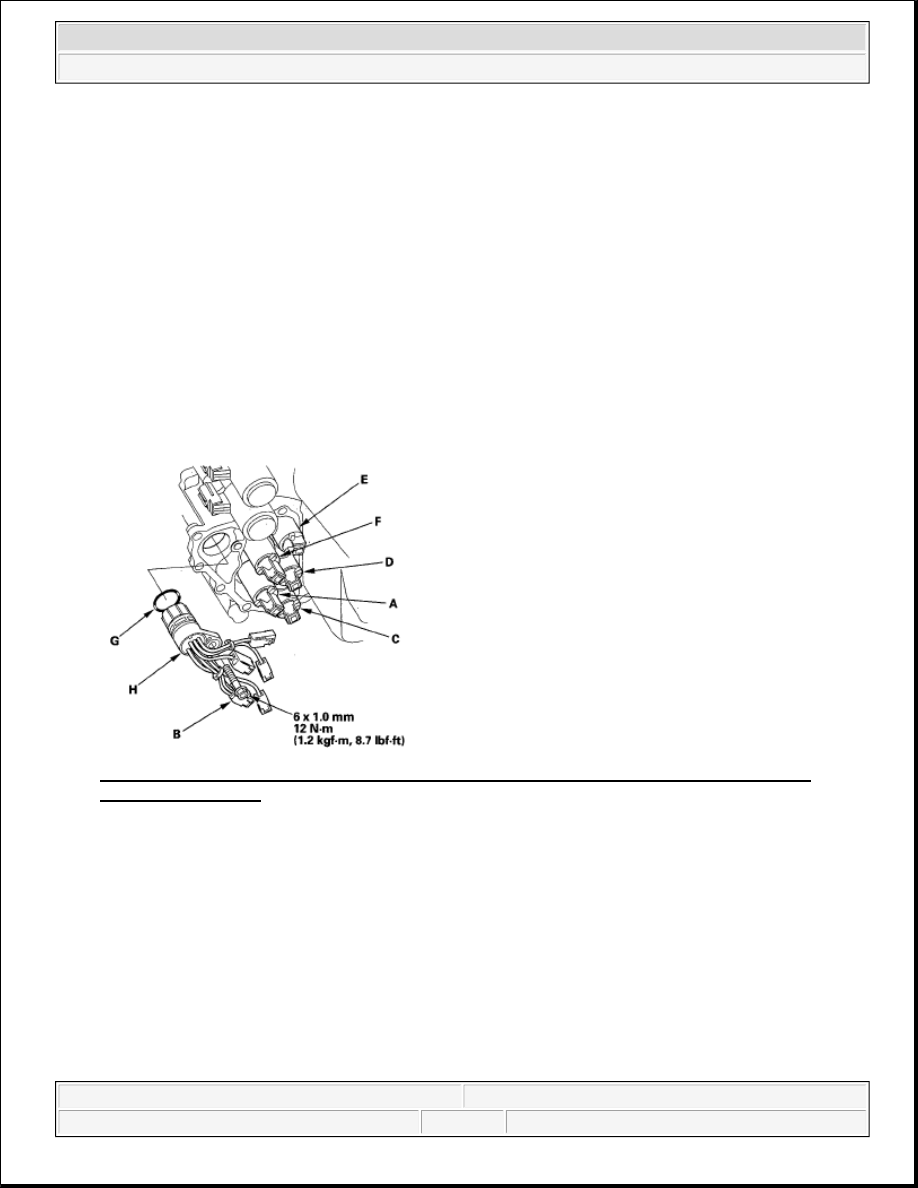

Fig. 204: Identifying Shift Solenoid Valve D Connector With ATF Temperature Sensor With
Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

11. Connect the solenoid valve A connector (BLU wire) (C), solenoid valve B connector (ORN wire) (D),

solenoid valve C connector (GRN wire) (E), and solenoid valve E connector (RED wire) (F).

12. Install the new O-ring (G) on the shift solenoid harness connector (H), and install the connector in the

transmission housing.

13. Install the shift solenoid valve cover, dowel pins and a new gasket.

14. Check the connector for rust, dirt, or oil, then connect the connector securely.

15. Remove the transmission jack.

16. Refill the transmission with ATF (see step 5 ).

ATF LEVEL CHECK
