Fig. 12: Audio System Circuit Diagram - EX And SC Models Without XM (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Honda Element EX

2007-2008 ACCESSORIES AND EQUIPMENT Audio - Element



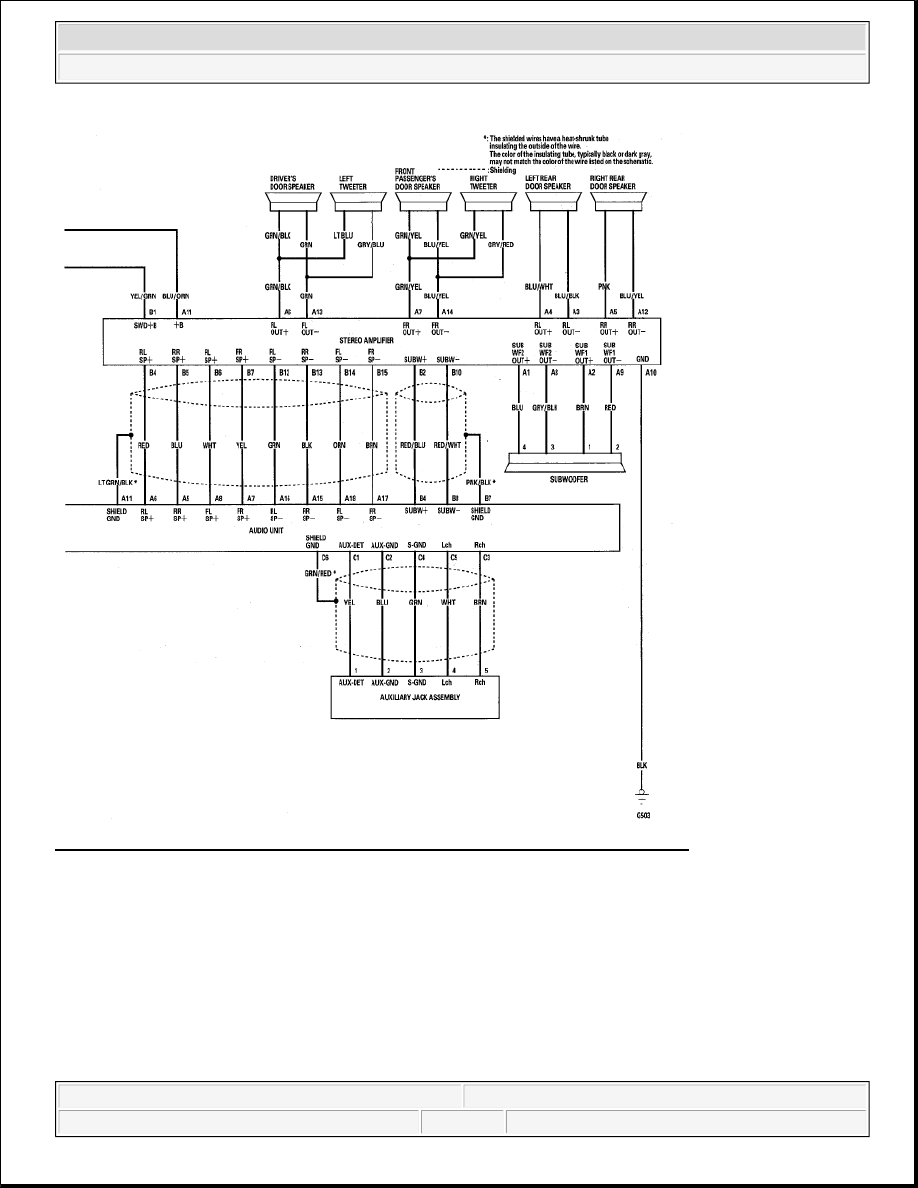

Fig. 13: Audio System Circuit Diagram - EX And SC Models Without XM (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

SELF-DIAGNOSTIC FUNCTION

The audio system has a self-diagnostic function.

HOW TO CHECK FOR AUDIO SYSTEM CONDITION

1. Turn the ignition switch to the ACC (I) or ON (II).

2. Push and hold the "No. 1" and "No. 6" buttons. While holding the buttons, push the "PWR" knob to ON.

Release the buttons and the self-diagnostic function begins.



2007 Honda Element EX

2007-2008 ACCESSORIES AND EQUIPMENT Audio - Element

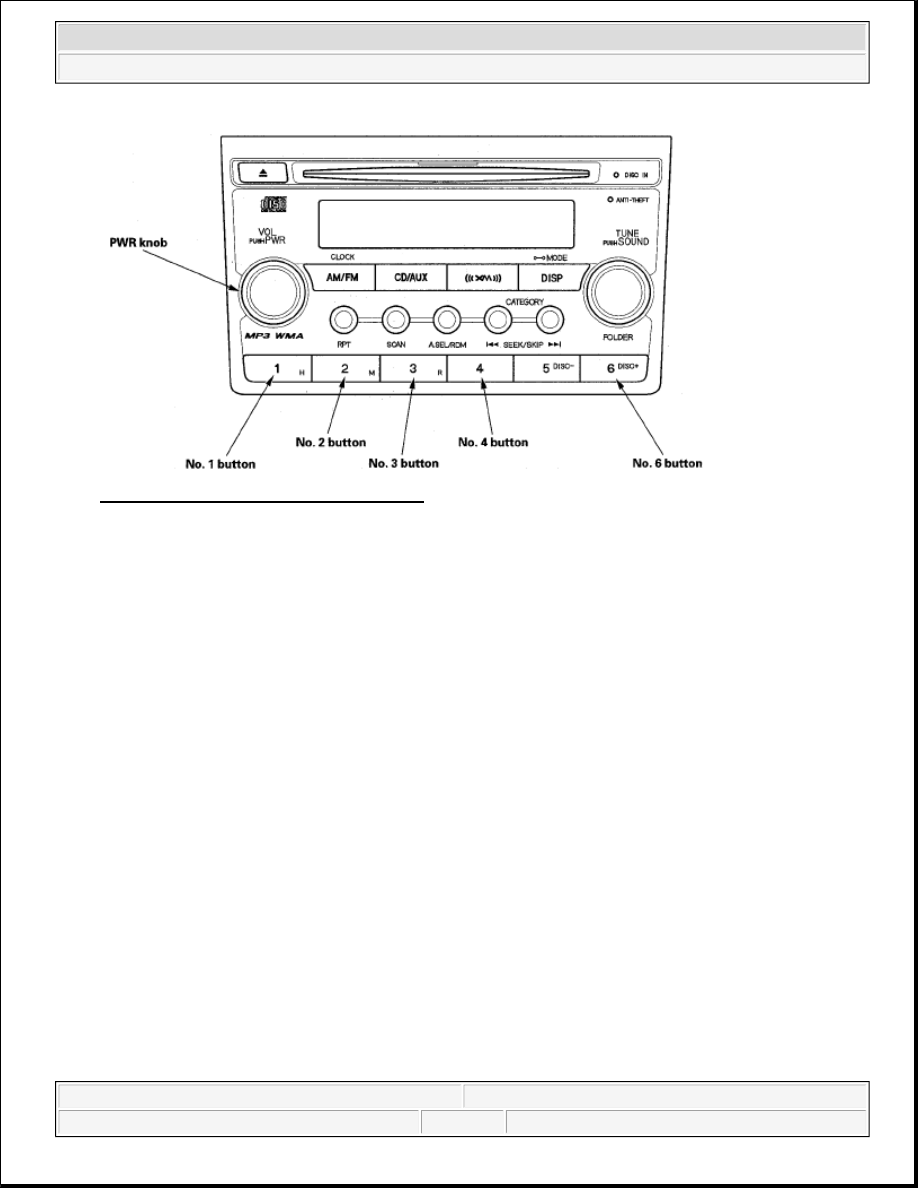

Fig. 14: Identifying Audio System Buttons
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. By pressing a preset button, the input will trigger the diagnostic mode that is assigned to that preset

switch.

"No. 2" button

Entire LCD lighting/light-out mode: Turns on/off the entire LCD to show the presence or absence of an
LCD failure.

"No. 3" button

Duty (for the Illumination dim) indication mode: Indicates the duty for the Illumination dim.

"No. 4" button

Display I2C-BUS communication verification status: Displays the verification of the communication
among the display, the EPROM, and the tuner (toggles between "DSP", "EEP" and "TNR" every 5
seconds).

Display Specifications

NOTE:

Any other diagnostic screens shown are for the audio manufactures use
only.



2007 Honda Element EX

2007-2008 ACCESSORIES AND EQUIPMENT Audio - Element

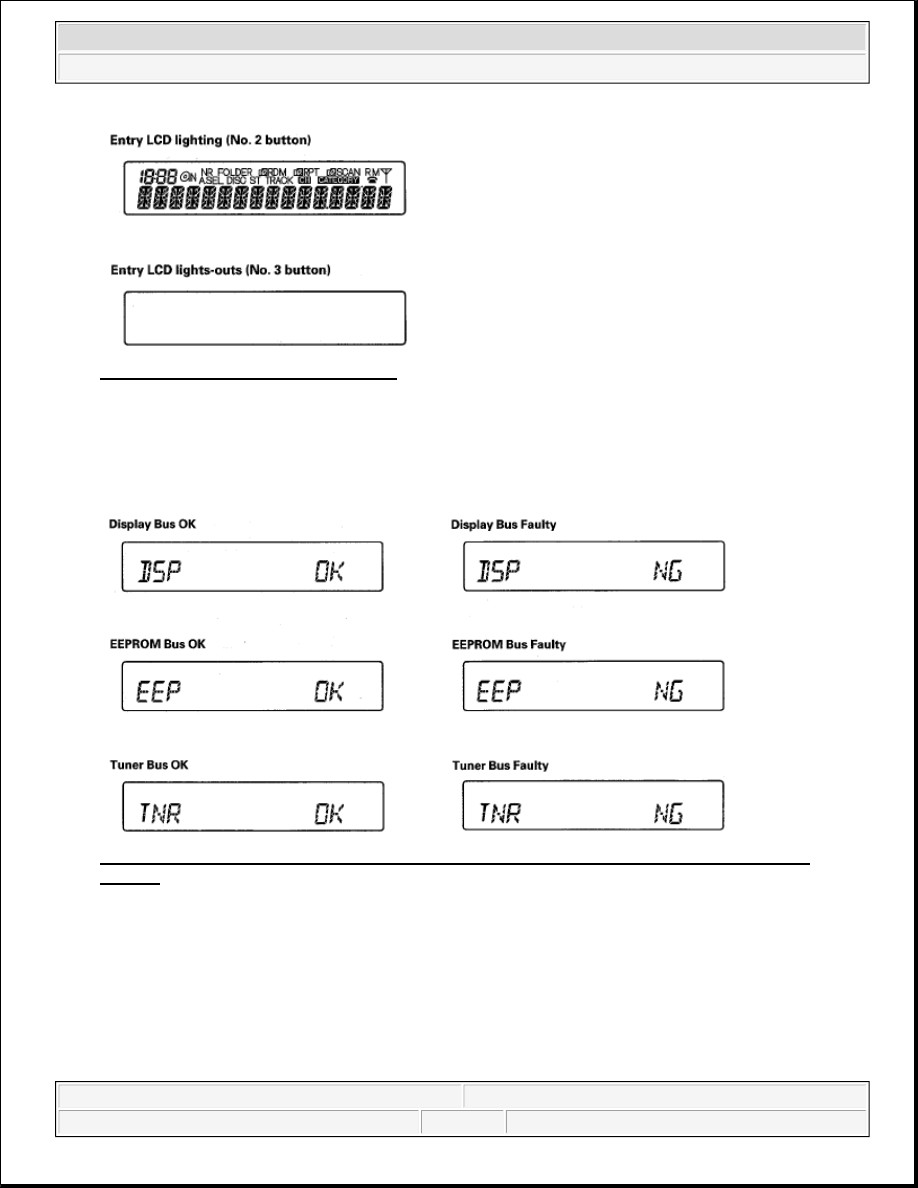

Fig. 15: Identifying Diagnostic Screens
Courtesy of AMERICAN HONDA MOTOR CO., INC.

I2C-BUS communication verification status (No. 4 button)

Fig. 16: Identifying Diagnostic Screens - I2C-BUS Communication Verification Status (No. 4
Button)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. The self-diagnostic function ends when you turn the audio unit OFF, or turn the ignition switch OFF.

ERROR CODES

The audio system displays error codes when a problem is detected with the audio unit, the audio disc, or the
anti-theft code.

NOTE:

If any of the buses are faulty (NG), replace the audio unit.



2007 Honda Element EX

2007-2008 ACCESSORIES AND EQUIPMENT Audio - Element
