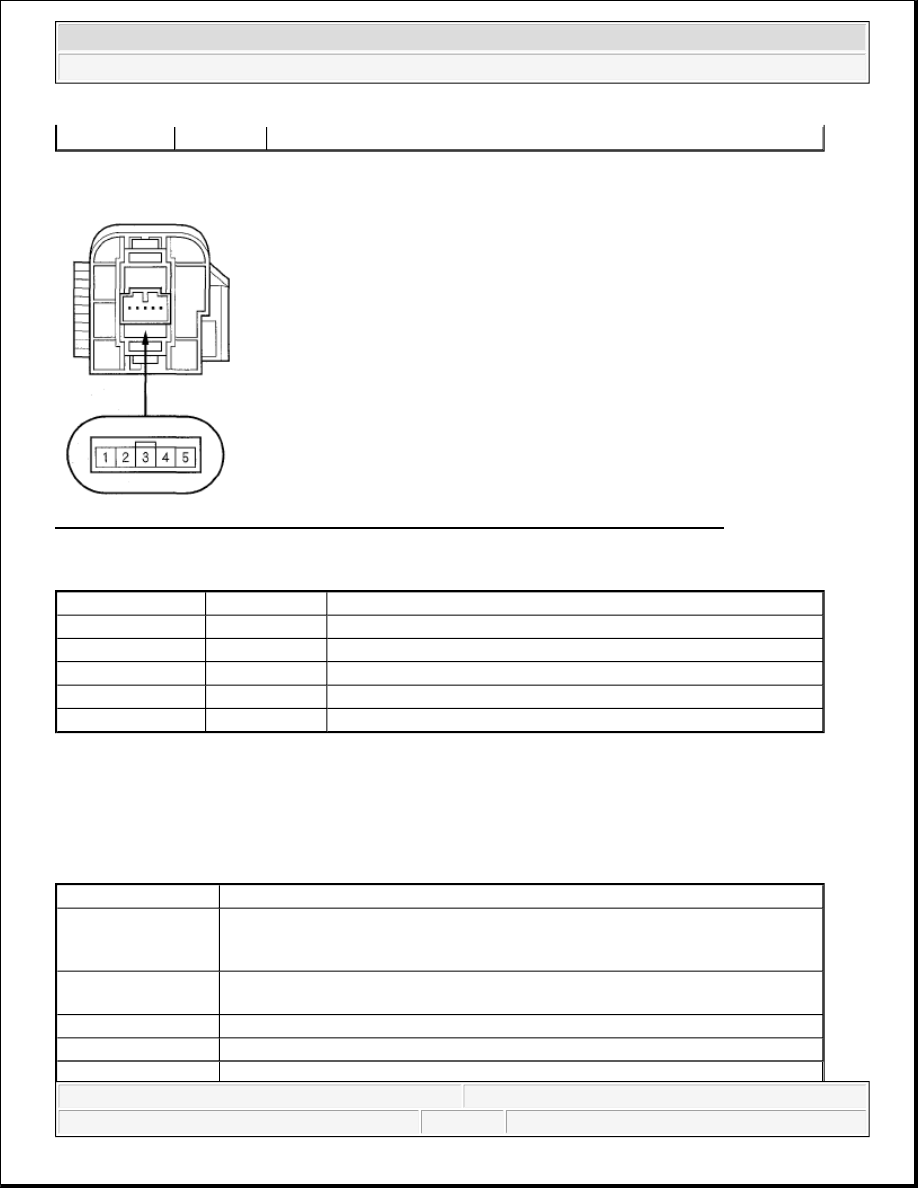

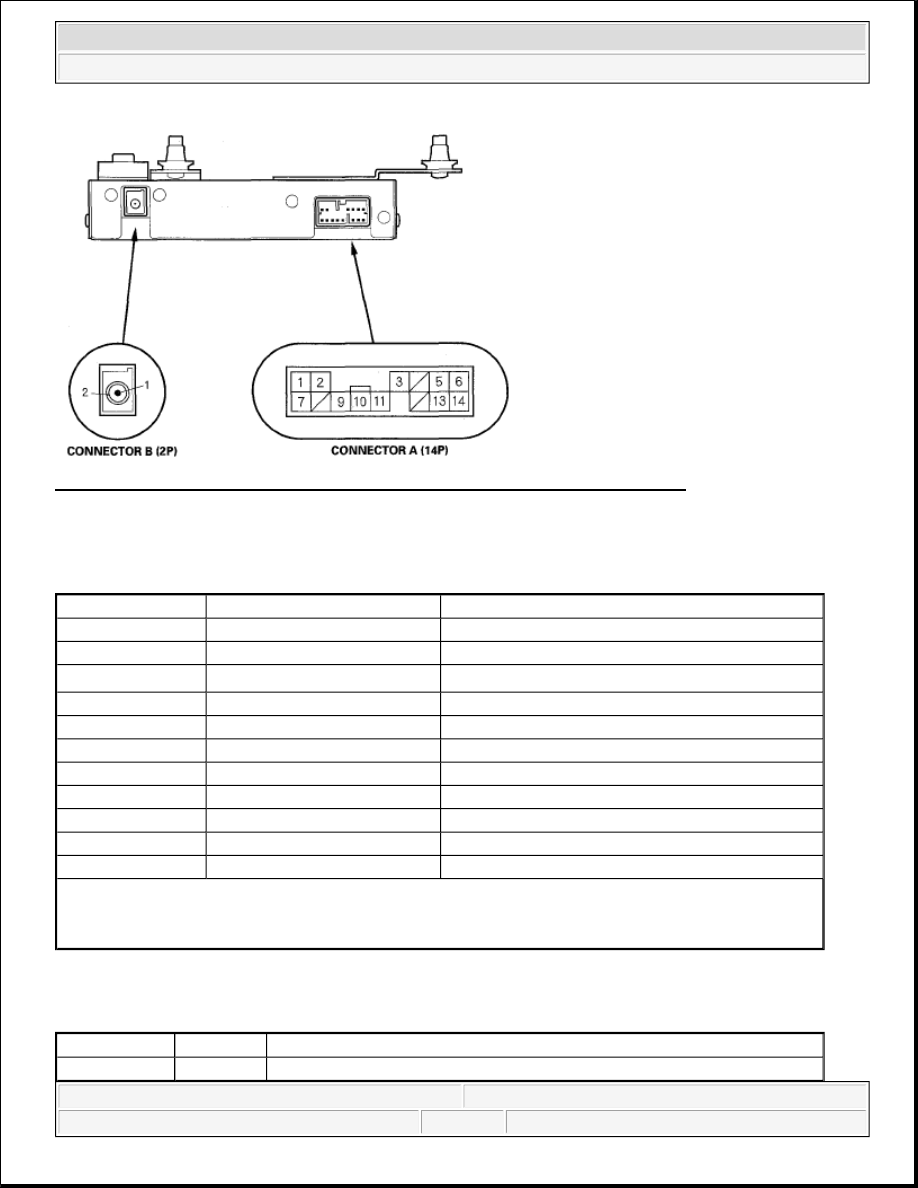

Fig. 7: Identifying XM Receiver Connector Inputs And Outputs (With XM Radio) CONNECTOR A (14P) CONNECTOR REFERENCE CONNECTOR B (2P) CONNECTOR REFERENCE Cavity Wire Connects to A1 WHT/RED Constant power A2 ORN Audio unit (ACC) A3 BRN (1) Shielding (GA-NET) A5 WHT Audio unit (R+) A6 RED Audio unit (L+) A7 WHT/RED Constant power A9 BLU Audio unit(BUS+) A10 PNK Audio unit (BUS-) A11 BLK Ground (G551) A13 BLK Audio unit (R-) A14 GRN Audio unit(L-) (1) The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the Cavity Wire Connects to B1 -- AM/FM/XM antenna (ANT-IN)
2007 Honda Element EX 2007-2008 ACCESSORIES AND EQUIPMENT Audio - Element
|
