Honda Element. Manual - part 153

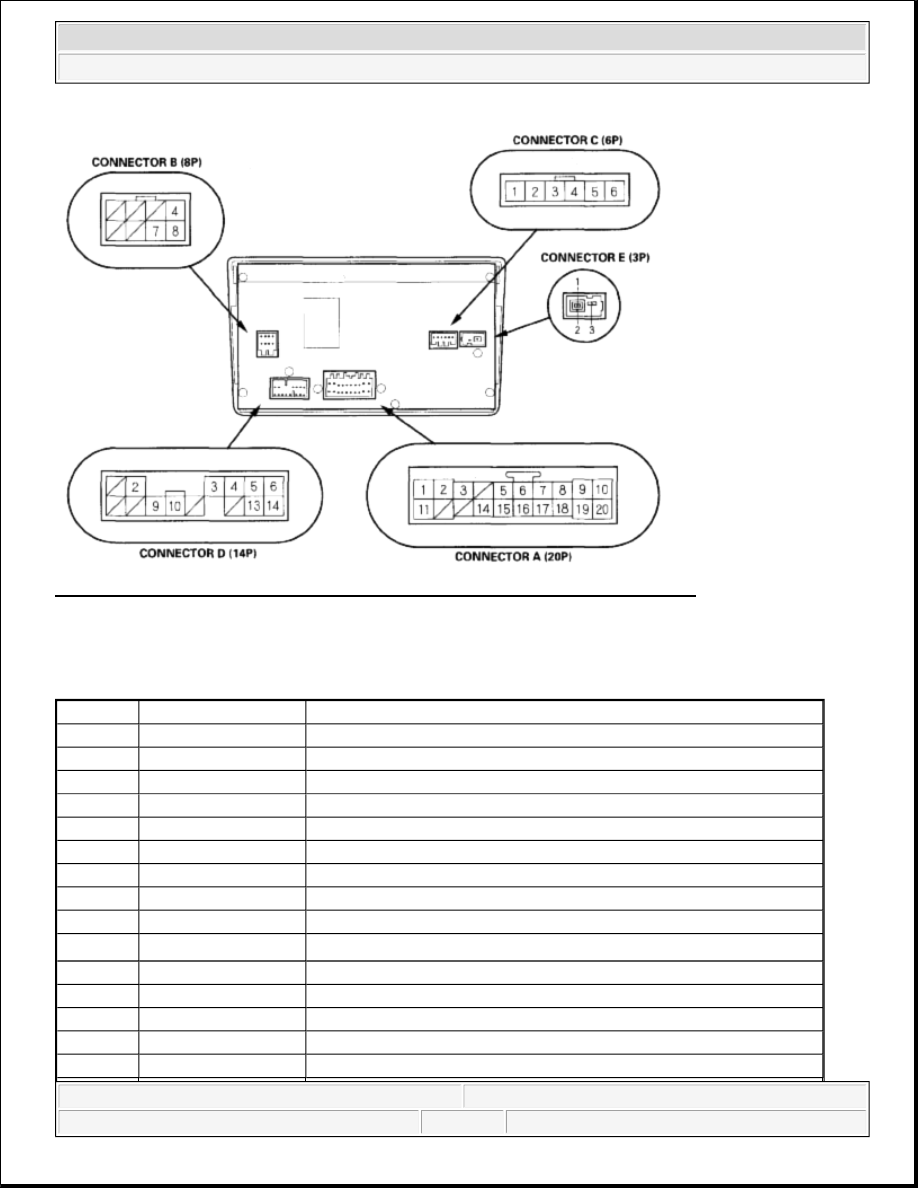

Fig. 5: Identifying Audio Unit Connector Inputs And Outputs (EX And SC Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

CONNECTOR A (20P)

CONNECTOR REFERENCE

Cavity

Wire

Connects to

A1

YEL/GRN

AM/FM antenna amplifier/stereo amplifier switched power supply

A2

YEL/RED

ACC (Main stereo power supply)

A3

GRN/RED

Audio remote switch

A5

BLU

Stereo amplifier - right rear (+)

A6

RED

Stereo amplifier - left rear (+)

A7

YEL

Stereo amplifier - front passenger's (+)

A8

WHT

Stereo amplifier - driver's (+)

A9

RED/BLK

Lights-on signal

A10

WHT/RED

Constant power

A11

LT GRN/BLK

(1)

Shielding

A14

BRN

Audio remote switch ground

A15

BLK

Stereo amplifier - right rear (-)

A16

GRN

Stereo amplifier - left rear (-)

A17

BRN

Stereo amplifier - front passenger's (-)

A18

ORN

Stereo amplifier - driver's (-)



2007 Honda Element EX

2007-2008 ACCESSORIES AND EQUIPMENT Audio - Element



CONNECTOR B (8P)

CONNECTOR REFERENCE

CONNECTOR C (6P)

CONNECTOR REFERENCE

CONNECTOR D (14P) (With XM)

CONNECTOR REFERENCE

A19

RED

Dash lights brightness controller

A20

BLK

Ground (G503)

(1)

The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the
insulating tube, typically black or dark gray, may not match the color of the wire listed on the
schematic.

Cavity

Wire

Connects to

B4

RED/BLU

Stereo amplifier

B7

PNK/BLK

(1)

Shielding

B8

RED/WHT

Stereo amplifier

(1)

The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the
insulating tube, typically black or dark gray, may not match the color of the wire listed on the
schematic.

Cavity

Wire

Connects to

C1

YEL

Auxiliary jack (AUX-DET)

C2

BLU

Auxiliary jack (AUX-GND)

C3

BRN

Auxiliary jack (AUX-RCH)

C4

GRN

Auxiliary jack (AUX-S-GND)

C5

WHT

Auxiliary jack (AUX-LCH)

C6

LT GRN/RED

(1)

Shielding

(1)

The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the
insulating tube, typically black or dark gray, may not match the color of the wire listed on the
schematic.

Cavity

Wire

Connects to

D2

ORN

XM receiver (ACC)

D3

BRN

(1)

Shielding (GA-NET)

D4

GRY

(1)

Shielding

D5

WHT

XM receiver (R+)

D6

RED

XM receiver (L+)

D9

BLU

XM receiver (BUS+ (GA-NET))



2007 Honda Element EX

2007-2008 ACCESSORIES AND EQUIPMENT Audio - Element



CONNECTOR E (3P)

CONNECTOR REFERENCE

STEREO AMPLIFIER CONNECTOR INPUTS AND OUTPUTS (EX AND SC MODELS)

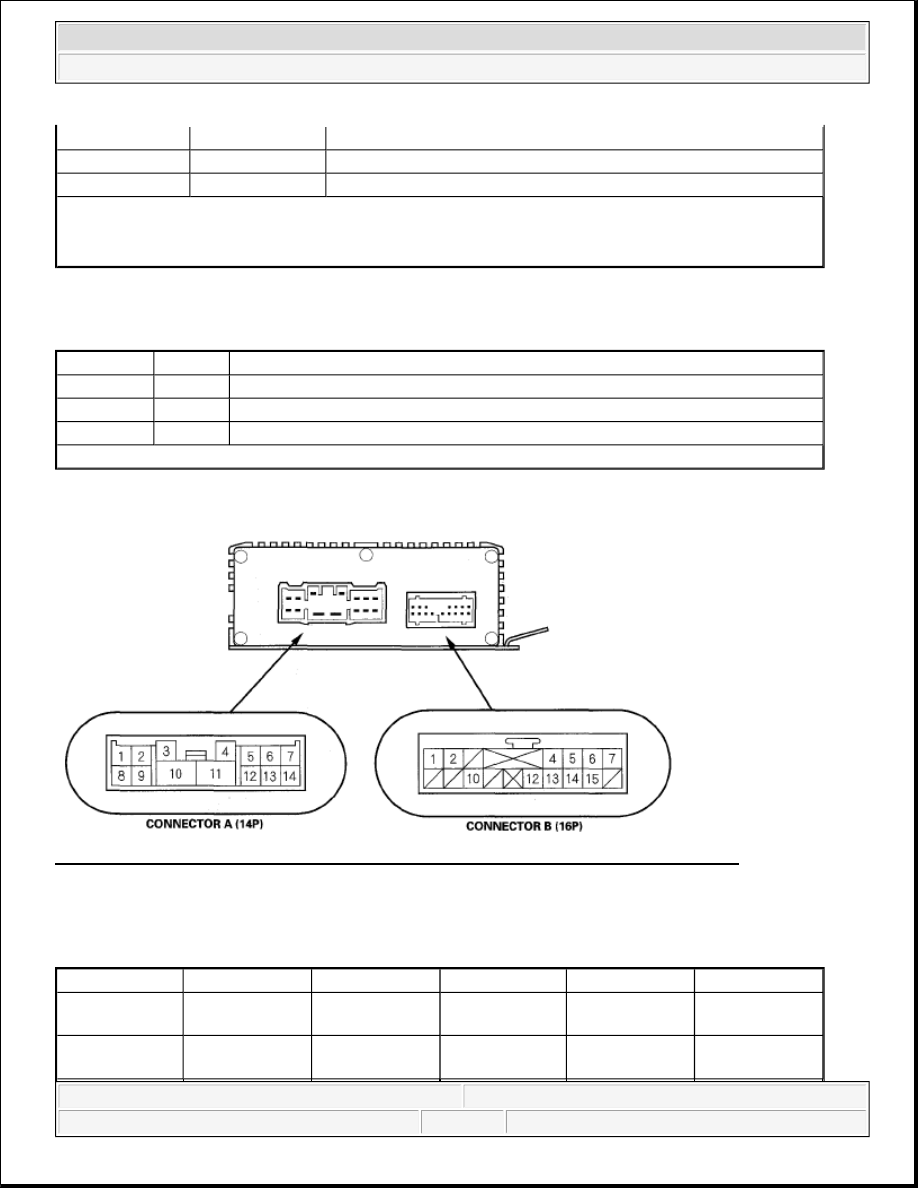

Fig. 6: Identifying Stereo Amplifier Connector Inputs And Outputs (EX And SC Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

CONNECTOR A (14P)

CONNECTOR REFERENCE

D10

PNK

XM receiver (BUS- (GA-NET))

D13

BLU

XM receiver (R-)

D14

GRN

XM receiver (L-)

(1)

The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the
insulating tube, typically black or dark gray, may not match the color of the wire listed on the
schematic.

Cavity

Wire

Connects to

E1

--

AM/FM/XM [AM/FM] antenna (ANT-IN)

E2

--

AM/FM/XM [AM/FM] antenna (ANT-GND)

E3

--

AM/FM/XM antenna (ANT SW+B)

: Without XM

Cavity

Wire

Connects to

Cavity

Wire

Connects to

A1

BLU

Subwoofer 2
output (+)

A8

GRY/BLK

Subwoofer 2
output (-)

A2

BRN

Subwoofer 1
output (+)

A9

RED

Subwoofer 1
output (-)



2007 Honda Element EX

2007-2008 ACCESSORIES AND EQUIPMENT Audio - Element



CONNECTOR B (16P)

CONNECTOR REFERENCE

XM RECEIVER CONNECTOR INPUTS AND OUTPUTS (WITH XM RADIO)

A3

BLU/BLK

Left rear door
speaker (-)

A10

BLK

GND (G503)

A4

BLU/WHT

Left rear door
speaker (+)

A11

BLU/ORN

Constant power

A5

PNK

Right rear door
speaker (+)

A12

BLU/YEL

Right rear door
speaker (-)

A6

GRN/BLK

Driver's door
speaker (+)

A13

GRN

Driver's door
speaker (-)

A7

GRN/YEL

Front passenger's
door speaker(+)

A14

BLU/YEL

Front passenger's
door speaker(-)

Cavity

Wire

Connects to

Cavity

Wire

Connects to

B1

YEL/GRN

AM/FM antenna
amplifier/stereo
amplifier
switched power
supply

B10

RED/WHT

Subwoofer (-)

B2

RED/BLU

Subwoofer (+)

B12

GRN

Audio unit-left
rear (-)

B4

RED

Audio unit-left
rear (+)

B13

BLK

Audio unit-right
rear (-)

B5

BLU

Audio unit-right
rear (+)

B14

ORN

Audio unit-
driver's (-)

B6

WHT

Audio unit-
driver's (+)

B15

BRN

Audio unit-front
passenger's(-)

B7

YEL

Audio unit-front
passenger's(+)









2007 Honda Element EX

2007-2008 ACCESSORIES AND EQUIPMENT Audio - Element
