NO -Short to ground in dashboard wire harness A or dashboard wire harness B; replace the faulty
harness.

7. Reconnect the gauge control module (36P) connector (A).

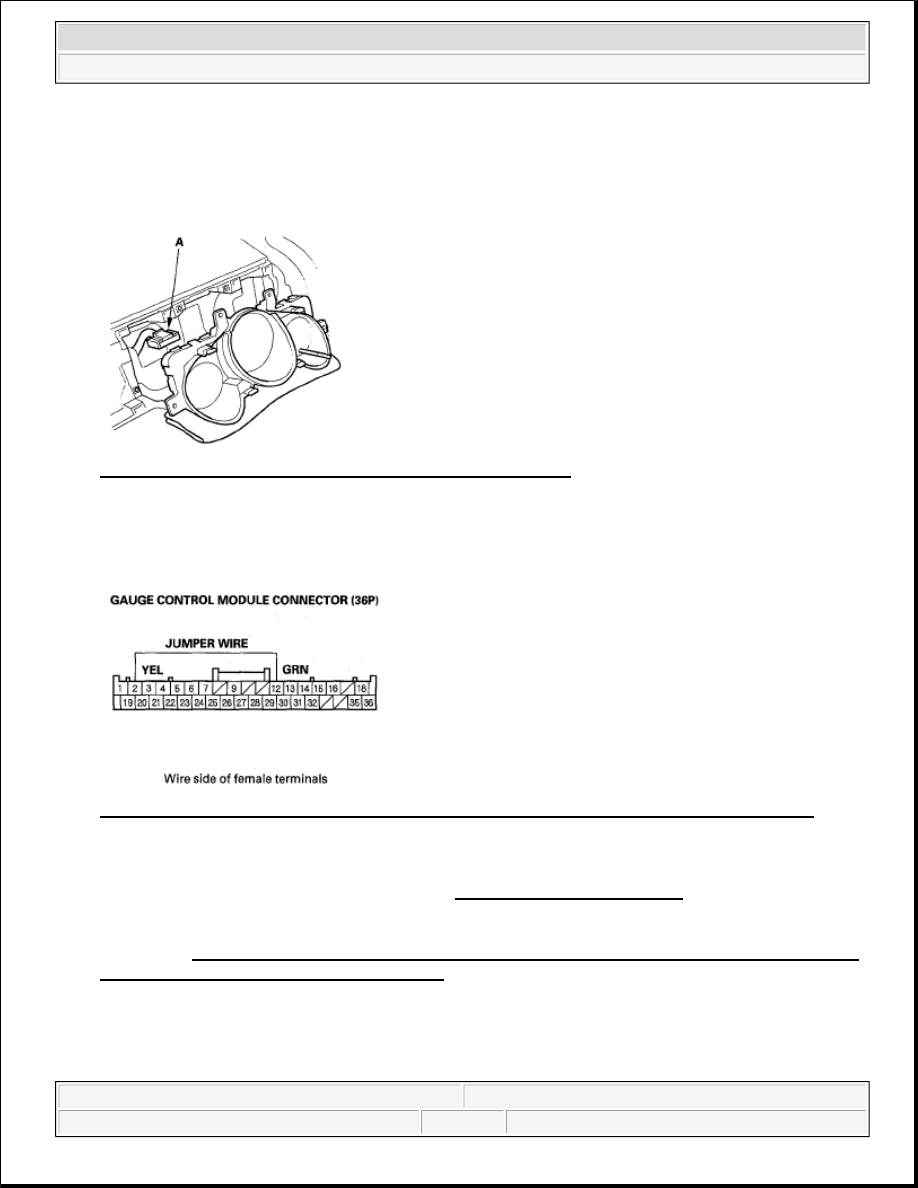

Fig. 210: Identifying Gauge Control Module (36P) Connector

8. Turn the ignition switch ON (II).

9. Install a jumper wire between the No. 2 terminal and No. 12 terminal of the gauge control module

connector (36P). The SRS indicator should go off.

Fig. 211: Connecting Gauge Control Module Connector (36P) Terminals Using Jumper Wire

Does the SRS indicator go off?

YES -Faulty SRS unit; replace the SRS unit (see SRS UNIT REPLACEMENT ).

NO -Short to ground in the SRS indicator circuit of the gauge control module; replace the gauge control
module (see REWRITING THE ODO DATA AND TRANSFERRING MAINTENANCE MINDER
ON A NEW GAUGE CONTROL MODULE ).

DTC 92-1X ("X" CAN BE 0 THRU 9 OR A THRU F): OPEN IN THE FRONT PASSENGER'S
AIRBAG CUTOFF INDICATOR



2007 Honda Element EX

2007-08 RESTRAINTS SRS (Supplemental Restraint System) - Element



1. Clear the DTC memory (see CLEAR THE DTC MEMORY WITH THE HDS ).

2. Turn the ignition switch ON (II), and check that the SRS indicator comes on for about 6 seconds and then

goes off.

Does the SRS indicator stay on, and is DTC 92-1x indicated?

YES -Go to step 3.

NO -Intermittent failure, system is OK at this time. Go to Troubleshooting Intermittent Failures (see
TROUBLESHOOTING INTERMITTENT FAILURES ). If another DTC is indicated, troubleshoot
the DTC.

3. Disconnect the passenger's airbag cutoff indicator 4P connector (see PASSENGER'S AIRBAG

CUTOFF INDICATOR TEST ).

4. Turn the ignition switch OFF. Disconnect the negative cable from the battery, and wait for 3 minutes.

5. Disconnect SRS unit connector A (28P) from the SRS unit (see step 9 on ).

6. Reconnect the negative cable to the battery.

7. Turn the ignition switch ON (II).

8. Check for voltage between the No. 12 terminal of SRS unit connector A (28P) and body ground. There

should be 0.5 V or less.

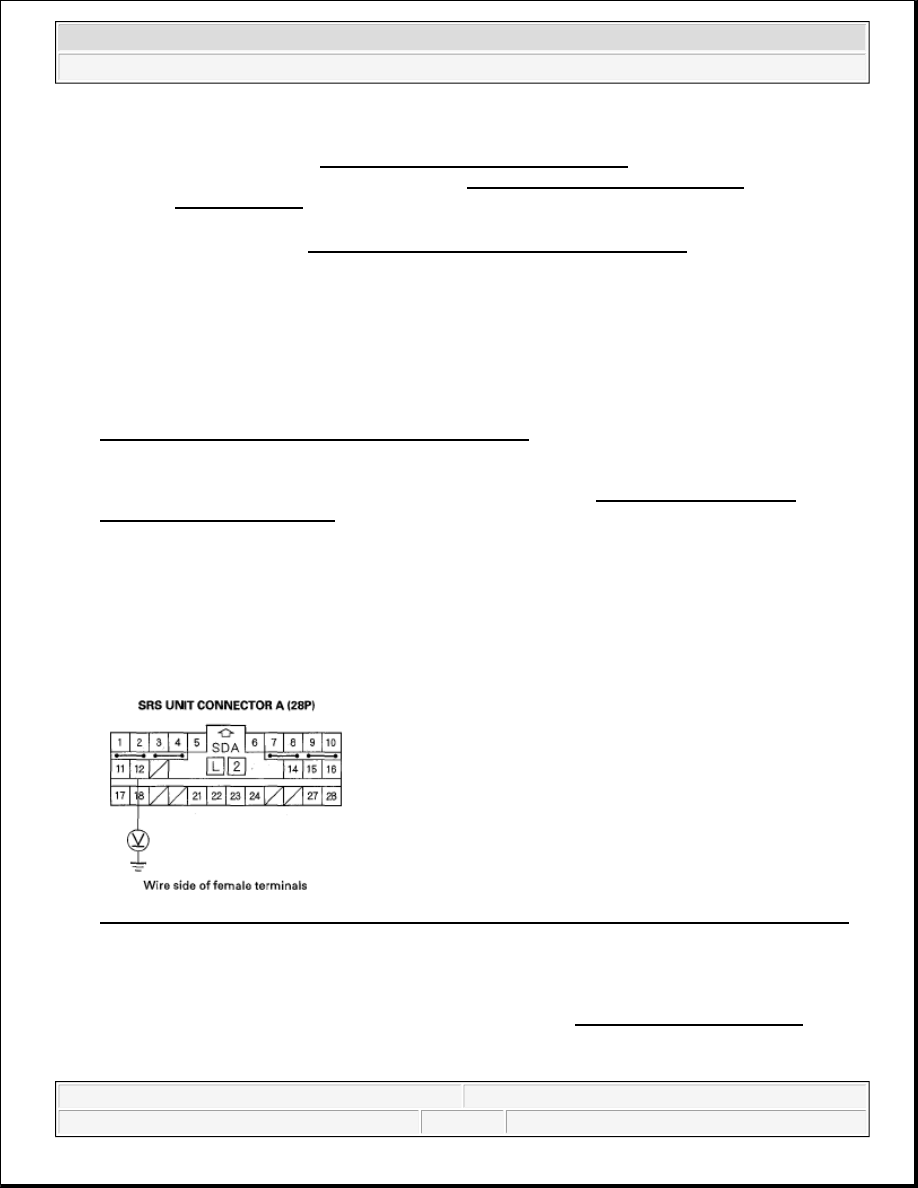

Fig. 212: Checking Voltage Between SRS Unit Connector A (28P) Terminal 12 And Body Ground

Is the voltage as specified?

YES -Faulty SRS unit or passenger's airbag cutoff indicator; replace the passenger's airbag cutoff
indicator. If the problem is still present, replace the SRS unit (see SRS UNIT REPLACEMENT ).

NO -Short to power in the dashboard wire harness; replace the dashboard wire harness.

NOTE:

Before doing this troubleshooting procedure, review SRS Precautions and
Procedures (see PRECAUTIONS AND PROCEDURES ) and General
Troubleshooting Information (see GENERAL TROUBLESHOOTING
INFORMATION ).



2007 Honda Element EX

2007-08 RESTRAINTS SRS (Supplemental Restraint System) - Element



DTC 92-2X ("X" CAN BE 0 THRU 9 OR A THRU F): OPEN OR SHORT TO GROUND IN THE
PASSENGER'S AIRBAG CUTOFF INDICATOR

1. Clear the DTC memory (see CLEAR THE DTC MEMORY WITH THE HDS ).

2. Turn the ignition switch ON (II), and check that the SRS indicator comes on for about 6 seconds and then

goes off.

Does the SRS indicator stay on, and is DTC 92-2x indicated?

YES -Go to step 3.

NO -Intermittent failure, system is OK at this time. Go to Troubleshooting Intermittent Failures (see
TROUBLESHOOTING INTERMITTENT FAILURES ). If another DTC is indicated, troubleshoot
the DTC.

3. Turn the ignition switch OFF. Disconnect the negative cable from the battery, and wait for 3 minutes.

4. Disconnect the passenger's airbag cutoff indicator 4P connector (see PASSENGER'S AIRBAG

CUTOFF INDICATOR TEST ).

5. Disconnect SRS unit connector A (28P) from the SRS unit (see step 9 on ).

6. Measure the resistance between the No. 2 terminal of the passenger's airbag cutoff indicator 4P connector

and the No. 12 terminal of SRS unit connector A (28P). There should be 0-1.0 ohms.

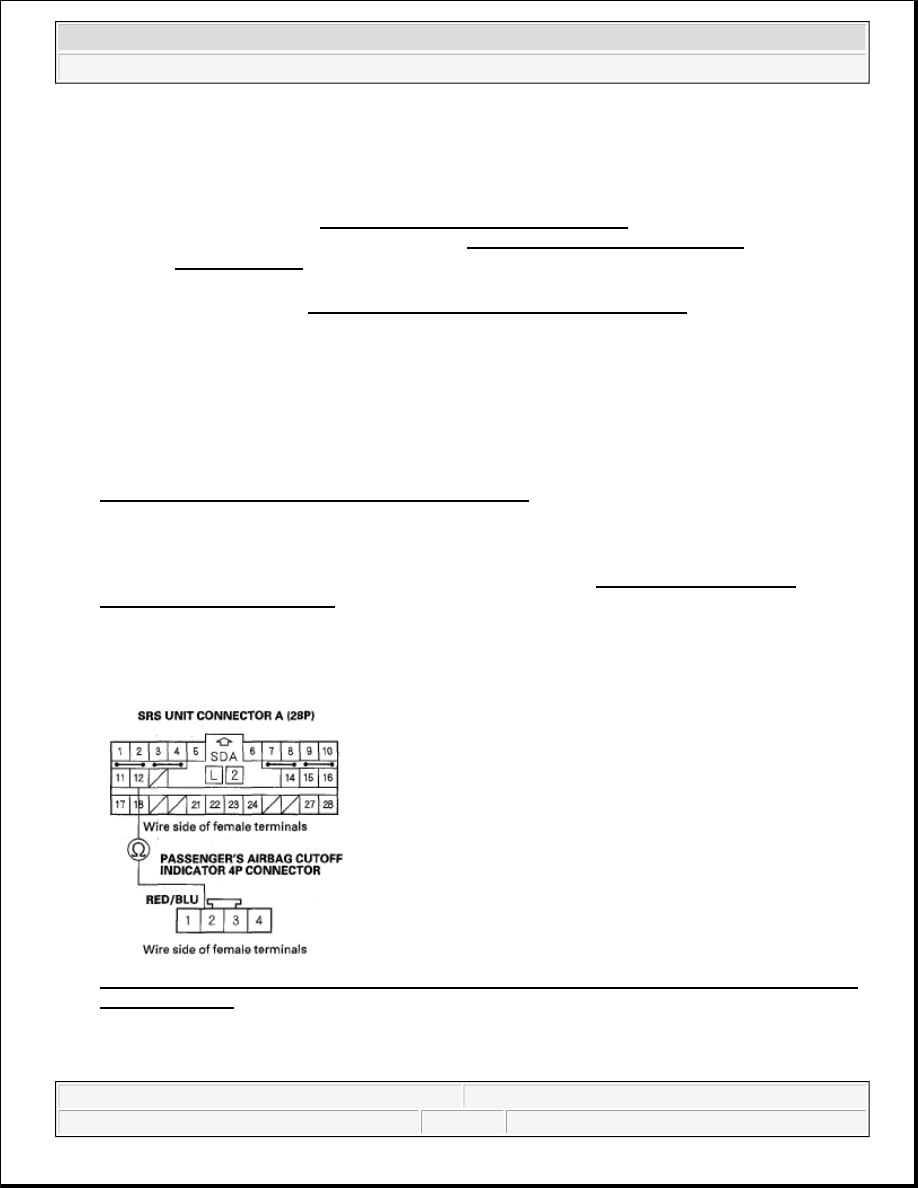

Fig. 213: Measuring Resistance Between Passenger's Airbag Cutoff Indicator Terminal 2 And SRS
Unit Terminal 12

Is the resistance as specified?

NOTE:

Before doing this troubleshooting procedure, review SRS Precautions and
Procedures (see PRECAUTIONS AND PROCEDURES ) and General
Troubleshooting Information (see GENERAL TROUBLESHOOTING
INFORMATION ).



2007 Honda Element EX

2007-08 RESTRAINTS SRS (Supplemental Restraint System) - Element



YES -Go to step 7.

NO -Open in dashboard wire harness A or dashboard wire harness B; check the connection at C403 (see
DASHBOARD WIRE HARNESS A (LEFT BRANCH) ). If the connection is OK, replace the faulty
harness.

7. Measure the resistance between the No. 12 terminal of the SRS unit connector A (28P) and body ground.

There should be an open circuit or at least 1Mohms.

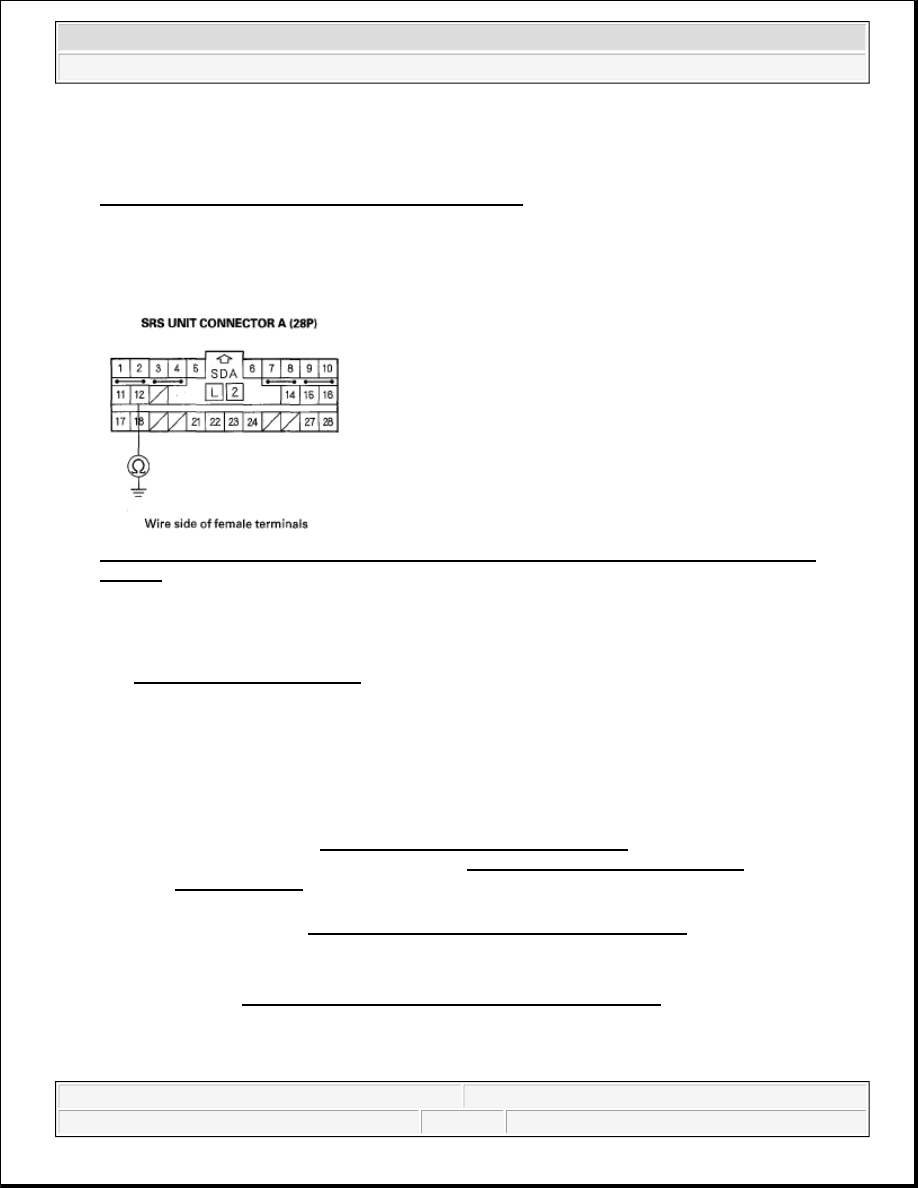

Fig. 214: Measuring Resistance Between SRS Unit Connector A (28P) Terminal 12 And Body
Ground

Is the resistance as specified?

YES -Replace the passenger's airbag cutoff indicator. If the problem is still present, replace the SRS unit
(see SRS UNIT REPLACEMENT ).

NO -Short to ground in dashboard wire harness A or dashboard wire harness B; replace the faulty
harness.

DTC A1-1X ("X" CAN BE 0 THRU 9 OR A THRU F): FAULTY POWER SUPPLY (VA LINE)

1. Clear the DTC memory (see CLEAR THE DTC MEMORY WITH THE HDS ).

2. Turn the ignition switch ON (II), and check that the SRS indicator comes on for about 6 seconds and then

goes off.

3. Read the DTC (see GENERAL TROUBLESHOOTING INFORMATION ).

Is DTC A1-1x indicated?

NOTE:

Before doing this troubleshooting procedure, review SRS Precautions and
Procedures (see PRECAUTIONS AND PROCEDURES ) and General
Troubleshooting Information (see GENERAL TROUBLESHOOTING
INFORMATION ).



2007 Honda Element EX

2007-08 RESTRAINTS SRS (Supplemental Restraint System) - Element
