Honda Element. Manual - part 129





ground. There should be 0-1 ohms.

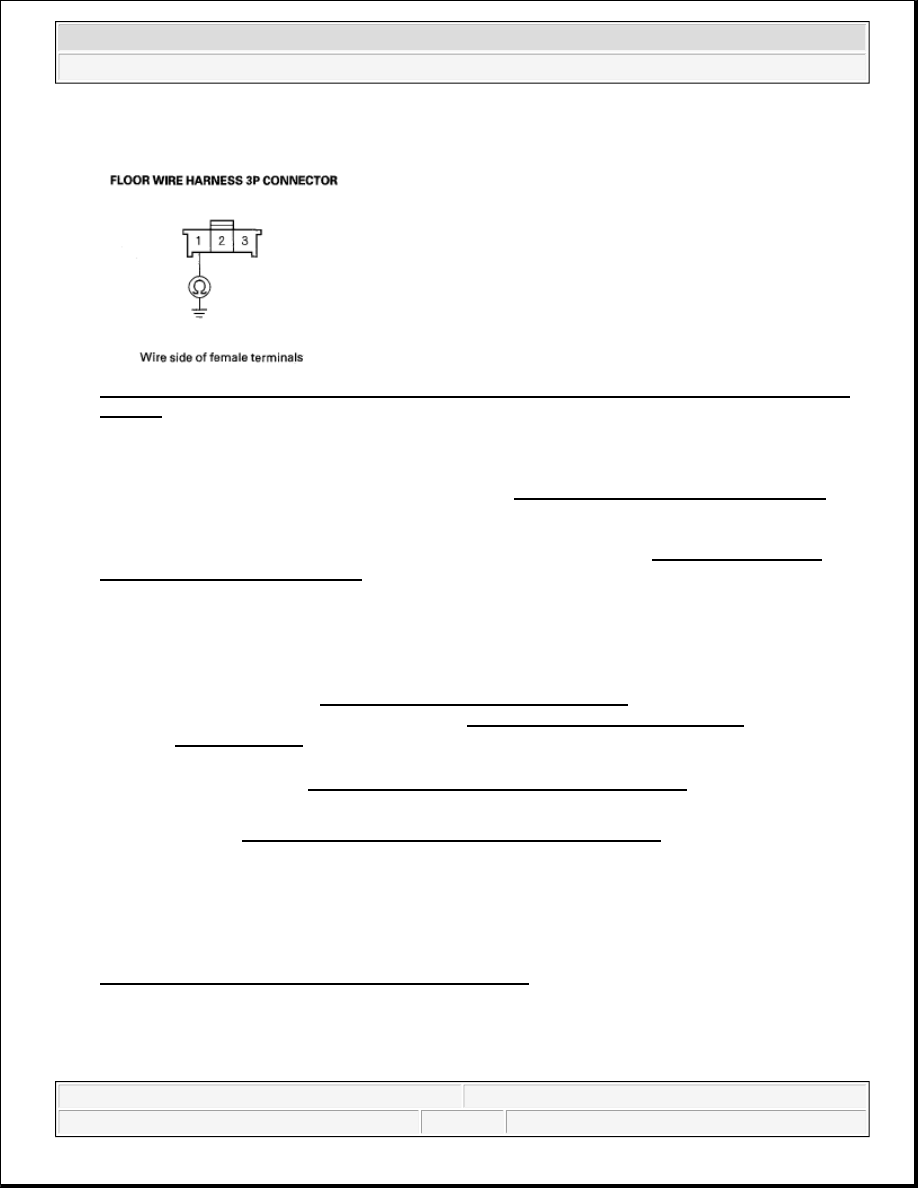

Fig. 177: Measuring Resistance Between Floor Wire Harness 3P Connector Terminal 1 And Body
Ground


Is the resistance as specified?

YES -Replace the driver's seat belt buckle assembly (see FRONT SEAT BELT REPLACEMENT ),
then clear the DTC.

NO -Open in the floor wire harness or poor ground connection at G502 (see DASHBOARD WIRE
HARNESS A (RIGHT BRANCH)
 ). If G501 is OK, replace the floor wire harness.

DTC 61-2X ("X" CAN BE 0 THRU 9 OR A THRU F): SHORT IN DRIVER'S SEAT BELT BUCKLE
SWITCH

1. Clear the DTC memory (see CLEAR THE DTC MEMORY WITH THE HDS ).

2. Turn the ignition switch ON (II), then buckle and unbuckle the driver's seat belt several times.

3. Read the DTC (see GENERAL TROUBLESHOOTING INFORMATION ).

Is DTC 61-2x indicated?

YES -Go to step 4.

NO -Intermittent failure, system is OK at this time. Go to Troubleshooting Intermittent Failures (see
TROUBLESHOOTING INTERMITTENT FAILURES ). If another DTC is indicated, troubleshoot
the DTC.

4. Turn the ignition switch OFF.

5. Disconnect the floor wire harness 3P connector from the driver's seat belt buckle switch 3P connector

NOTE:

Before doing this troubleshooting procedure, review SRS Precautions and
Procedures (see PRECAUTIONS AND PROCEDURES ) and General
Troubleshooting Information (see GENERAL TROUBLESHOOTING
INFORMATION ).



2007 Honda Element EX

2007-08 RESTRAINTS SRS (Supplemental Restraint System) - Element



(A).

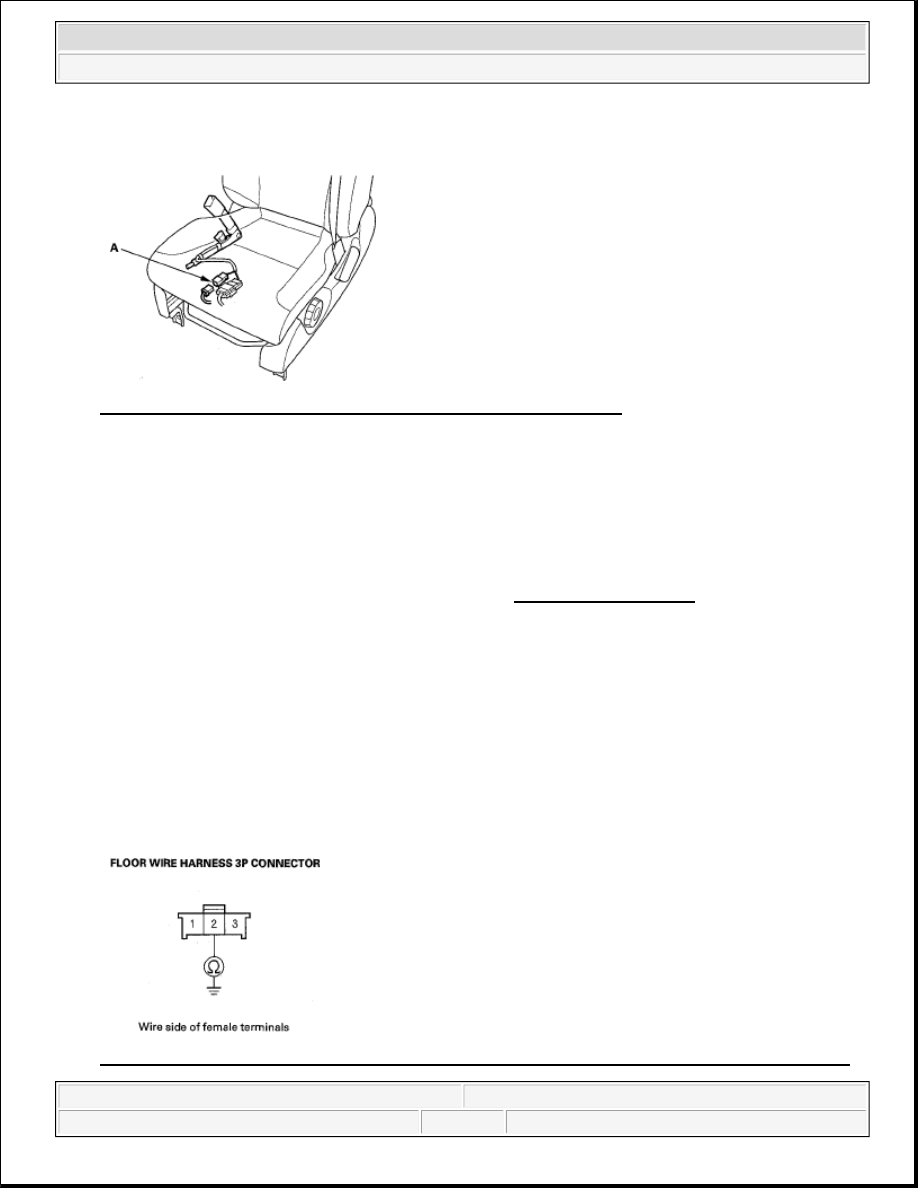

Fig. 178: Identifying Driver's Seat Belt Buckle Switch 3P Connector

6. Turn the ignition switch ON (II).

7. From the system selection menu on the HDS, select SRS, then select SRS again, then select

PARAMETER INFORMATION, then Buckle Switch, Seat Position Sensor, and check the status on the
HDS screen for FRONT LEFT SEAT BELT BUCKLE SWITCH.

Is OPEN indicated on the HDS?

YES -Replace the driver's seat belt buckle assembly (see SEAT BELT BUCKLE ), then clear the DTC.

NO -Go to step 8.

8. Turn the ignition switch OFF.

9. Disconnect the negative cable from the battery, and wait for 3 minutes.

10. Disconnect both seat belt tensioner 4P connectors (see step 7 on ) and both seat belt buckle tensioner 4P

connectors (see step 8 on ).

11. Disconnect SRS unit connector B (28P) from the SRS unit (see step 9 on ).

12. Measure the resistance between the No. 2 terminal of the floor wire harness 3P connector and body

ground. There should be an open circuit or at least 1 Mohms.

Fig. 179: Measuring Resistance Between Floor Wire Harness 3P Connector Terminal 2 And Body



2007 Honda Element EX

2007-08 RESTRAINTS SRS (Supplemental Restraint System) - Element



Ground

Is the resistance as specified?

YES -Check the connections at the floor wire harness and the connector Q (8P) at the under-dash
fuse/relay box (see UNDER-DASH FUSE/RELAY BOX ). If the connections are OK, go to step 13.

NO -Short to ground in the floor wire harness or the MICU/under-dash fuse/relay box. Replace the faulty
harness or part.

13. Measure the resistance between the No. 3 terminal of the driver's seat wire harness or floor wire harness

3P connector and body ground. There should be an open circuit or at least 1 Mohms.

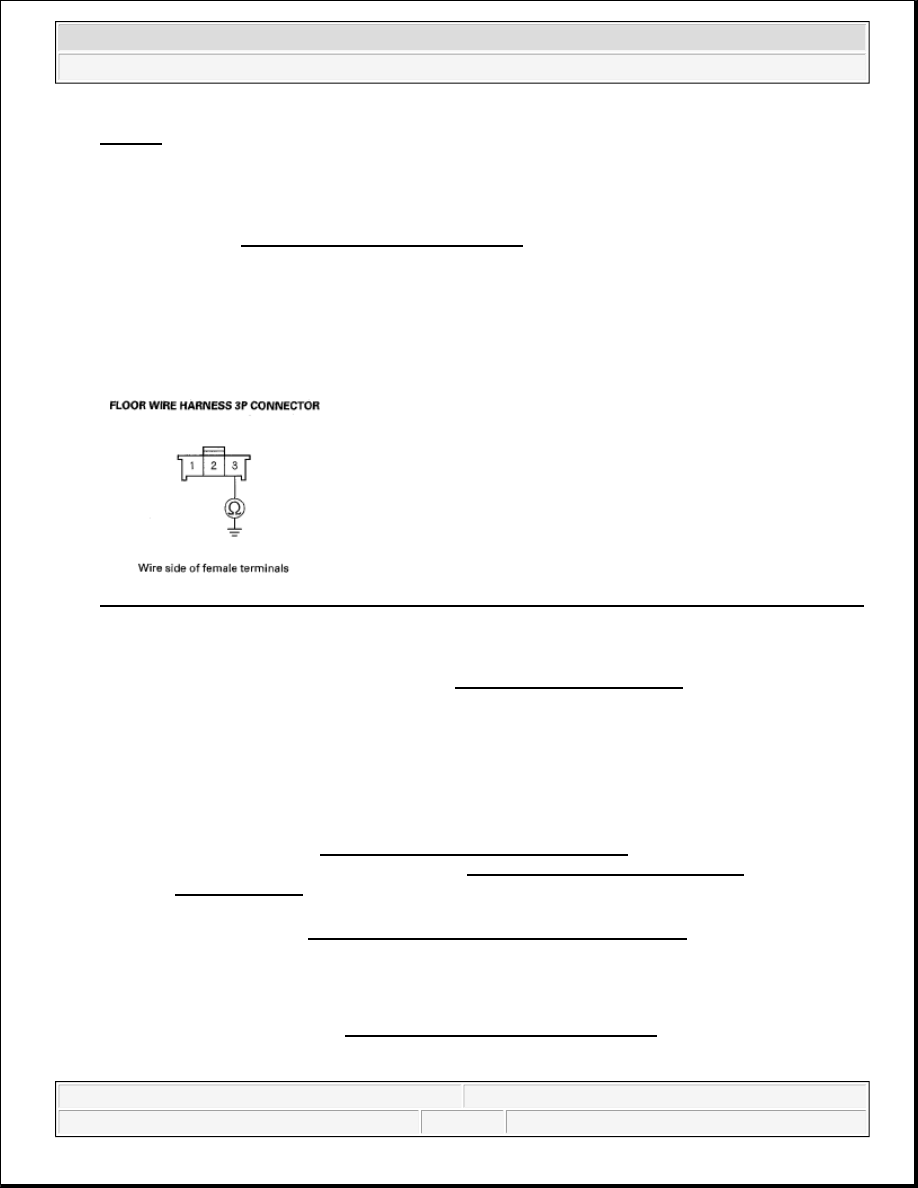

Fig. 180: Measuring Resistance Between Driver's Seat Wire Harness Terminal 3 And Body Ground

Is the resistance as specified?

YES -Faulty SRS unit; replace the SRS unit (see SRS UNIT REPLACEMENT ).

NO -Short to ground in the floor wire harness; replace the floor harness.

DTC 62-1X ("X" CAN BE 0 THRU 9 OR A THRU F): OPEN IN FRONT PASSENGER'S SEAT BELT
BUCKLE SWITCH

1. Clear the DTC memory (see CLEAR THE DTC MEMORY WITH THE HDS ).

2. Connect the HDS to the data link connector (DLC).

3. Turn the ignition switch ON (II), then buckle and unbuckle the front passenger's seat belt several times.

4. Make sure the HDS communicates with the vehicle and the SRS unit, If it does not communicate,

troubleshoot the DLC circuit (see DLC CIRCUIT TROUBLESHOOTING ).

5. From the system menu on the HDS, select SRS, then select SRS again, then select PARAMETER

INFORMATION, then Buckle Switch, Seat Position Sensor, and check the status on the HDS screen for

NOTE:

Before doing this troubleshooting procedure, review SRS Precautions and
Procedures (see PRECAUTIONS AND PROCEDURES ) and General
Troubleshooting Information (see GENERAL TROUBLESHOOTING
INFORMATION ).



2007 Honda Element EX

2007-08 RESTRAINTS SRS (Supplemental Restraint System) - Element



FRONT RIGHT SEAT BELT BUCKLE SWITCH.

Is "OPEN" indicated?

YES -

If OPEN is indicated only when the front passenger's seat belt is buckled, go to step 6.

If OPEN is indicated only when the front passenger's seat belt is unbuckled, go to step 14.

If OPEN is indicated only when the front passenger's seat belt is buckled and unbuckled, go to step
22.

NO -Intermittent failure, system is OK at this time. Go to Troubleshooting Intermittent Failures (see
TROUBLESHOOTING INTERMITTENT FAILURES ). If another DTC is indicated, troubleshoot
the DTC.

6. Turn the ignition switch OFF.

7. Disconnect the floor wire harness 3P connector from the front passenger's seat belt buckle switch 3P

connector (A).

8. Buckle the front passenger's seat belt.

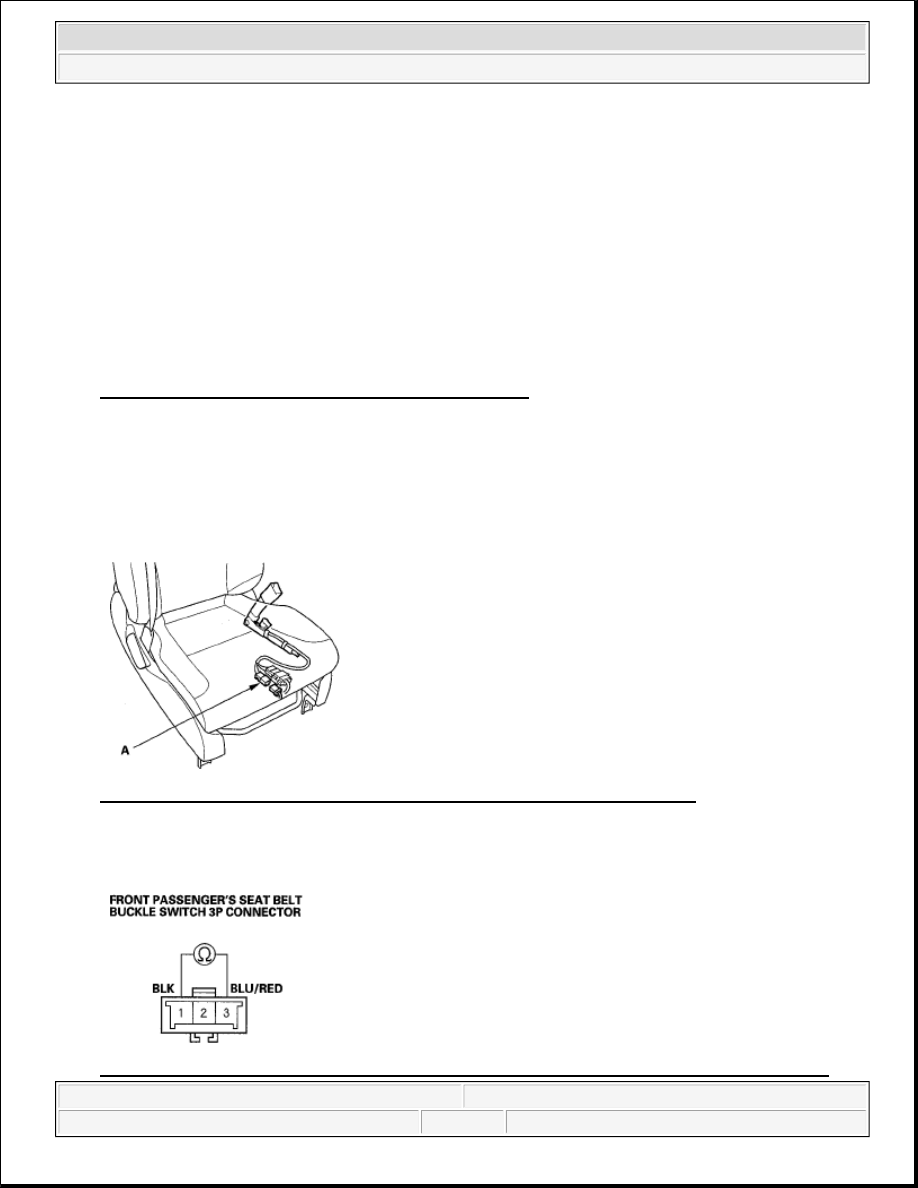

Fig. 181: Identifying Front Passenger's Seat Belt Buckle Switch 3P Connector

9. Measure the resistance between the No. 1 and No. 3 terminals of the front passenger's seat belt buckle

switch 3P connector. There should be 0-1ohms.

Fig. 182: Measuring Resistance Between Front Passenger's Seat Belt Buckle Switch Terminal 1



2007 Honda Element EX

2007-08 RESTRAINTS SRS (Supplemental Restraint System) - Element
