Fig. 167: Measuring Voltage Between SRS Unit Connector C (28P) Terminal 19 And Body Ground

Is the voltage as specified?

YES -Go to step 12.

NO -Short to power in the floor wire harness, dashboard wire harness A, or the roof wire harness; replace
the faulty harness.

12. Turn the ignition switch OFF.

13. Connect the SRS inflator simulator (jumper connector) and simulator lead H to the floor wire harness 2P

connector (A).

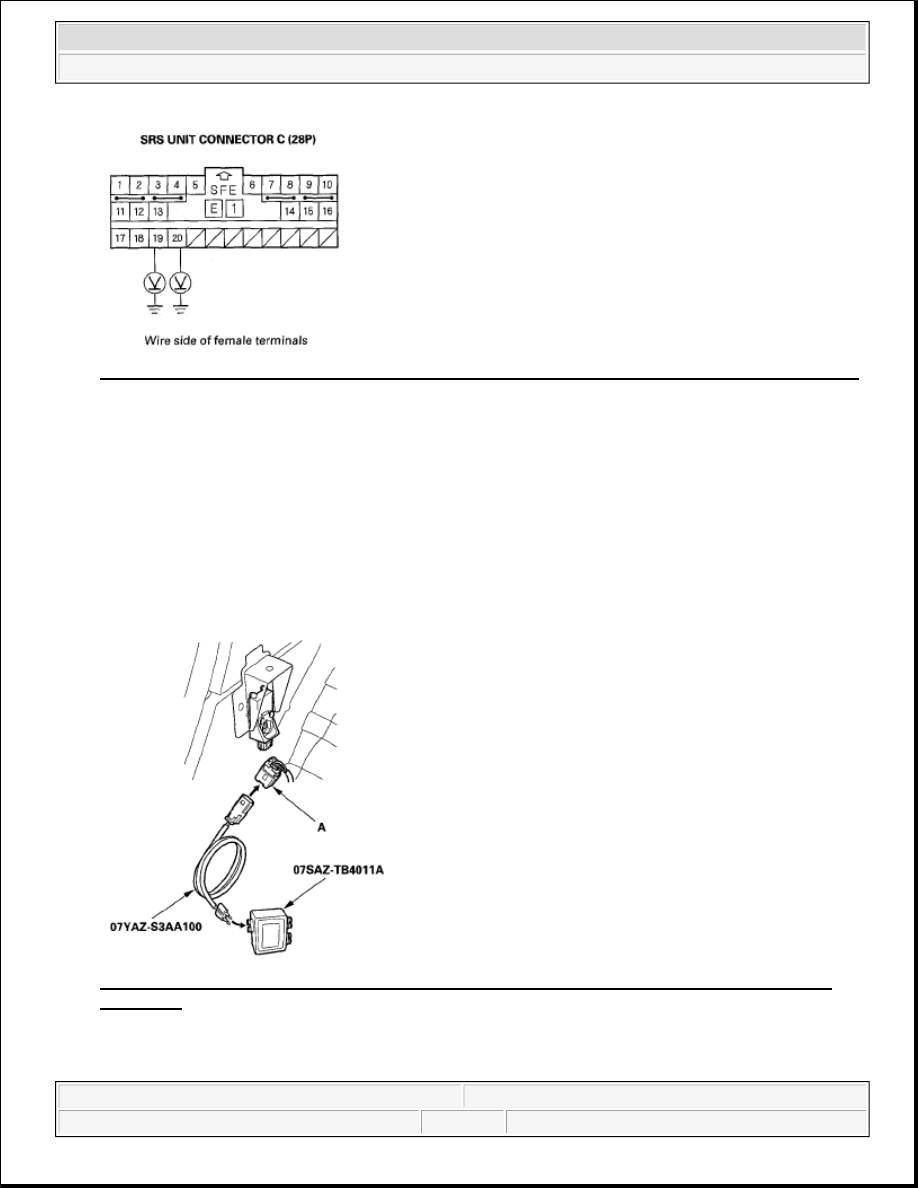

Fig. 168: Connecting SRS Inflator Simulator And Simulator Lead H To Floor Wire Harness 2P
Connector

14. Measure the resistance between the No. 19 and No. 20 terminals of SRS unit connector C (28P). There

should be 1.0 ohms or less.

2007 Honda Element EX

2007-08 RESTRAINTS SRS (Supplemental Restraint System) - Element

Fig. 169: Measuring Resistance Between SRS Unit Connector C (28P) Terminal 19 And 20

Is the resistance as specified?

YES -Faulty right side impact sensor (second) or SRS unit; replace the right side impact sensor (second)
(see SIDE IMPACT SENSOR (SECOND) REPLACEMENT ). If the problem is still present, replace
the SRS unit (see SRS UNIT REPLACEMENT ).

NO -Open in the floor wire harness, dashboard wire harness A, or the roof wire harness; replace the
faulty harness.

DTC 45-2X, 45-3X, 45-BX ("X" CAN BE 0 THRU 9 OR A THRU F): INTERNAL FAILURE OF THE
LEFT SIDE IMPACT SENSOR (SECOND)

1. Clear the DTC memory (see CLEAR THE DTC MEMORY WITH THE HDS ).

2. Turn the ignition switch ON (II), and check that the SRS indicator comes on for about 6 seconds and then

goes off.

Does the SRS indicator stay on, and is DTC 45-2x, 45-3x, or 45-Bx indicated?

YES -Replace the left side impact sensor (second) (see SIDE IMPACT SENSOR (SECOND)
REPLACEMENT ). If the DTC returns, replace the SRS unit (see SRS UNIT REPLACEMENT ).

NO -Intermittent failure, system is OK at this time. Go to Troubleshooting Intermittent Failures (see
TROUBLESHOOTING INTERMITTENT FAILURES ). If another DTC is indicated, troubleshoot
the DTC.

DTC 46-2X, 46-3X, 46-BX ("X" CAN BE 0 THRU 9 OR A THRU F): INTERNAL FAILURE OF THE
RIGHT SIDE IMPACT SENSOR (SECOND)

NOTE:

Before doing this troubleshooting procedure, review SRS Precautions and
Procedures (see PRECAUTIONS AND PROCEDURES ) and General
Troubleshooting Information (see GENERAL TROUBLESHOOTING
INFORMATION ).

NOTE:

Before doing this troubleshooting procedure, review SRS Precautions and

2007 Honda Element EX

2007-08 RESTRAINTS SRS (Supplemental Restraint System) - Element

1. Clear the DTC memory (see CLEAR THE DTC MEMORY WITH THE HDS ).

2. Turn the ignition switch ON (II), and check that the SRS indicator comes on for about 6 seconds and then

goes off.

Does the SRS indicator stay on, and is DTC 46-2x, 46-3x, or 46-Bx indicated?

YES -Replace the right side impact sensor (second) (see SIDE IMPACT SENSOR (SECOND)
REPLACEMENT ). If the DTC returns, replace the SRS unit (see SRS UNIT REPLACEMENT ).

NO -Intermittent failure, system is OK at this time. Go to Troubleshooting Intermittent Failures (see
TROUBLESHOOTING INTERMITTENT FAILURES ). If another DTC is indicated, troubleshoot
the DTC.

DTC 51-XX, 52-XX, 53-XX, 54-XX, 55-XX, 56-XX, ("X" CAN BE 0 THRU 9 OR A THRU F):
INTERNAL FAILURE OF THE SRS UNIT

1. Clear the DTC memory (see CLEAR THE DTC MEMORY WITH THE HDS ).

2. Turn the ignition switch ON (II), and check that the SRS indicator comes on for about 6 seconds and then

goes off.

Does the SRS indicator stay on, and is DTC 51-xx, 52-xx, 53-xx, 54-xx, 55-xx, or 56-xx indicated?

YES -Replace the SRS unit (see SRS UNIT REPLACEMENT ).

NO -Intermittent failure, system is OK at this time. Go to Troubleshooting Intermittent Failures (see
TROUBLESHOOTING INTERMITTENT FAILURES ). If another DTC is indicated, troubleshoot
the DTC.

DTC EX-XX ("X" CAN BE 0 THRU 9 OR A THRU F): CONTROL OPERATION RECORDED; DTC
FX-XX ("X" CAN BE 0 THRU 9 OR A THRU F): AIRBAGS AND/OR TENSIONERS DEPLOYMENT
RECORDED

Procedures (see PRECAUTIONS AND PROCEDURES ) and General
Troubleshooting Information (see GENERAL TROUBLESHOOTING
INFORMATION ).

NOTE:



Before troubleshooting any of these DTCs, check the battery/system
voltage. If the voltage is low, repair the charging system or replace the
battery before troubleshooting the SRS. If the battery/system voltage is
now OK, ask the customer if the battery ever went dead. A dead battery
may trigger one of these DTCs.

2007 Honda Element EX

2007-08 RESTRAINTS SRS (Supplemental Restraint System) - Element

The SRS unit must be replaced after any airbags and/or tensioners have deployed (see SRS UNIT
REPLACEMENT ).

DTC 61-1X ("X" CAN BE 0 THRU 9 OR A THRU F): OPEN IN DRIVER'S SEAT BELT BUCKLE
SWITCH

1. Clear the DTC memory (see CLEAR THE DTC MEMORY WITH THE HDS ).

2. Connect the HDS to the data link connector (DLC).

3. Turn the ignition switch ON (II), then buckle and unbuckle the driver's seat belt several times.

4. Make sure the HDS communicates with the vehicle and the SRS unit. If it does not communicate,

NOTE:



DTC E2-11: Front passenger's airbag does not deploy by SWS operation.



DTC E4-11: Front passenger's side airbag does not deploy by OPDS
operation.



DTC F1-11: Driver's airbag and/or driver's seat belt tensioner and seat belt
buckle tensioner deployed.



DTC F2-11: Front passenger's airbag and/or front passenger's seat belt
tensioner and seat belt buckle tensioner deployed.



DTC F3-11: Driver's side airbag, left side curtain airbag and/or driver's seat
belt tensioner deployed.



DTC F4-11: Front passenger's side airbag, right side curtain airbag and/or
front passenger's seat belt tensioner deployed.



DTC F5-11: Both or only one side curtain airbag, seat belt tensioner, and
seat belt buckle tensioner.



DTC F6-11: Left side curtain airbag or right side curtain airbag deployed.

NOTE:



DTC E2-11 is set if the system triggered airbag deployment but the front
passenger's airbag was prevented from deploying because of the front
passenger's weight sensor.



DTC E4-11 is set if the system triggered a passenger's side airbag
deployment but the airbag was prevented from deploying by the ODS.
Replace the right side impact sensor (first) (see SIDE IMPACT SENSOR
(FIRST) REPLACEMENT ).

NOTE:

2007 Honda Element EX

2007-08 RESTRAINTS SRS (Supplemental Restraint System) - Element
