YES -Faulty engine compartment wire harness or SRS unit; replace the right front impact sensor (see
FRONT IMPACT SENSOR REPLACEMENT ). If the problem is still present, replace the SRS unit
(see SRS UNIT REPLACEMENT ).

NO -Poor connection at C402, open in engine compartment wire harness, or open in dashboard wire
harness B. Inspect C402 (see ENGINE COMPARTMENT WIRE HARNESS (DASHBOARD) ). If it
is OK, replace the faulty harness.

DTC 41-2X, 41-3X, 41-BX ("X" CAN BE 0 THRU 9 OR A THRU F): INTERNAL FAILURE OF THE
LEFT FRONT IMPACT SENSOR

1. Clear the DTC memory (see CLEAR THE DTC MEMORY WITH THE HDS ).

2. Turn the ignition switch ON (II), and check that the SRS indicator comes on for about 6 seconds and then

goes off.

Does the SRS indicator stay on, and is DTC 41-2x, 41-3x, or 41-Bx indicated?

YES -Replace the left front impact sensor (see FRONT IMPACT SENSOR REPLACEMENT ). If the
DTC returns, replace the SRS unit (see SRS UNIT REPLACEMENT ).

NO -Intermittent failure, system is OK at this time. Go to Troubleshooting Intermittent Failures (see
TROUBLESHOOTING INTERMITTENT FAILURES ). If another DTC is indicated, troubleshoot
the DTC.

DTC 42-2X, 42-3X, 42-BX ("X" CAN BE 0 THRU 9 OR A THRU F): INTERNAL FAILURE OF THE
RIGHT FRONT IMPACT SENSOR

1. Clear the DTC memory (see CLEAR THE DTC MEMORY WITH THE HDS ).

2. Turn the ignition switch ON (II), and check that the SRS indicator comes on for about 6 seconds and then

goes off.

Does the SRS indicator stay on, and is DTC 42-2x, 42-3x, or 42-Bx indicated?

YES -Replace the right front impact sensor (see FRONT IMPACT SENSOR REPLACEMENT ). If
the DTC returns, replace the SRS unit (see SRS UNIT REPLACEMENT ).

NOTE:

Before doing this troubleshooting procedure, review SRS Precautions and
Procedures (see PRECAUTIONS AND PROCEDURES ) and General
Troubleshooting Information (see GENERAL TROUBLESHOOTING
INFORMATION ).

NOTE:

Before doing this troubleshooting procedure, review SRS Precautions and
Procedures (see PRECAUTIONS AND PROCEDURES ) and General
Troubleshooting Information (see GENERAL TROUBLESHOOTING
INFORMATION ).



2007 Honda Element EX

2007-08 RESTRAINTS SRS (Supplemental Restraint System) - Element



NO -Intermittent failure, system is OK at this time. Go to Troubleshooting Intermittent Failures (see
TROUBLESHOOTING INTERMITTENT FAILURES ). If another DTC is indicated, troubleshoot
the DTC.

DTC 43-1X ("X" CAN BE 0 THRU 9 OR A THRU F): NO SIGNAL FROM THE LEFT SIDE IMPACT
SENSOR (FIRST)

Special Tools Required

SRS inflator simulator 07SAZ-TB4011A

SRS simulator lead H 07YAZ-S3AA100

1. Clear the DTC memory (see CLEAR THE DTC MEMORY WITH THE HDS ).

2. Turn the ignition switch ON (II), and check that the SRS indicator comes on for about 6 seconds and then

goes off.

Does the SRS indicator stay on, and is DTC 43-1 x indicated?

YES -Go to step 3.

NO -Intermittent failure, system is OK at this time. Go to Troubleshooting Intermittent Failures (see
TROUBLESHOOTING INTERMITTENT FAILURES ). If another DTC is indicated, troubleshoot
the DTC.

3. Turn the ignition switch OFF. Disconnect the negative cable from the battery, and wait for 3 minutes.

4. Check the connection between the floor wire harness 2P connector and the left side impact sensor (first).

Is the connection OK?

YES -Go to step 5.

NO -Repair the poor connection and retest. If DTC 43-1x is still present, go to step 5.

5. Disconnect the floor wire harness 2P connector (A) from the left side impact sensor (first).

NOTE:

Before doing this troubleshooting procedure, review SRS Precautions and
Procedures (see PRECAUTIONS AND PROCEDURES ) and General
Troubleshooting Information (see GENERAL TROUBLESHOOTING
INFORMATION ).



2007 Honda Element EX

2007-08 RESTRAINTS SRS (Supplemental Restraint System) - Element



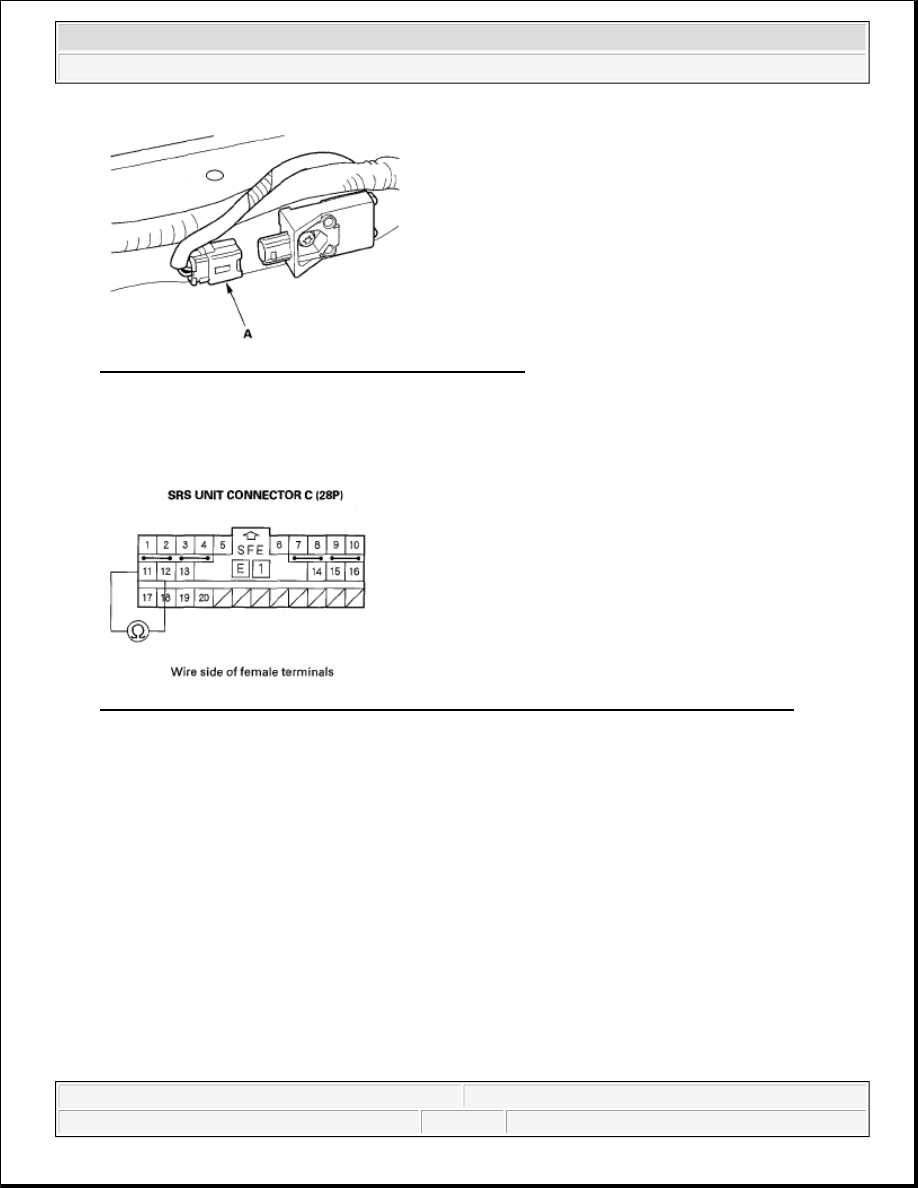

Fig. 146: Identifying Floor Wire Harness 2P Connector

6. Disconnect SRS unit connector C (28P) from the SRS unit (see step 9 on ).

7. Measure the resistance between the No. 11 and No. 12 terminals of SRS unit connector C (28P). There

should be an open circuit or at least 1Mohms.

Fig. 147: Measuring Resistance Between SRS Unit Connector C (28P) Terminal 11 And 12

Is the resistance as specified?

YES -Go to step 8.

NO -Short in the floor wire harness; replace the floor wire harness.

8. Measure the resistance between the No. 11 terminal of SRS unit connector C (28P) and body ground, and

between the No. 12 terminal and body ground. There should be an open circuit or at least 1 Mohms.



2007 Honda Element EX

2007-08 RESTRAINTS SRS (Supplemental Restraint System) - Element



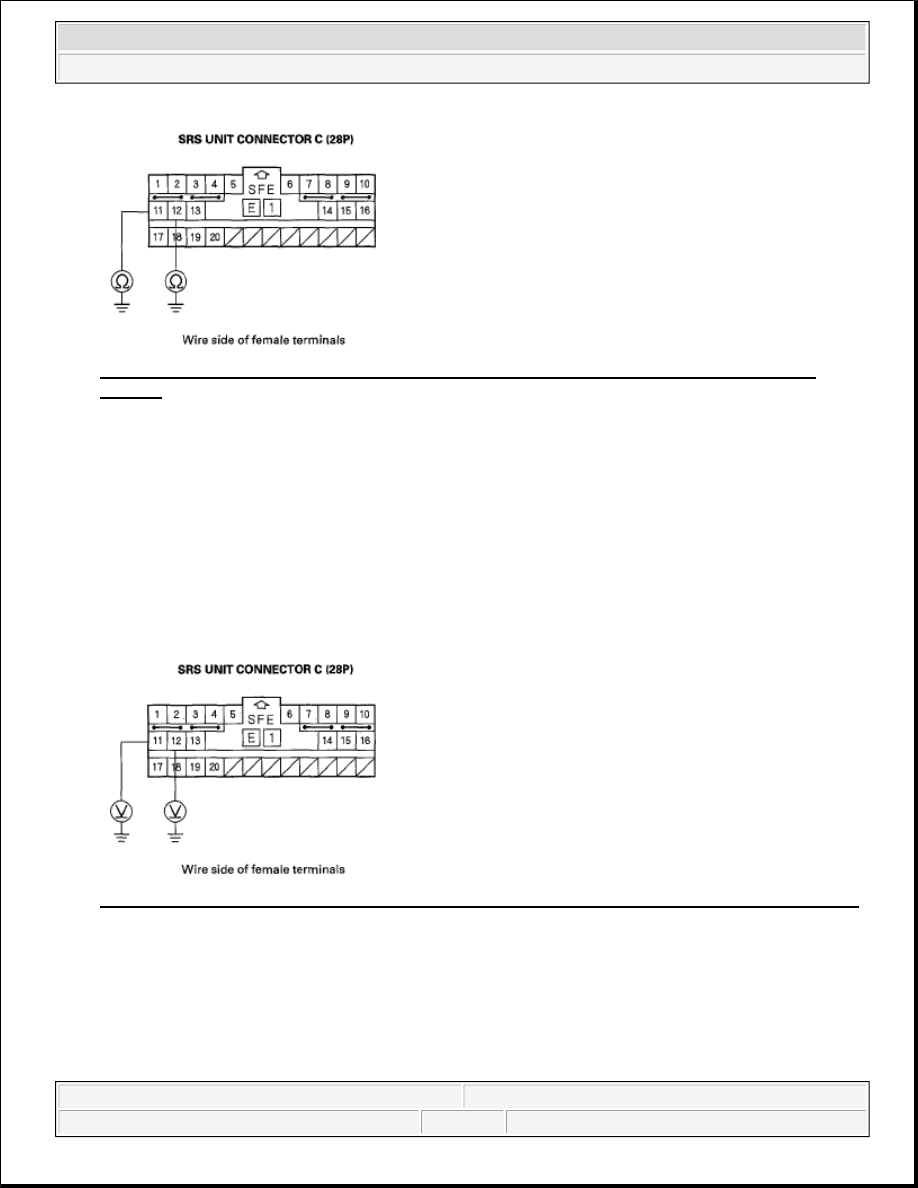

Fig. 148: Measuring Resistance Between SRS Unit Connector C (28P) Terminal 11 And Body
Ground


Is the resistance as specified?

YES -Go to step 9.

NO -Short to ground in the floor wire harness; replace the floor wire harness.

9. Reconnect the negative cable to the battery.

10. Turn the ignition switch ON (II).

11. Measure the voltage between the No. 11 terminal of SRS unit connector C (28P) and body ground, and

between the No. 12 terminal and body ground. There should be 1 V or less.

Fig. 149: Measuring Voltage Between SRS Unit Connector C (28P) Terminal 28 And Body Ground

Is the voltage as specified?

YES -Go to step 12.

NO -Short to power in the floor wire harness; replace the floor wire harness.

12. Turn the ignition switch OFF.



2007 Honda Element EX

2007-08 RESTRAINTS SRS (Supplemental Restraint System) - Element
