Honda Element. Manual - part 117





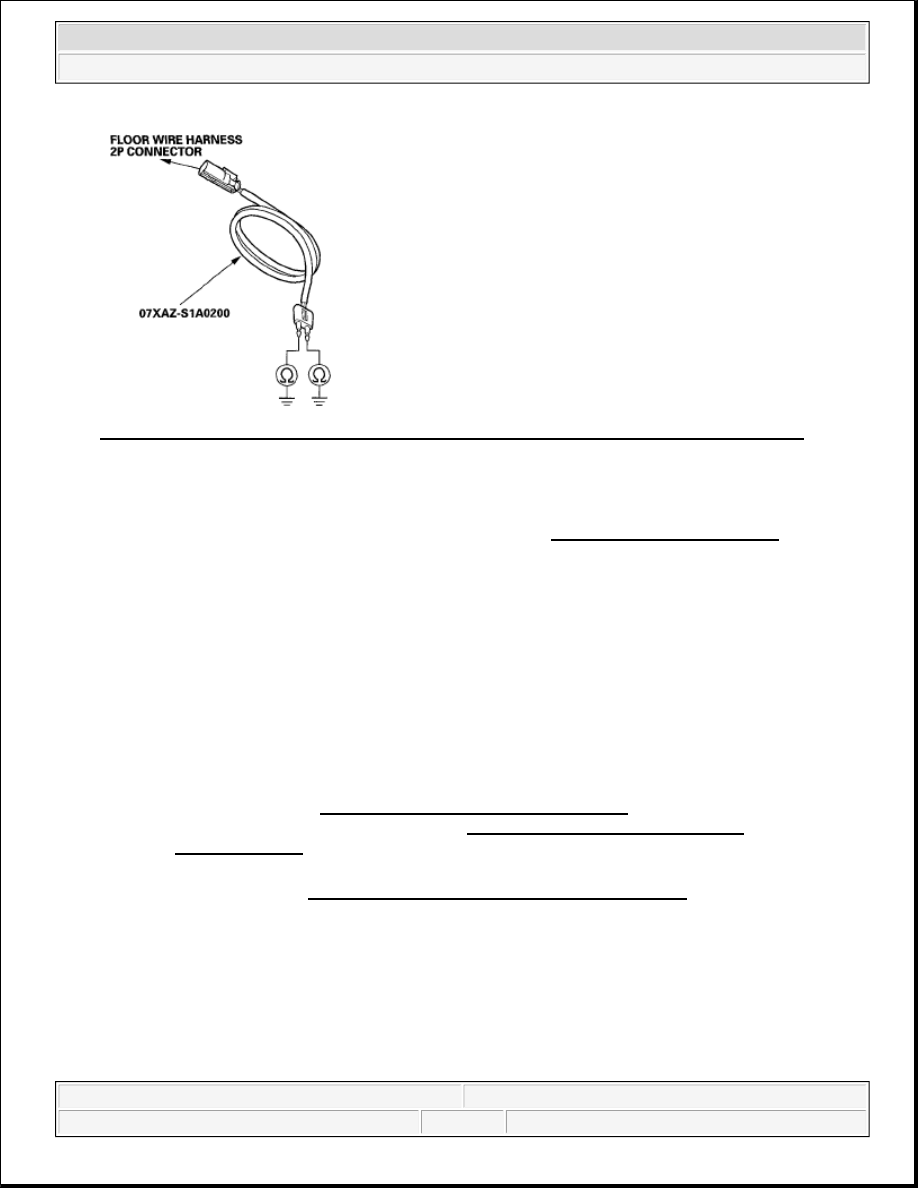

Fig. 117: Measuring Resistance Between SRS Simulator Lead Terminals And Body Ground

Is the resistance as specified?

YES -Faulty SRS unit or poor connection at SRS unit connector C (28P) and the SRS unit. Check the
connection; if the connection is OK, replace the SRS unit (see SRS UNIT REPLACEMENT ).

NO -Short to ground in the floor wire harness; replace the floor wire harness.

DTC 33-1X ("X" CAN BE 0 THRU 9 OR A THRU F): OPEN IN LEFT SIDE CURTAIN AIRBAG
FIRST INFLATOR

Special Tools Required

SRS inflator simulator 07SAZ-TB4011A

SRS simulator lead E 07XAZ-S1A0200

1. Clear the DTC memory (see CLEAR THE DTC MEMORY WITH THE HDS ).

2. Turn the ignition switch ON (II), and check that the SRS indicator comes on for about 6 seconds and then

goes off.

Does the SRS indicator stay on, and is DTC 33-1x indicated?

YES -Go to step 3.

NO -Intermittent failure, system is OK at this time. Go to Troubleshooting Intermittent Failures (see

NOTE:

Before doing this troubleshooting procedure, review SRS Precautions and
Procedures (see PRECAUTIONS AND PROCEDURES ) and General
Troubleshooting Information (see GENERAL TROUBLESHOOTING
INFORMATION ).



2007 Honda Element EX

2007-08 RESTRAINTS SRS (Supplemental Restraint System) - Element



TROUBLESHOOTING INTERMITTENT FAILURES ). If another DTC is indicated, troubleshoot
the DTC.

3. Turn the ignition switch OFF. Disconnect the negative cable from the battery, and wait for 3 minutes.

4. Disconnect the roof wire harness 2P connector (A) from the left side curtain airbag connector (B).

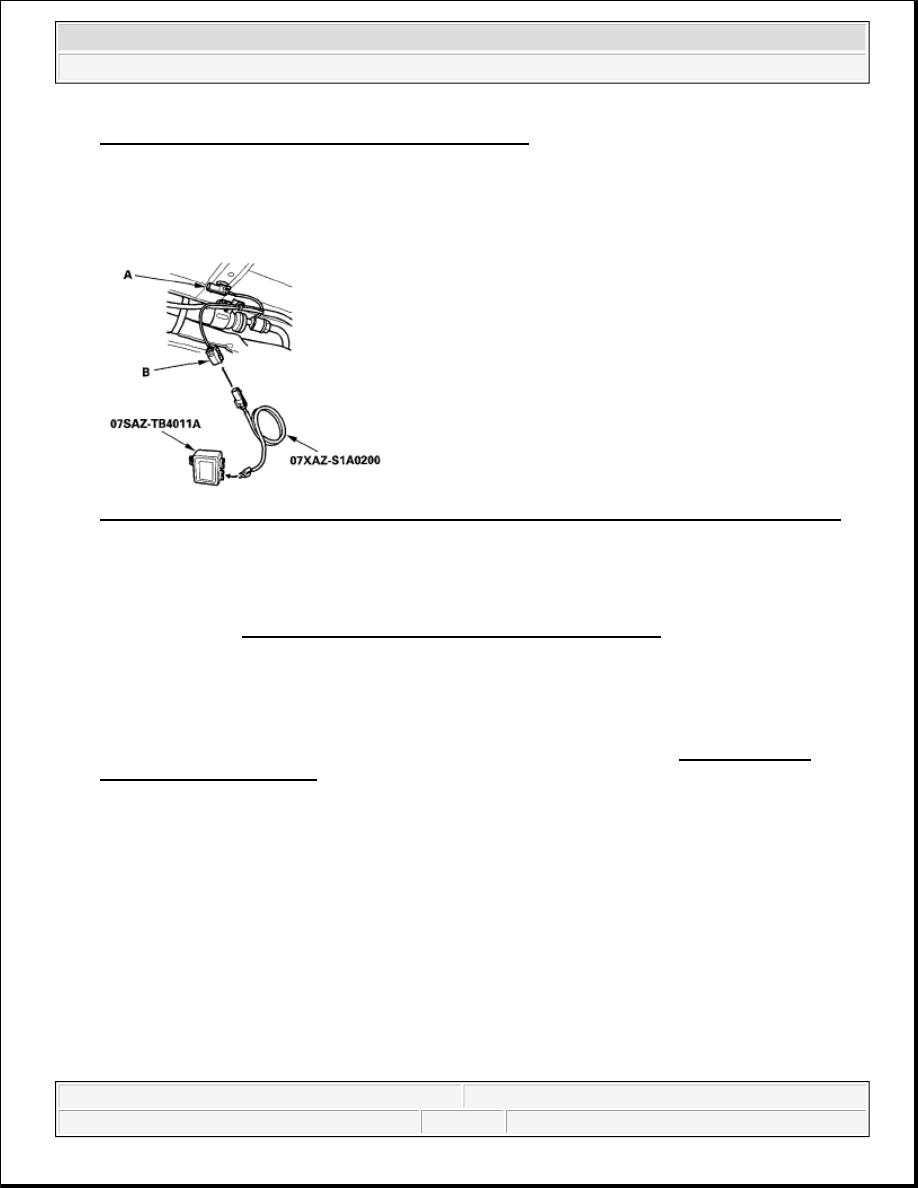

Fig. 118: Identifying Roof Wire Harness 2P Connector And Left Side Curtain Airbag Connector

5. Connect the SRS inflator simulator (2 ohms connector) and simulator lead E to the roof wire harness.

6. Reconnect the negative cable to the battery.

7. Clear the DTC memory.

8. Read the DTC (see GENERAL TROUBLESHOOTING INFORMATION ).

Is DTC 33-1 x indicated?

YES -Go to step 9.

NO -Open in the left side curtain airbag; replace the left side curtain airbag (see SIDE CURTAIN
AIRBAG REPLACEMENT
 ).

9. Turn the ignition switch OFF. Disconnect the negative cable from the battery, and wait for 3 minutes.

10. Disconnect SRS unit connector C (28P) from the SRS unit (see step 9 on ).

11. Disconnect the SRS inflator simulator from the SRS simulator lead. Do not disconnect the simulator lead

from the roof wire harness 2P connector.

12. Measure the resistance between the terminals of the SRS simulator lead. There should be 1.0 ohms or

less.



2007 Honda Element EX

2007-08 RESTRAINTS SRS (Supplemental Restraint System) - Element



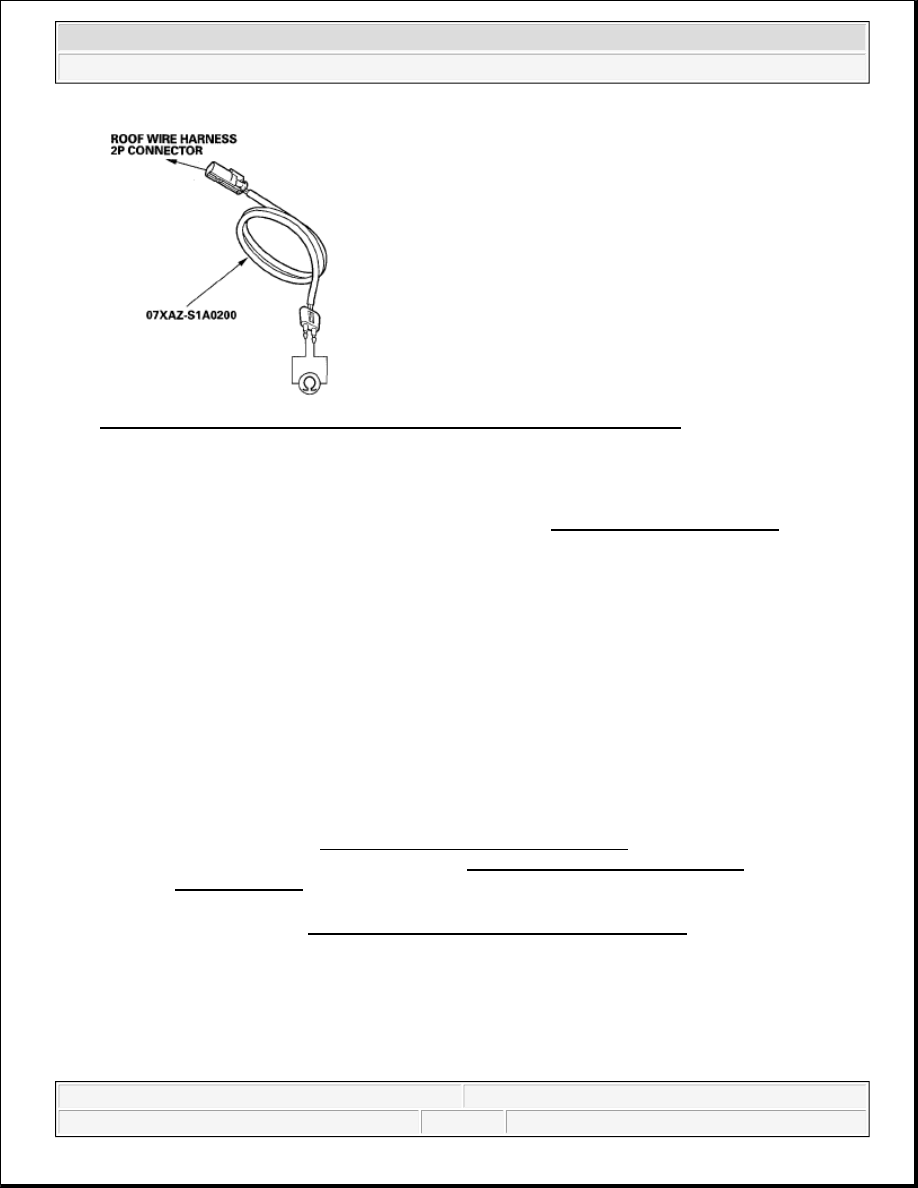

Fig. 119: Measuring Resistance Between Terminals Of SRS Simulator Lead

Is the resistance as specified?

YES -Faulty SRS unit or poor connection at SRS unit connector C (28P) and the SRS unit. Check the
connection; if the connection is OK, replace the SRS unit (see SRS UNIT REPLACEMENT ).

NO -Open in the floor wire harness, dashboard wire harness A, or the roof wire harness. Check the
connections at C552 and C653; if the connections are OK, replace the faulty harness.

DTC 33-3X ("X" CAN BE 0 THRU 9 OR A THRU F): SHORT TO ANOTHER WIRE OR
DECREASED RESISTANCE IN LEFT SIDE CURTAIN AIRBAG FIRST INFLATOR

Special Tools Required

SRS inflator simulator 07SAZ-TB4011A

SRS simulator lead E 07XAZ-S1A0200

SRS short canceller 070AZ-SAA0100

1. Clear the DTC memory (see CLEAR THE DTC MEMORY WITH THE HDS ).

2. Turn the ignition switch ON (II), and check that the SRS indicator comes on for about 6 seconds and then

goes off.

Does the SRS indicator stay on, and is DTC 33-3x indicated?

YES -Go to step 3.

NOTE:

Before doing this troubleshooting procedure, review SRS Precautions and
Procedures (see PRECAUTIONS AND PROCEDURES ) and General
Troubleshooting Information (see GENERAL TROUBLESHOOTING
INFORMATION ).



2007 Honda Element EX

2007-08 RESTRAINTS SRS (Supplemental Restraint System) - Element



NO -Intermittent failure, system is OK at this time. Go to Troubleshooting Intermittent Failures (see
TROUBLESHOOTING INTERMITTENT FAILURES ). If another DTC is indicated, troubleshoot
the DTC.

3. Turn the ignition switch OFF. Disconnect the negative cable from the battery, and wait for 3 minutes.

4. Disconnect the roof wire harness 2P connector (A) from the left side curtain airbag connector (B).

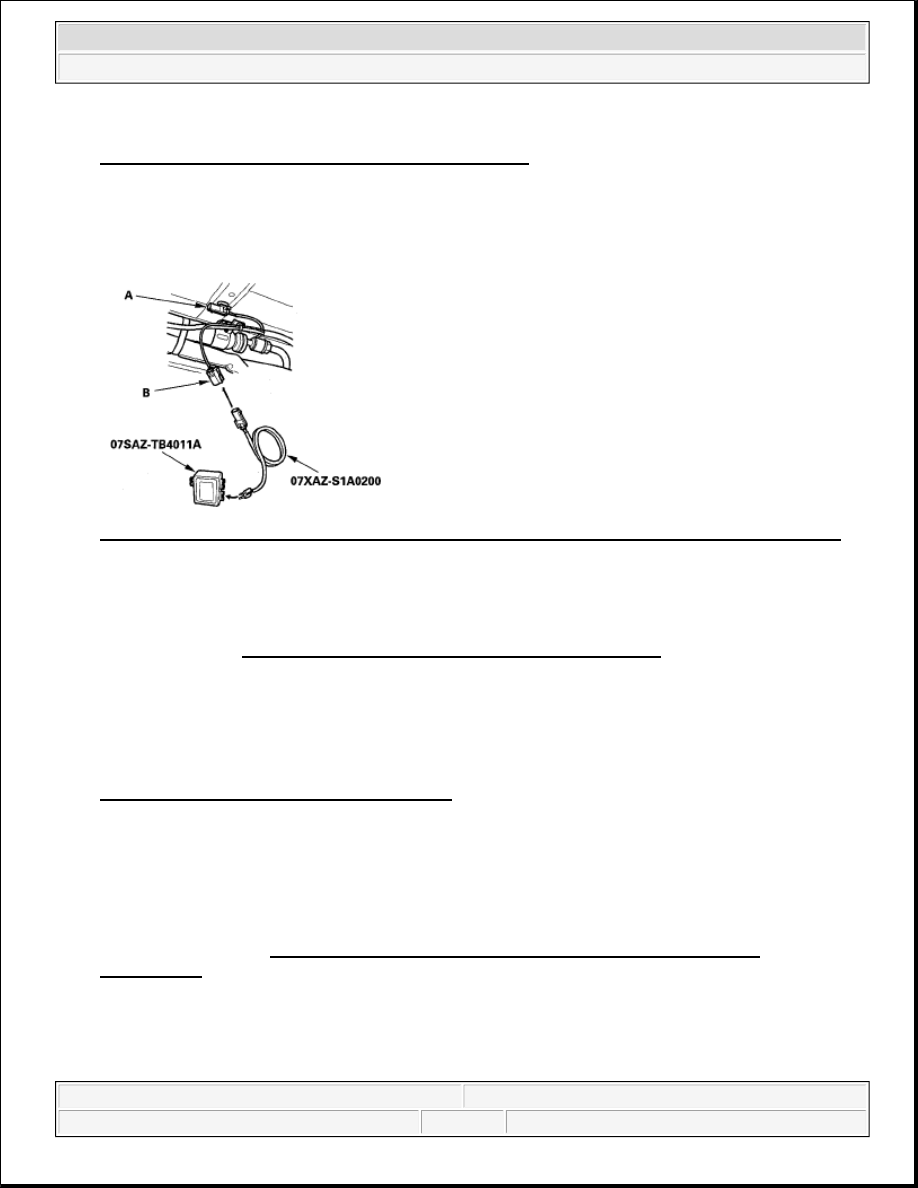

Fig. 120: Identifying Roof Wire Harness 2P Connector And Left Side Curtain Airbag Connector

5. Connect the SRS inflator simulator (2 ohms connector) and simulator lead E to the roof wire harness.

6. Reconnect the negative cable to the battery.

7. Clear the DTC memory.

8. Read the DTC (see GENERAL TROUBLESHOOTING INFORMATION ).

Is DTC 33-3x indicated?

YES -Go to step 9.

NO -Short to another wire in the left side curtain airbag inflator; replace the left side curtain airbag (see
SIDE CURTAIN AIRBAG REPLACEMENT ).

9. Turn the ignition switch OFF. Disconnect the negative cable from the battery, and wait for 3 minutes.

10. Disconnect SRS unit connector C (28P) from the SRS unit (see step 9 on ).

11. Disconnect the SRS inflator simulator from the SRS simulator lead. Do not disconnect the simulator lead

from the roof wire harness 2P connector.

12. Connect the SRS short canceller (070AZ-SAA0100) to the No. 7 and No. 8 terminals of SRS unit

connector C (28P) (see OPENING THE SRS UNIT SHORTING CONNECTORS FOR
DIAGNOSIS
 ).

13. Measure the resistance between the terminals of the SRS simulator lead. There should be an open circuit

or at least 1 M ohms.



2007 Honda Element EX

2007-08 RESTRAINTS SRS (Supplemental Restraint System) - Element
