Honda Element. Manual - part 85





When a malfunction is detected during the first drive cycle, a Temporary DTC is stored in the ECM/PCM
memory. If the malfunction recurs during the next (second) drive cycle, the MIL comes on and the DTC and the
freeze frame data are stored.

Conditions for clearing the MIL

The MIL will be cleared if the malfunction does not recur during three consecutive trips in which the diagnostic
runs.

The MIL, the DTC, the Temporary DTC, and the freeze frame data can be cleared by using the scan tool Clear
command or by disconnecting the battery.

DTC P2552 (40): ADVANCED DIAGNOSTICS

DTC P2552: THROTTLE ACTUATOR CONTROL MODULE RELAY MALFUNCTION



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element

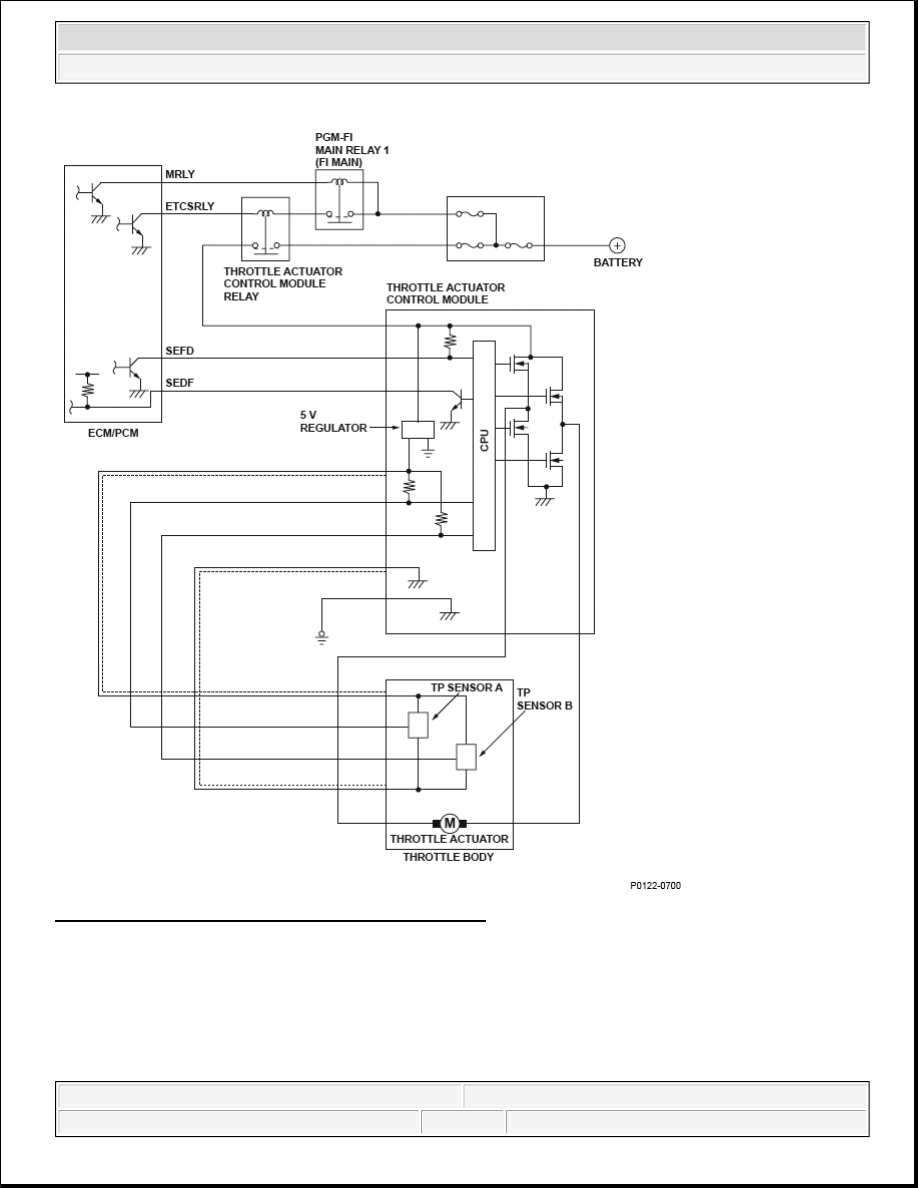

Fig. 243: Throttle Position (TP) Sensor Circuit Diagram

General Description

The electronic throttle control system (ETCS) controls the throttle valve opening. The system is composed of
the throttle actuator, the throttle valve, throttle position (TP) sensors A and B, the throttle actuator control
module, and the throttle actuator control module relay in the throttle body.

The accelerator pedal position (APP) sensor is operated via the throttle cable to determine the accelerator



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



opening value when the driver presses the accelerator pedal. The accelerator pedal opening value is converted to
a signal in the APP sensor, transmitted to the engine control module (ECM)/powertrain control module (PCM),
and then transmitted to the throttle actuator control module.

The throttle actuator control module determines the throttle valve target position according to the signal
received and operates the throttle actuator to move the throttle valve to the target position. The actual throttle
valve position is determined by TP sensors A and B installed in the throttle body.

The ECM/PCM detects the malfunction of the throttle actuator control module relay ON, and a DTC is stored if
the serial signal from the throttle actuator control module is input for more than a set time after the throttle
actuator control module relay is turned OFF and throttle actuator control module operation is stopped.

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

MONITOR DESCRIPTION

Enable Conditions

ENABLE CONDITIONS

Malfunction Threshold

The serial signal is input from the throttle actuator control module for at least 2.0 seconds after the throttle
actuator control module relay is turned OFF.

Diagnosis Details

Conditions for illuminating the MIL

When a malfunction is detected, the MIL comes on and the DTC and the freeze frame data are stored in the
ECM/PCM memory.

Conditions for clearing the MIL

The MIL will be cleared if the malfunction does not recur during three consecutive trips in which the diagnostic
runs.

Execution

Once per driving cycle

Sequence

None

Duration

2.0 seconds or more

DTC Type

One drive cycle, MIL ON

OBD Status

N/A

Condition

Minimum

Maximum

Battery voltage

8.0 V

-

Ignition switch

OFF

No active DTCs

P1684, P2101, P2108, P2118, P2135, P2176, U0107



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



The MIL, the DTC, and the freeze frame data can be cleared by using the scan tool Clear command or by
disconnecting the battery.

DTC P2610 (132): ADVANCED DIAGNOSTICS

DTC P2610: ENGINE CONTROL MODULE (ECM)/POWERTRAIN CONTROL MODULE (PCM)
IGNITION OFF INTERNAL TIMER PERFORMANCE PROBLEM

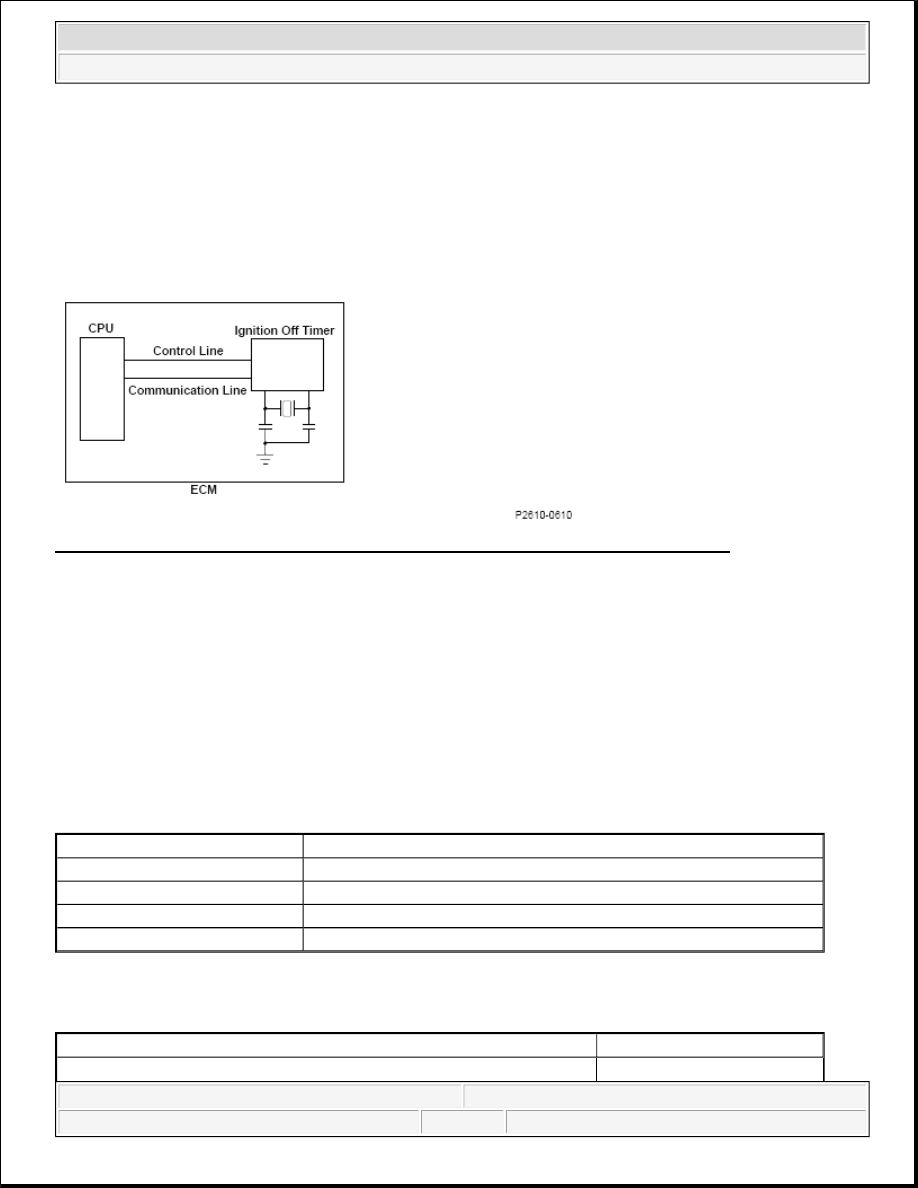

Fig. 244: Engine Control Module/Powertrain Control Module Communication Diagram

General Description

The engine control module (ECM)/powertrain control module (PCM) has a built-in ignition off timer that
measures the duration of time from ignition off to the next ignition on. The measured duration is used for
evaporative emission (EVAP) leak detection and temperature assumption of the catalytic converter.

The CPU in the ECM/PCM accesses the ignition off timer when reading the measured duration. When the
access process fails, a malfunction is detected and a DTC is stored. When an abnormality is found in the read
data, a malfunction is detected and a DTC is stored.

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

MONITOR DESCRIPTION

Enable Conditions

ENABLE CONDITIONS

Execution

Continuous

Sequence

None

Duration

10 seconds or more

DTC Type

One drive cycle, MIL ON

OBD Status

N/A

Condition



Ignition switch



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element
