Malfunction Threshold

The throttle valve is at a position greater than +5 ° from the fully closed position, or at a position lower than +3
° from the fully closed position, for at least 2.5 seconds.

Driving Pattern

1. Start the engine. Hold the engine speed at 3,000 rpm without load (in Park or neutral) until the radiator

fan comes on.

2. Turn off the ignition switch.

3. Turn on the ignition switch.

Diagnosis Details

Conditions for illuminating the MIL

When a malfunction is detected, the MIL comes on and the DTC and the freeze frame data are stored in the
ECM/PCM memory.

Conditions for clearing the MIL

The MIL will be cleared if the malfunction does not recur during three consecutive trips in which the diagnostic
runs.

The MIL, the DTC, and the freeze frame data can be cleared by using the scan tool Clear command or by
disconnecting the battery.

DTC P1684 (40): ADVANCED DIAGNOSTICS

DTC P1684: THROTTLE VALVE RETURN SPRING PERFORMANCE PROBLEM

No active DTCs

P0117, P0118, P2101, P2108, P2118, P2135, P2176, U0107



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



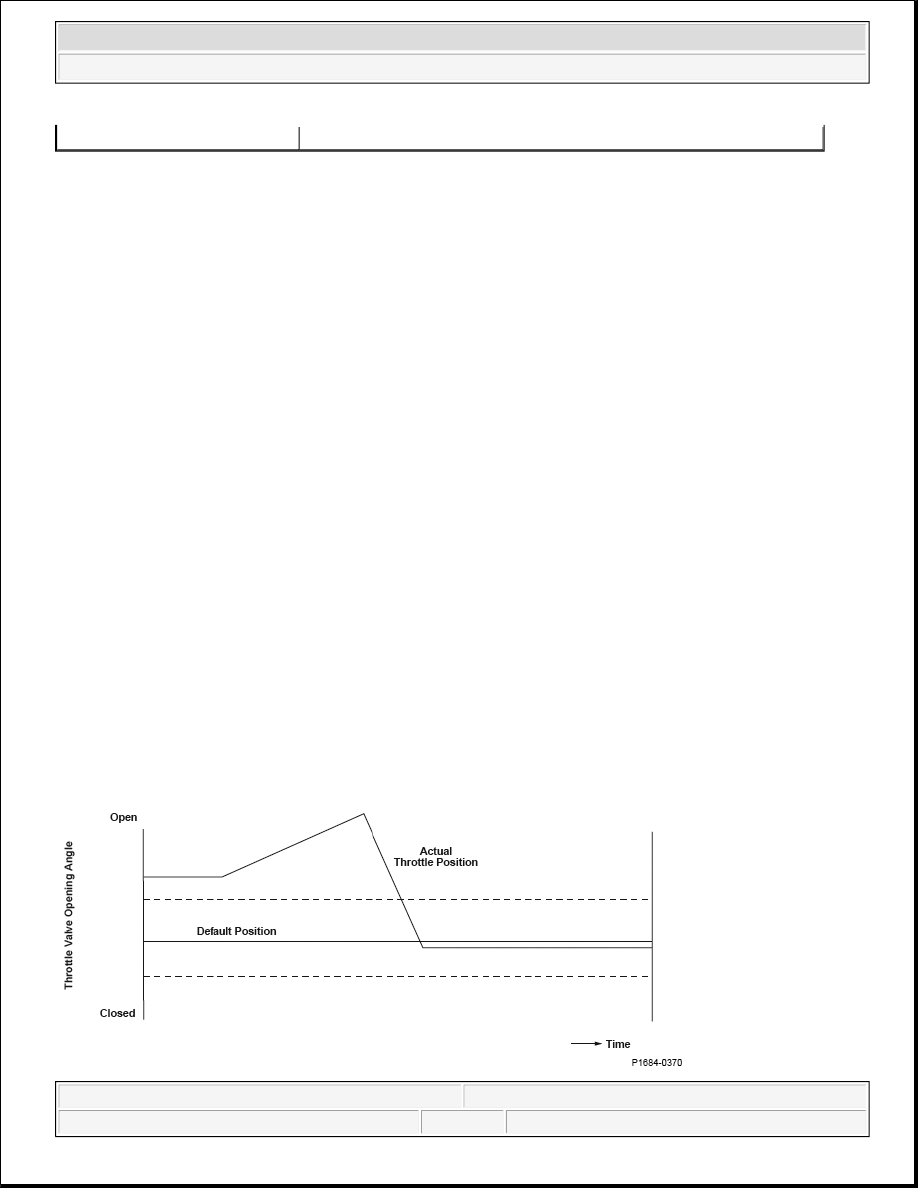

Fig. 199: Throttle Valve Default Position - Graph

General Description

The electronic throttle control system controls the throttle valve opening. The system is composed of the throttle
actuator, the throttle valve, throttle position (TP) sensors A and B, the throttle actuator control module, the
throttle actuator control module relay, the accelerator pedal position (APP) sensor, and the engine control
module (ECM)/powertrain control module (PCM). The throttle valve return spring is attached to the throttle
valve gear to return the throttle valve to the default position.

If the throttle valve does not return to the default position when the throttle actuator control module moves the
throttle actuator to the default position from the middle position, a malfunction is detected and the malfunction
data is transmitted to the ECM/PCM. When the ECM/PCM receives the malfunction data from the throttle
actuator control module, the ECM/PCM detects a malfunction in the throttle valve return spring and a DTC is
stored.

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

MONITOR DESCRIPTION

Enable Conditions

ENABLE CONDITIONS

Malfunction Threshold

The throttle valve opening angle is 17 ° or more, or 11 ° or less, for at least 2.5 seconds.

Driving Pattern

1. Start the engine. Hold the engine speed at 3,000 rpm without load (in Park or neutral) until the radiator

fan comes on.

2. Turn off the ignition switch.

3. Turn on the ignition switch.

Execution

Once per driving cycle

Sequence

None

Duration

2.5 seconds or more

DTC Type

One drive cycle, MIL ON

OBD Status

N/A

Condition

Minimum

Maximum

Battery voltage

6.0 V

-

Engine coolant temperature

158 °F (70 °C)

-

Ignition switch

OFF

No active DTCs

P0117, P0118, P2101, P2108, P2118, P2135, P2176, U0107



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



Diagnosis Details

Conditions for illuminating the MIL

When a malfunction is detected, the MIL comes on and the DTC and the freeze frame data are stored in the
ECM/PCM memory.

Conditions for clearing the MIL

The MIL will be cleared if the malfunction does not recur during three consecutive trips in which the diagnostic
runs.

The MIL, the DTC, and the freeze frame data can be cleared by using the scan tool Clear command or by
disconnecting the battery.

DTC P16BB (116): ADVANCED DIAGNOSTICS

DTC P16BB: ALTERNATOR B TERMINAL CIRCUIT LOW VOLTAGE



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element

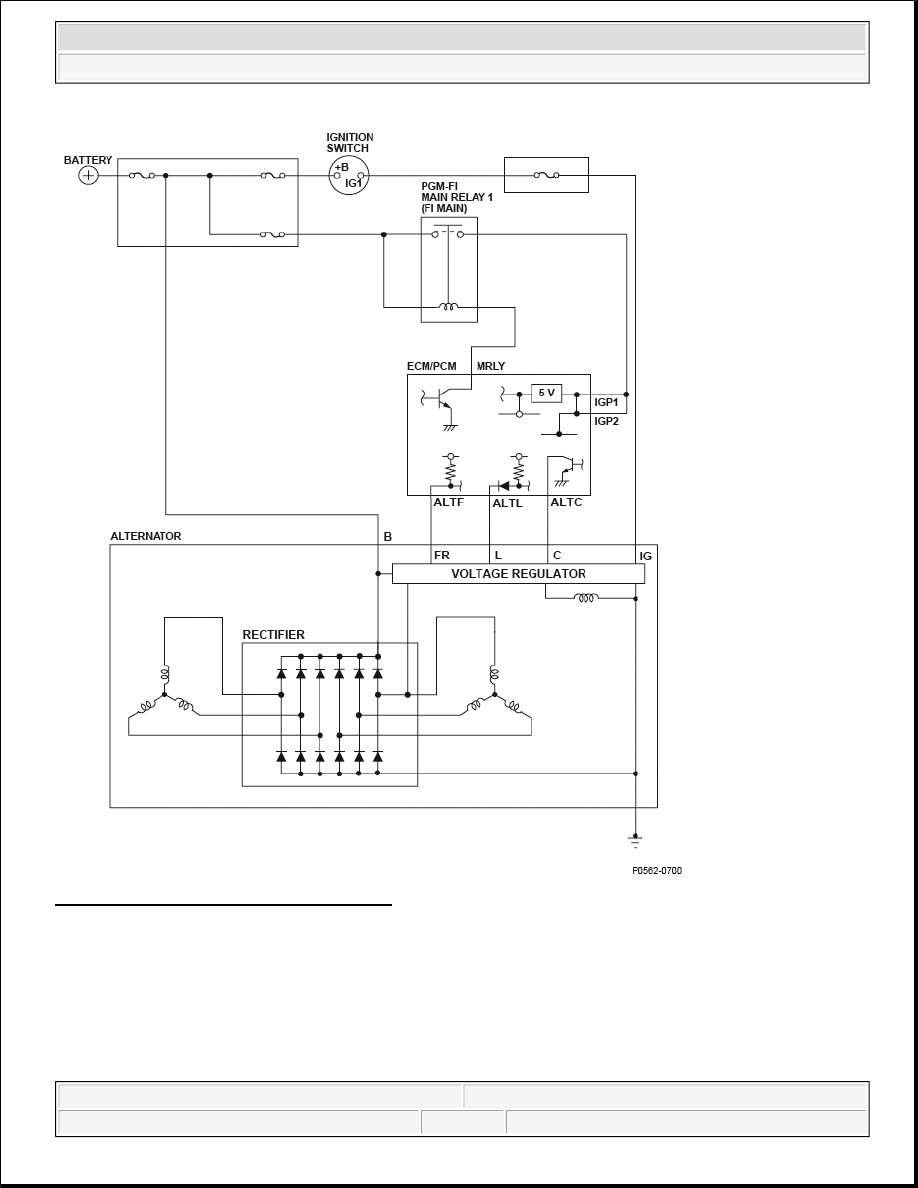

Fig. 200: Charging System Circuit Diagram

General Description

The alternator is driven by the engine, and it generates electricity to supply the necessary power to the electrical
system and to charge the battery. The alternator voltage target values of 14.5 V and 12.5 V are achieved by
switching the alternator control mode (controlled by the engine control module (ECM)/powertrain control
module (PCM)). The alternator output signal is sent to the ECM/PCM, and it varies according to the battery's
state of charge, the electrical load, and the engine speed.
