Honda Element. Manual - part 54





Monitor Execution, Sequence, Duration, DTC Type, OBD Status

MONITOR DESCRIPTION

Enable Conditions

ENABLE CONDITIONS

Malfunction Threshold

The measured current for the PCM's command value is as specified here for at least 1 second.

MALFUNCTION THRESHOLD VALUE

Diagnosis Details

Conditions for illuminating the MIL

When a malfunction is detected, the MIL comes on and the DTC and the freeze frame data are stored in the
PCM memory.

Conditions for clearing the MIL

The MIL will be cleared if the malfunction does not recur during three consecutive trips in which the diagnostic
runs.

The MIL, the DTC, and the freeze frame data can be cleared by using the scan tool Clear command or by
disconnecting the battery.

DTC P0963 (16): ADVANCED DIAGNOSTICS

DTC P0963: PROBLEM IN A/T CLUTCH PRESSURE CONTROL SOLENOID VALVE A

Execution

Continuous

Sequence

None

Duration

1 second or more

DTC Type

One drive cycle, MIL ON, D indicator blinks

OBD Status

PASSED/FAILED/NOT COMPLETED (STILL TESTING)

Condition

Minimum

Maximum

Battery voltage

11.0 V

-

State of the engine

Running

No active DTCs

P0979, P0980, P0982, P0983, P0963

Duty (%)

Current (A)

Failure mode

56.5 - 89

0.19 or less

Low Input

More than 89

0.27 or less

Low Input



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



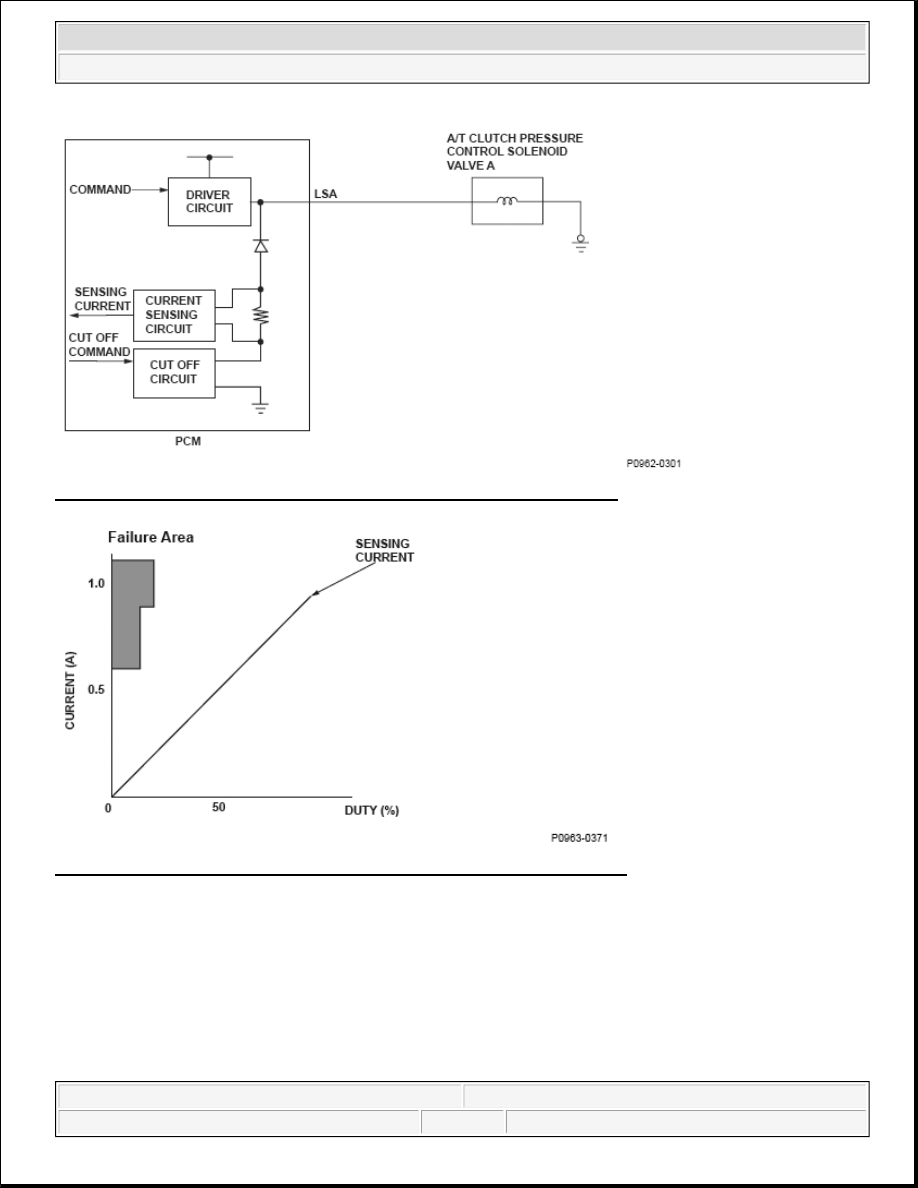

Fig. 151: A/T Clutch Pressure Control Solenoid Valve A Circuit Diagram

Fig. 152: A/T Clutch Pressure Control Solenoid Valve Failure Area Graph

General Description

A/T clutch pressure control solenoid valve A is used for clutch pressure control and lock-up control. A spool in
A/T clutch pressure control solenoid valve A pushes a valve according to the duty cycle that is controlled by the
powertrain control module (PCM) to pressurize fluid so the hydraulic pressure is proportional to the current.
The PCM measures the current flowing through A/T clutch pressure control solenoid valve A and uses feedback
control to compensate the difference between the actual current and the commanded one. If the measured
current for the PCM output duty cycle is not within a specified range (open or short), a malfunction is detected
and a DTC is stored.



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



Monitor Execution, Sequence, Duration, DTC Type, OBD Status

MONITOR DESCRIPTION

Enable Conditions

ENABLE CONDITIONS

Malfunction Threshold

The measured current for the PCM's command value is as specified here for at least 1 second.

MALFUNCTION THRESHOLD VALUE

Diagnosis Details

Conditions for illuminating the MIL

When a malfunction is detected, the MIL comes on and the DTC and the freeze frame data are stored in the
PCM memory.

Conditions for clearing the MIL

The MIL will be cleared if the malfunction does not recur during three consecutive trips in which the diagnostic
runs.

The MIL, the DTC, and the freeze frame data can be cleared by using the scan tool Clear command or by
disconnecting the battery.

DTC P0966 (23): ADVANCED DIAGNOSTICS

DTC P0966: PROBLEM IN A/T CLUTCH PRESSURE CONTROL SOLENOID VALVE B CIRCUIT

Execution

Continuous

Sequence

None

Duration

1 second or more

DTC Type

One drive cycle, MIL ON, D indicator blinks

OBD Status

PASSED/FAILED/NOT COMPLETED (STILL TESTING)

Condition

Minimum

Maximum

Battery voltage

11.0 V

-

State of the engine

Running

No active DTCs

P0979, P0980, P0982, P0983, P0962

Duty (%)

Current (A)

Failure mode

Less than 13.7

0.6 or more

High Input

13.7 - 20

0.9 or more

High Input



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



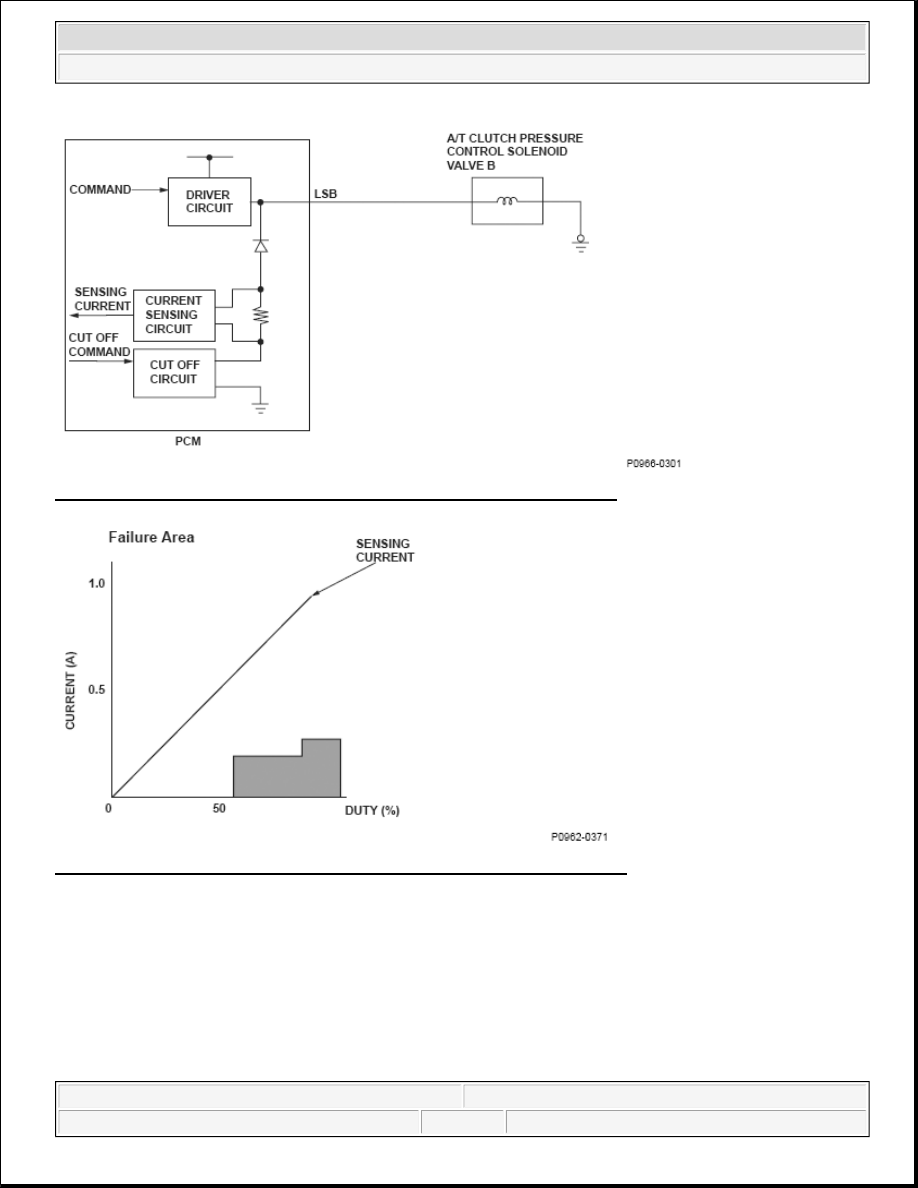

Fig. 153: A/T Clutch Pressure Control Solenoid Valve B Circuit Diagram

Fig. 154: A/T Clutch Pressure Control Solenoid Valve Failure Area Graph

General Description

A/T clutch pressure control solenoid valve B is used for clutch pressure control. A spool in A/T clutch pressure
control solenoid valve B pushes a valve according to the duty cycle that is controlled by the powertrain control
module (PCM) to pressurize fluid so the hydraulic pressure is proportional to the current. The PCM measures
the current flowing through A/T clutch pressure control solenoid valve B and uses feedback control to
compensate the difference between the actual current and the commanded one. If the measured current for the
PCM output duty cycle is not within a specified range (open or short), a malfunction is detected and a DTC is
stored.



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element
