Honda Element. Manual - part 50

Enable Conditions

Refer to the specific DTC information. (P1730, P1731, P01732, P1733, P1734)

Malfunction Threshold

One of these DTCs is stored.

P1730, P1731, P01732, P1733, P1734

Diagnosis Details

Conditions for illuminating the MIL

When a malfunction is detected during the first drive cycle, a Temporary DTC is stored in the PCM memory. If
the malfunction recurs during the next (second) drive cycle, the MIL comes on and the DTC and the freeze
frame data are stored.

Conditions for clearing the MIL

The MIL will be cleared if the malfunction does not recur during three consecutive trips in which the diagnostic
runs.

The MIL, the DTC, the Temporary DTC, and the freeze frame data can be cleared by using the scan tool Clear
command or by disconnecting the battery.

DTC P0796 (78): ADVANCED DIAGNOSTICS

DTC P0796: A/T CLUTCH PRESSURE CONTROL SOLENOID VALVE C STUCK OFF

DTC Type

Two drive cycles, MIL ON, D indicator blinks

OBD Status

Refer to the specific DTC information. (P1730, P1731, P01732, P1733, P1734)



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element

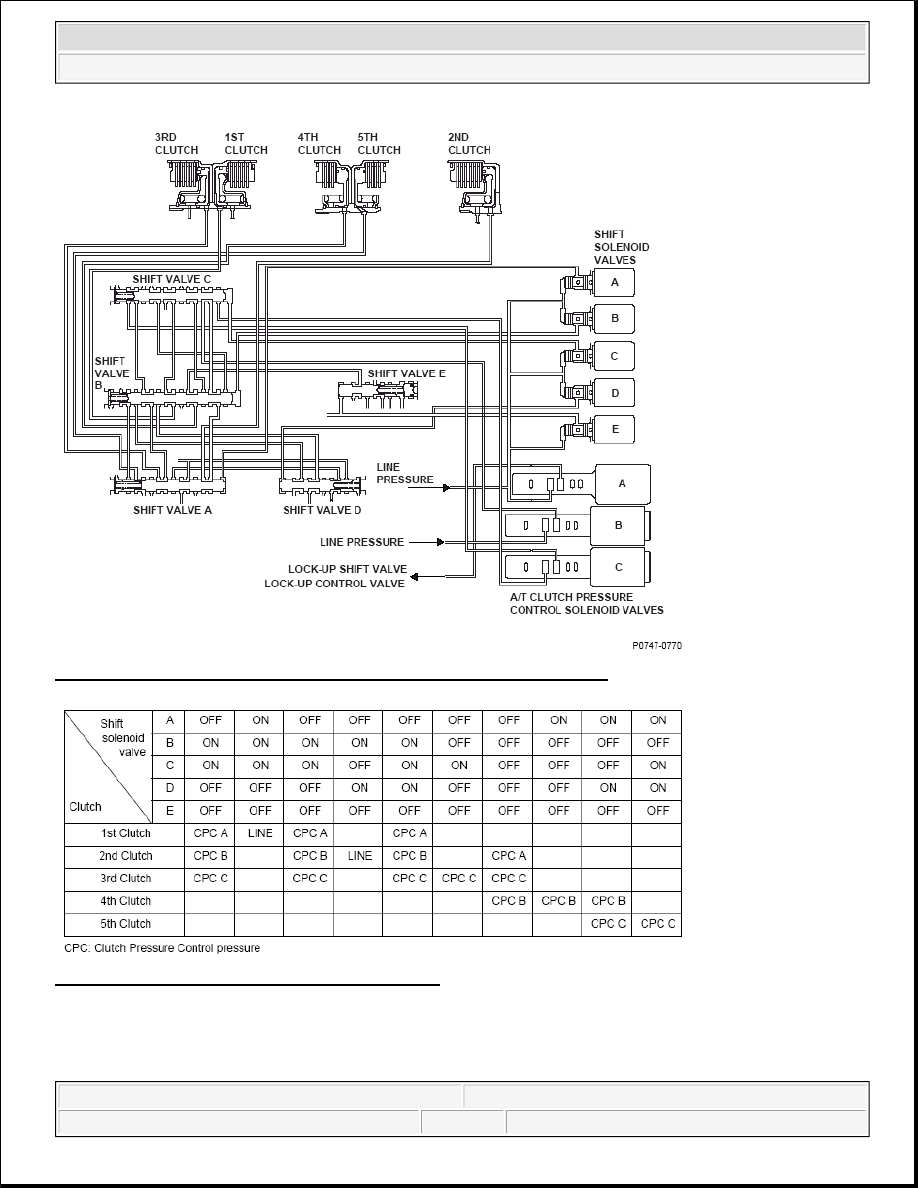

Fig. 137: A/T Clutch Pressure Control Solenoid Valves Circuit Diagram

Fig. 138: Shift Solenoid Valve Output (D Position)

General Description

Hydraulic pressure to each clutch is controlled by the shift valve. The shift valve activates according to the
ON/OFF status of shift solenoid valves A, B, C, D, and E. Hydraulic pressure supply in D position is shown



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



above. The line pressure or the clutch pressure control pressure (CPC A, CPC B, or CPC C) is supplied to each
clutch by the shift valve activated. The powertrain control module (PCM) computes the actual ratio of
mainshaft and countershaft revolutions. If a difference between the actual ratio and the commanded gear occurs
when shifting to each gear position, a malfunction in A/T clutch pressure control solenoid valve C or the
hydraulic system is detected and a DTC is stored.

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

MONITOR DESCRIPTION

Enable Conditions

ENABLE CONDITIONS

Malfunction Threshold

Execution

Continuous

Sequence

None

Duration

3 seconds (symptom 1-A, 1-B, 2-B)
6 seconds (symptom 2-A)

DTC Type

Two drive cycles, MIL ON, D indicator blinks

OBD Status

PASSED/FAILED/NOT COMPLETED (STILL TESTING)

Condition

Minimum

Maximum

Vehicle
speed

2 mph (4 km/h)

(1)

,

(3)

,

(4)

-

Battery
voltage

11.0 V

-

Throttle
position

6.0 % or more, or fully closed

(2)

Shift lever
position

D

Shift status

3rd

(1)

,

(4)

2nd

(2)

5th

(3)

No active
DTCs

P0122, P0123, P0705, P0706, P0716, P0717, P0718, P0721, P0722, P0723, P0747, P0752,
P0756, P0757, P0761, P0771, P0776, P0777, P0780, P0797, P0962, P0963, P0966, P0967,
P0970, P0971, P0973, P0974, P0976, P0977, P0979, P0980, P0982, P0983, P0985, P0986,
P1730, P1731, P1732, P1733, P1734

(1)

Symptom 1-A

(2)

Symptom 1-B

(3)

Symptom 2-A

(4)

Symptom 2-B



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



One of these symptom combinations occurs:



Symptom 1 occurs during the 1st drive cycle, and symptom 2 occurs during the 2nd drive cycle.



Symptom 2 occurs during the 1st drive cycle, and symptom 1 occurs during the 2nd drive cycle.



Symptom 2 occurs during both the 1st drive cycle and the 2nd drive cycle.

MALFUNCTION THRESHOLD - SYMPTOM 1

MALFUNCTION THRESHOLD - SYMPTOM 2

Driving Pattern

Start the engine, and accelerate the vehicle until the transmission shifts into 5th gear in D position.



Drive the vehicle in this manner only if the traffic regulations and ambient conditions allow.

Diagnosis Details

Conditions for illuminating the MIL

When a malfunction is detected during the first drive cycle, a Temporary DTC is stored in the PCM memory. If
the malfunction recurs during the next (second) drive cycle, the MIL comes on and the DTC and the freeze
frame data are stored.

Conditions for clearing the MIL

The MIL will be cleared if the malfunction does not recur during three consecutive trips in which the diagnostic
runs.

The MIL, the DTC, the Temporary DTC, and the freeze frame data can be cleared by using the scan tool Clear
command or by disconnecting the battery.

DTC P0797 (78): ADVANCED DIAGNOSTICS

DTC P0797: A/T CLUTCH PRESSURE CONTROL SOLENOID VALVE C STUCK ON

Symptom

Gear position commanded by the PCM

Actual gear position

1-A

Driving in 3rd gear

Neutral

1-B

Driving in 2nd gear

Driving in 2nd gear

Symptom

Gear position commanded by the PCM

Actual gear position

2-A

Driving in 5th gear

Neutral

2-B

Driving in 3rd gear

Neutral
