The MIL, the DTC, the Temporary DTC, and the freeze frame data can be cleared by using the scan tool Clear
command or by disconnecting the battery.

DTC P0757 (71): ADVANCED DIAGNOSTICS

DTC P0757: SHIFT SOLENOID VALVE B STUCK ON

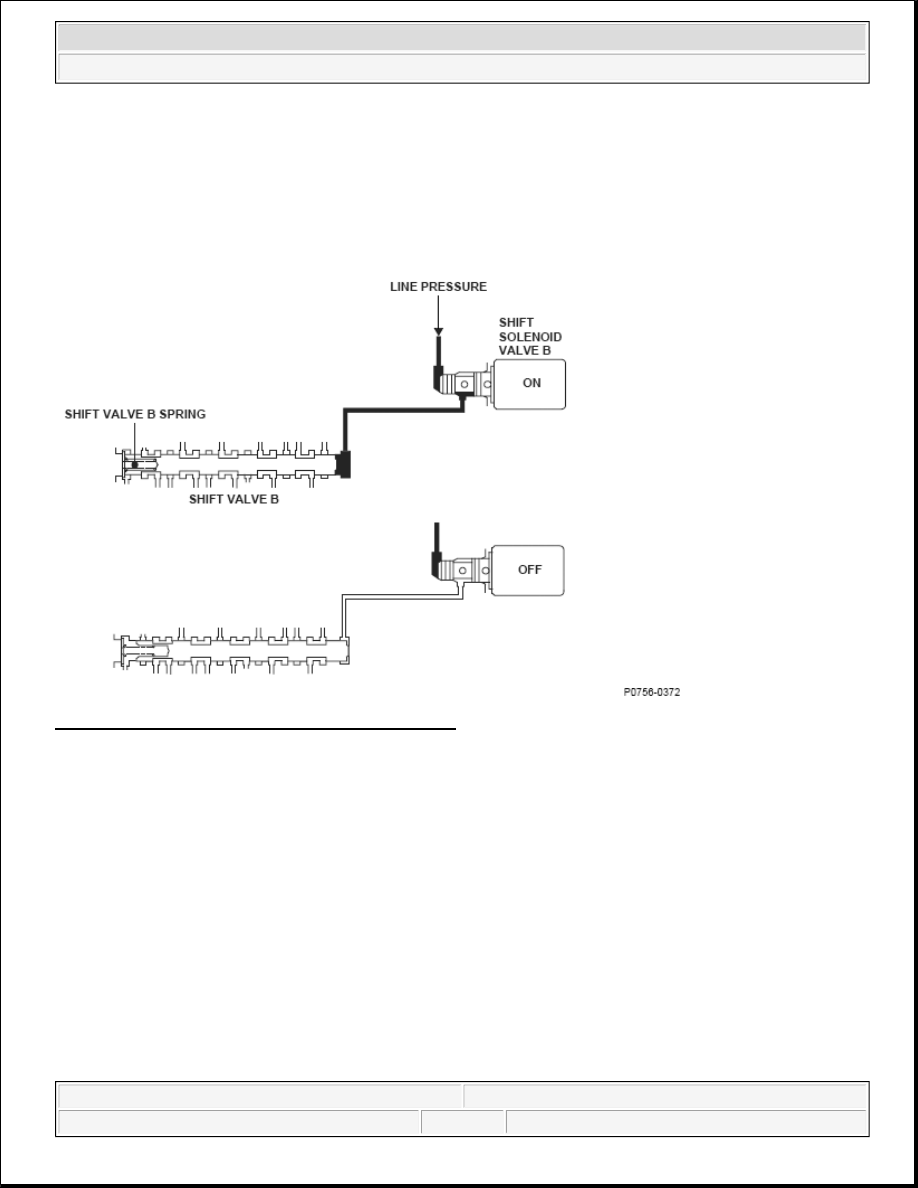

Fig. 127: Shift Solenoid Valve B Operation Diagram

Shift solenoid valve driving signal combination table



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



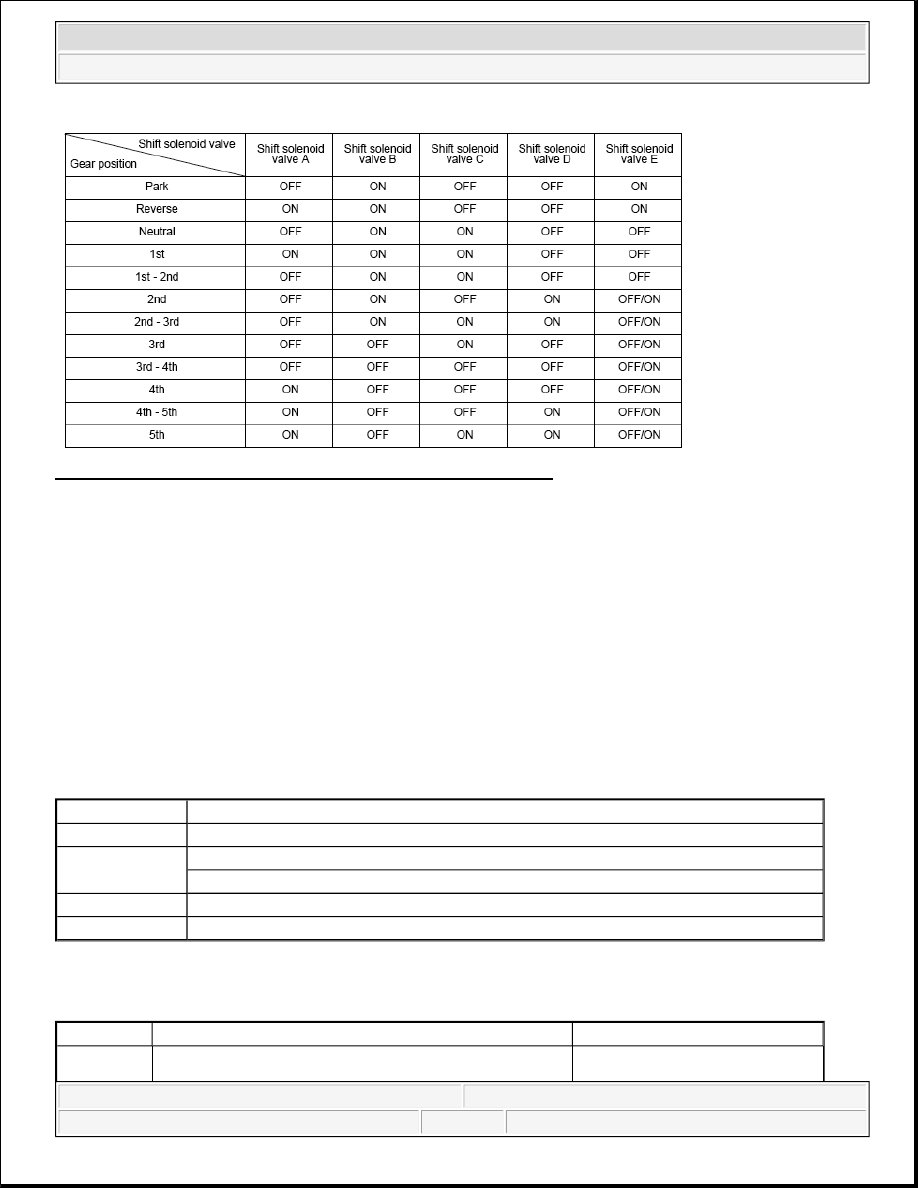

Fig. 128: Shift Solenoid Valve Driving Signal Combination Table

General Description

Shift solenoid valve B is installed in the transmission housing. It is controlled by the ON/OFF signal from the
powertrain control module (PCM) to apply line pressure to shift valve B. The signal from the PCM is output to
apply clutch pressure control pressure to the proper gear change clutch according to the gear change schedule.
When the signal to shift solenoid valve B from the PCM is OFF, and line pressure is discharged, shift valve B is
inactive. When the signal to shift solenoid valve B from the PCM is ON, and line pressure is applied to shift
valve B, it operates against the shift valve B spring. The PCM monitors the mainshaft speed and the
countershaft speed at the gear change determined by the shift schedule. When an improper gear ratio is output
compared to the predetermined gear change mode, a shift solenoid valve B ON failure is detected and a DTC is
stored.

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

MONITOR DESCRIPTION

Enable Conditions

ENABLE CONDITIONS

Execution

Continuous

Sequence

None

Duration

6 seconds (symptom 1-A)
2.5 seconds (symptom 1-B, 2-A, 2-B)

DTC Type

Two drive cycles, MIL ON, D indicator blinks

OBD Status

PASSED/FAILED/NOT COMPLETED (STILL TESTING)

Condition

Minimum

Maximum

Vehicle

2 mph (4 km/h)

(1)

(3)

-



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



Malfunction Threshold

One of these symptom combinations occurs:

Symptom 1 occurs during the 1st drive cycle, and symptom 2 occurs during the 2nd drive cycle.

Symptom 2 occurs during the 1st drive cycle, and symptom 1 occurs during the 2nd drive cycle.

MALFUNCTION THRESHOLD - SYMPTOM 1

MALFUNCTION THRESHOLD - SYMPTOM 2

Driving Pattern

Start the engine, and accelerate the vehicle until the transmission shifts into 5th gear in D position.

speed
Battery
voltage

11.0 V

-

Throttle
position

6.0 %

(4)

-

6.0 % or more, or fully closed

(2)

Shift lever
position

D

Shift status

5th

(1)

3rd

(2)

4th

(3)

2nd --> 3rd

(4)

No active
DTCs

P0122, P0123, P0705, P0706, P0716, P0717, P0718, P0721, P0722, P0723, P0747, P0752,
P0756, P0761, P0771, P0776, P0777, P0780, P0796, P0797, P0962, P0963, P0966, P0967,
P0970, P0971, P0973, P0974, P0976, P0977, P0979, P0980, P0982, P0983, P0985, P0986,
P1730, P1731, P1732, P1733, P1734

(1)

Symptom 1-A

(2)

Symptom 1-B

(3)

Symptom 2-A

(4)

Symptom 2-B

Symptom

Gear position commanded by the PCM

Actual gear position

1-A

Driving in 5th gear

Neutral

1-B

Driving in 3rd gear

Driving in 3rd gear

Symptom Gear position commanded by the PCM

Actual gear position

2-A

Driving in 4th gear

Neutral

2-B

Shifting between 2nd gear and 3rd gear

Shifting between 2nd gear and 3rd gear



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



Drive the vehicle in this manner only if the traffic regulations and ambient conditions allow.

Diagnosis Details

Conditions for illuminating the MIL

When a malfunction is detected during the first drive cycle, a Temporary DTC is stored in the PCM memory. If
the malfunction recurs during the next (second) drive cycle, the MIL comes on and the DTC and the freeze
frame data are stored.

Conditions for clearing the MIL

The MIL will be cleared if the malfunction does not recur during three consecutive trips in which the diagnostic
runs.

The MIL, the DTC, the Temporary DTC, and the freeze frame data can be cleared by using the scan tool Clear
command or by disconnecting the battery.

DTC P0761 (72): ADVANCED DIAGNOSTICS

DTC P0761: SHIFT SOLENOID VALVE C STUCK OFF



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element
