Honda Element. Manual - part 42





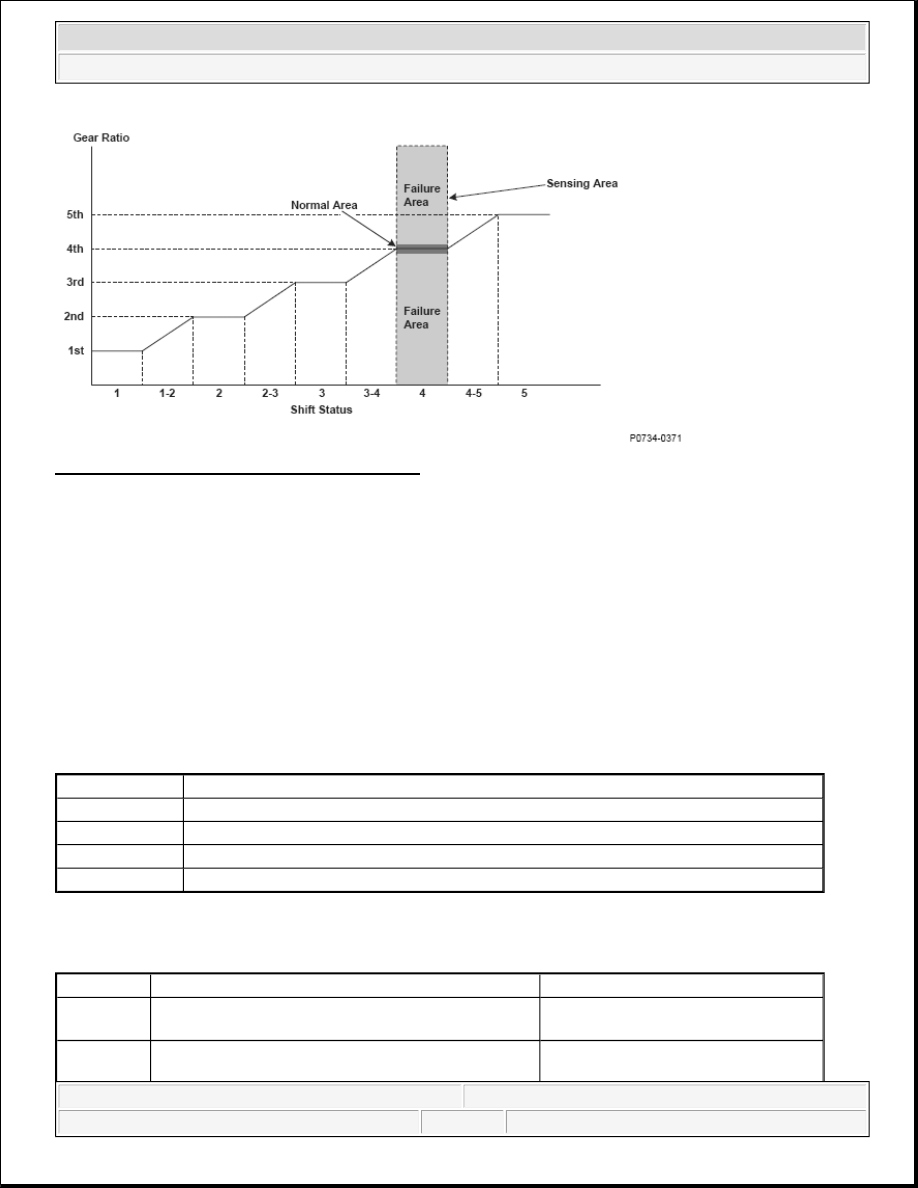

Fig. 117: Gear Ratio Versus Shift Status Graph

General Description

To engage 4th gear, line pressure is supplied to the 4th clutch piston, engaging the 4th clutch, and the input
shaft (mainshaft) and the input shaft (mainshaft) 4th gear are connected and revolve together. Hydraulic
pressure is supplied to the 4th clutch through the ATF strainer --> the ATF pump --> the regulator valve --> the
manual valve --> the shift valves --> the feed pipe --> 4th clutch piston. (A shift valve failure in the supply
route above is detected by the malfunction detection of each shift solenoid valve.) The powertrain control
module (PCM) computes the ratio of the input shaft (mainshaft) speed to the output shaft (countershaft) speed.
When the ratio is not the 4th gear ratio, it is detected as a malfunction of the hydraulic circuit or the 4th clutch,
and a DTC is stored.

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

MONITOR DESCRIPTION

Enable Conditions

ENABLE CONDITIONS

Execution

Continuous

Sequence

None

Duration

12 seconds or more

DTC Type

Two drive cycles, MIL OFF, D indicator blinks

OBD status

PASSED/FAILED/NOT COMPLETED (STILL TESTING)

Condition

Minimum

Maximum

Engine
speed

1,000 rpm

-

Vehicle
speed

8 mph (12 km/h)

-



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



Malfunction Threshold

The actual gear ratio must match one of these conditions for at least 12 seconds with the 4th gear command:

Actual gear ratio > 4th gear ratio by a factor of 1.2

Actual gear ratio < 4th gear ratio by a factor of 0.75

Driving Pattern

Start the engine, shift to D position, and drive the vehicle at a speed of 8 mph (12 km/h) or more for at least 12
seconds in 4th gear.

Drive the vehicle in this manner only if the traffic regulations and ambient conditions allow.

Diagnosis Details

Conditions for illuminating the indicator

When a malfunction is detected, the D indicator blinks, and the DTC and the freeze frame data are stored in the
PCM memory. The MIL does not come on.

Conditions for clearing the DTC

The DTC and the freeze frame data can be cleared by using the scan tool Clear command or by disconnecting
the battery.

DTC P0735 (64): ADVANCED DIAGNOSTICS

DTC P0735: PROBLEM IN 5TH CLUTCH AND 5TH CLUTCH HYDRAULIC CIRCUIT (5TH GEAR
INCORRECT RATIO)

Battery
voltage

11.0 V

-

Shift lever
position

D

No active
DTCs

P0116, P0117, P0118, P0122, P0123, P0705, P0706, P0716, P0717, P0718, P0721, P0722,
P0723, P0747, P0752, P0756, P0757, P0761, P0771, P0776, P0777, P0780, P0796, P0797,
P0962, P0963, P0966, P0967, P0970, P0971, P0973, P0974, P0976, P0977, P0979, P0980,
P0982, P0983, P0985, P0986, P1730, P1731, P1732, P1733, P1734



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



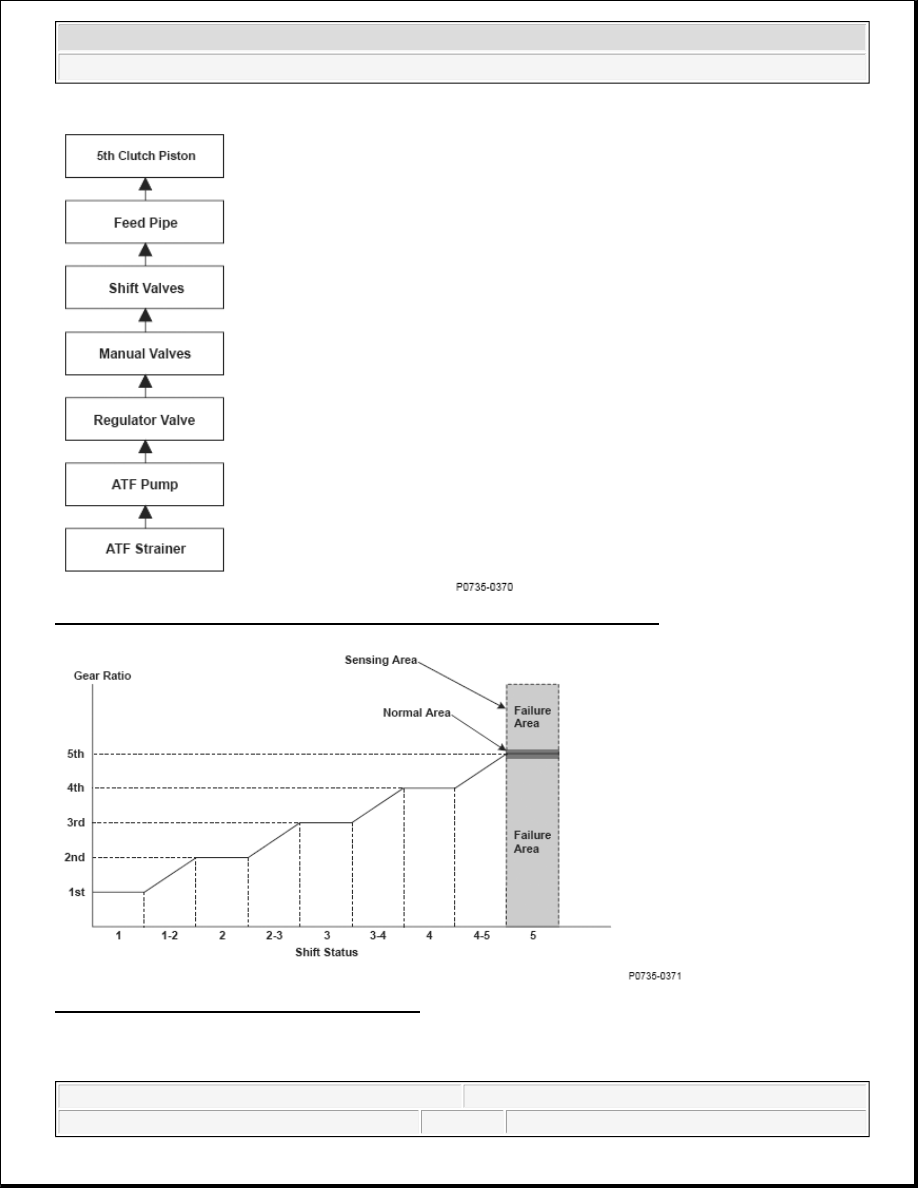

Fig. 118: Problem In 5th Clutch And 5th Clutch Hydraulic Circuit Flow Chart

Fig. 119: Gear Ratio Versus Shift Status Graph

General Description



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



To engage 5th gear, line pressure is supplied to the 5th clutch piston, engaging the 5th clutch, and the input
shaft (mainshaft) and the input shaft (mainshaft) 5th gear are connected and revolve together. Hydraulic
pressure is supplied to the 5th clutch through the ATF strainer --> the ATF pump --> the regulator valve --> the
manual valve --> the shift valves --> the feed pipe --> 5th clutch piston. (A shift valve failure in the supply
route above is detected by the malfunction detection of each shift solenoid valve.) The powertrain control
module (PCM) computes the ratio of the input shaft (mainshaft) speed to the output shaft (countershaft) speed.
When the ratio is not the 5th gear ratio, it is detected as a malfunction of the hydraulic circuit or the 5th clutch,
and a DTC is stored.

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

MONITOR DESCRIPTION

Enable Conditions

ENABLE CONDITIONS

Malfunction Threshold

The actual gear ratio must match one of these conditions for at least 12 seconds with the 5th gear command:

Actual gear ratio > 5th gear ratio by a factor of 1.2

Actual gear ratio < 5th gear ratio by a factor of 0.75

Driving Pattern

Start the engine, shift to D position, and drive the vehicle at a speed of 8 mph (12 km/h) or more for at least 12

Execution

Continuous

Sequence

None

Duration

12 seconds or more

DTC Type

Two drive cycles, MIL OFF, D indicator blinks

OBD status

PASSED/FAILED/NOT COMPLETED (STILL TESTING)

Condition

Minimum

Maximum

Engine
speed

1,000 rpm

-

Vehicle
speed

8 mph (12 km/h)

-

Battery
voltage

11.0 V

-

Shift lever
position

D

No active
DTCs

P0116, P0117, P0118, P0122, P0123, P0705, P0706, P0716, P0717, P0718, P0721, P0722,
P0723, P0747, P0752, P0756, P0757, P0761, P0771, P0776, P0777, P0780, P0796, P0797,
P0962, P0963, P0966, P0967, P0970, P0971, P0973, P0974, P0976, P0977, P0979, P0980,
P0982, P0983, P0985, P0986, P1730, P1731, P1732, P1733, P1734



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element
