Enable Conditions

ENABLE CONDITIONS

Malfunction Threshold

Malfunction determination 1:

If the difference between the current measured coolant temperature at the radiator (ECT 2) and the initial
coolant temperature at the radiator (ECT 2) is at least 46 °F (8 °C) when the calculated coolant temperature at
the engine (ECT 1) reaches 159 °F (71 °C), a malfunction is detected (thermostat stuck open); or if the coolant
temperature at the radiator (ECT 2) only reaches 73 °F (23 °C), a malfunction is detected (thermostat
malfunction).

Sequence

None

Duration

Depending on driving conditions

DTC Type

Two drive cycles, MIL ON

OBD Status

PASSED/FAILED/NOT COMPLETED (STILL TESTING)

Condition

Minimum

Maximum

Engine off time

6 hours

-

Initial engine
coolant temperature
(ECT 1)

20 °F (-6 °C)

123 °F (50 °C)

Initial engine
coolant temperature
(ECT 2)

20 °F (-6 °C)

-

Initial intake air
temperature

20 °F (-6 °C)

-

The difference
between initial
intake air
temperature and
current intake air
temperature

-

3 °F (2 °C)

(1)

7 °F (4 °C)

(2)

No active DTCs

P0010, P0011, P0101, P0102, P0103, P0107, P0108, P0111, P0112, P0113, P0116,
P0117, P0118, P0122, P0123, P0125, P0134, P0135, P0171, P0172, P0222, P0223,
P0300, P0301, P0302, P0303, P0304, P0335, P0339, P0340, P0341, P0344, P0443,
P0496, P0497, P0506, P0507, P1009, P1116, P1128, P1129, P1157, P1172, P145C,
P2101, P2108, P2118, P2122, P2123, P2127, P2128, P2135, P2138, P2176, P2183,
P2184, P2185, P2195, P2227, P2228, P2229, P2238, P2252, P2610, P2646, P2647,
P2648, P2649, U0107

(1)

Intake air temperature decrease judgement when there is no driving record of 25 mph (40 km/h) in
this drive cycle.

(2)

Intake air temperature decrease judgement when there is a driving record of 25 mph (40 km/h) in this
drive cycle.



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



Malfunction determination 2:

When the calculated engine coolant temperature (ECT 1) reaches 158 °F (70 °C) before the measured engine
coolant temperature (ECT 1) reaches 158 °F (70 °C), a malfunction is detected.

Driving Pattern

1. Start the engine under the conditions specified under Enable Conditions.

2. Drive the vehicle at a speed between 15 - 75 mph (24 - 120 km/h) for at least 10 minutes.

Drive the vehicle in this manner only if the traffic regulations and ambient conditions allow.

Diagnosis Details

Conditions for illuminating the MIL

When a malfunction is detected during the first drive cycle with the ECT and IAT at engine start-up within the
specified temperature range, a Temporary DTC is stored in the ECM/PCM memory. If the malfunction recurs
during the next (second) drive cycle with the ECT and IAT at engine start-up within the specified temperature
range, the MIL comes on and the DTC and the freeze frame data are stored.

Conditions for clearing the MIL

The MIL will be cleared if the malfunction does not recur during three consecutive trips in which the diagnostic
runs.

The MIL, the DTC, the Temporary DTC, and the freeze frame data can be cleared by using the scan tool Clear
command or by disconnecting the battery.

DTC P0133 (61): ADVANCED DIAGNOSTICS

DTC P0133: AIR/FUEL RATIO (A/F) SENSOR (SENSOR 1) MALFUNCTION/ SLOW RESPONSE



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



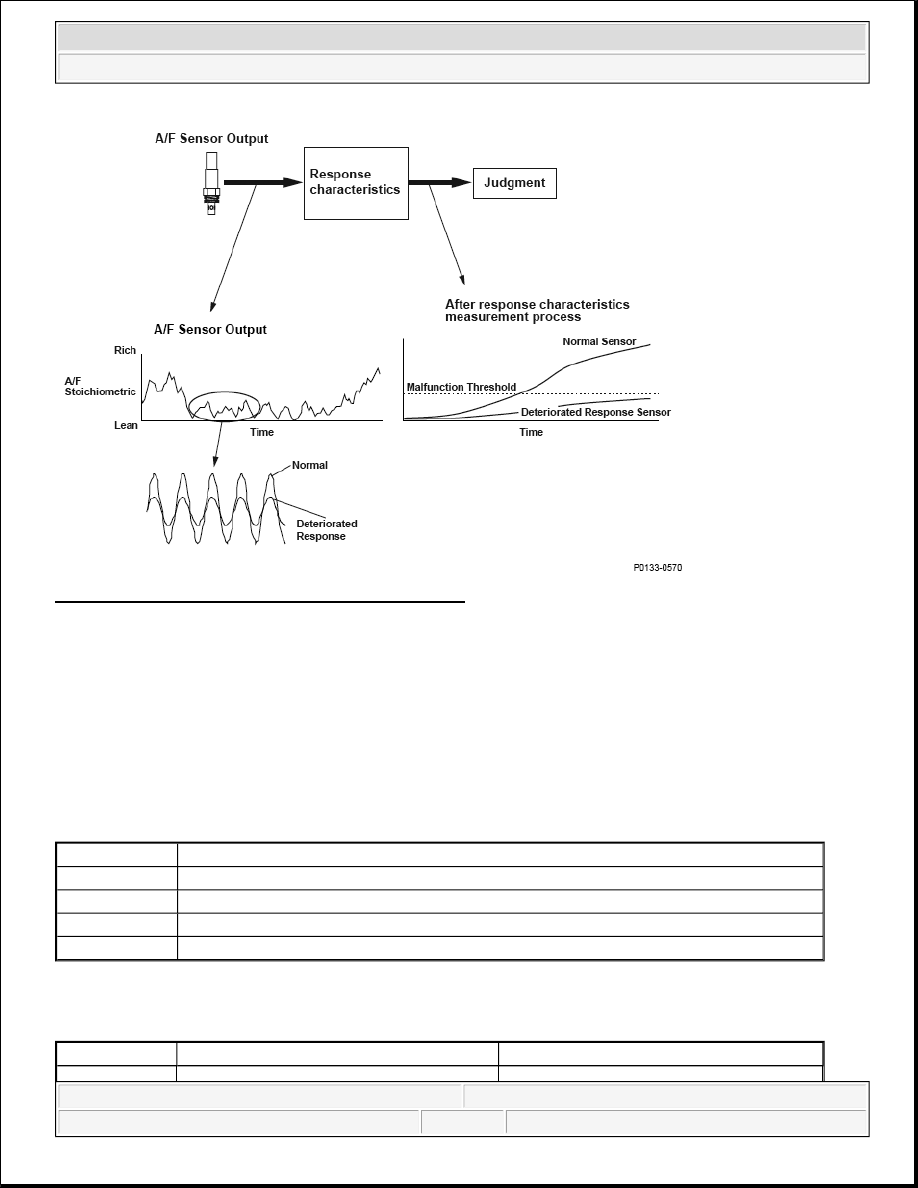

Fig. 26: Air/Fuel Ratio (A/F) Sensor 1 Signal Outputs

General Description

The air/fuel ratio (A/F) sensor has a linear signal output in relation to the oxygen concentration. The engine
control module (ECM)/powertrain control module (PCM) computes the air/fuel ratio from the A/F sensor output
voltage and uses fuel feedback control to improve exhaust emissions. The ECM/PCM measures the response
characteristics against the A/F sensor output, and if the average inversion cycle time is less than the specified
value, it detects a deteriorated response and stores a DTC.

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

MONITOR DESCRIPTION

Enable Conditions

ENABLE CONDITIONS

Execution

Once per driving cycle

Sequence

None

Duration

8 seconds or more

DTC Type

Two drive cycles, MIL ON

OBD Status

PASSED/FAILED/EXECUTING/OUT OF (TEST) CONDITION

Condition

Minimum

Maximum



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



Malfunction Threshold

The average of 20 periods or less of the A/F sensor inversion cycle is at least 8 seconds.

Driving Pattern

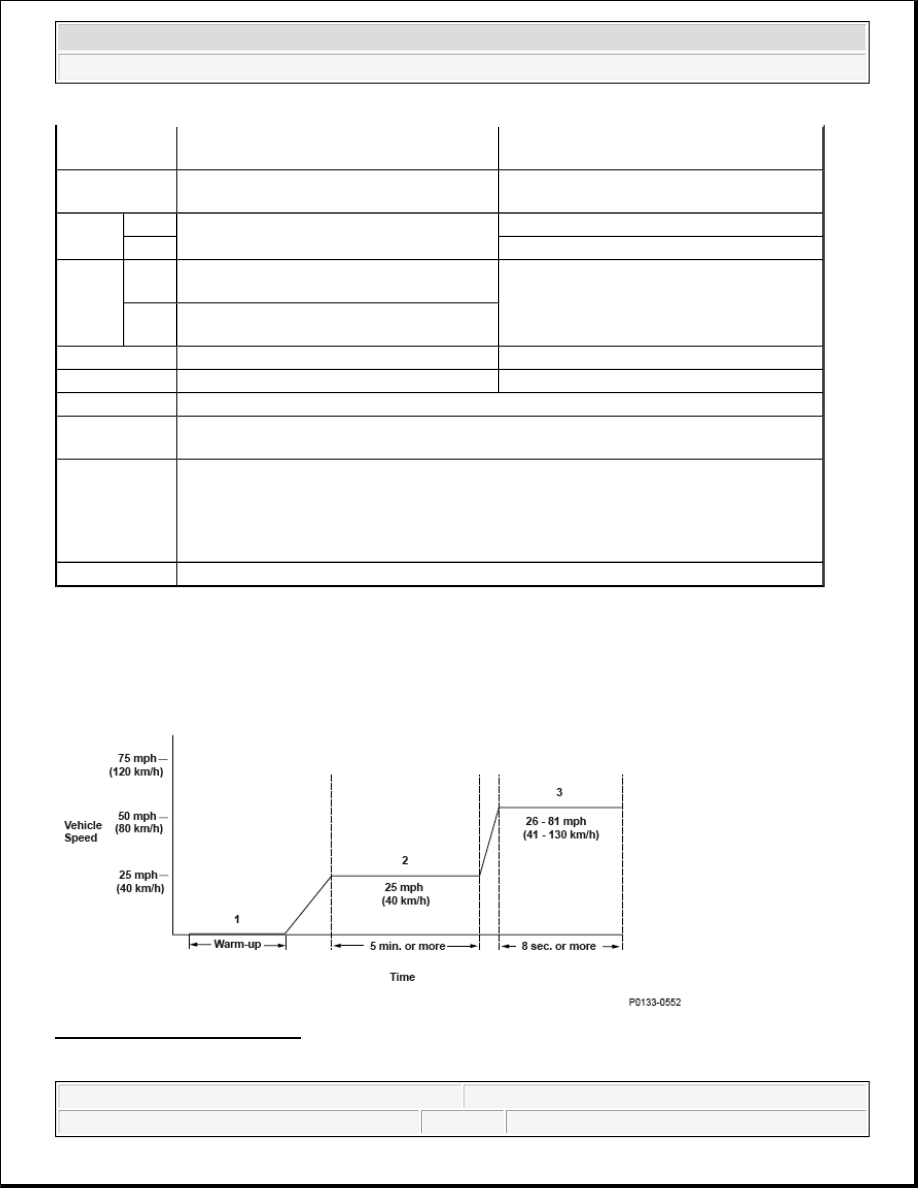

Fig. 27: Vehicle Driving Pattern

1. Start the engine. Hold the engine speed at 3,000 rpm without load (in Park or neutral) until the radiator

Engine coolant
temperature

156 °F (69 °C)

-

Intake air
temperature

-13 °F (-25 °C)

-

Engine
speed

A/T

1,000 rpm

2,400 rpm

M/T

3,750 rpm

MAP
value

1,500
rpm

40 kPa (11.9 in.Hg, 300 mmHg)

87 kPa (25.9 in.Hg, 660 mmHg)

3,000
rpm

27 kPa (7.9 in.Hg, 200 mmHg)

Vehicle speed

33 mph (52 km/h)

-

Fuel trim

0.69

1.47

Fuel feedback

Closed loop at stoichiometric

Monitoring
priority

P0456, P0457, P0497

No active
DTCs

P0010, P0011, P0101, P0102, P0103, P0107, P0108, P0112, P0113, P0117, P0118,
P0134, P0135, P0171, P0172, P0300, P0301, P0302, P0303, P0304, P0335, P0339,
P0340, P0341, P0344, P0443, P0496, P0497, P1009, P1128, P1129, P1157, P1172,
P145C, P2195, P2227, P2228, P2229, P2238, P2252, P2646, P2647, P2648, P2649,
P2A00

Other

Without excessive load change



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element
