Malfunction Threshold

The difference between the amount of intake air measured by the MAF sensor and the amount of intake air
calculated from the MAP sensor output is out of the normal area for at least 5 seconds.

Driving Pattern

1. Start the engine. Hold the engine speed at 3,000 rpm without load (in Park or neutral) until the radiator

fan comes on.

2. Let the engine idle for at least 5 seconds.

Diagnosis Details

Conditions for illuminating the MIL

When a malfunction is detected during the first drive cycle, a Temporary DTC is stored in the ECM/PCM
memory. If the malfunction recurs during the next (second) drive cycle, the MIL comes on and the DTC and the
freeze frame data are stored.

Conditions for clearing the MIL

The MIL will be cleared if the malfunction does not recur during three consecutive trips in which the diagnostic
runs.

The MIL, the DTC, the Temporary DTC, and the freeze frame data can be cleared by using the scan tool Clear
command or by disconnecting the battery.

DTC P0102 (50): ADVANCED DIAGNOSTICS

DTC P0102: MASS AIRFLOW (MAF) SENSOR CIRCUIT LOW VOLTAGE

starting the engine 3 seconds

-

Engine coolant
temperature

156 °F (69 °C)

-

Engine speed

600 rpm

5,700 rpm

No active DTCs

P0102, P0103, P0107, P0108, P0112, P0113, P0117, P0118, P0171, P0172, P0300,
P0301, P0302, P0303, P0304, P0335, P0339, P0340, P0341, P0344, P0443, P0496,
P0497, P0506, P0507, P1128, P1129, P145C, P2646, P2647, P2648, P2649



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element

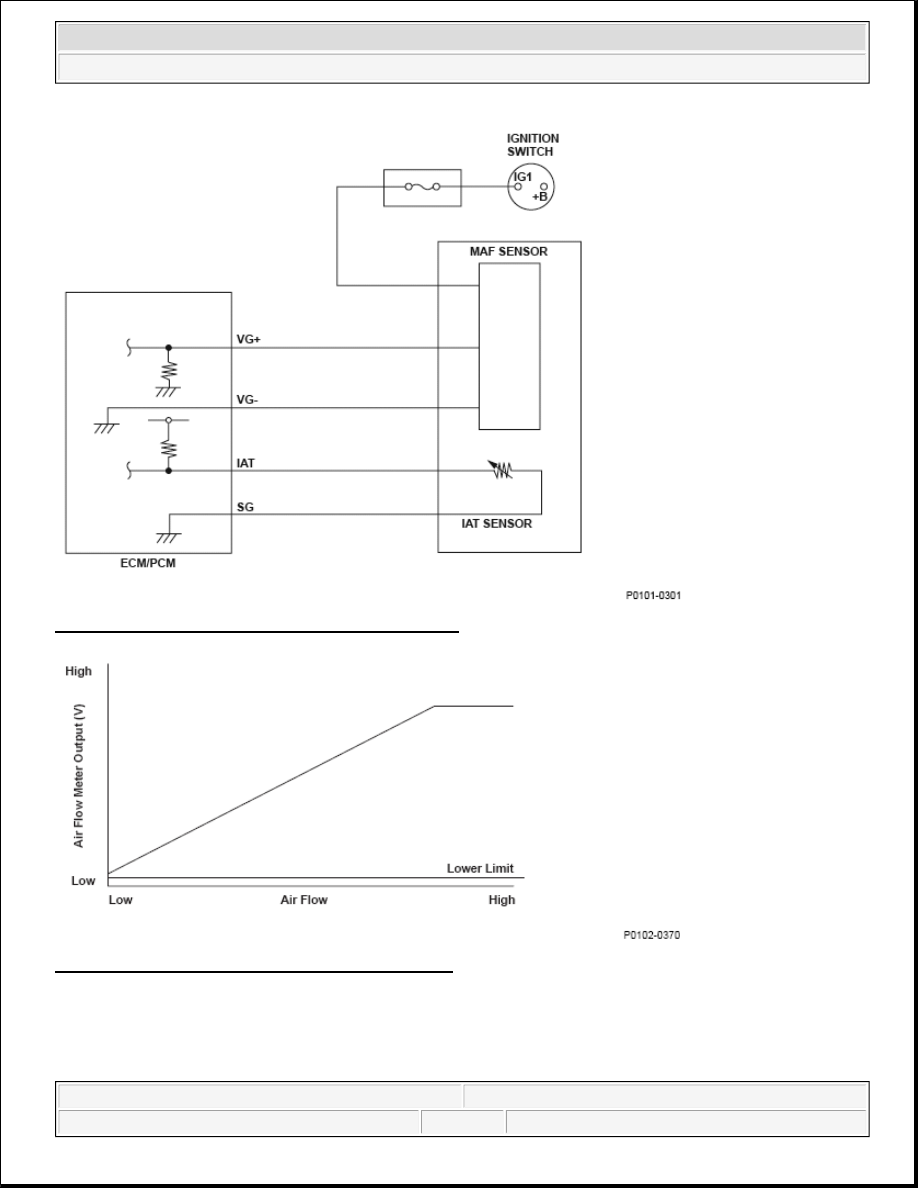

Fig. 4: Mass Airflow (MAF) Sensor Circuit Diagram

Fig. 5: Mass Air Flow Meter Output Voltage Graph

General Description

The mass airflow (MAF) sensor is attached to the intake air passage, and it measures the amount of intake
airflow. The MAF sensor is a hot wire airflow meter. The airflow cools the electrically heated wire that is



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



mounted in the air passage. The engine control module (ECM)/powertrain control module (PCM) determines
the amount of intake airflow by detecting the current that is required to keep the hot wire at a constant
temperature. The lower limit of the MAF sensor output is specified. If the output is below that limit, the
ECM/PCM detects a malfunction and stores a DTC.

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

MONITOR DESCRIPTION

Enable Conditions

ENABLE CONDITIONS

Malfunction Threshold

The input voltage from the MAF sensor is 0.1 V or less for at least 2 seconds.

Diagnosis Details

Conditions for illuminating the MIL

When a malfunction is detected, the MIL comes on and the DTC and the freeze frame data are stored in the
ECM/PCM memory.

Conditions for clearing the MIL

The MIL will be cleared if the malfunction does not recur during three consecutive trips in which the diagnostic
runs.

The MIL, the DTC, and the freeze frame data can be cleared by using the scan tool Clear command or by
disconnecting the battery.

DTC P0103 (50): ADVANCED DIAGNOSTICS

DTC P0103: MASS AIRFLOW (MAF) SENSOR CIRCUIT HIGH VOLTAGE

Execution

Continuous

Sequence

None

Duration

2 seconds or more

DTC Type

One drive cycle, MIL ON

OBD Status

N/A

Condition



Ignition switch

ON

No active DTCs

P0103



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element

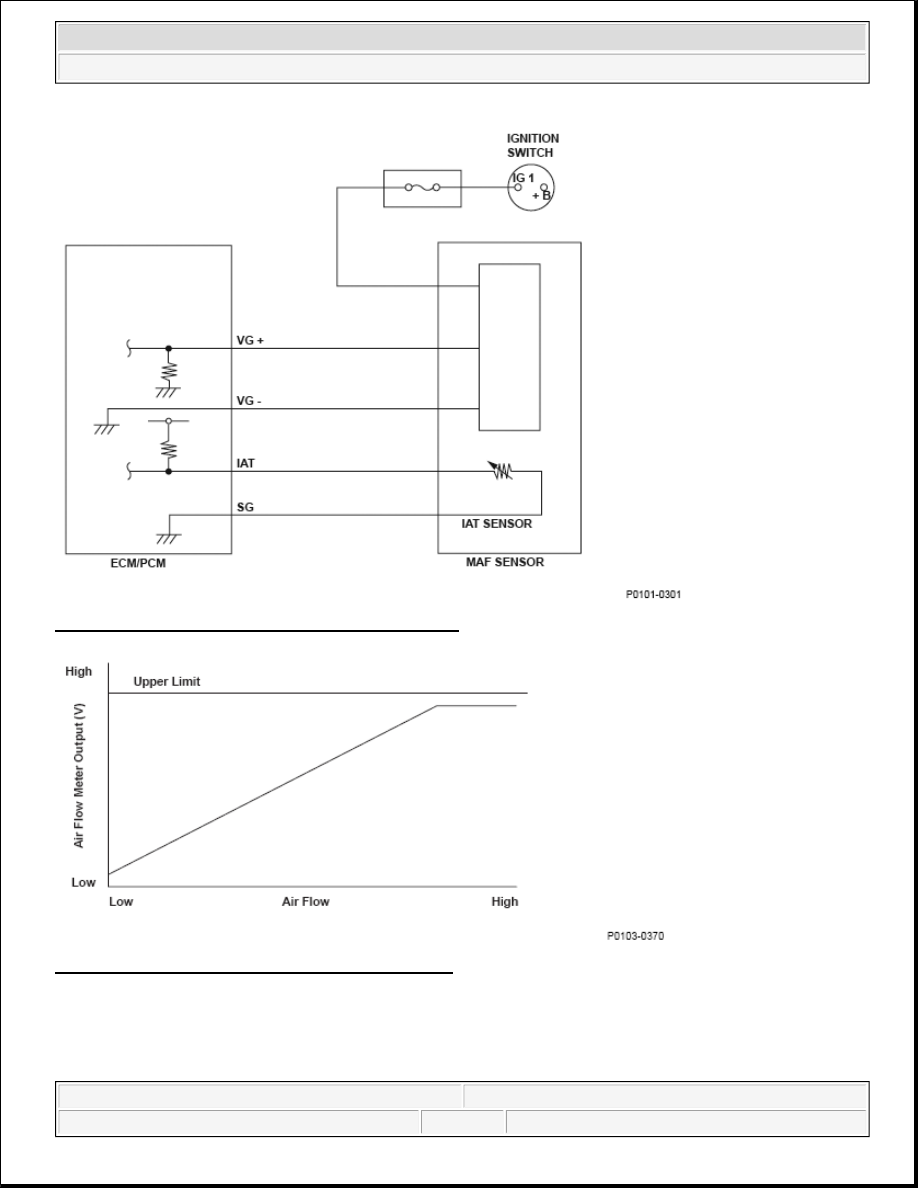

Fig. 6: Mass Airflow (MAF) Sensor Circuit Diagram

Fig. 7: Mass Air Flow Meter Output Voltage Graph

General Description

The mass airflow (MAF) sensor is attached to the intake air passage, and it measures the amount of intake
airflow. The MAF sensor is a hot wire airflow meter. The airflow cools the electrically heated wire that is



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element
