2007 ENGINE PERFORMANCE

Advanced Diagnostics - Element

DTC P0011 (56): ADVANCED DIAGNOSTICS

DTC P0011: VARIABLE VALVE TIMING CONTROL (VTC) SYSTEM MALFUNCTION

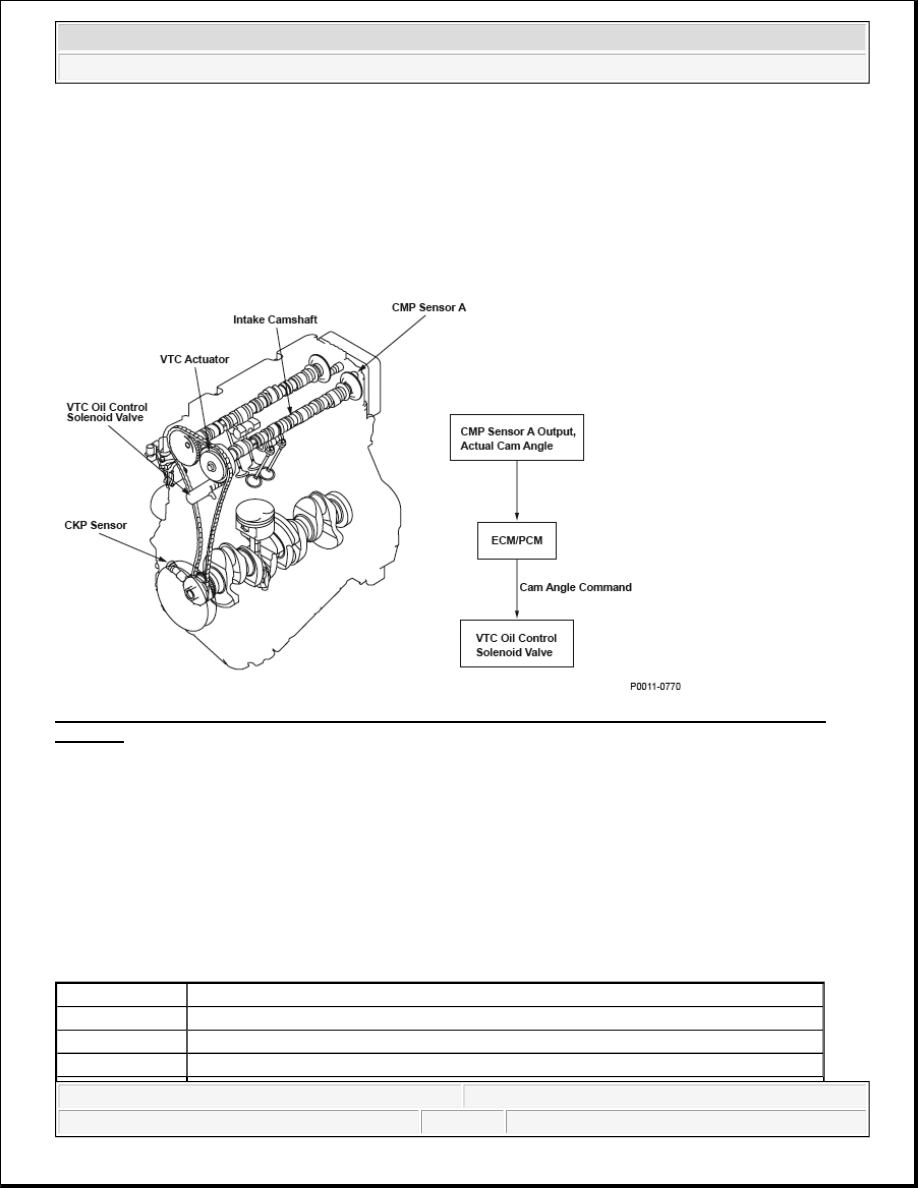

Fig. 1: Identifying Variable Valve Timing Control (VTC) System Consisting Components With Flow
Diagram

General Description

The variable valve timing control (VTC) system controls the timing of the intake camshaft. It uses hydraulic
pressure to operate the VTC actuator so the valve timing is optimized depending on driving conditions. The
engine control module (ECM)/powertrain control module (PCM) monitors the phase control command and the
actual timing of the camshaft by using camshaft position (CMP) sensor A. If the phase difference between them
is excessive for a certain time period, a malfunction is detected and a DTC is stored.

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

MONITOR DESCRIPTION

Execution

Continuous

Sequence

None

Duration

15 seconds or more

DTC Type

Two drive cycles, MIL ON



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element





2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



Enable Conditions

ENABLE CONDITIONS

Malfunction Threshold

The timing difference between the timing control command and the actual timing of the camshaft is 5.0 ° or
more for at least 15 seconds.

Confirmation Procedure with the HDS

Do the VTC TEST in the INSPECTION MENU of the HDS.

Driving Pattern

OBD Status

PASSED/FAILED/NOT COMPLETED (STILL TESTING)

Condition

Minimum

Maximum

Elapsed time after
starting the engine

10 seconds

-

Engine coolant
temperature

23 °F (-
5 °C)

(1)

158 °F (70 °C)

-

-13 °F
(-25 °
C)

(1)

185 °F (85 °C)

Engine speed

203 °F
(95 °C)

(2)

800 rpm

-

227 °F
(107 °
C)

(2)

1,600 rpm

Elapsed TDC
revolutions

25 °F (-
4 °C)

(1)

Per 0 revolutions

-

-13 °F
(-25 °
C)

(1)

Per 23,500 revolutions

Battery voltage

10.5 V

-

No active DTCs

P0010, P0107, P0108, P0112, P0113, P0117, P0118, P0122, P0123, P0222,
P0223, P0335, P0339, P0340, P0341, P0344, P1009, P1128, P1129, P2101,
P2118, P2122, P2123, P2127, P2128, P2135, P2138, P2176, P2227, P2228,
P2229, P2646, P2647, P2648, P2649

(1)

Depending on initial engine coolant temperature.

(2)

Depending on engine coolant temperature.



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



1. Start the engine. Hold the engine speed at 3,000 rpm without load (in Park or neutral) until the radiator

fan comes on.

2. Drive the vehicle at a steady speed between 25 - 75 mph (40 - 120 km/h) for at least 15 seconds.



Drive the vehicle in this manner only if the traffic regulations and ambient conditions allow.

Diagnosis Details

Conditions for illuminating the MIL

When a malfunction is detected during the first drive cycle, a Temporary DTC is stored in the ECM/PCM
memory. If the malfunction recurs during the next (second) drive cycle, the MIL comes on and the DTC and the
freeze frame data are stored.

Conditions for clearing the MIL

The MIL will be cleared if the malfunction does not recur during three consecutive trips in which the diagnostic
runs.

The MIL, the DTC, the Temporary DTC, and the freeze frame data can be cleared by using the scan tool Clear
command or by disconnecting the battery.

DTC P0101 (50): ADVANCED DIAGNOSTICS

DTC P0101: MASS AIRFLOW (MAF) SENSOR CIRCUIT RANGE/PERFORMANCE PROBLEM

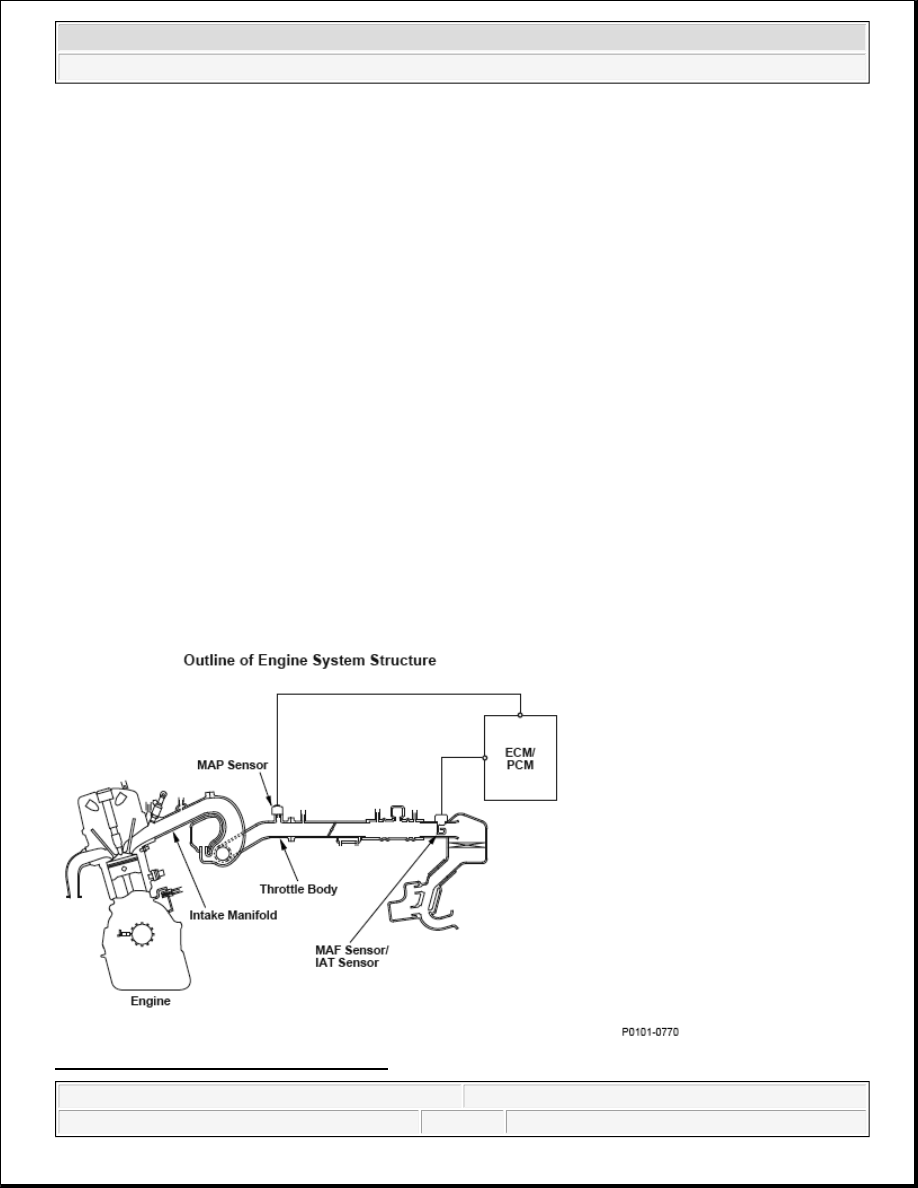

Fig. 2: Outline Of Engine System Structure



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



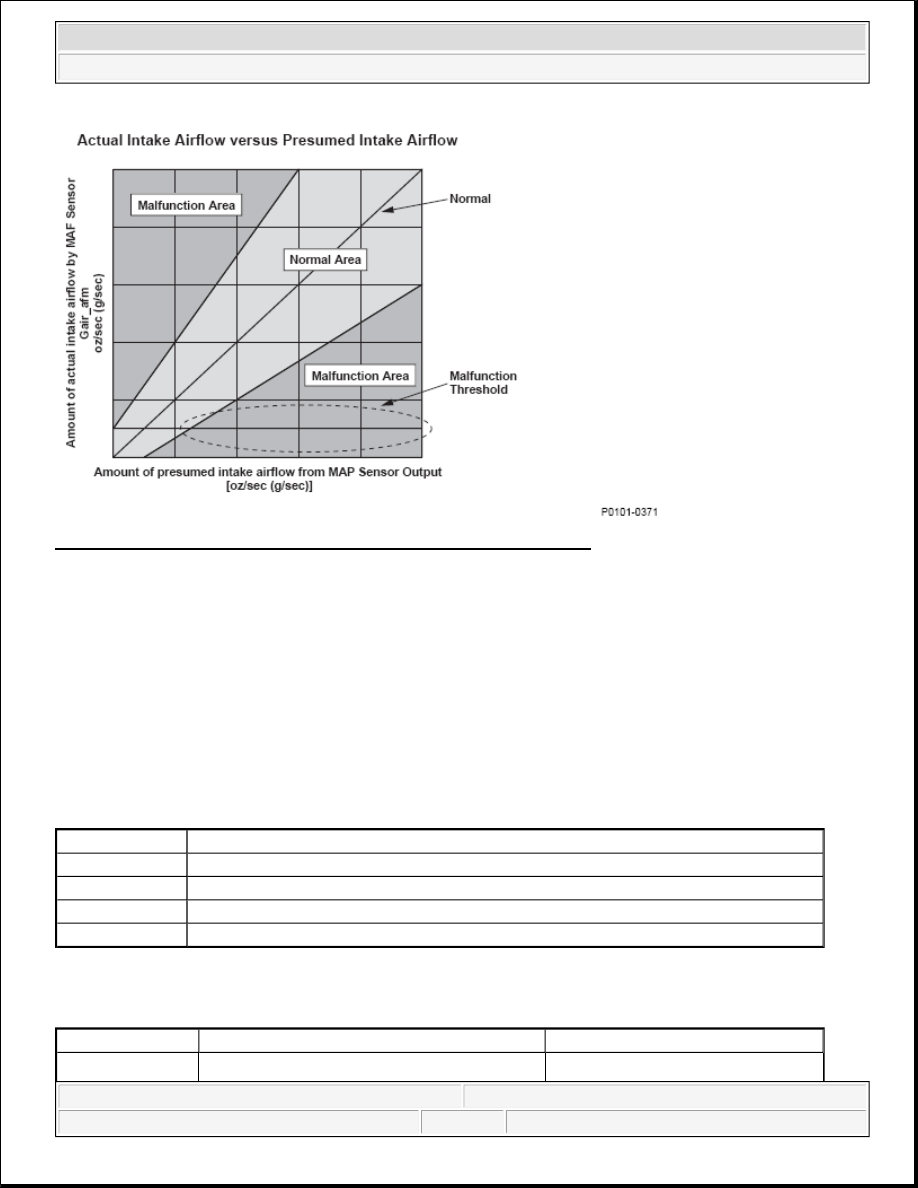

Fig. 3: Actual Intake Airflow Versus Presumed Intake Airflow Graph

General Description

The mass airflow (MAF) sensor directly measures the amount of intake airflow into the engine, and the engine
control module (ECM)/powertrain control module (PCM) controls the fuel injection based on the measured
value. The manifold absolute pressure (MAP) sensor measures the intake manifold pressure and the ECM/PCM
calculates the amount of intake airflow from the MAP sensor output and the engine revolutions. The ECM/PCM
compares the MAF sensor output (amount of intake airflow) and the amount of intake airflow calculated from
MAP sensor output. If their difference is too large (in the malfunction area), the ECM/PCM detects a
malfunction and a DTC is stored.

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

MONITOR DESCRIPTION

Enable Conditions

ENABLE CONDITIONS

Execution

Once per driving cycle

Sequence

None

Duration

5 seconds or more

DTC Type

Two drive cycles, MIL ON

OBD Status

PASSED/FAILED/NOT COMPLETED (STILL TESTING)

Condition

Minimum

Maximum

Elapsed time after
