Fuel pipe protector, refer to the FUEL PIPE PROTECTOR
REPLACEMENT

Trunk side trim panel, left side (see TRIM
REMOVAL/INSTALLATION - TRUNK AREA )

2. From the trunk compartment, disconnect the fuel fill door switch connector

(A), and detach the harness clip (B).

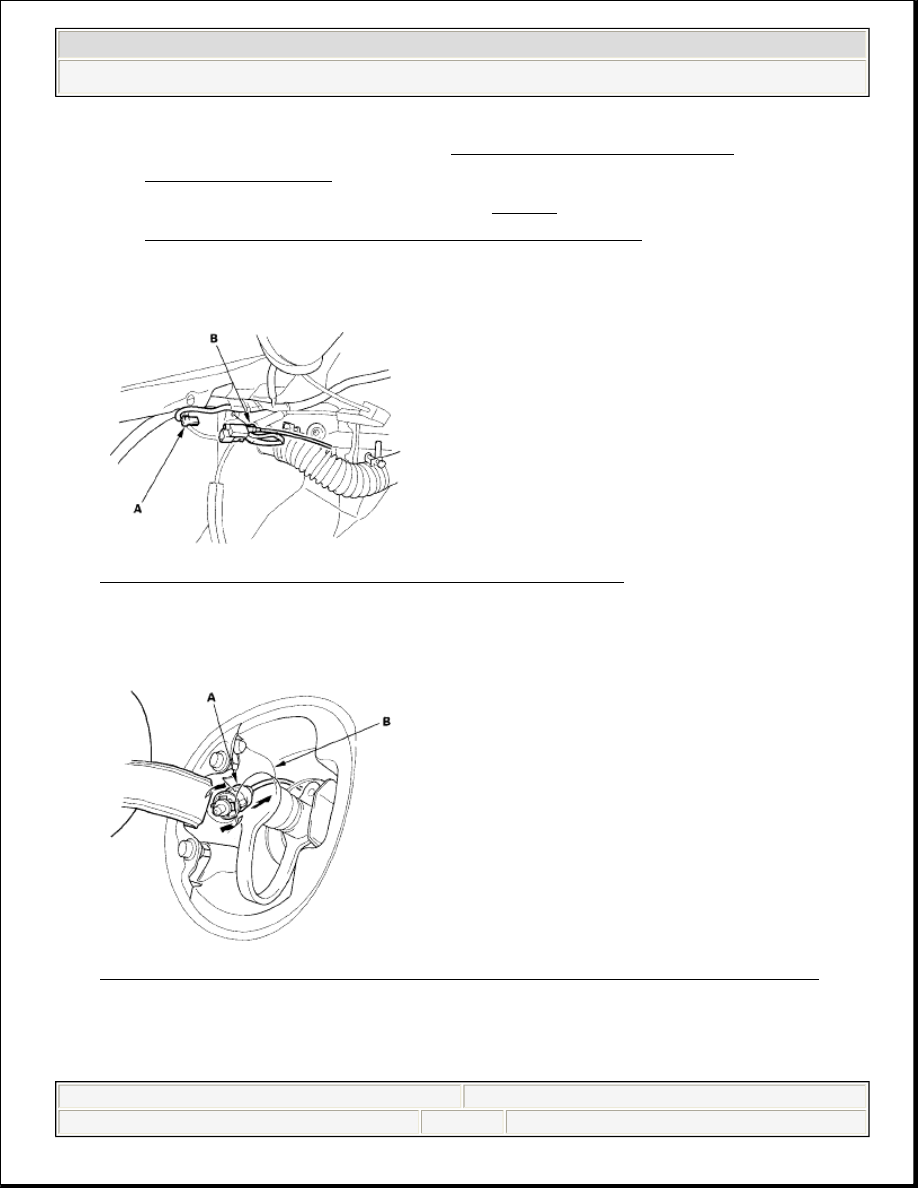

Fig. 6: Identifying Fuel Fill Door Switch Connector

3. Open the fuel fill door, and from the wheel arch, remove the fuel fill door

switch (A) by turning it 90° from the fuel receptacle adapter (B).

Fig. 7: Identifying Fuel Fill Door Switch And Fuel Receptacle Adapter

4. From the wheel arch, detach the clips, and remove the grommet (A), then pull

the fuel fill door switch cable (B) out through the hole in the body. Take care
not to kink the cable.

2008 Honda Civic EX

2006-08 ACCESSORIES AND EQUIPMENT Reminder Systems - Civic GX

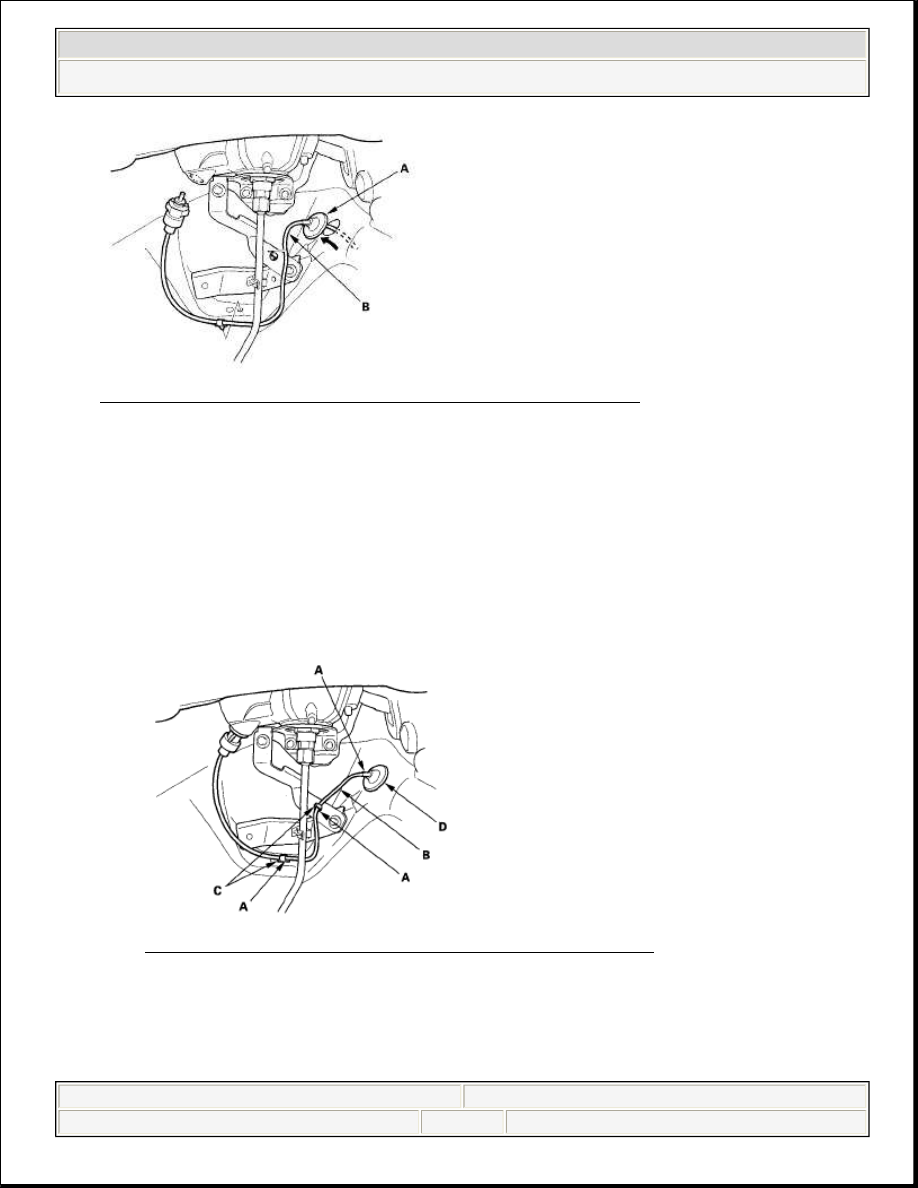

Fig. 8: Identifying Door Switch Cable And Grommet

5. Install the switch cable in the reverse order of removal, and note these items:

Check for damages or stress-whitened clips, and replace them with new
ones.

Align the marks (A) on the sensor cable (B) with the cable clips (C) and
grommet (D) as shown.

Make sure the grommet is installed to the body properly.

Make sure the fuel fill door switch connector is plugged in properly.

Fig. 9: Identifying Sensor Cable With Cable Clips

2008 Honda Civic EX

2006-08 ACCESSORIES AND EQUIPMENT Reminder Systems - Civic GX

2006-08 ACCESSORIES AND EQUIPMENT

Reminder Systems - Civic (Except Hybrid)

COMPONENT LOCATION INDEX

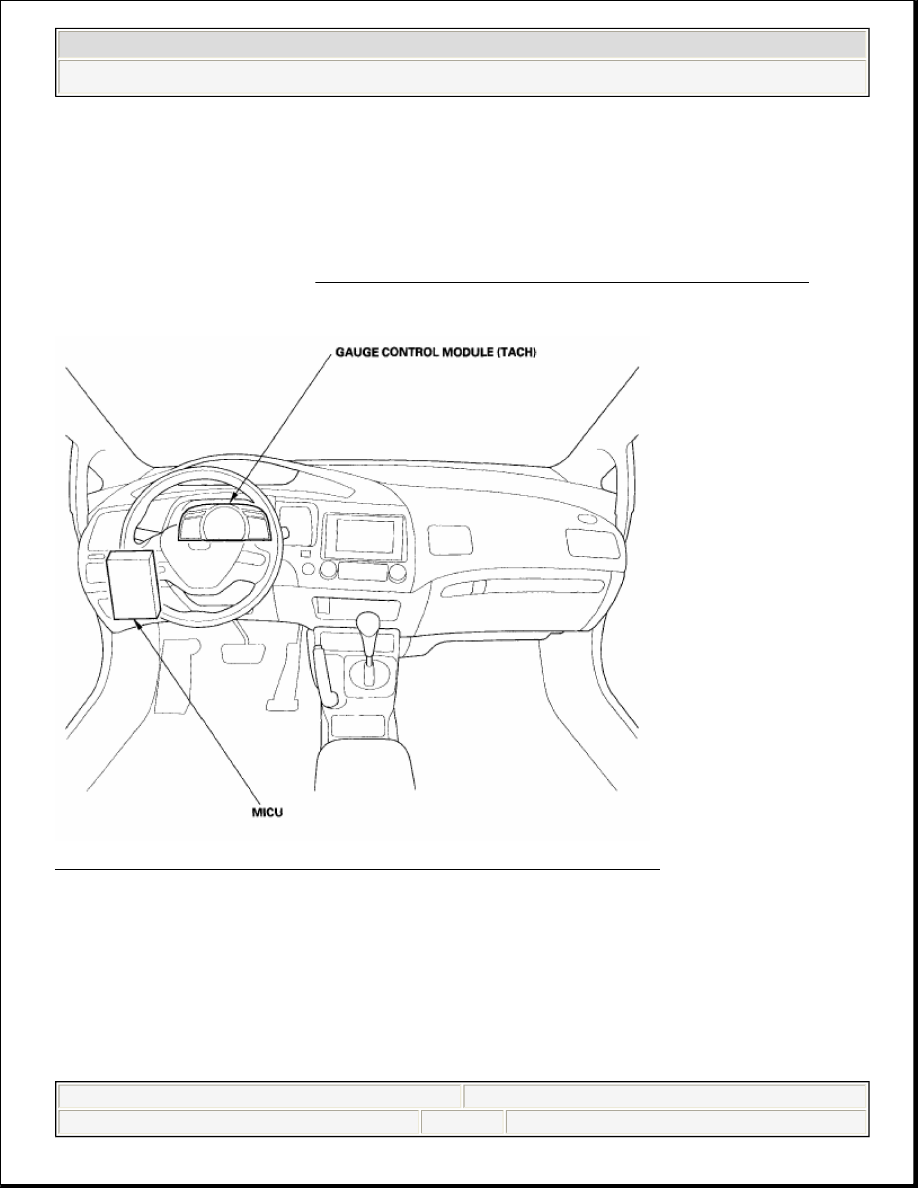

Fig. 1: Identifying Reminder Systems Component Location

CIRCUIT DIAGRAM

NOTE:

Refer to the REMINDER SYSTEMS (GX) (SUPPLEMENT)
article for additional information for the GX model.

2008 Honda Civic EX

2006-08 ACCESSORIES AND EQUIPMENT Reminder Systems - Civic (Except Hybrid)

2008 Honda Civic EX

2006-08 ACCESSORIES AND EQUIPMENT Reminder Systems - Civic (Except Hybrid)

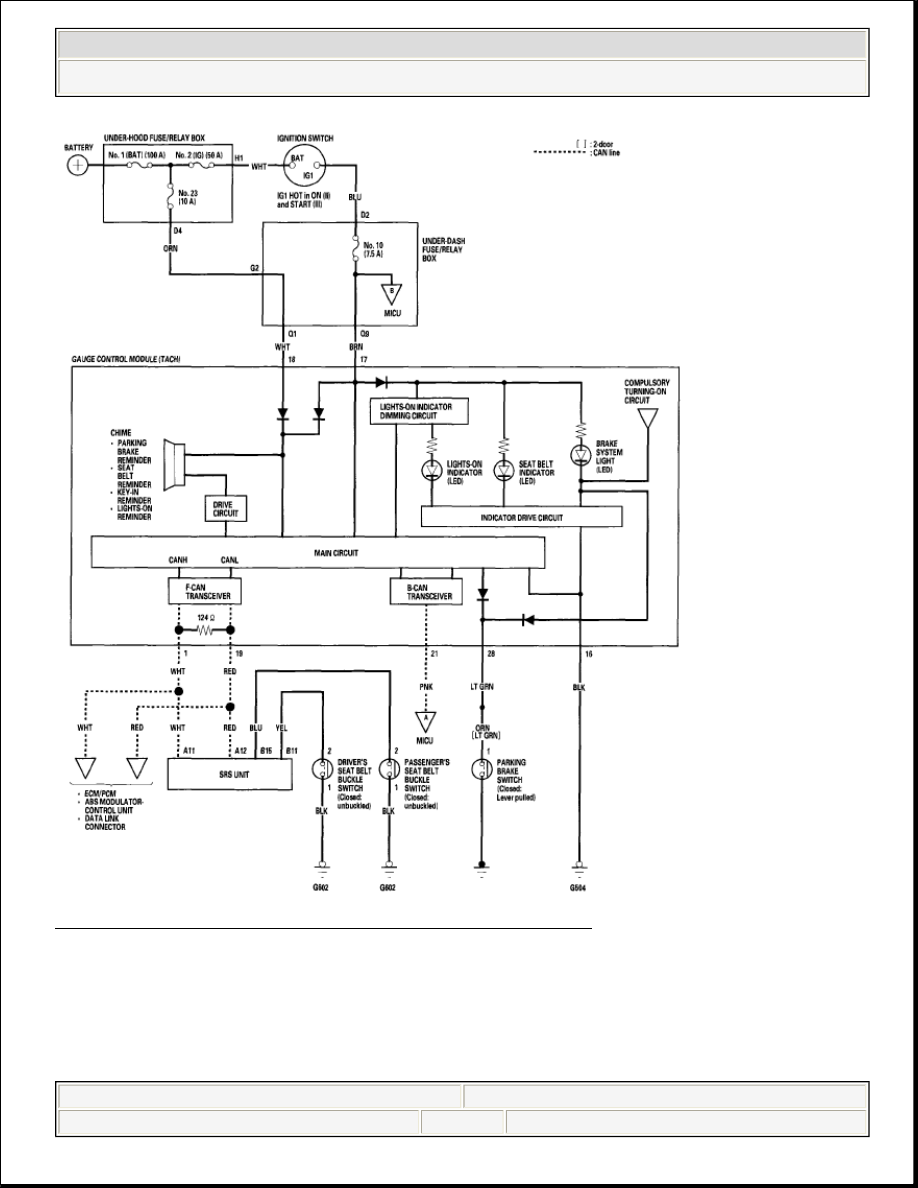

Fig. 2: Reminder Systems - Circuit Diagram (1 Of 2)

2008 Honda Civic EX

2006-08 ACCESSORIES AND EQUIPMENT Reminder Systems - Civic (Except Hybrid)
