Dimension (1) as installed: 3.3-6.0 mm (0.13-0.24 in.)

13. Apply liquid gasket, P/N 08718-0001, evenly to the threads of the 32 mm

searing cap (C) mating surface of the transmission housing. Install the
component within 5 minutes of applying the liquid gasket.

14. Install the transmission hanger A, the transmission hanger B, the harness

bracket (C), and the 8 mm flange bolts finger-tight.

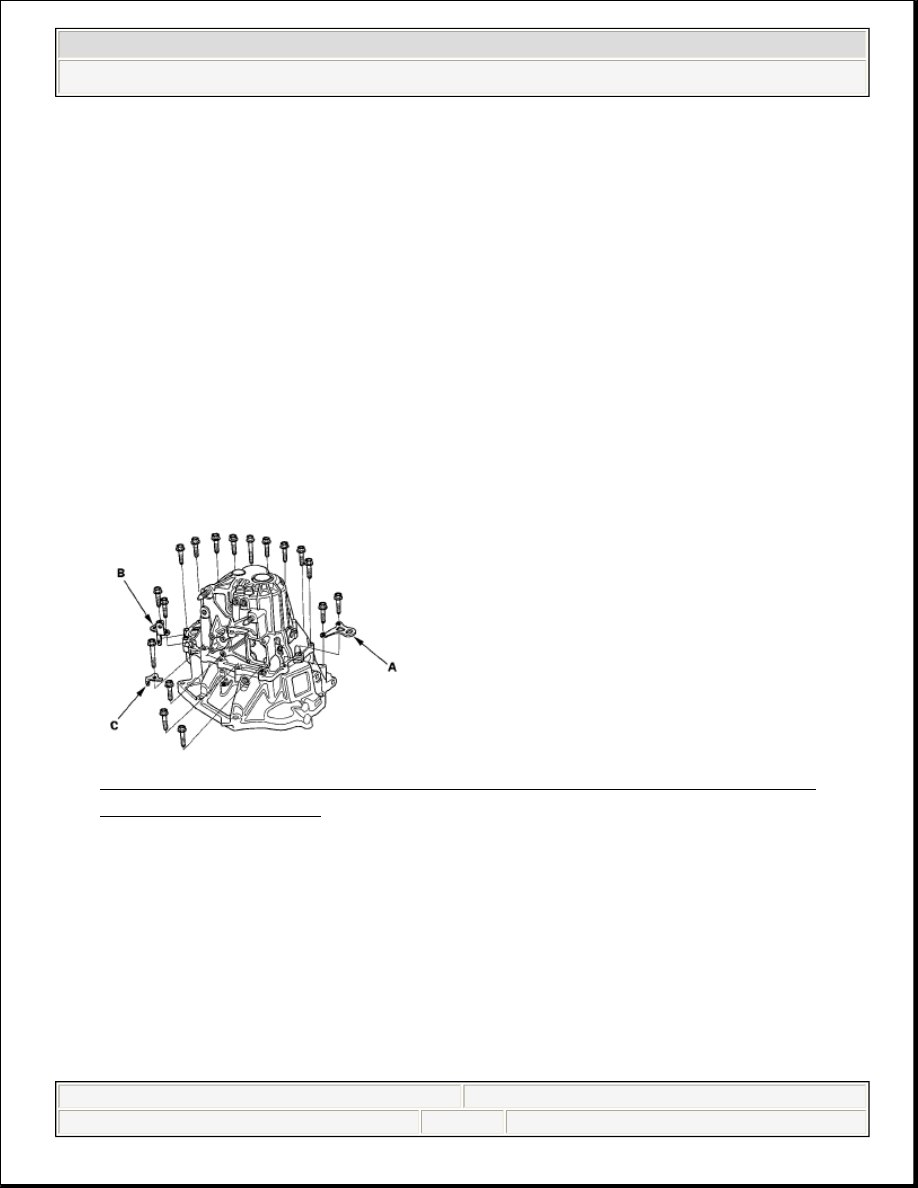

Fig. 179: Identifying Transmission Hanger A, Transmission Hanger B
And Harness Bracket

Courtesy of AMERICAN HONDA MOTOR CO., INC.

15. Tighten the 8 mm flange bolts in a crisscross pattern in several steps.

Specified Torque:

8 x 1.25 mm

27 N.m (2.8 kgf.m, 20 lbf.ft)

NOTE:



If you apply liquid gasket P/N 08718-0012, the
component must be installed within 4 minutes.



If too much time has passed after applying the
liquid gasket, remove the old liquid gasket and
residue, then reapply new liquid gasket.



2008 Honda Civic LX

2006-08 TRANSMISSION Manual Transmission (6-Speed)(Except Hybrid) - Civic



































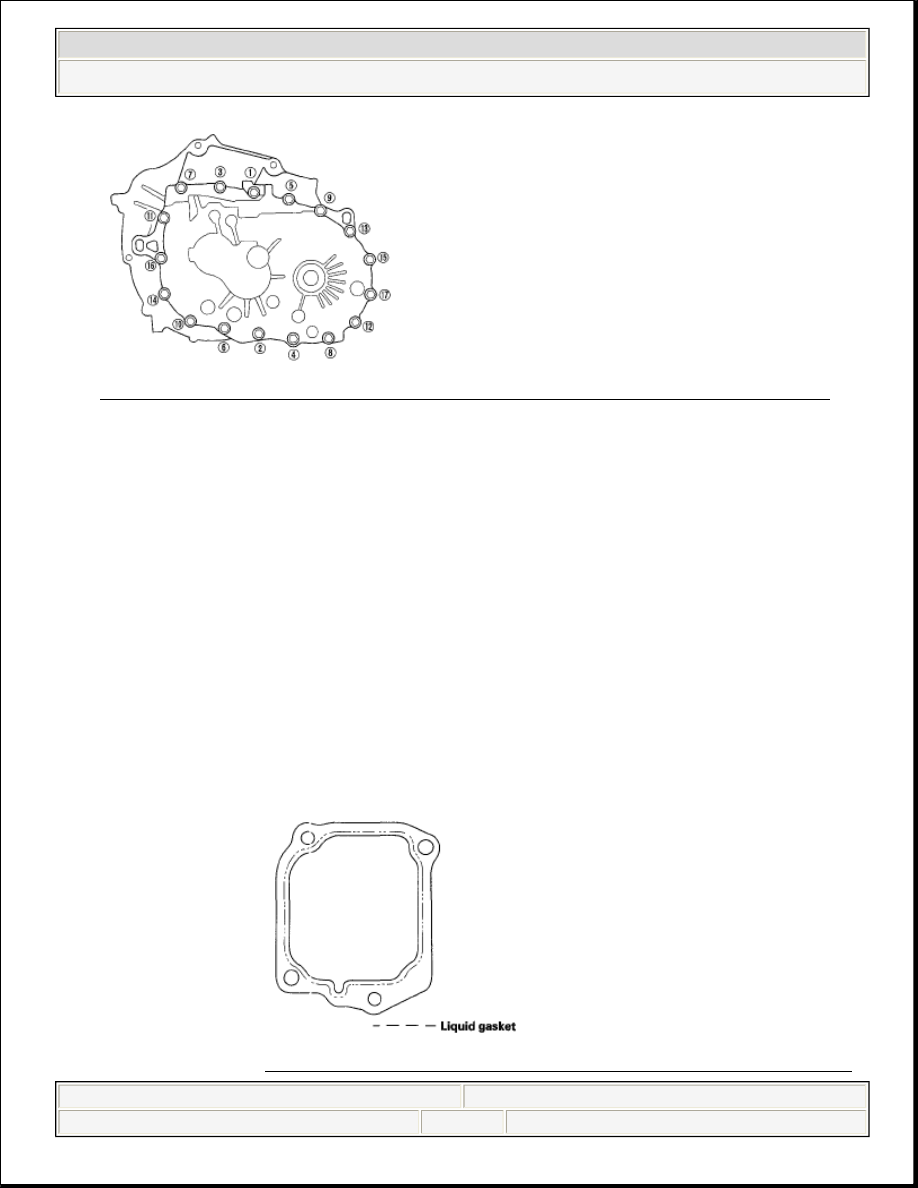

Fig. 180: Tightening Flange Bolts w/Torque Spec. In Crisscross Pattern
Courtesy of AMERICAN HONDA MOTOR CO., INC.

16. Clean any dirt or oil from the change lever assembly sealing surface.
17. Apply liquid gasket, P/N 08718-0001, evenly to the mating surface of the

charge lever assembly and the transmission housing. Install the component
within 5 minutes of applying the liquid gasket.

NOTE:



If you apply liquid gasket P/N 08718-0012, the
component must be installed within 4 minutes.



If too much time has passed after applying the
liquid gasket, remove the old liquid gasket and
residue, then reapply new liquid gasket.



Allow it to cure at least 30 minutes after assembly
before filling the transmission with MTF.

Fig. 181: Applying Liquid Gasket To Mating Surface



2008 Honda Civic LX

2006-08 TRANSMISSION Manual Transmission (6-Speed)(Except Hybrid) - Civic



































18. Install the 8 x 14 mm dowel pins (B), change lever assembly (C), and harness

bracket A.

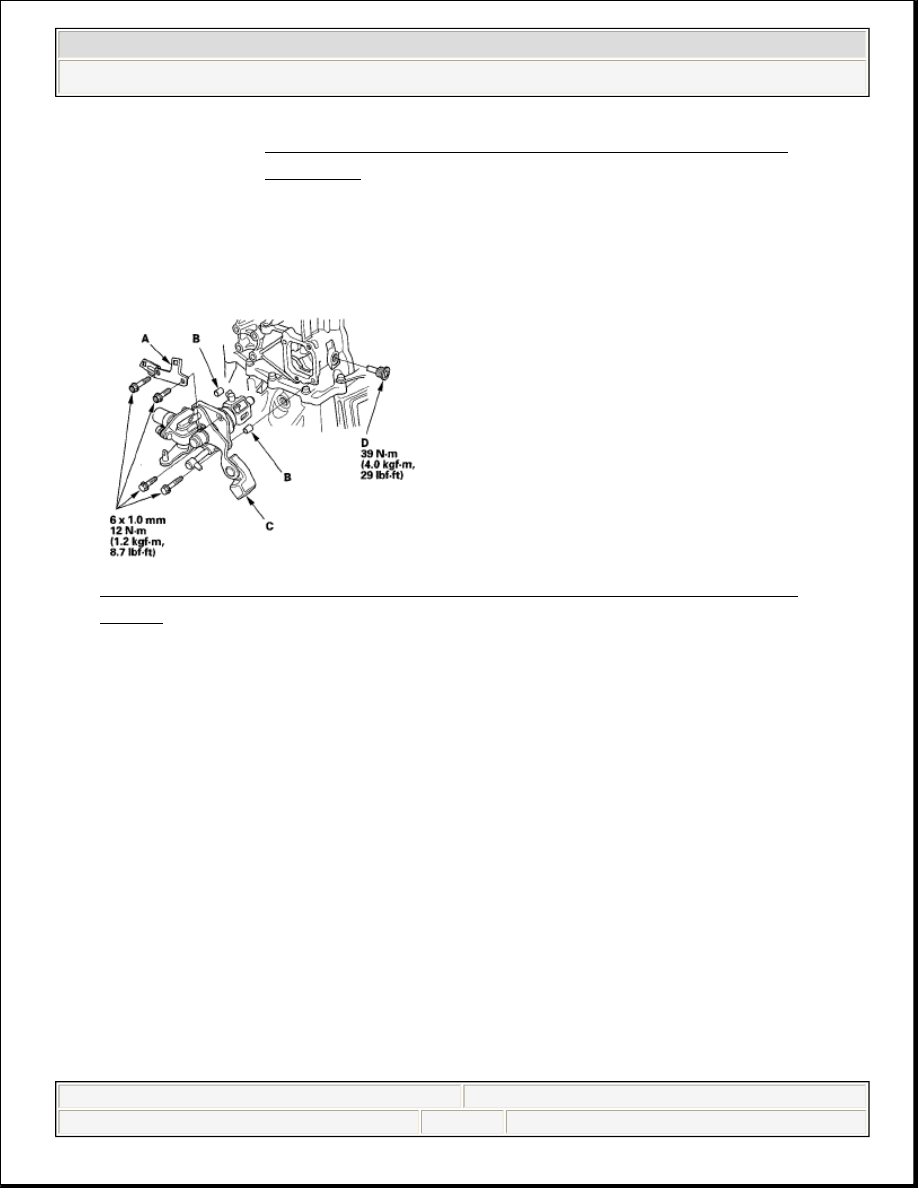

Fig. 182: Identifying Dowel Pins, Change Lever Assembly & Torque
Specs.

Courtesy of AMERICAN HONDA MOTOR CO., INC.

19. Apply liquid gasket, P/N 08718-0001, evenly to the mating surface of the

threads of the inter lock bolt (D) and transmission housing. Install the
component within 5 minutes of applying the liquid gasket.

20. Install the drain plug (A) and 10 mm flange bolt (B) with new sealing washers

(C). Install the filler plug (D) finger-tight.

Of Charge Lever Assembly And Transmission
Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE:



If you apply liquid gasket P/N 08718-0012, the
component must be installed within 4 minutes.



If too much time has passed after applying the
liquid gasket, remove the old liquid gasket and
residue, then reapply new liquid gasket.



2008 Honda Civic LX

2006-08 TRANSMISSION Manual Transmission (6-Speed)(Except Hybrid) - Civic



































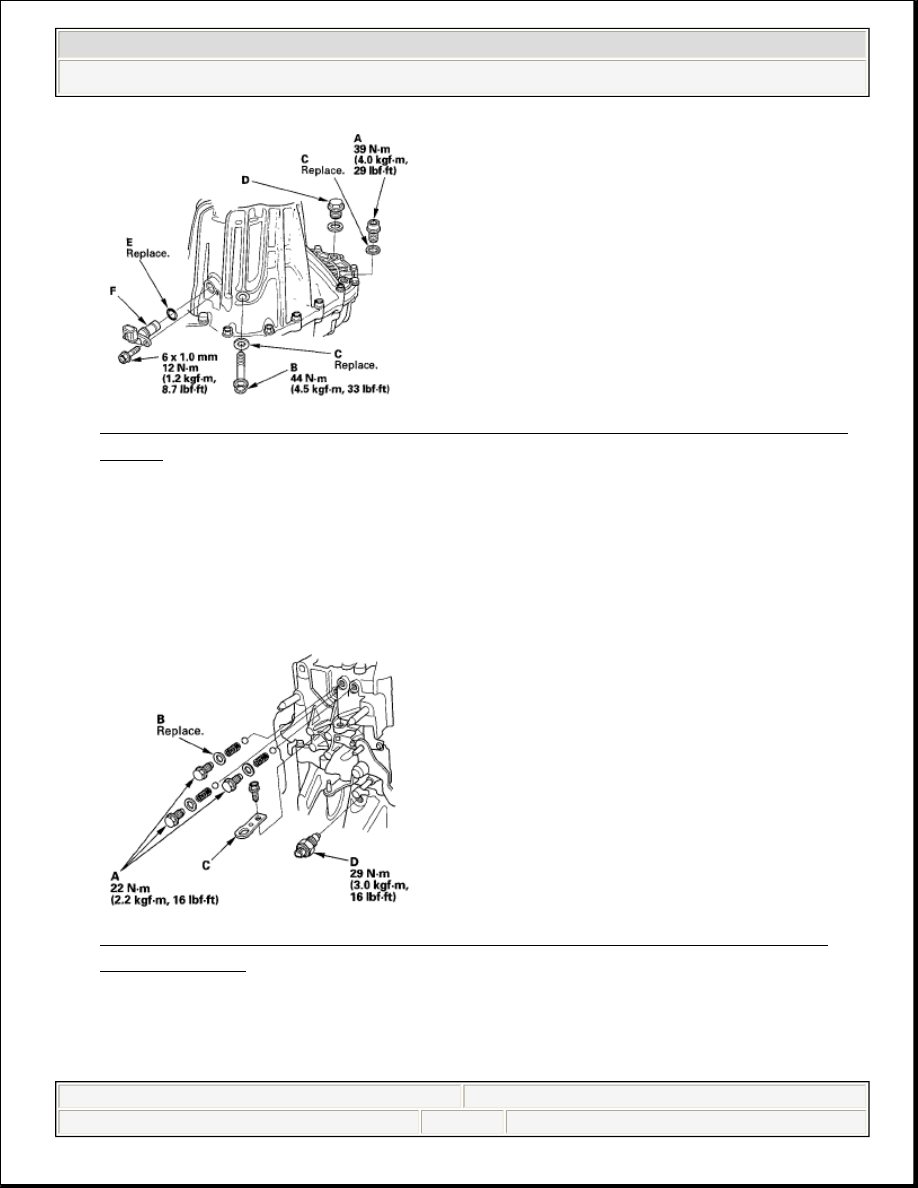

Fig. 183: Identifying Drain Plug, Flange Bolt, Sealing Washers & Torque
Specs.

Courtesy of AMERICAN HONDA MOTOR CO., INC.

21. Apply MTF to the new O-ring (E). Then install the new O-ring, and output

shaft (countershaft) speed sensor (F).

22. Install the detent bolts (A), the springs, and steel balls with new washers (B).

Then install the transmission hanger (C).

Fig. 184: Identifying Detent Bolts, Springs, Steel Balls, New Washers &
Torque Specs.

Courtesy of AMERICAN HONDA MOTOR CO., INC.

23. Apply liquid gasket, P/N 08718-0001 evenly to the threads of the back-up light

switch (D) mating surface of the transmission housing. Install the component
