Honda Civic. Manual - part 859





Hard to shift
into 6th gear

ring
defective.

2. 5th/6th

synchro
sleeve
defective.

3. 6th gear

defective.

4. Change lever

assembly
defective.

SYNCHRO RING AND GEAR
INSPECTION
 ).



Check the 5th/6th synchro sleeve and
hub (see SYNCHRO SLEEVE AND
HUB INSPECTION AND
REASSEMBLY
 ).



Check 6th gear (see SYNCHRO RING
AND GEAR INSPECTION
 ).



Check the change lever assembly (see
CHANGE LEVER ASSEMBLY
DISASSEMBLY/REASSEMBLY
 ).

Hard to shift
into reverse

1. Reverse shift

fork
defective.

2. Reverse idler

gear
defective.

3. Reverse gear

defective.

4. Change lever

assembly
defective.

5. Reverse

lockout
system
defective.



Check the reverse shift fork (see
REVERSE SHIFT FORK
CLEARANCE INSPECTION
 ).



Check the reverse idler gear (see
REVERSE SHIFT FORK
CLEARANCE INSPECTION
 ).



Check reverse gear.



Check the change lever assembly (see
CHANGE LEVER ASSEMBLY
DISASSEMBLY/REASSEMBLY
 ).



Check the reverse lockout system (see
CIRCUIT TROUBLESHOOTING ).

Noise from
the
transmission

1. Low

transmission
fluid level.

2. Worn or

damaged
transmission
gears.



Check the transmission fluid level (see
TRANSMISSION FLUID
INSPECTION AND
REPLACEMENT
 ).



Check the transmission gears.



2008 Honda Civic LX

2006-08 TRANSMISSION Manual Transmission (6-Speed)(Except Hybrid) - Civic



































TRANSMISSION FLUID INSPECTION AND REPLACEMENT

1. Raise the vehicle on a lift.
2. Remove the filler plug (A) and sealing washer (B), check the condition of the

fluid, and make sure it is at the proper level (C).

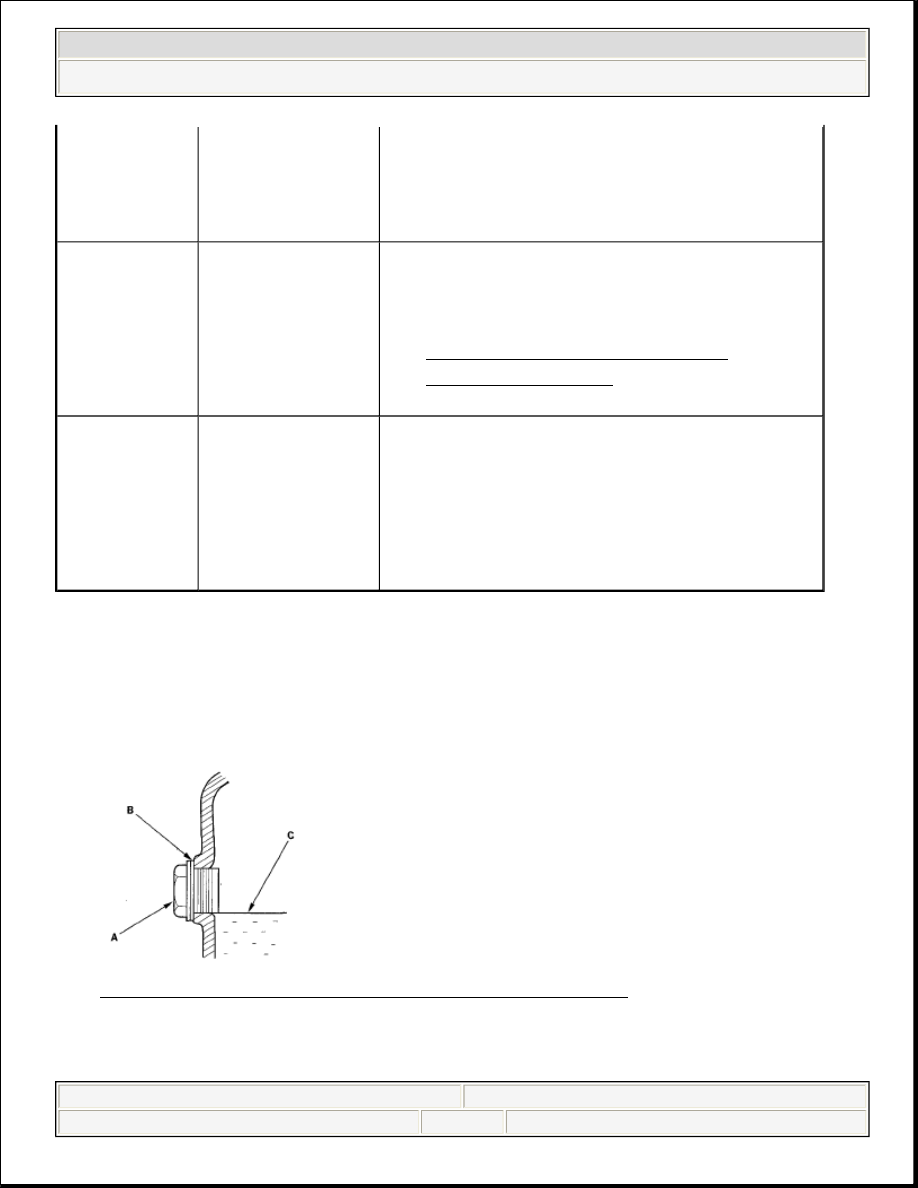

Fig. 18: Identifying Filler Plug And Sealing Washer
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. If the fluid is dirty, remove the drain plug (A), and sealing washer (B) drain it.

3. Worn or

damaged
transmission
bearings.



Check the transmission bearings.

Shift lever
does not
operate
smoothly

1. Shift cable

defective.

2. Joint in shift

cable and
transmission
or body.



Check the shift cables.



Check the joint in the shift cables (see
GEARSHIFT MECHANISM
REPLACEMENT
 ).

Transmission
jumps out of
gear

1. Detent ball

springs
defective.

2. Worn

synchro
teeth.



Check the detent ball springs.



Check the synchro teeth.



2008 Honda Civic LX

2006-08 TRANSMISSION Manual Transmission (6-Speed)(Except Hybrid) - Civic



































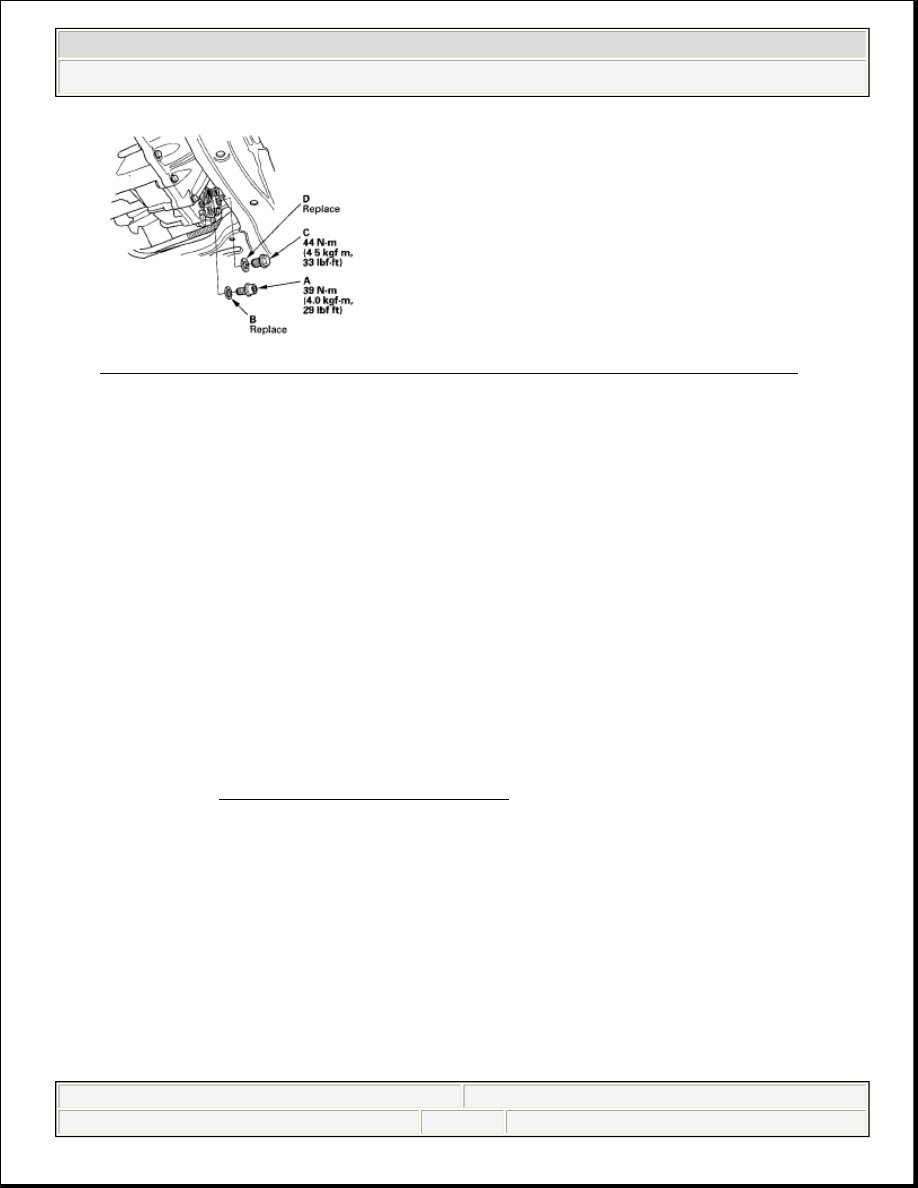

Fig. 19: Identifying Drain Plug And Sealing Washer w/Torque Spec.
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Install the drain plug with a new sealing washer, and refill the transmission

fluid to the proper level.

Fluid Capacity

1.5 L (1.6 US qt) at fluid change

1.7 L (1.8 US qt) at overhaul

Always use Honda Manual Transmission Fluid (MTF). Using engine oil can
cause stiffer shifting because it does not contain the proper additives.

5. Install the filler plug (C) with a new sealing washer (D).
6. If the maintenance minder required to replace the fluid, reset the maintenance

minder (see MAINTENANCE MINDER ).

If it did not reset, select BODY ELECTRICAL, GAUGES, ADJUSTMENT,
MAINTENANCE MINDER, RESET, MAINTENANCE SUB ITEM 3 with
the HDS.

BACK-UP LIGHT SWITCH TEST

1. Disconnect the back-up light switch connector (A).



2008 Honda Civic LX

2006-08 TRANSMISSION Manual Transmission (6-Speed)(Except Hybrid) - Civic



































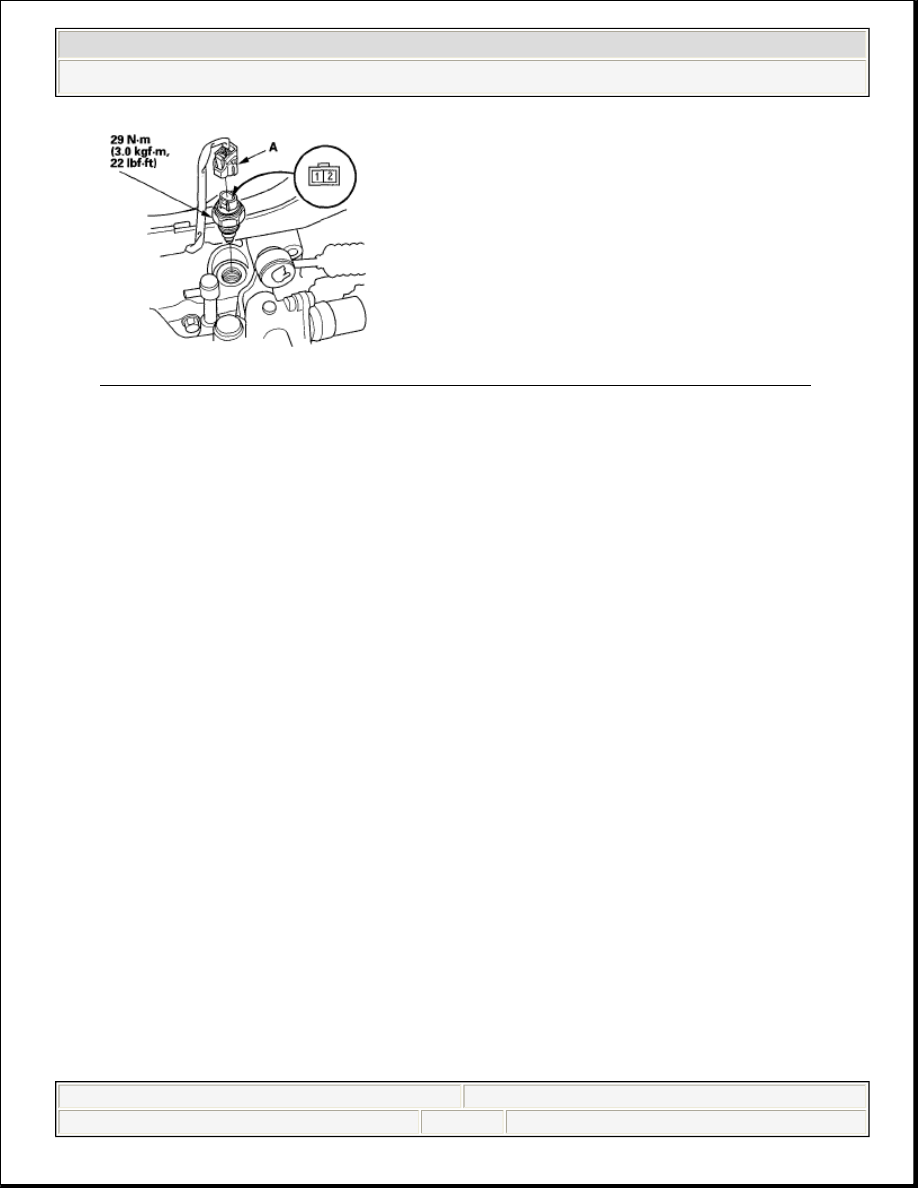

Fig. 20: Identifying Back-Up Light Switch Connector w/Torque Spec.
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Check for continuity between the back-up light switch 2P connector terminals

No. 1 and No. 2. There should be continuity when the change lever is only in
reverse.

3. If necessary, replace the back-up light switch. Apply liquid gasket (P/N 08718-

0001) evenly to the threads of the transmission housing. Install the switch
within 5 minutes of applying the liquid gasket. Tighten the back-up light
switch to the specified torque.

TRANSMISSION REMOVAL

Special Tools Required



Engine hanger/adapter VSB02C000015



Engine support hanger, A & Reds AAR-T-12566



Front subframe adapter VSB02C000016



2006 Civic engine hanger VSB02C000025

These special tools are available through the Honda Tool and Equipment Program

NOTE:



If you apply liquid gasket P/N 08718-0012, the
component must be installed within 4 minutes.



If too much time has passed after applying the
liquid gasket, remove the old liquid gasket and
residue, then reapply new liquid gasket.



2008 Honda Civic LX

2006-08 TRANSMISSION Manual Transmission (6-Speed)(Except Hybrid) - Civic
