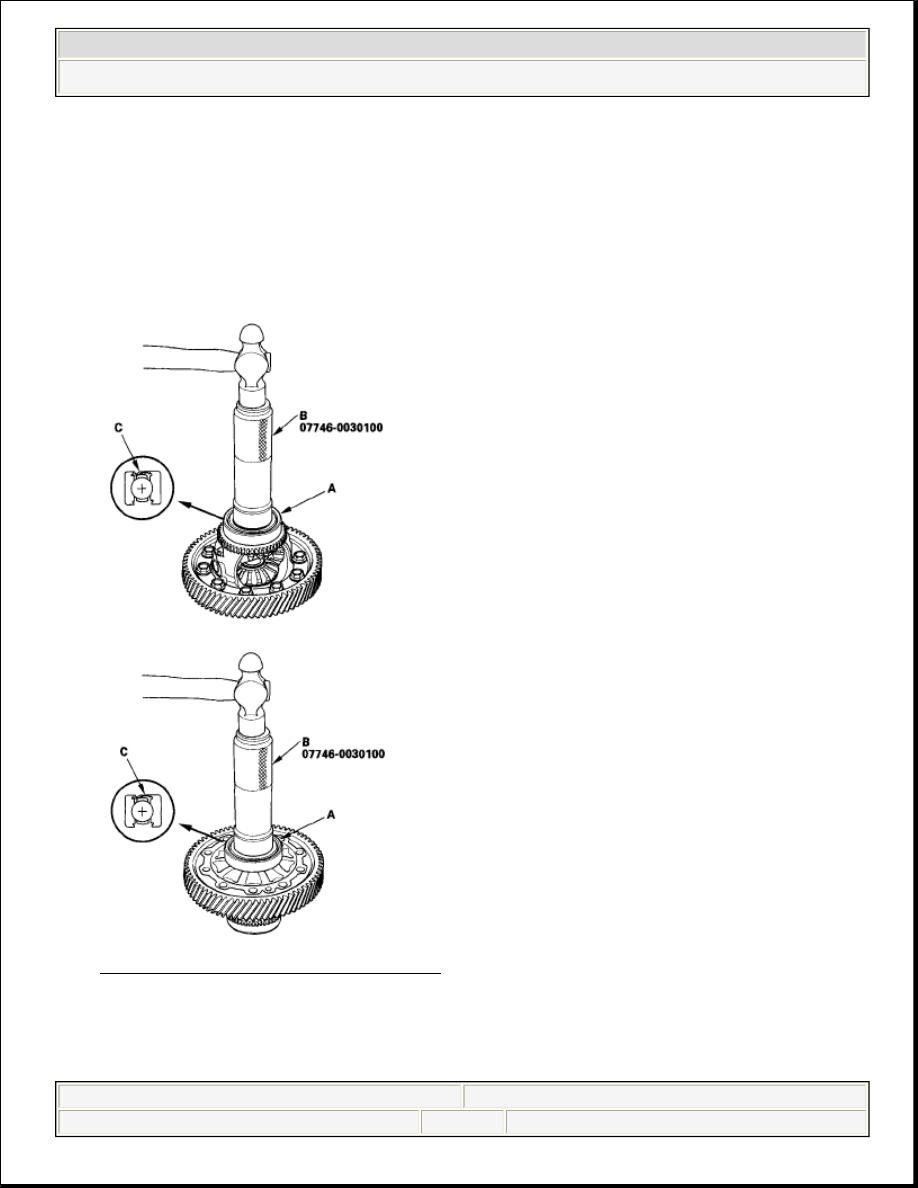

3. Install the new bearings (A) with the 40 mm I.D. driver (B) and a press. Press

on each bearing until it bottoms. There should be no clearance between the
bearings and the carrier.

Fig. 161: Identifying Special Tool
Courtesy of AMERICAN HONDA MOTOR CO., INC.

OIL SEAL REPLACEMENT

NOTE:

Place the seal (C) part of the bearing towards the
outside of the differential, and install it.



2008 Honda Civic LX

2006-08 TRANSMISSION Manual Transmission (SPFM) 5-Speed) - Civic



































Special Tools Required



Oil seal driver 07JAD-PL90100



Oil seal driver attachment 07NAD-P20A100



Driver 07749-0010000

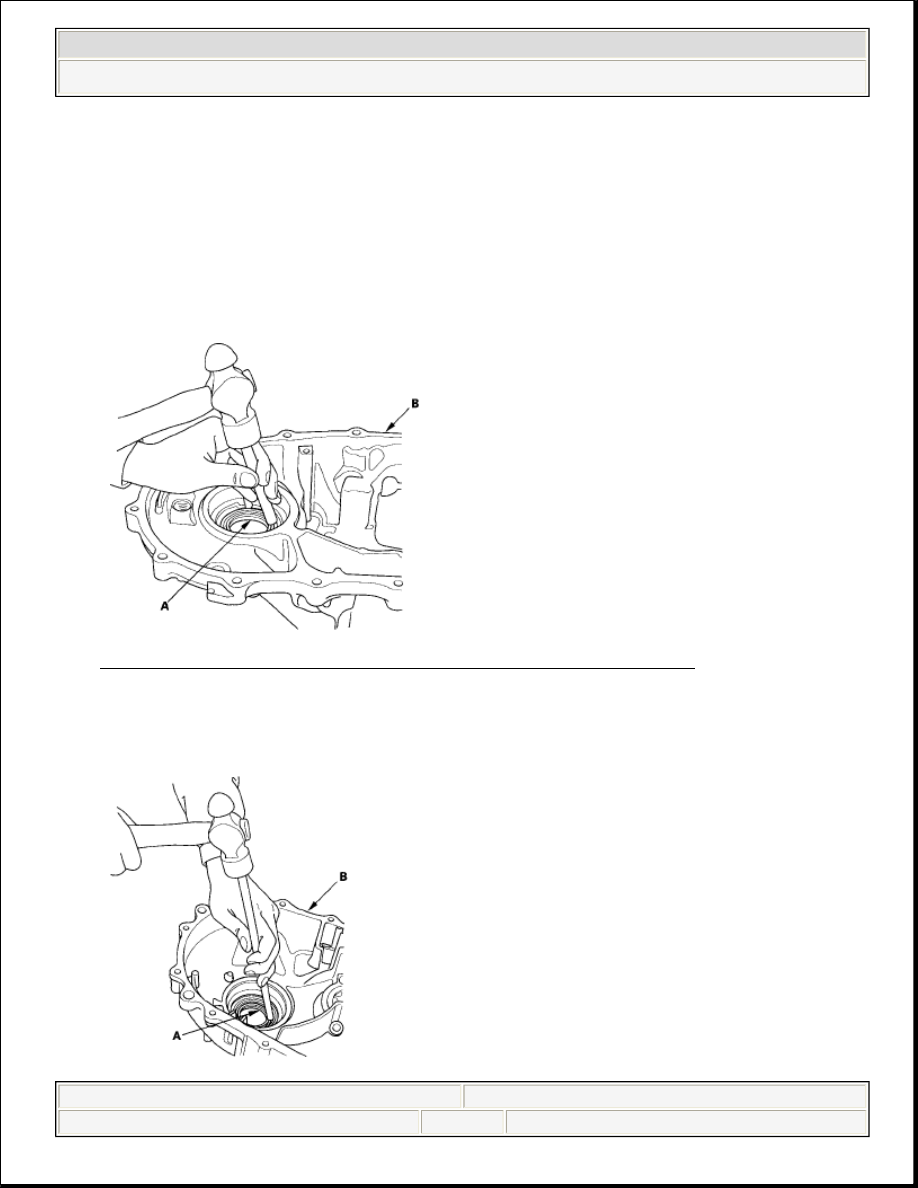

1. Remove the oil seal (A) from the transmission housing (B).

Fig. 162: Identifying Oil Seal From Transmission Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Remove the oil seal (A) from the clutch housing (B).



2008 Honda Civic LX

2006-08 TRANSMISSION Manual Transmission (SPFM) 5-Speed) - Civic



































Fig. 163: Identifying Oil Seal From Clutch Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

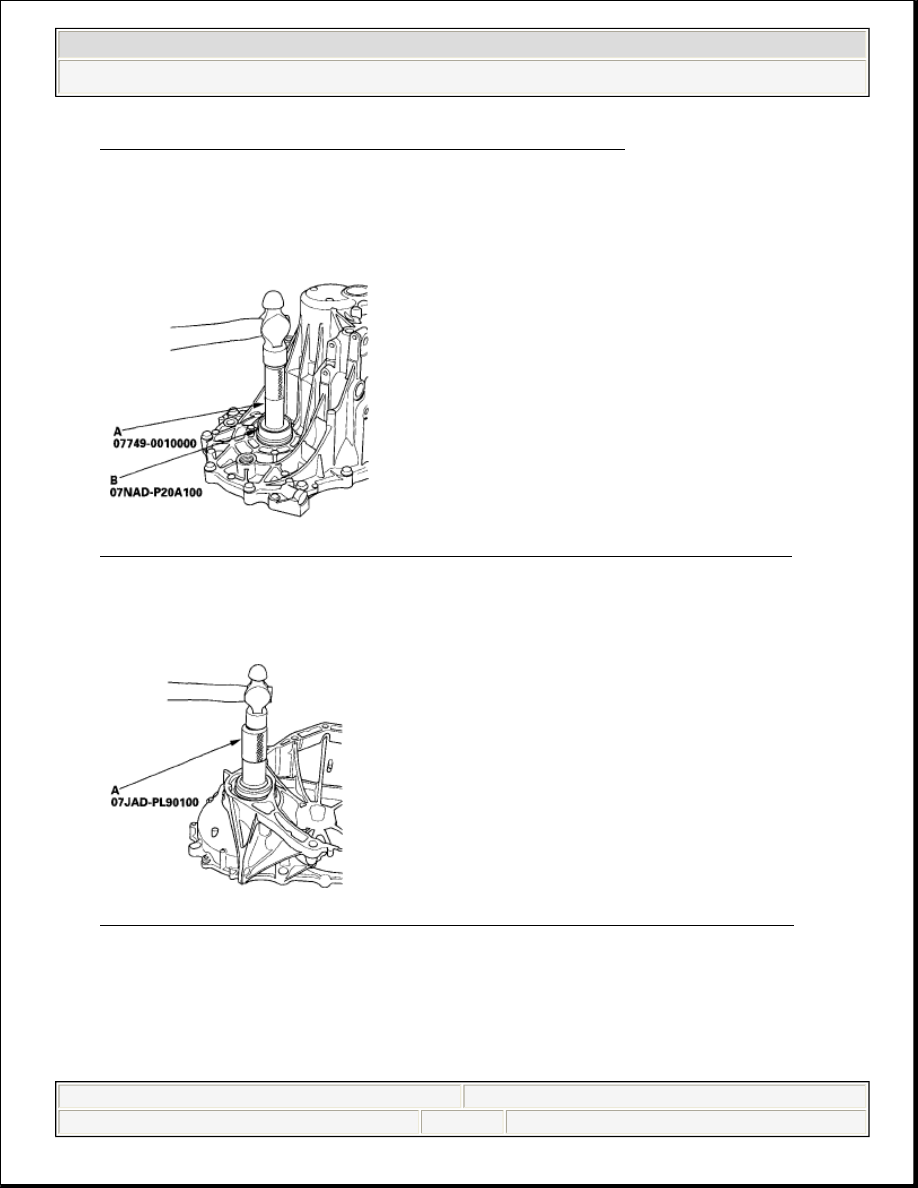

3. Install the new oil seal in the transmission housing with the driver (A) and oil

seal driver attachment (B).

Fig. 164: Identifying Oil Seal In Transmission Housing With Driver
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Install the new oil seal in the clutch housing with the oil seal driver (A).

Fig. 165: Installing Oil Seal In Clutch Housing With Oil Seal Driver
Courtesy of AMERICAN HONDA MOTOR CO., INC.

DIFFERENTIAL THRUST CLEARANCE ADJUSTMENT

Special Tool Required



2008 Honda Civic LX

2006-08 TRANSMISSION Manual Transmission (SPFM) 5-Speed) - Civic



































Driver, 40 mm I.D. 07746-0030100

1. If you removed the 80 mm shim from the transmission housing, reinstall the

same size shim.

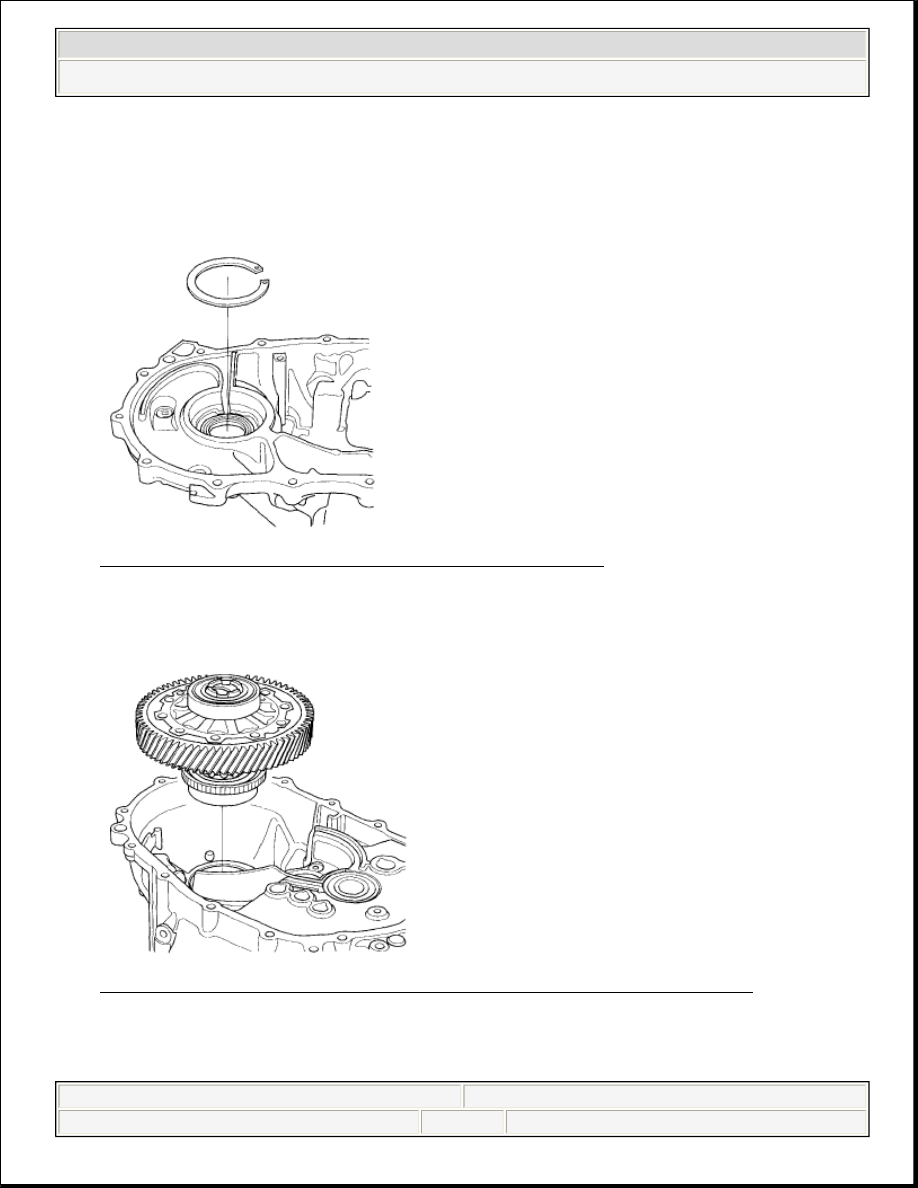

Fig. 166: Identifying Transmission Housing Shim
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Install the differential assembly into the clutch housing.

Fig. 167: Identifying Differential Assembly Into Clutch Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Install the transmission housing onto the clutch housing, then tighten the 8 mm



2008 Honda Civic LX

2006-08 TRANSMISSION Manual Transmission (SPFM) 5-Speed) - Civic
