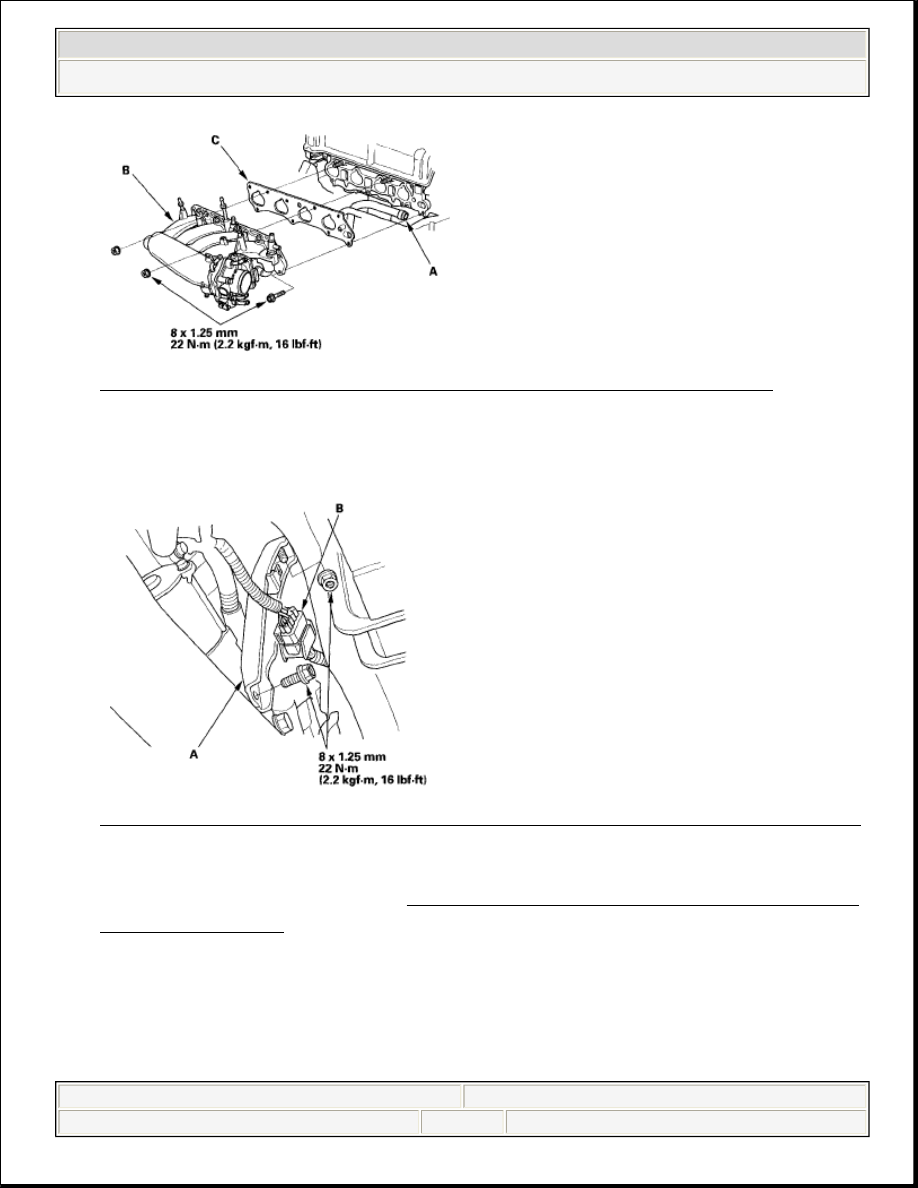

Fig. 32: Identifying Intake Manifold (With Torque Specifications)

2. Raise the vehicle on the lift to full height.
3. Install the intake manifold bracket (A), then install the connector (B).

Fig. 33: Identifying Intake Manifold Bracket (With Torque Specifications)

4. Lower the vehicle on the lift.
5. Connect the fuel feed hose (see FUEL LINE/QUICK-CONNECT FITTING

INSTALLATION ), then install the quick-connect fitting cover (A).

2008 Honda Civic GX

2006-08 ENGINE Intake Manifold and Exhaust System - Civic (Except Hybrid)

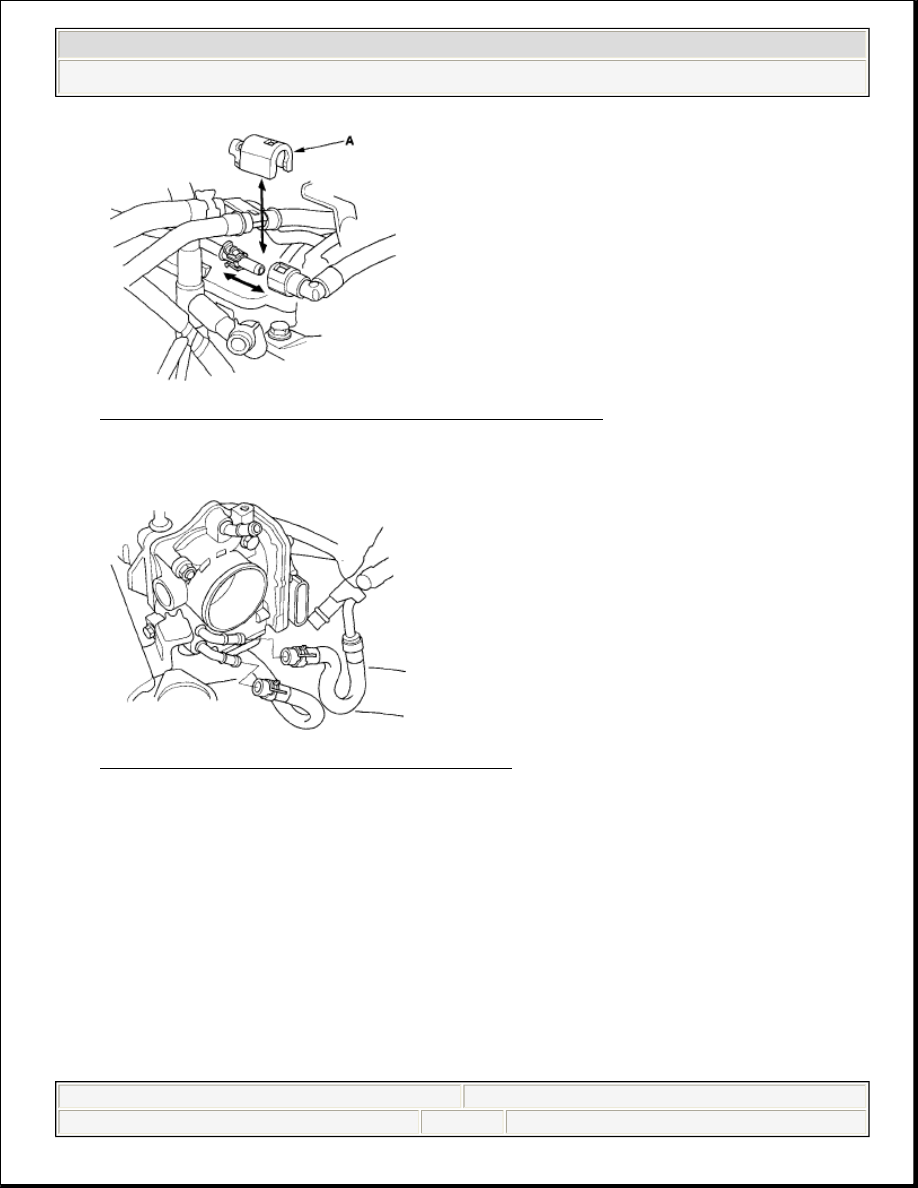

Fig. 34: Identifying Quick-Connect Fitting Cover

6. Install the water bypass hoses.

Fig. 35: Identifying Water Bypass Hoses

7. Install the positive crankcase ventilation (PCV) hose (A), evaporative emission

(EVAP) canister hose (B) and brake booster vacuum hose (C).

2008 Honda Civic GX

2006-08 ENGINE Intake Manifold and Exhaust System - Civic (Except Hybrid)

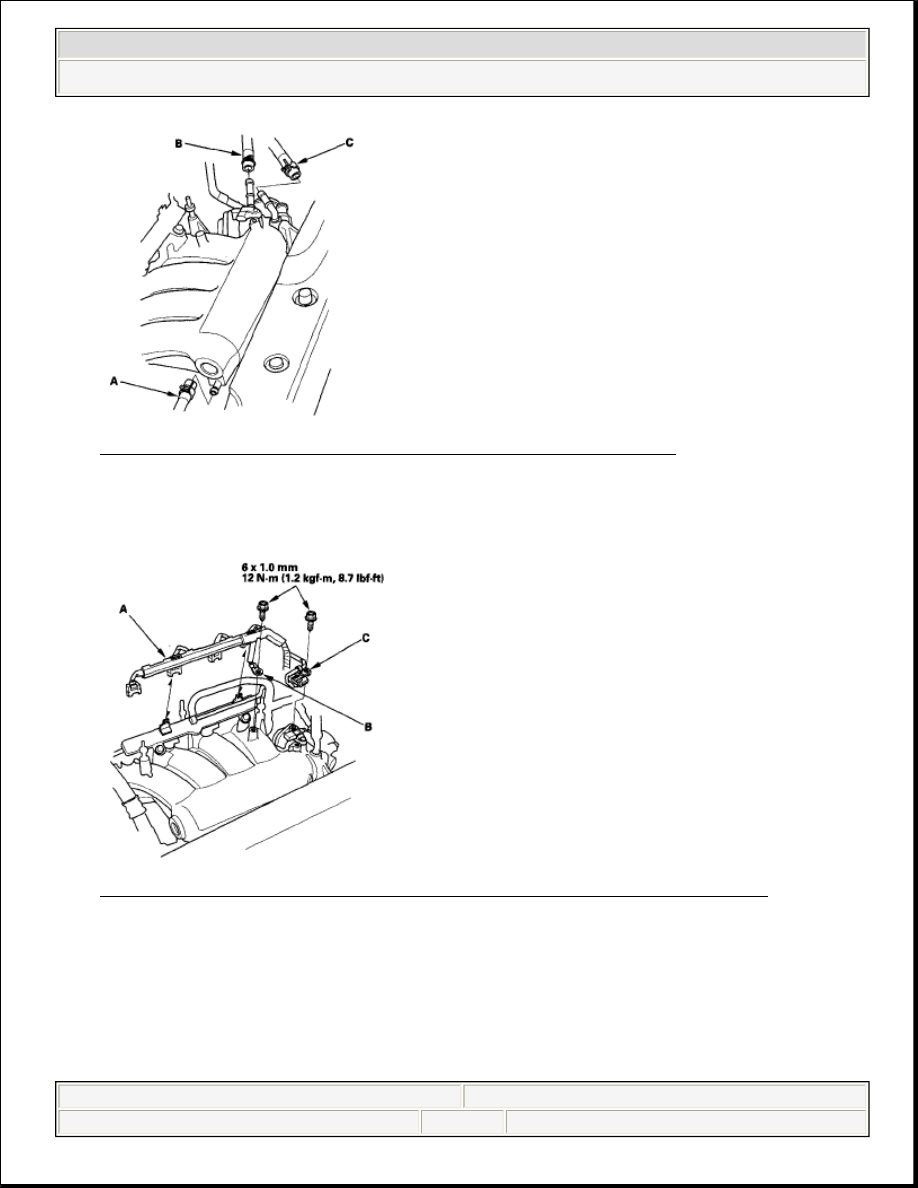

Fig. 36: Identifying Positive Crankcase Ventilation Hose

8. Install the harness holder (A) to the stay, then install the ground cable (B) and

harness clamp bracket (C).

Fig. 37: Identifying Harness Holder (With Torque Specifications)

9. Connect the engine wire harness connectors, and install the wire harness

clamps to the intake manifold.

Four fuel injector connectors

Manifold absolute pressure (MAP) sensor connector

Throttle actuator connector

2008 Honda Civic GX

2006-08 ENGINE Intake Manifold and Exhaust System - Civic (Except Hybrid)

10. Install the air intake duct (A), then install the vacuum hose (B) and breather

pipe (C).

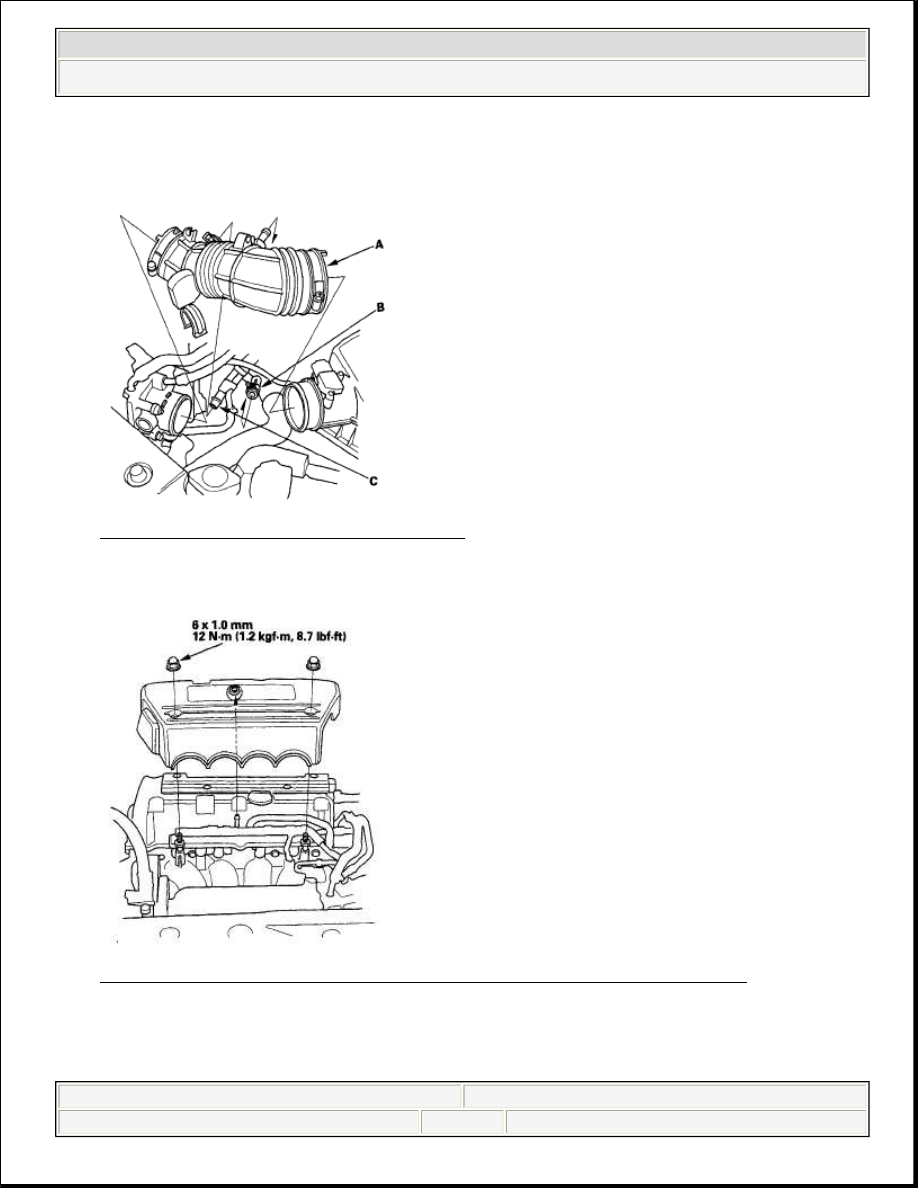

Fig. 38: Identifying Air Intake Duct

11. Install the engine cover.

Fig. 39: Identifying Engine Cover (With Torque Specifications)

12. Clean up any spilled engine coolant.
13. After installation, check that all tubes, hoses and connectors are installed
