NO - Replace the under-hood fuse/relay box (see REMOVAL AND
INSTALLATION
 ).

9. Connect the A/C compressor clutch relay 4P socket terminals No. 1 and No. 2

with a jumper wire.

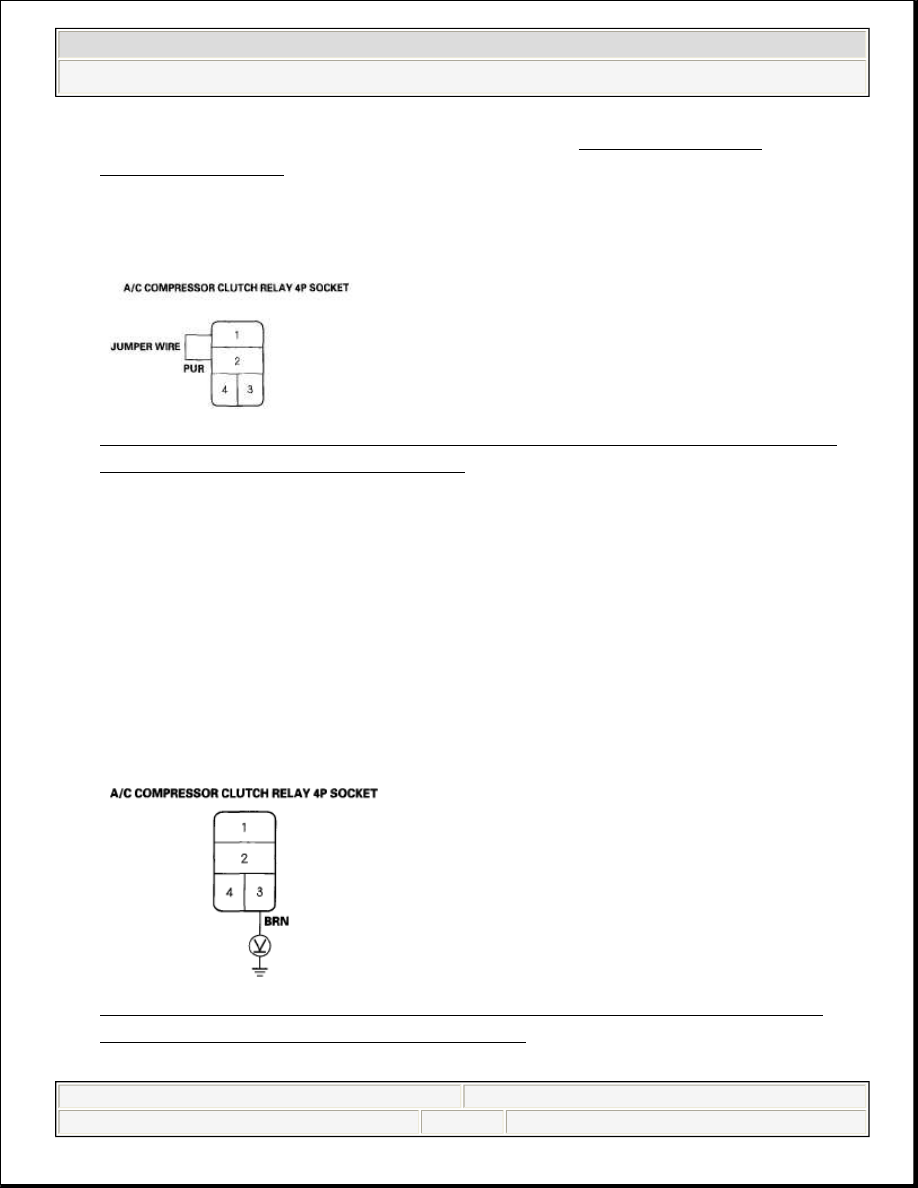

Fig. 62: Connecting A/C Compressor Clutch Relay 4P Socket Terminals
No. 1 And No. 2 With Jumper Wire


Does the A/C compressor clutch click?

YES - Go to step 10.

NO - Go to step 19.

10. Disconnect the jumper wire.
11. Turn the ignition switch ON (II).
12. Measure the voltage between the A/C compressor clutch relay 4P socket

terminal No. 3 and body ground.

Fig. 63: Measuring Voltage Between A/C Compressor Clutch Relay 4P
Socket Terminal No. 3 And Body Ground




2008 Honda Civic EX

2006-08 HVAC Heating/Air Conditioning - Civic (All Except Hybrid)



































Is there battery voltage?

YES - Go to step 13.

NO - Repair open in the wire between the No. 36 (10 A) fuse in the under-dash
fuse/relay box and the A/C compressor clutch relay.

13. Turn the ignition switch to LOCK (0).
14. Reinstall the A/C compressor clutch relay.
15. Jump the SCS line with the HDS.

16. Disconnect ECM/PCM connector A (44P).
17. Connect the ECM/PCM connector A (44P) terminal No. 14 to body ground

with a jumper wire.

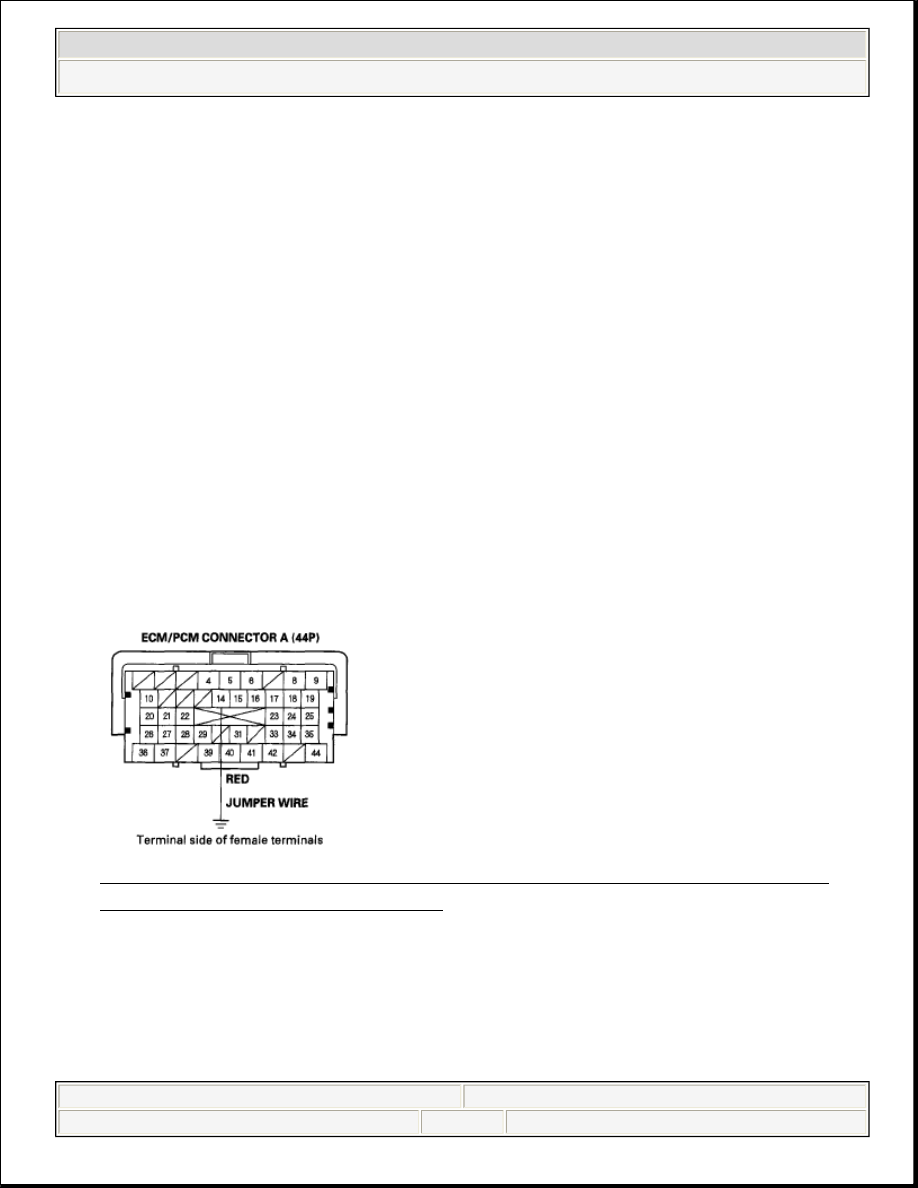

Fig. 64: Connecting ECM/PCM Connector A (44P) Terminal No. 14 To
Body Ground With Jumper Wire


18. Turn the ignition switch ON (II).

Does the A/C compressor click?

YES - Check for loose wires or poor connections at ECM/PCM connector A
(44P). If the connections are good, check the ECM/PCM grounds. If the

NOTE:

This step must be done to protect the engine control
module (ECM)/powertrain control module (PCM) from
damage.



2008 Honda Civic EX

2006-08 HVAC Heating/Air Conditioning - Civic (All Except Hybrid)



































grounds are good, substitute a known-good ECM/PCM, and recheck. If the
symptom/indication goes away, replace the original ECM/PCM, R18A1 engine
(see ECM/PCM REPLACEMENT ), K20Z3 engine (see ECM
REPLACEMENT
 ).

NO - Repair open in the wire between the A/C compressor clutch relay and the
ECM/PCM.

19. Disconnect the jumper wire.
20. Disconnect the A/C compressor clutch 3P connector.
21. Check for continuity between the A/C compressor clutch relay 4P socket

terminal No. 2 and the A/C compressor clutch 3P connector terminal No. 2.

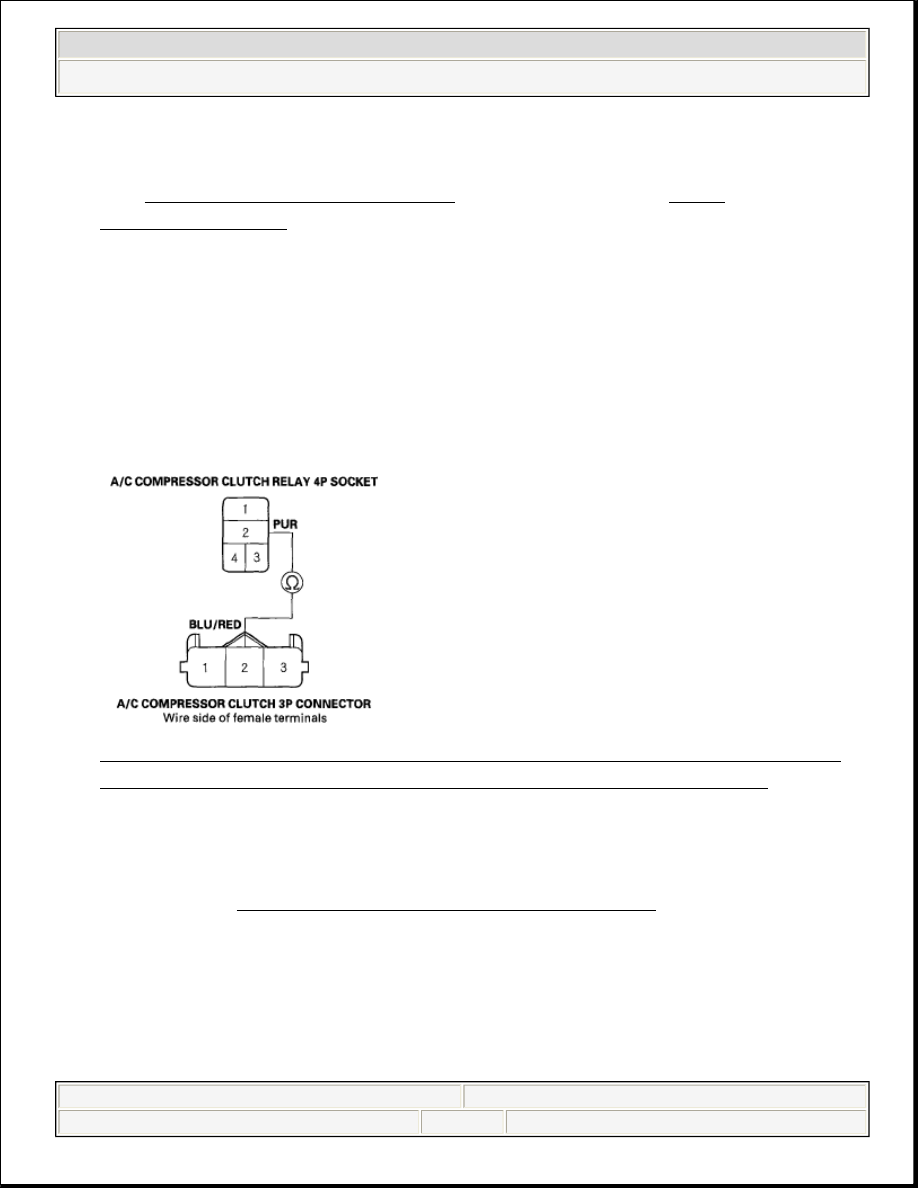

Fig. 65: Checking Continuity Between A/C Compressor Clutch Relay 4P
Socket Terminal No. 2 And A/C Compressor Clutch 3P Terminal


Is there continuity?

YES - Check the A/C compressor clutch clearance, and the compressor clutch
field coil (see A/C COMPRESSOR CLUTCH CHECK ). Repair as needed.

NO - Repair open in the wire between the A/C compressor clutch relay and the
A/C compressor clutch.

A/C SIGNAL CIRCUIT TROUBLESHOOTING



2008 Honda Civic EX

2006-08 HVAC Heating/Air Conditioning - Civic (All Except Hybrid)



































1. Turn the ignition switch to LOCK (0).
2. Disconnect the HVAC control unit 24P connector.
3. Turn the ignition switch ON (II).
4. Measure the voltage between the HVAC control unit 24P connector terminal

No. 11 and body ground.

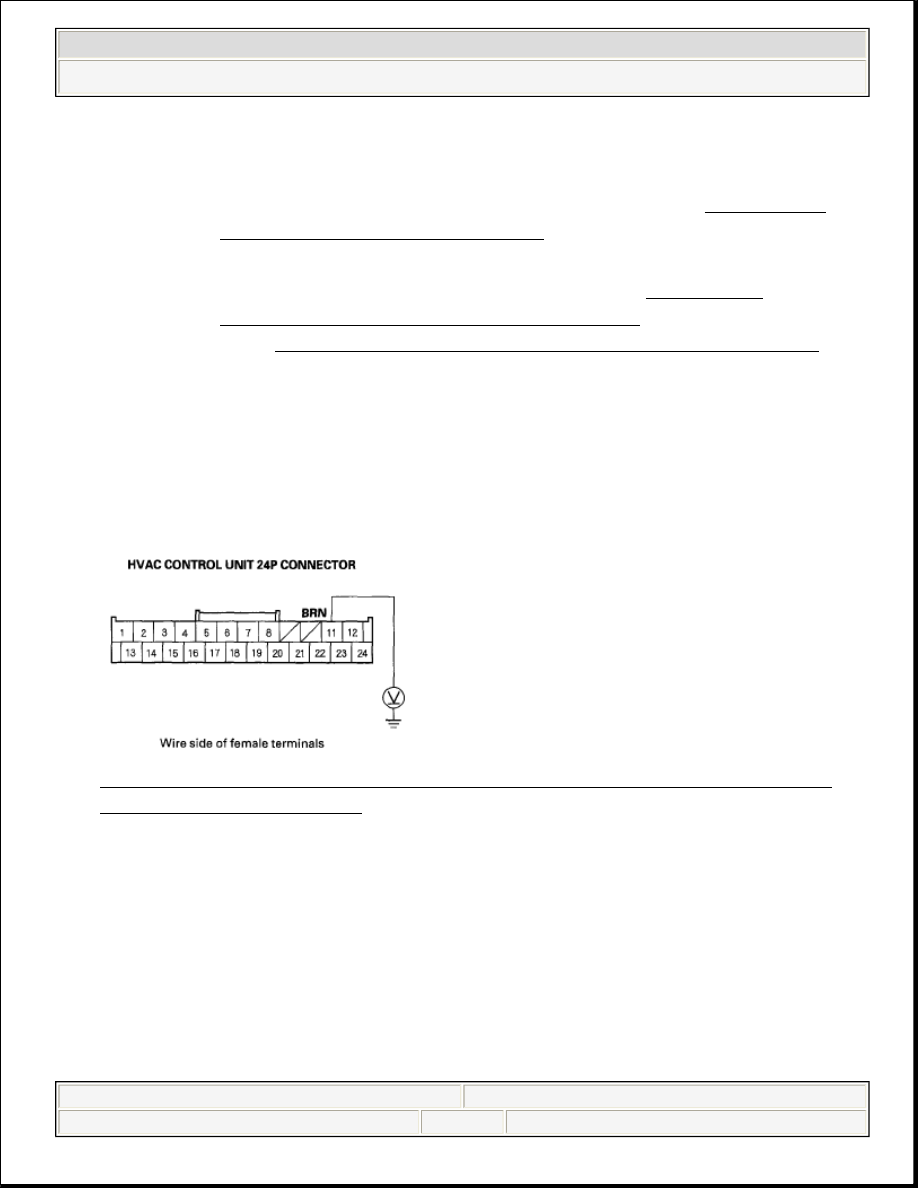

Fig. 66: Measuring Voltage Between HVAC Control Unit 24P Terminal
No. 11 And Body Ground


Is there voltage?

YES - Go to step 11.

NO - Go to step 5.

5. Turn the ignition switch to LOCK (0).
6. Disconnect the A/C compressor clutch 3P connector.
7. Turn the ignition switch ON (II).

NOTE:



Do not use this troubleshooting procedure if any of the
following items are operative; A/C condenser fan,
radiator fan, A/C compressor. Refer to the SYMPTOM
TROUBLESHOOTING INDEX.



Before performing symptom troubleshooting, check for
powertrain DTCs, R18A1 engine (see GENERAL
TROUBLESHOOTING INFORMATION ), K20Z3 engine
(see GENERAL TROUBLESHOOTING INFORMATION ).
