Honda Civic. Manual - part 720







Do not apply body primer to the windshield, and do not get body and glass
primer sponges mixed up.



Never touch the primed surfaces with your hands. If you do, the adhesive
may not bond to the windshield properly, causing a leak after the
windshield is installed.



Keep water, dust, and abrasive materials away from primed surfaces.

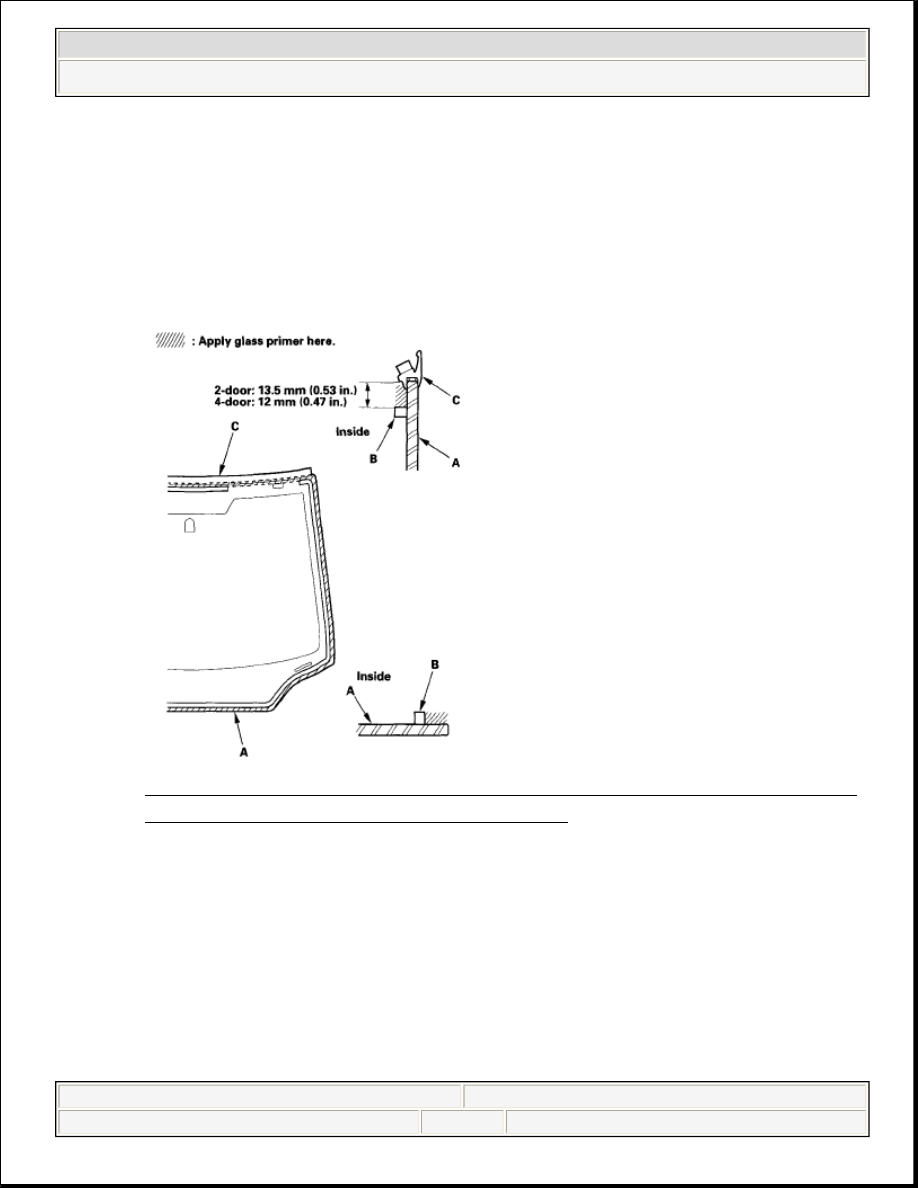

Fig. 13: Applying Glass Primer Around Edge Of Windshield Between
Dams And Molding (With Specifications)


18. With a sponge, carefully apply a light coat of body primer to any exposed paint

or metal around the flange where new adhesive will be applied. Let the primer
dry for at least 10 minutes:



Do not apply body primer to any remaining original adhesive on the
flange.



Be careful not to mix up the body and glass primer sponges.



Never touch the primed surfaces with your hands.



2008 Honda Civic EX

2006-08 ACCESSORIES & EQUIPMENT Glass - Civic (All Except Hybrid)

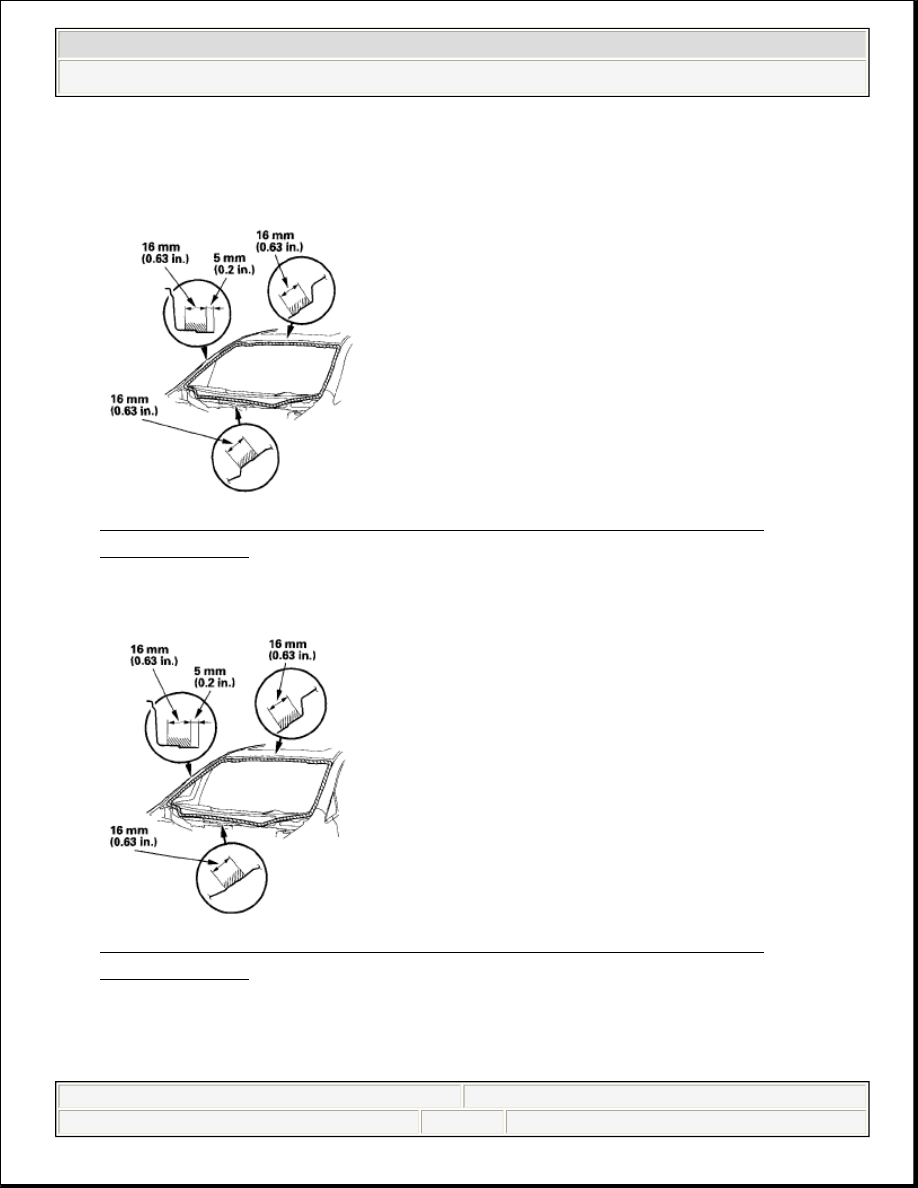

Apply body primer to shaded area shown in illustrations.

2-door

Fig. 14: Applying Body Primer To Exposed Paint (2-Door) (With
Specifications)


4-door

Fig. 15: Applying Body Primer To Exposed Paint (4-Door) (With
Specifications)

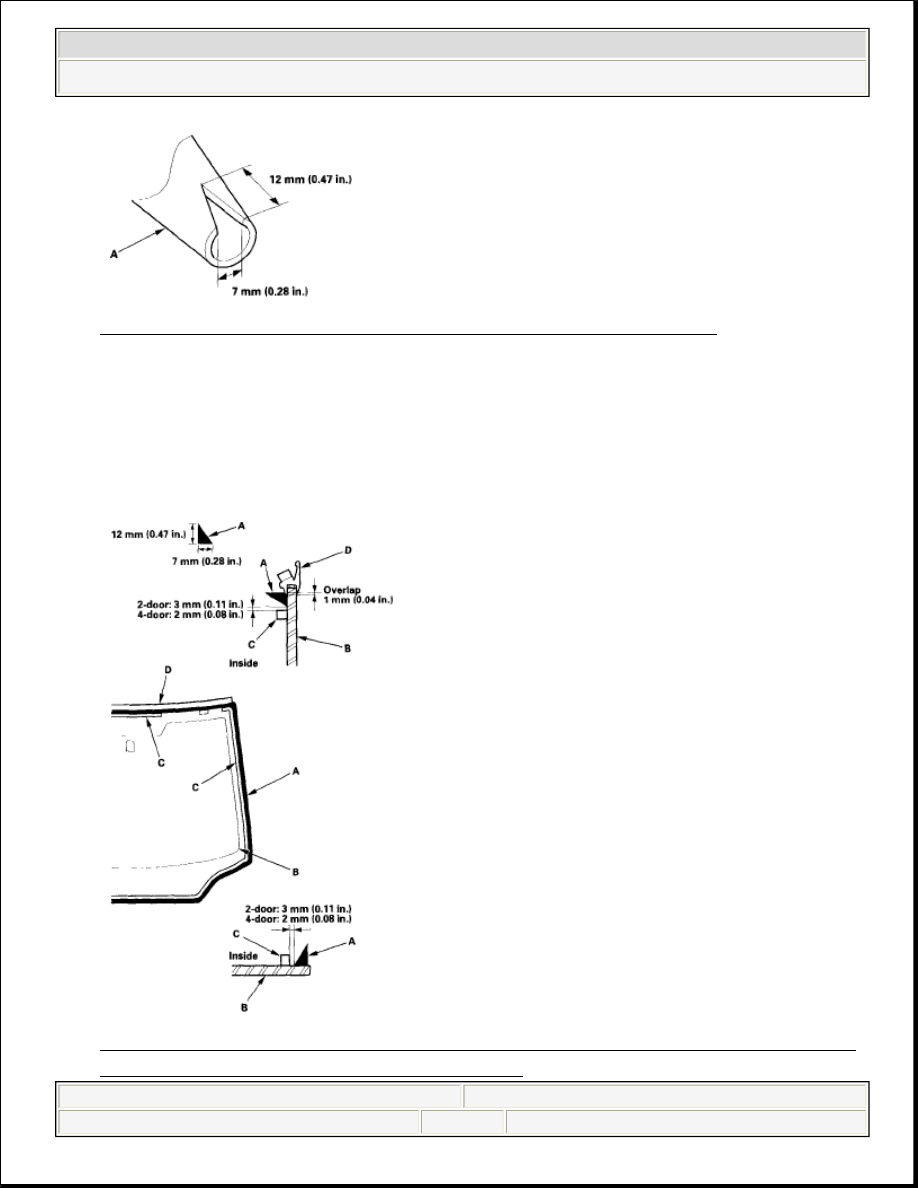

19. Cut a "V" in the end of the nozzle (A) on the adhesive cartridge as shown.



2008 Honda Civic EX

2006-08 ACCESSORIES & EQUIPMENT Glass - Civic (All Except Hybrid)



































Fig. 16: Cutting "V" In End Of Nozzle (With Specifications)

20. Pack adhesive into the cartridge without air pockets to ensure continuous

delivery. Put the cartridge in a caulking gun, and run a bead of adhesive (A)
around the edge of the windshield (B) between the dams (C) and molding (D)
as shown. Apply the adhesive within 30 minutes after applying the glass
primer. Make a slightly thicker bead at each corner.

Fig. 17: Running Bead Of Adhesive Around Edge Of Windshield Between
Dams And Molding (With Specifications)




2008 Honda Civic EX

2006-08 ACCESSORIES & EQUIPMENT Glass - Civic (All Except Hybrid)



































21. Pull out the glass side adhesive backing away from the lower rubber dam.
22. Use suction cups to hold the windshield over the opening, align it with the

alignment marks made in step 15, and set it down on the adhesive. Lightly
push on the windshield until its edges are fully seated on the adhesive all the
way around.

23. Scrape or wipe the excess adhesive off with a putty knife or towel. To remove

adhesive from a painted surface or the windshield, wipe with a soft shop towel
dampened with alcohol.

24. After the adhesive has dried, spray water over the windshield and check for

leaks. Mark the leaking areas, let the windshield dry, then seal with sealant:



Let the vehicle stand for at least 4 hours after windshield installation. If
the vehicle has to be used within the first 4 hours, it must be driven
slowly.



Keep the windshield dry for the first hour after installation.

25. Reinstall all remaining removed parts.

FRONT CORNER GLASS REPLACEMENT

4-DOOR

NOTE:

Do not open or close any of the doors for about an hour
until the adhesive is dry.

NOTE:

Advise the customer not to do the following things for 2
to 3 days:



Slam the doors with all the windows rolled up.



Twist the body excessively (such as when going in
and out of driveways at an angle or driving over
rough, uneven roads).

NOTE:



Put on gloves to protect your hands.



Wear eye protection while cutting the glass adhesive.



2008 Honda Civic EX

2006-08 ACCESSORIES & EQUIPMENT Glass - Civic (All Except Hybrid)
