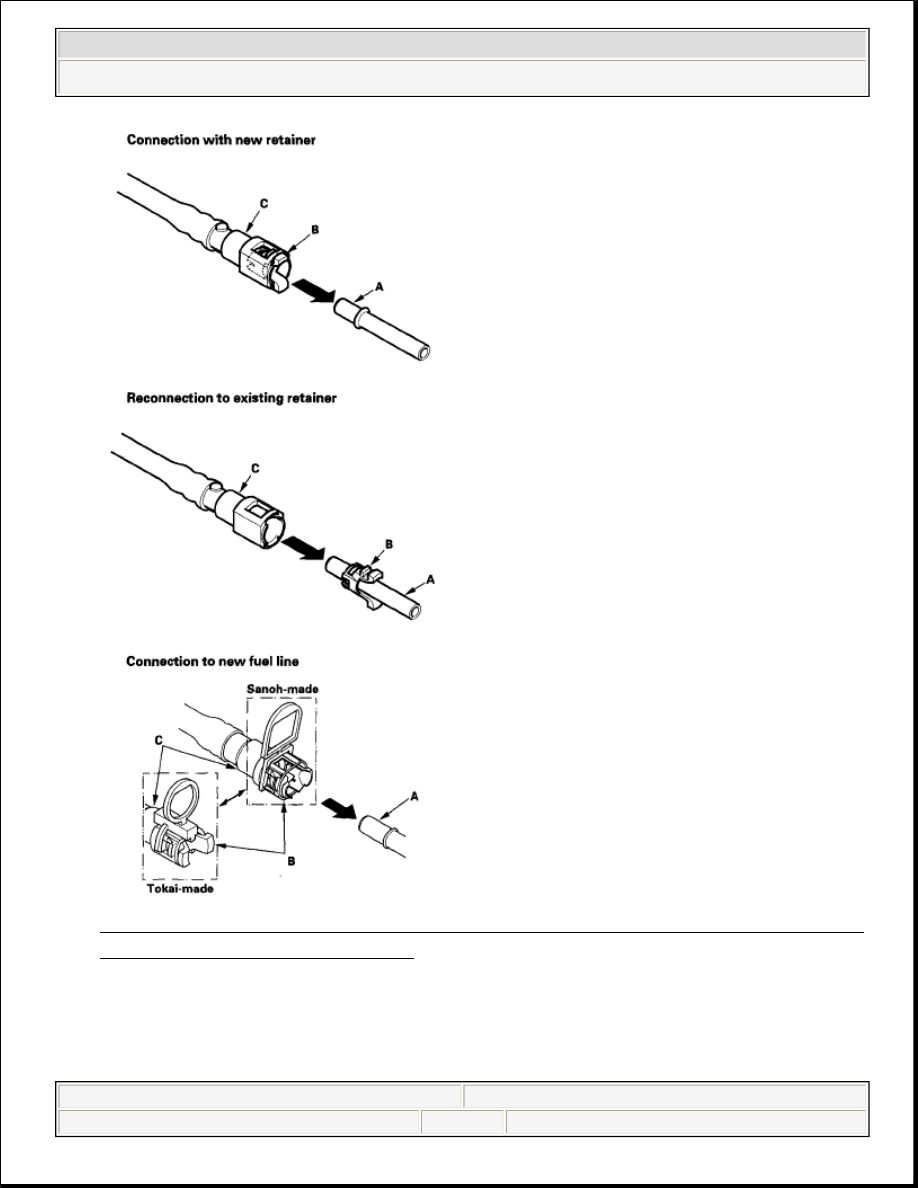

Fig. 44: Aligning Quick-Connect Fittings With Line And Retainer Locking
Tabs With Connector Grooves

Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. When you reconnect the connector with the old retainer, make sure the

connection is secure and the tabs are firmly locked into place; check visually



2008 Honda Civic GX

2006-08 ENGINE PERFORMANCE Fuel Supply System (R18A1) - Civic (Except Hybrid)



































and also by pulling the connector. When you replace the fuel line with a new
one, make sure you remove the ring pull upwards after you confirm the
connection is secure.

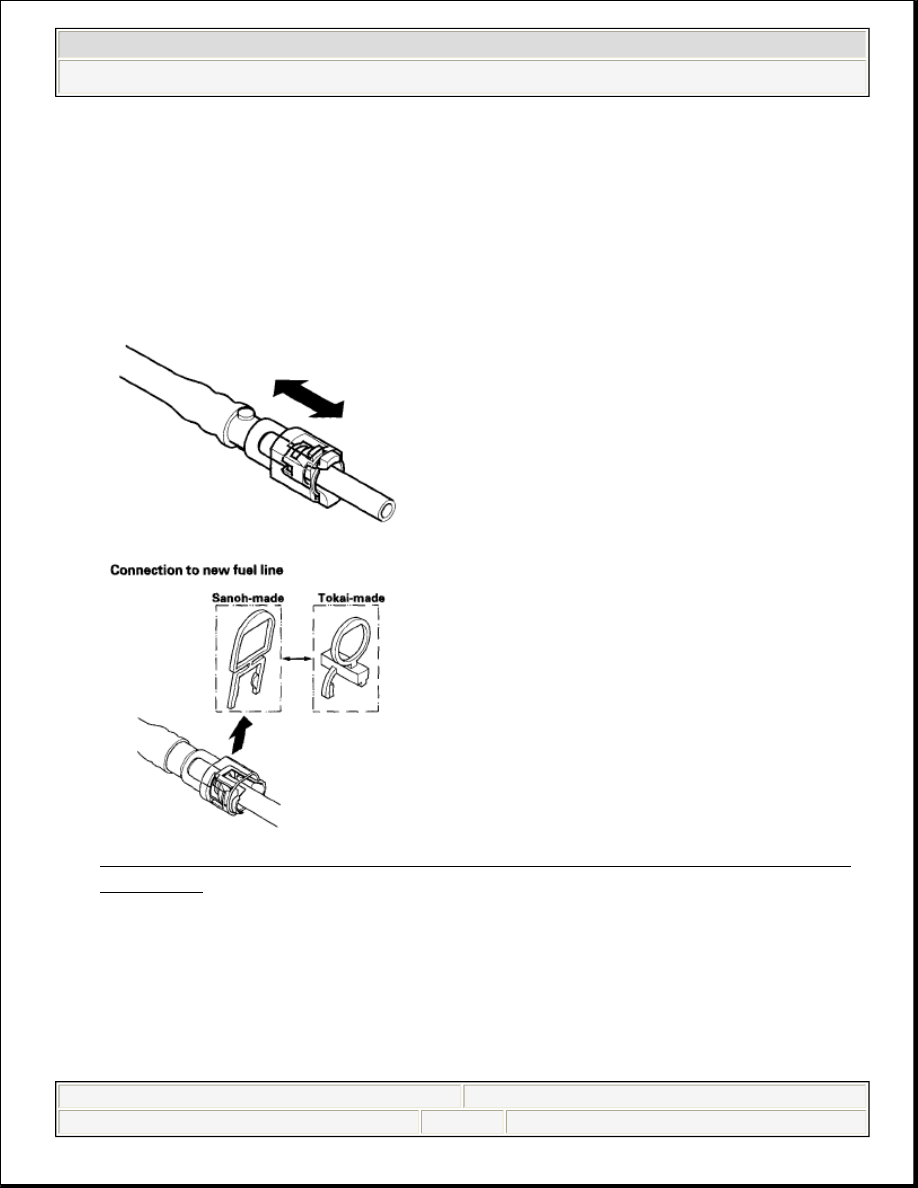

Fig. 45: Making Sure Connection Is Secure And Tabs Are Firmly Locked
Into Place

Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Reconnect the negative cable to the battery, and turn the ignition switch ON

(II) (but do not operate the starter motor). The fuel pump will run for about 2
seconds, and fuel pressure will rise. Repeat this two or three times, and check
that there is no leakage in the fuel supply system.

NOTE:

Before you remove the ring pull, make sure the fuel line
connection is secure. If the connection is not secure,
the ring pull could break when you try to remove it.



2008 Honda Civic GX

2006-08 ENGINE PERFORMANCE Fuel Supply System (R18A1) - Civic (Except Hybrid)



































FUEL TANK UNIT REMOVAL/INSTALLATION

Special Tools Required

Fuel pump module locknut wrench 07AAA-SNAA100

REMOVAL

1. Relieve the fuel pressure (see FUEL PRESSURE RELIEVING ).
2. Remove the fuel fill cap.
3. Remove the rear seat cushion (see REAR SEAT

REMOVAL/INSTALLATION ).

4. Remove the rear floor upper cross-member (A).

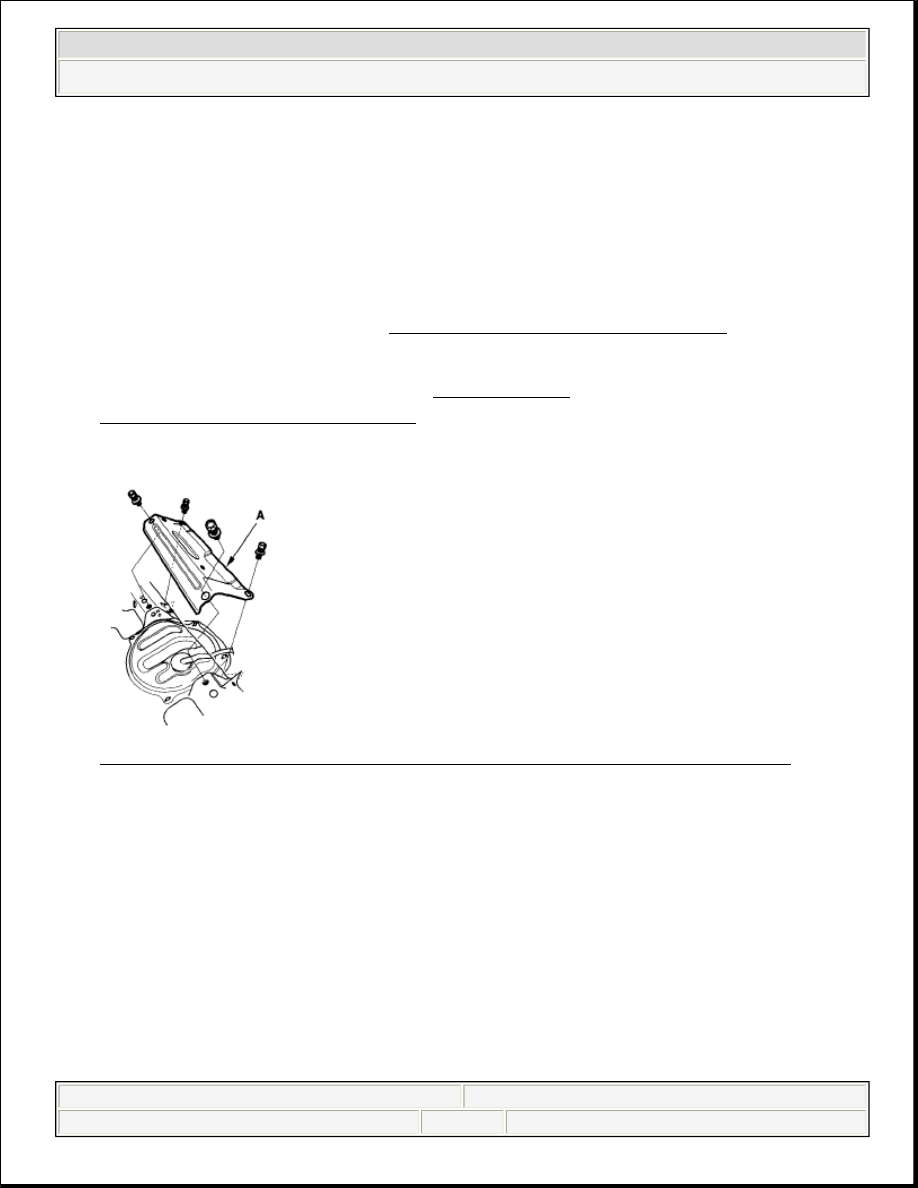

Fig. 46: Removing Rear Floor Upper Cross-Member Bolt And Nuts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Remove the access panel (A) from the floor.



2008 Honda Civic GX

2006-08 ENGINE PERFORMANCE Fuel Supply System (R18A1) - Civic (Except Hybrid)



































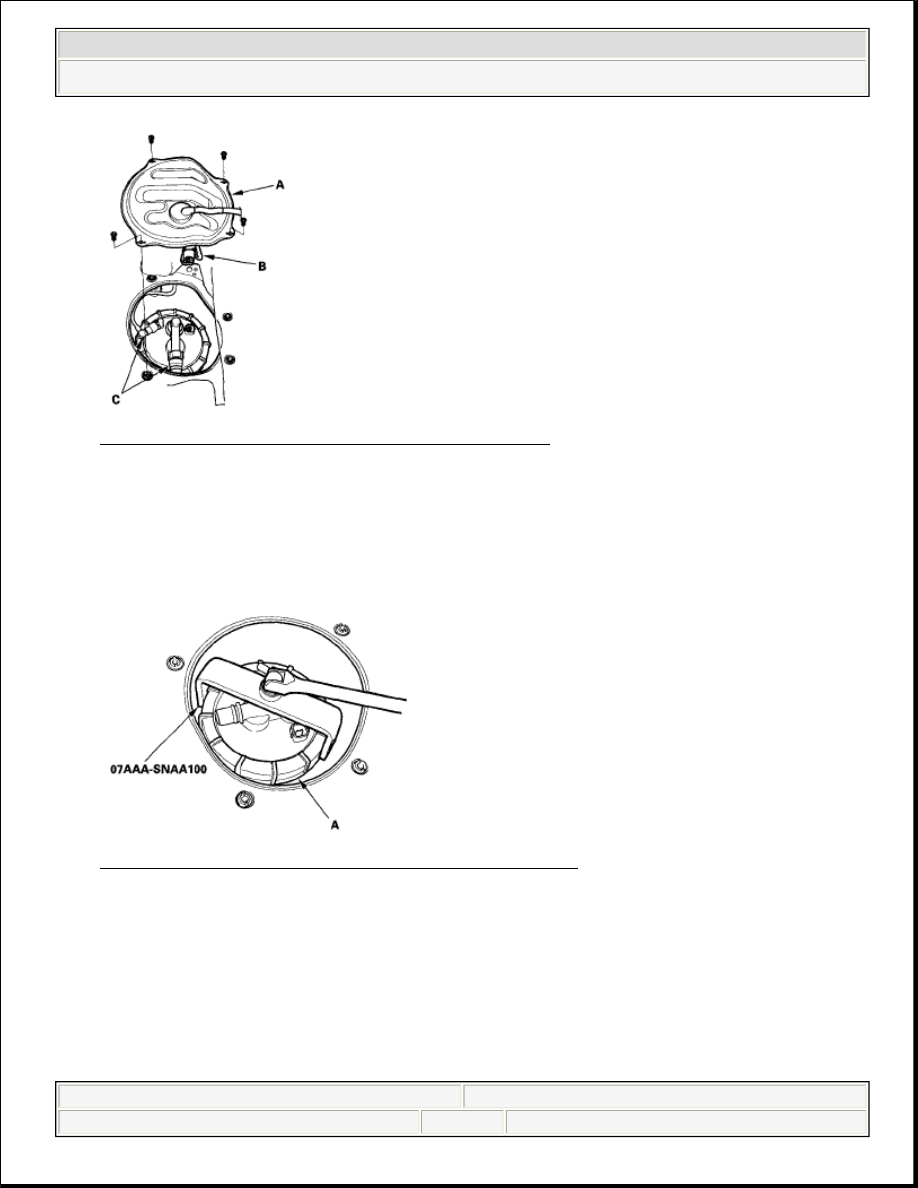

Fig. 47: Removing Access Panel From Floor
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Disconnect the fuel tank unit 4P connector (B).
7. Disconnect the quick-connect fittings (C) from the fuel tank unit.
8. Using the special tool, loosen the locknut (A).

Fig. 48: Loosening Locknut Using Special Tool
Courtesy of AMERICAN HONDA MOTOR CO., INC.

9. Remove the locknut (A) and the fuel tank unit (B).



2008 Honda Civic GX

2006-08 ENGINE PERFORMANCE Fuel Supply System (R18A1) - Civic (Except Hybrid)
