Honda Civic. Manual - part 644





Fig. 8: Identifying Front Fender Fairing

5. Install the fender fairing in the reverse order of removal, and note these items:



Check if the clips are damaged or stress-whitened, and if necessary,
replace them with new ones.



Push the clips and hooks into place securely.

MIDDLE FLOOR UNDERCOVER REPLACEMENT

FOR SOME MODELS

1. Remove the bolts (A), and detach the clips (B), then remove the left middle

floor undercover (C) and right middle undercover (D).

NOTE:

Take care not to scratch the body.

NOTE:

To remove the clips B, pry the inner clip up at the edge
near the line (E) on its head.



2008 Honda Civic EX

2006-08 ACCESSORIES AND EQUIPMENT Fenderwell - Civic (All Except Hybrid)

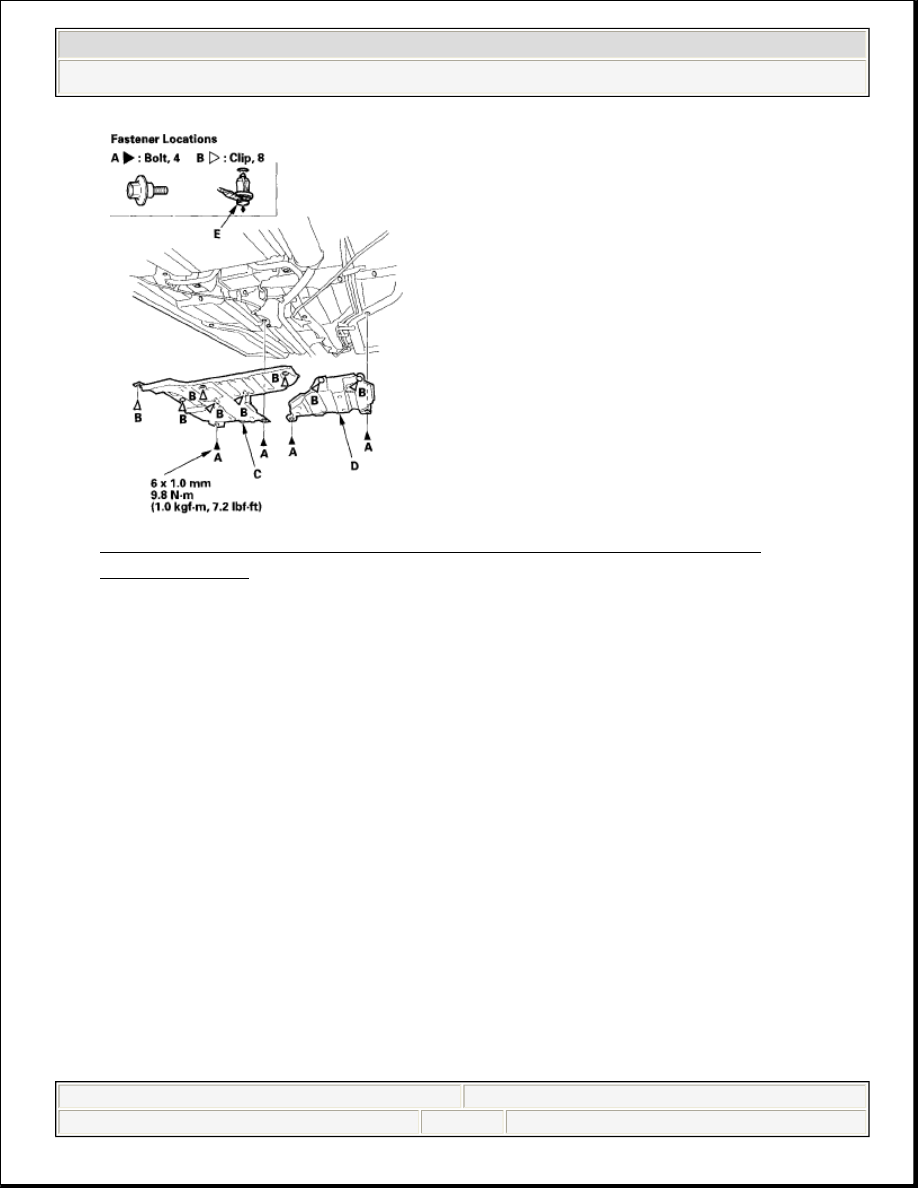

Fig. 9: Identifying Middle Floor Undercover Clips (With Torque
Specifications)


2. Install the undercover in the reverse order of removal, and note these items:



Check if the clips are damaged or stress-whitened, and if necessary,
replace them with new ones.



Push the clips into place securely.

REAR FLOOR UNDERCOVER REPLACEMENT

FOR SOME MODELS

1. Remove the clips (A) and bolts (B), then remove the rear floor undercover (C).

Take care not to scratch the rear bumper (D).



2008 Honda Civic EX

2006-08 ACCESSORIES AND EQUIPMENT Fenderwell - Civic (All Except Hybrid)

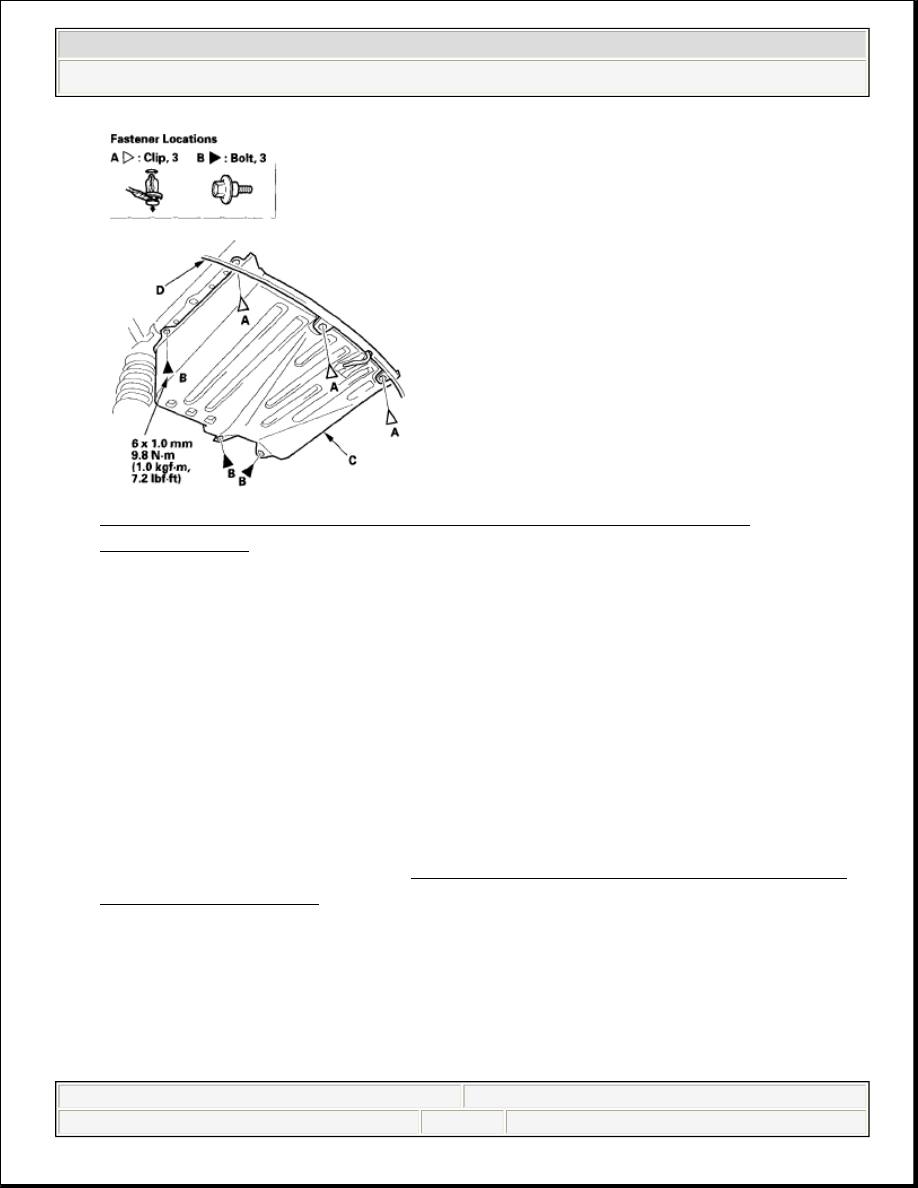

Fig. 10: Identifying Rear Floor Undercover Clips (With Torque
Specifications)


2. Install the cover in the reverse order of removal, and note these items:



Check if the clips are damaged or stress-whitened, and if necessary,
replace them with new ones.



Push the clips into place securely.

FUEL PIPE PROTECTOR REPLACEMENT

1. Remove the left rear wheel (see HUB BEARING UNIT REPLACEMENT-

DISC BRAKE TYPE ).

2. Remove the clips, then remove the fuel pipe protector (A).

NOTE:



Take care not to scratch the body.



Put on gloves to protect your hands.



2008 Honda Civic EX

2006-08 ACCESSORIES AND EQUIPMENT Fenderwell - Civic (All Except Hybrid)

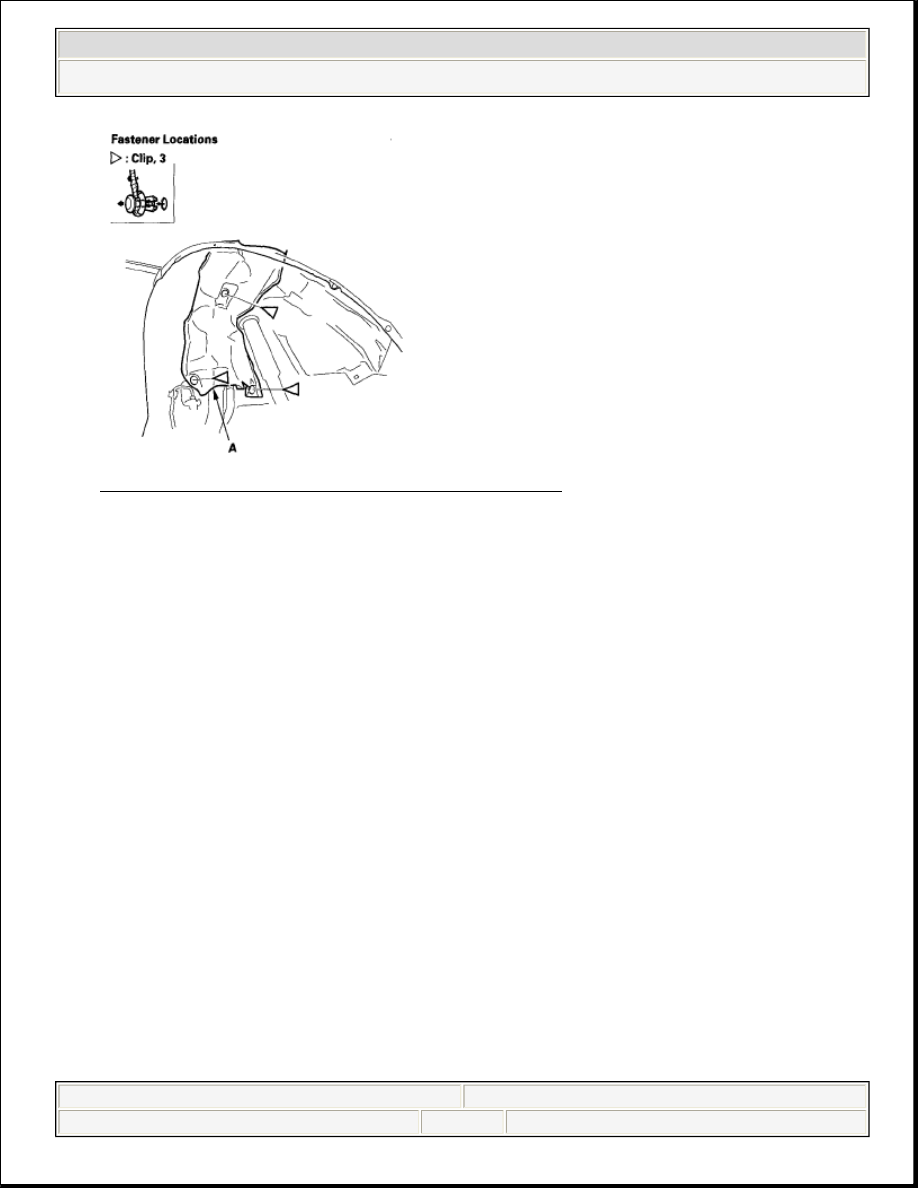

Fig. 11: Identifying Fuel Pipe Protector Clips

3. Install the protector in the reverse order of removal, and note these items:



Check if the clips are damaged or stress-whitened, and if necessary,
replace them with new ones.



Push the clips into place securely.

REAR FENDER COVER REPLACEMENT

FOR SOME MODELS

1. Remove the screws, then remove the rear fender cover (A) from the rear

bumper (B) and body.

NOTE:

Take care not to scratch the rear bumper and body.



2008 Honda Civic EX

2006-08 ACCESSORIES AND EQUIPMENT Fenderwell - Civic (All Except Hybrid)
